Sony XR-CA360X Manuale utente

Actual total number: Sony XR-CA360X/CA360 (GB,AR) 3-246-852-32(1)

Operating Instructions

2003 Sony Corporation

FM/MW/SW

Cassette Car

Stereo

For installation and connections, see the supplied installation/connections

manual.

3-246-852-32 (1)

XR-CA360X

XR-CA360

Welcome !

Thank you for purchasing this Sony Cassette

Player.

In addition to the cassette playback and radio

operations, you can expand your system by

connecting an optional CD/MD unit*1.

When you operate this unit or a connected

optional CD unit with the CD TEXT function,

the CD TEXT information will appear in the

display when you play a CD TEXT disc*2.

*1You can connect a CD changer, an MD changer,

a CD player, or an MD player.

*2A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,

and track names.

This information is recorded on the disc.

Precautions

•If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

•If no sound comes from the speakers of a

2-speaker system, set the fader control to the

center position.

•When a tape is played back for a long period,

the cassette may become warm because of

the built-in power amplifier. However, this is

not a sign of malfunction.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

To maintain high quality sound

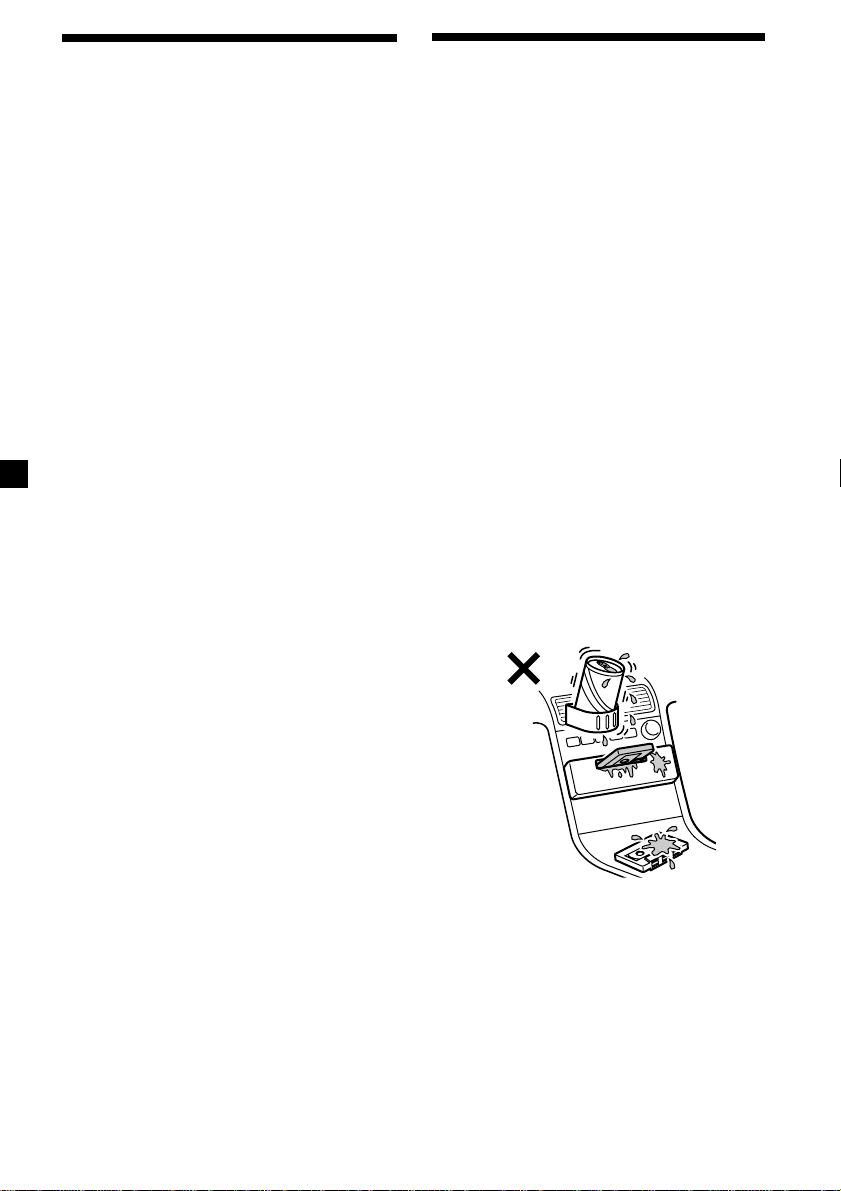

If you have drink holders near your audio

equipment, be careful not to splash juice or

other soft drinks onto the car audio. Sugary

residues on this unit or cassette tapes may

contaminate the playback heads, reduce the

sound quality, or prevent sound reproduction

altogether.

Cassette cleaning kits cannot remove sugar

from the tape heads.

Notes on Cassettes

Cassette care

•Do not touch the tape surface of a cassette, as

any dirt or dust will contaminate the heads.

•Keep cassettes away from equipment with

built-in magnets such as speakers and

amplifiers, as erasure or distortion on the

recorded tape could occur.

•Do not expose cassettes to direct sunlight,

extremely cold temperatures, or moisture.

•Slack in the tape may cause the tape to be

caught in the machine. Before you insert the

tape, use a pencil or similar object to turn the

reel and take up any slack.

•Distorted cassettes and loose labels can cause

problems when inserting or ejecting tapes.

Remove or replace loose labels.

•The sound may become distorted while

playing the cassette. The cassette player head

should be cleaned after each 50 hours of use.

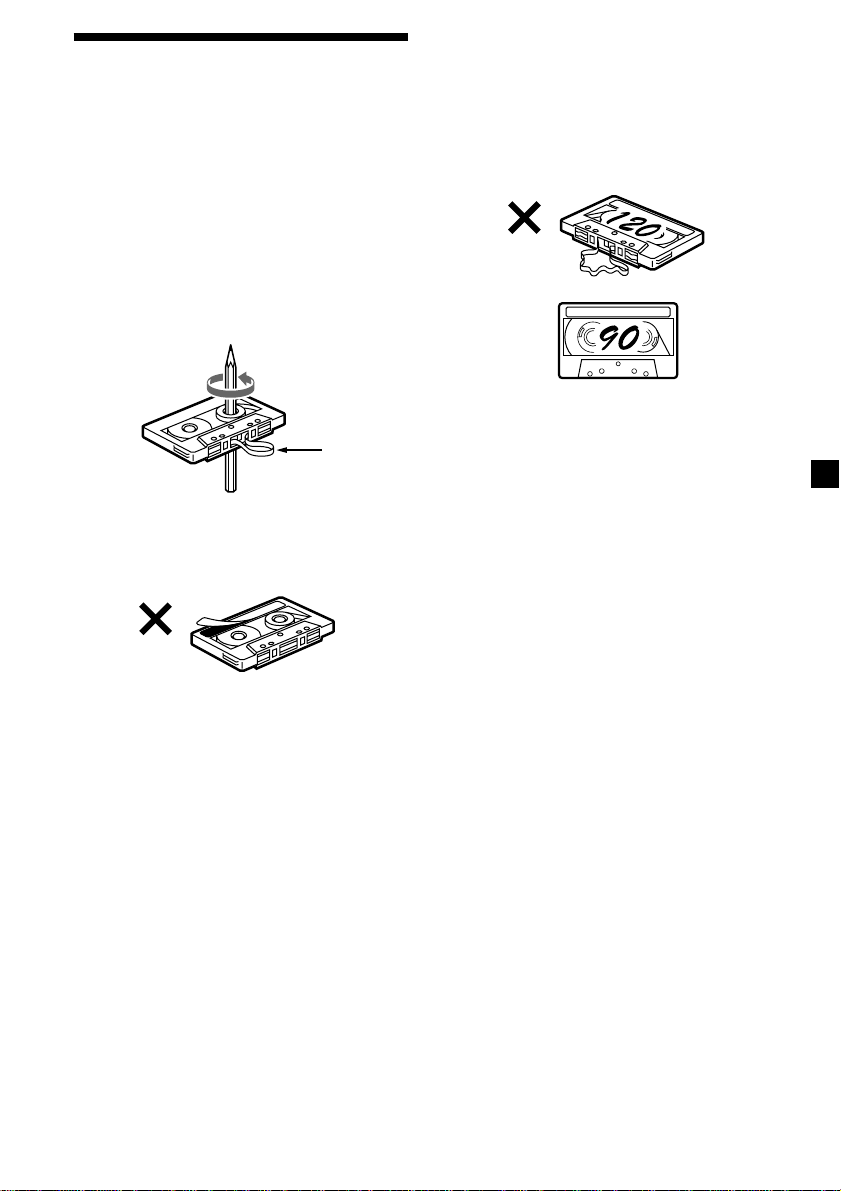

Slack

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is

not recommended except for long continuous

play. The tape used for these cassettes is very

thin and tends to stretch easily. Frequent

playing and stopping of these tapes may cause

them to become entangled in the cassette deck

mechanism.

Table of Contents

This Unit Only With Optional Equipment

Location of controls ................................................. 5

Getting Started

Resetting the unit ................................................ 6

Detaching the front panel .................................. 6

Setting the clock .................................................. 7

Cassette Player

Listening to a tape ............................................... 7

Radio reception during fast-forwarding or

rewinding of a tape

— Automatic Tuner Activation (ATA) ....... 8

Radio

Storing stations automatically

— Best Tuning Memory (BTM) ................... 8

Storing only the desired stations ...................... 9

Receiving the stored stations ............................. 9

Other Functions

Adjusting the balance and fader ..................... 10

Attenuating the sound ..................................... 10

Changing the sound and display settings ..... 10

Setting the equalizer

— EQ3............................................................ 11

CD/MD Unit

Playing a CD or MD ......................................... 12

Playing tracks repeatedly

— Repeat Play .............................................. 13

Playing tracks in random order

— Shuffle Play .............................................. 13

Additional Information

Maintenance....................................................... 14

Removing the unit ............................................ 15

Specifications ..................................................... 16

Troubleshooting guide ..................................... 17

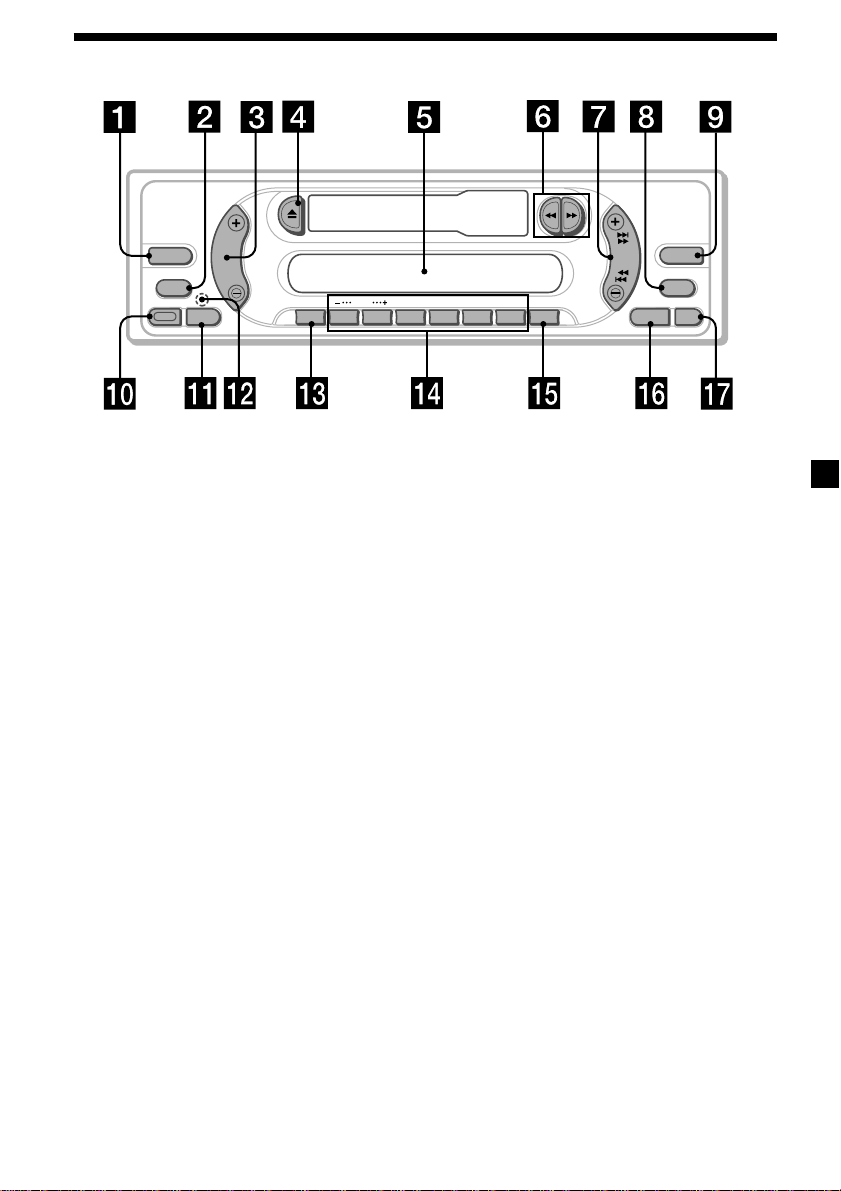

Location of controls

Refer to the pages listed for details.

1SOURCE (Radio/CD/MD) button

8, 9, 11, 12

2MODE button

During radio reception:

Band select 8, 9

During CD/MD playback:

CD/MD unit select 12

3Volume +/– button 7, 10, 11

4Z(eject) button 7, 8, 9, 12

5Display window

6m/M(fast winding)/DIR (tape

transport direction change) buttons 7, 8

7SEEK button

Seek 9

Automatic Music Sensor 13

Manual search 13

8DSPL (display mode change) button

7, 12

9EQ3 button 11

q; RELEASE (front panel release) button

6, 14

qa SEL (select) button 7, 10, 11, 12

qs RESET button (located on the front side

of the unit behind the front panel) 6

qd ATT (attenuate) button 10

qf Number buttons 10, 12

During radio reception:

Preset number select 9

During CD/MD playback:

(1) DISC – 13

(2) DISC + 13

(3) REP 13

(4) SHUF 13

qg BTM/ATA button 8

qh SENS button 9

qj OFF button*6

*Warning when installing in a car

without ACC (accessory) position on

the ignition key switch

Be sure to press (OFF) on the unit for 2

seconds to turn off the clock display after

turning off the engine.

When you press (OFF) momentarily, the

clock display does not turn off and this

causes battery wear.

XR-CA360X/CA360

SOURCE

MODE

SEL

RELEASE

EQ3

DSPL

ATT

DISC REP

SHUF

ATA

123456

BTM

OFFSENS

SEEK

DIR

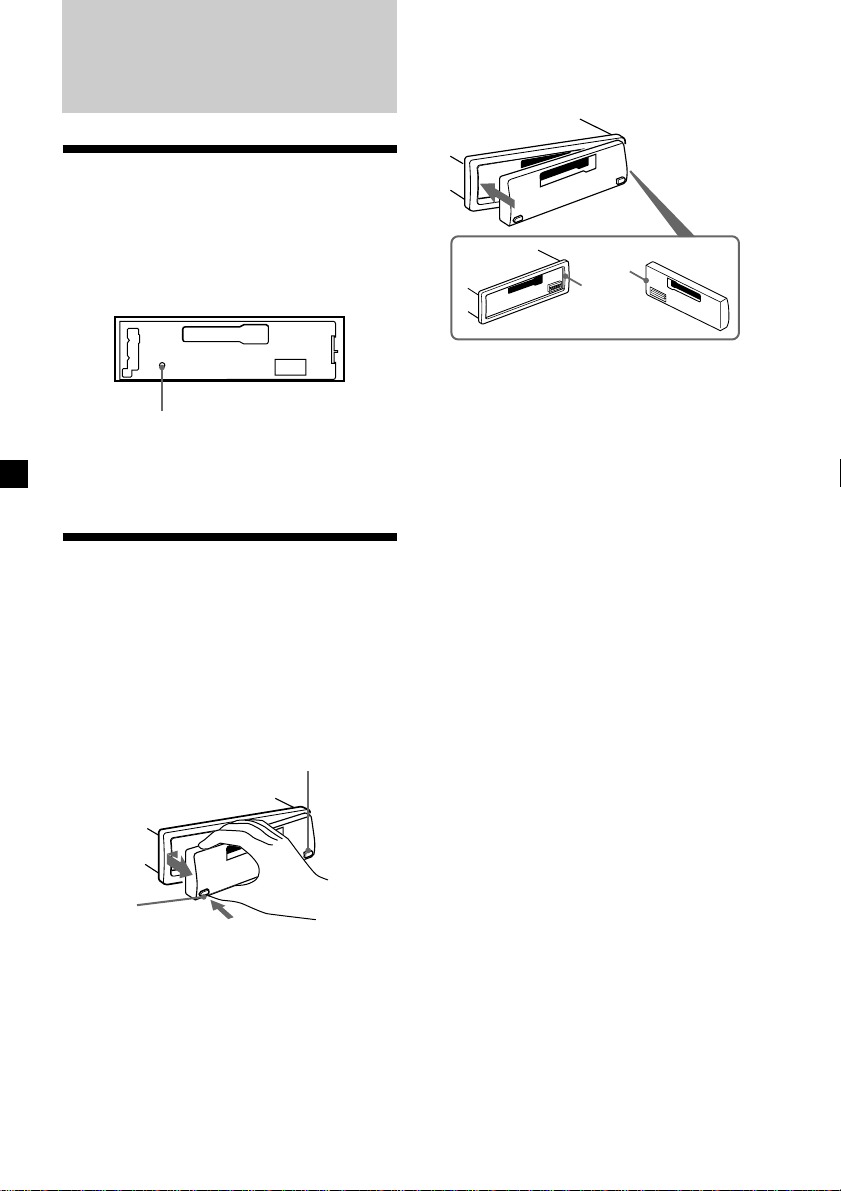

Attaching the front panel

Attach part Aof the front panel to part Bof

the unit as illustrated and push the left side

into position until it clicks.

Notes

•Be sure not to attach the front panel upside

down.

•Do not press the front panel too hard against the

unit when attaching it.

• Do not press too hard or put excessive pressure

on the display window of the front panel.

•Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the car ignition off without

removing the front panel, the caution alarm

will beep for a few seconds.

If you connect an optional power amplifier and

do not use the built-in amplifier, the beep

sound will be deactivated.

Getting Started

Resetting the unit

Before operating the unit for the first time, or

after replacing the car battery or changing the

connections, you must reset the unit.

Remove the front panel and press the RESET

button with a pointed object, such as a

ballpoint pen.

Note

Pressing the RESET button will erase the clock

setting and some memorised functions.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (RELEASE), then slide the front

panel a little to the left, and pull it off

towards you.

Notes

•Be sure not to drop the panel when detaching it

from the unit.

•If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

•When carrying the front panel with you, use the

supplied front panel case.

RESET button

(OFF)

(RELEASE)

Cassette Player

Listening to a tape

Insert a cassette.

Playback starts automatically.

The side facing up is played.

The side facing down is played.

Tip

To change the tape‘s playback direction, press m

and M.

To stop playback and eject the

cassette

Press Z.

Fast-winding the tape

During playback, press mor M.

*The indicator will flash while fast-winding the

tape.

To start playback during fast-forwarding or

rewinding, press the other fast-winding button

partially until the locked button is released.

To rewind

Direction

indicator*

FWD

REV

To advance

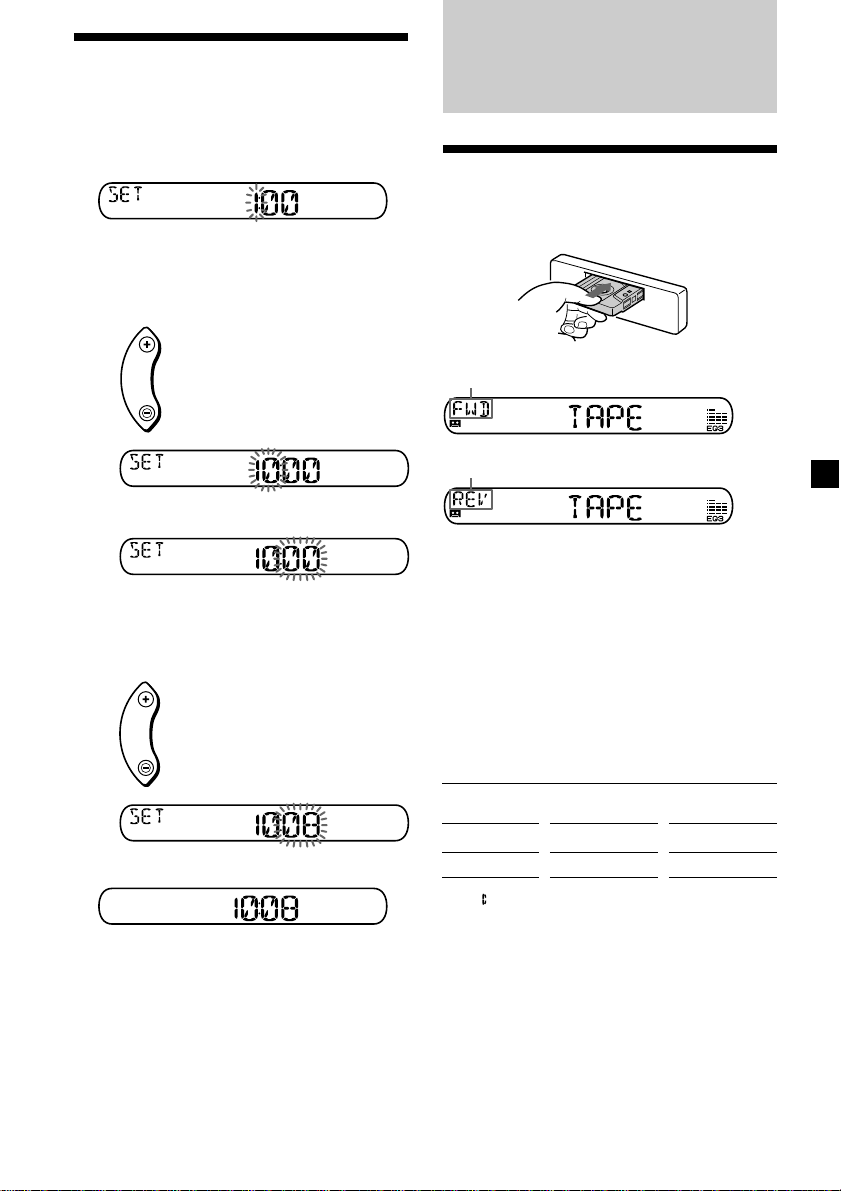

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (DSPL) for 2 seconds.

The hour indication flashes.

1Press either side of the volume button

to set the hour.

2Press (SEL).

The minute indication flashes.

3Press either side of the volume button

to set the minute.

2Press (DSPL).

The clock starts.

After the clock setting is complete, the

display returns to normal play mode.

to go forward

to go back

to go forward

to go back

Radio

Storing stations

automatically

— Best Tuning Memory (BTM)

The unit selects the stations with the strongest

signals and stores them in the order of their

frequencies. You can store up to 6 stations on

each band (FM1, FM2, FM3, MW, SW1, and

SW2).

Caution

When tuning in stations while driving, use

Best Tuning Memory to prevent accidents.

1Press (SOURCE) repeatedly to select the

radio.

In case of tape playback, press Zto eject the

tape.

Each time you press (SOURCE), the source

changes as follows:

Radio tCD*tMD*

*If the corresponding optional equipment is

not connected, this item will not appear.

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band

changes as follows:

FM1 tFM2 tFM3 tMW tSW1tSW2

3Press (BTM) (ATA) for 2 seconds.

The unit stores stations in the order of their

frequencies on the number buttons.

A beep sounds when the setting is stored.

Notes

•The unit does not store stations with weak

signals. If only a few stations can be received,

some number buttons will retain their former

setting.

• When a number is indicated in the display, the

unit starts storing stations from the one currently

displayed.

Radio reception during

fast-forwarding or

rewinding of a tape

— Automatic Tuner Activation (ATA)

When fast-forwarding or rewinding with the

mor Mbutton, the radio will turn on

automatically.

During playback, press (BTM) (ATA)

repeatedly until “ATA-ON” in the display

appears.

ATA-ON yATA-OFF

ATA mode starts.

To return to normal play mode, select “ATA-

OFF.”

Storing only the desired

stations

You can preset up to 18 FM stations (6 each for

FM1, 2, and 3), up to 6 MW stations, and up to

12 SW stations (6 each for SW1 and 2) in the

order of your choice.

1Press (SOURCE) repeatedly to select the

radio.

In case of tape playback, press Zto eject the

tape.

2Press (MODE) repeatedly to select the

band.

3Press either side of (SEEK) to tune in the

station that you want to store on the

number button.

4Press the desired number button ((1) to

(6)) until “MEM” appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same

number button, the previously stored station will

be erased.

Receiving the stored

stations

1Press (SOURCE) repeatedly to select the

radio.

In case of tape playback, press Zto eject the

tape.

2Press (MODE) repeatedly to select the

band.

3Press the number button ((1) to (6)) on

which the desired station is stored.

If you cannot tune in a preset

station

— Automatic tuning/Local Seek Mode

Automatic tuning:

Press either side of (SEEK) to search for

the station.

Scanning stops when the unit receives a

station. Press either side of (SEEK)

repeatedly until the desired station is

received.

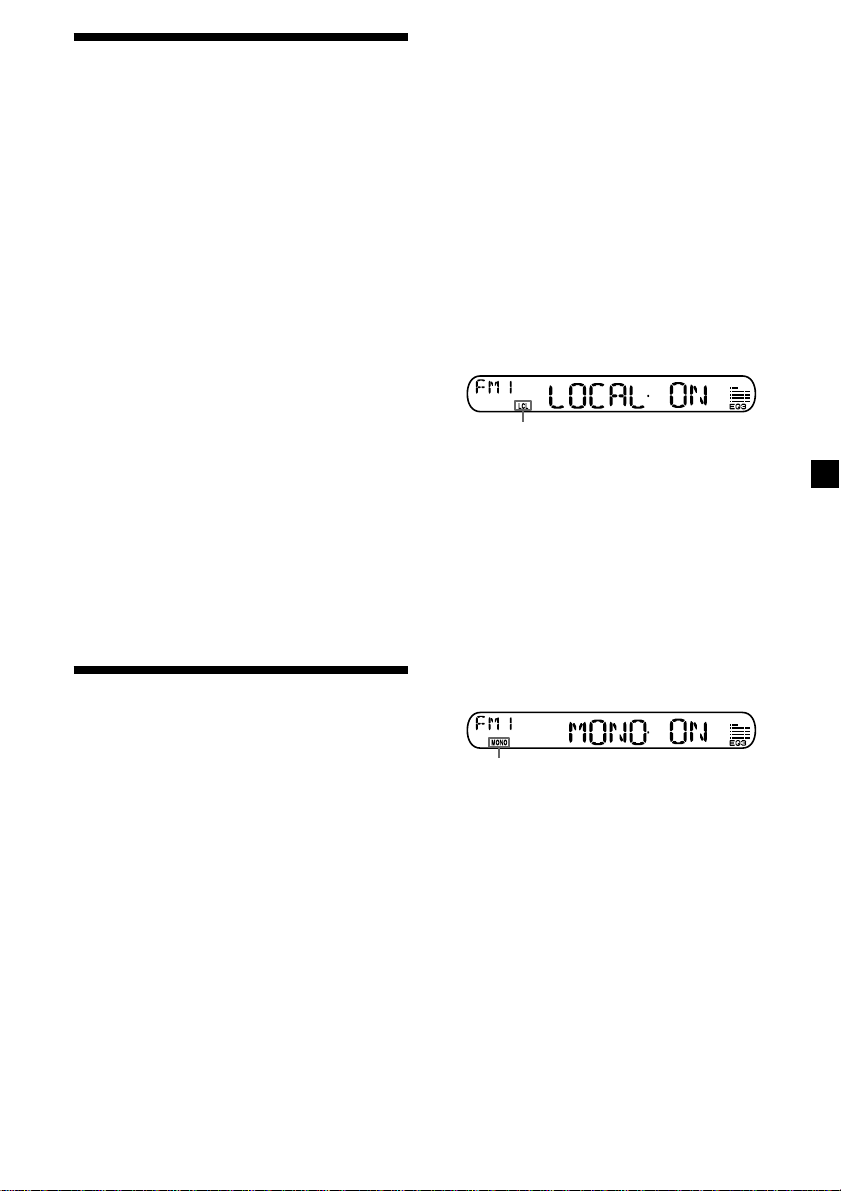

Local Seek Mode:

If the automatic tuning stops too

frequently, press (SENS) repeatedly until

“LOCAL-ON” appears.

“LCL” indicator is displayed.

Only the stations with relatively strong

signals will be tuned in.

Tip

If you know the frequency of the station you want

to listen to, press either side of (SEEK) until the

desired frequency appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

During radio reception, press (SENS)

repeatedly until “MONO-ON” appears.

“MONO” indicator is displayed.

The sound improves, but becomes

monaural (“ST” disappears).

To return to normal radio reception mode,

select “MONO-OFF.”

Changing the sound and

display settings

The following items can be set:

•A.SCRL (Auto Scroll)*(page 12).

•M.DSPL (Motion Display)

– the demonstration mode which appears

when the tape is ejected and no source is

selected (e.g., tuner is turned off).

•BEEP – to turn the beep sound on or off.

1Press (SEL) and the desired preset

number button simultaneously.

(SEL) + (3): A.SCRL*

(SEL) + (4): M.DSPL

(SEL) + (6): BEEP

*When no CD or MD is playing, this item will

not appear.

2Press (SEL) and the preset number

button repeatedly to select the desired

setting (Example: ON or OFF).

Other Functions

Adjusting the balance and

fader

You can adjust the balance and fader.

1Press (SEL) repeatedly until “BAL” or

“FAD” appears.

Each time you press (SEL), the item

changes as follows:

LOW*tMID*tHIGH*t

BAL (left-right) tFAD (front-rear)

*When EQ3 is activated (page 11).

2Press either side of the volume button to

adjust the selected item.

Adjust within 3 seconds after selecting the

item.

Attenuating the sound

Press (ATT).

After “ATT-ON” momentarily flashes, the

“ATT” indication appears in the display.

To restore the previous volume level, press

(ATT) again.

“ATT-OFF” flashes momentarily.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Ricevitore per auto

Sony

Sony FM/AM CASSETTE XR-C5120 Manuale utente

Sony

Sony MEX-BT4100U Manuale utente

Sony

Sony XR-C900RDS Manuale utente

Sony

Sony CDX-L550X - Fm/am Compact Disc Player Manuale utente

Sony

Sony CDX-F5700 - Fm/am Compact Disc Player Manuale utente

Sony

Sony Model CDX-L280 Manuale utente

Sony

Sony DSX-S300BTX Manuale utente

Sony

Sony CDXM60UI - Marine CD Receiver MP3/WMA/AAC... Manuale utente

Sony

Sony HCD-MX700Ni Manuale utente

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Guida del prodotto

Sony

Sony CDXGT640UI - MP3/WMA/AAC Player CD Receiver Manuale utente

Sony

Sony CDXM60UI - Marine CD Receiver MP3/WMA/AAC... Guida del prodotto

Sony

Sony MEX-BT3700U Manuale utente

Sony

Sony Xplod CDX-GT130 Manuale utente

Sony

Sony XR-CA320A Manuale utente

Sony

Sony XR-1953 Guida del prodotto

Sony

Sony XAV-65 Manuale utente

Sony

Sony CDX-GT610UI - Cd Receiver With Ipod... Guida del prodotto

Sony

Sony CDX-5100 Guida del prodotto

Sony

Sony MDX-CA680X Manuale utente

Sony

Sony CDX-GT21W - 200w Cd Receiver Manuale utente

Sony

Sony CDX-L510X - Fm/am Compact Disc Player Manuale utente

Sony

Sony CDX-S2210 - Fm/am Compact Disc Player Manuale utente

Sony

Sony MEX-BT3000P Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente

Medion

Medion Car Audio Manuale utente

Philips

Philips CEM5000 Manuale utente
