Sony Super HAD CCD SSC-DC314 Manuale utente
COLOR VIDEO CAMERA
SSC-DC314
SSC-DC310P
SSC-DC318P
SERVICE MANUAL
1st Edition (Revised 1)
SSC-DC314/DC318P/DC310P (UC, CE)

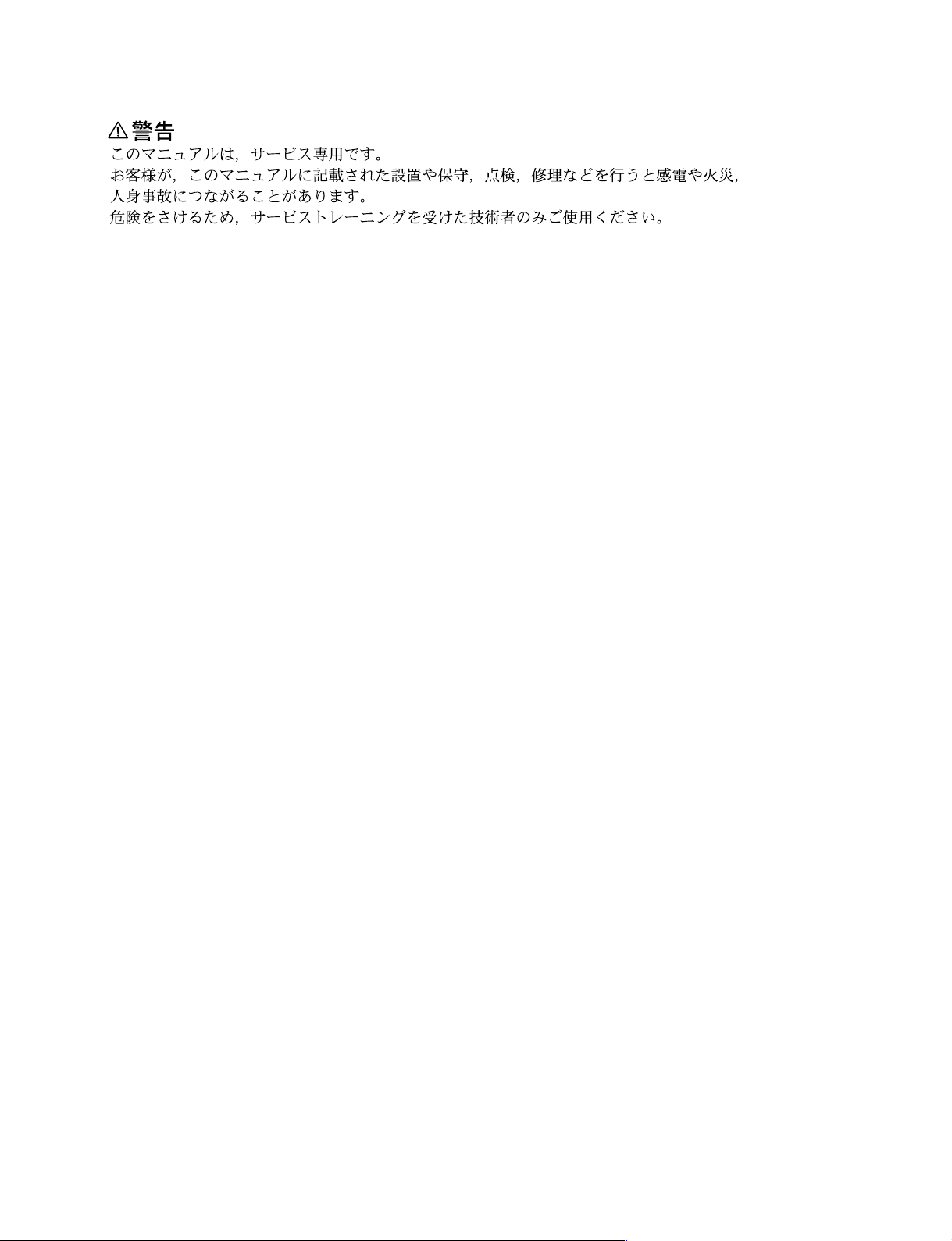

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien.Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1
SSC-DC314/DC318P/DC310P (UC, CE)
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 5
Related manuals......................................................................................................... 5
1. Operating Instructions
2. Service Overview
2-1. Removal of the Main Parts..........................................................................2-1
2-1-1. Front Block.................................................................................2-1
2-1-2. Filter Block.................................................................................2-2
2-2. Replacement of Power Cord (SSC-DC318P Only) ....................................2-2
3. Operating Description
3-1. BI-146 Board...............................................................................................3-1
3-2. MB-925 Board ............................................................................................3-1
3-3. PS-609 Board (For SSC-DC310P)..............................................................3-1
3-4. AC-207 Board (For SSC-DC314/DC318P) ................................................3-2
3-5. CT-215 Board..............................................................................................3-2
4. Adjustments
4-1. Preparations.................................................................................................4-1
4-1-1. Equipment Required...................................................................4-1
4-1-2. Connections for Adjustment ......................................................4-2
4-1-3. Adjustment Commander ............................................................4-2
4-1-4. Adjustmant Commander Relay Tool .........................................4-3
4-1-5. Chart to Select Items Requiring Adjustment .............................4-3
4-2. Adjustment Method.....................................................................................4-4
4-2-1. Preparations for Adjustment ......................................................4-4
4-2-2. Writing in Initial Data ................................................................4-4
4-3. Camera Adjustment.....................................................................................4-5
4-3-1. Setting up the Prepare for Adjustment Mode.............................4-5
4-3-2. INT VCXO Adjustment .............................................................4-5
4-3-3. SYNC Level Adjustment ...........................................................4-5
4-3-4. Burst Level Adjustment .............................................................4-5
4-3-5. SET UP Adjustment ...................................................................4-6
4-3-6. OB Level Adjustment ................................................................4-6
2SSC-DC314/DC318P/DC310P (UC, CE)
4-3-7. White Clip Level Adjustment ....................................................4-6
4-3-8. 0 dB Adjustment ........................................................................4-7
4-3-9. Y Level Adjustment ...................................................................4-7
4-3-10. AGC MAX Adjustment .............................................................4-8
4-3-11. Color Reproduction ....................................................................4-8
4-3-12. VCO Adjustment (SSC-DC314/DC318P) .................................4-9
4-3-13. Data Write ..................................................................................4-9
4-4. Checking After Adjustment ......................................................................4-10
4-4-1. Checking INT VCXO Adjustment ...........................................4-10
4-4-2. Checking SYNC Level Adjustment .........................................4-10
4-4-3. Checking Burst Level Adjustment ...........................................4-10
4-4-4. Checking SET UP Adjustment.................................................4-10
4-4-5. Checking White Clip Level Adjustment ..................................4-10
4-4-6. Checking 0 dB Adjustment ......................................................4-11
4-4-7. Checking Y Level Adjustment .................................................4-11
4-4-8. Checking AGC Adjustment .....................................................4-12
4-4-9. Checking Color Reproduction Adjustment ..............................4-12
4-4-10. Checking VCO Adjustment (SSC-DC314/DC318P)...............4-12
5. Spare Parts
5-1. Notes on Repair Parts..................................................................................5-1
5-2. Exploded View and Parts List.....................................................................5-2
5-2-1. SSC-DC314................................................................................5-2
5-2-2. SSC-DC318P..............................................................................5-4
5-2-3. SSC-DC310P..............................................................................5-6
5-3. Electrical Parts List .....................................................................................5-8
5-4. Packing Materials & Supplied Accessories ..............................................5-18
6. Semiconductor Pin Assignments
7. Block Diagrams
7-1. Board Location............................................................................................7-1
7-2. Overall Block Diagrams..............................................................................7-2
3
SSC-DC314/DC318P/DC310P (UC, CE)
8. Schematic Diagrams
Frame Wiring (SSC-DC314/DC318P)........................................................8-1
Frame Wiring (SSC-DC310P) ...................................................................8-2
AC-207 ........................................................................................................8-3
BI-146 .........................................................................................................8-3
CT-215 ........................................................................................................8-3
MB-925 .......................................................................................................8-5
PS-609 .........................................................................................................8-7
9. Board Layouts
AC-207 ........................................................................................................9-1
BI-146 .........................................................................................................9-2
CT-215 ........................................................................................................9-2
MB-925 .......................................................................................................9-3
PS-609 .........................................................................................................9-4
5
SSC-DC314/DC318P/DC310P (UC, CE)
Purpose of this manual This manual is the Service Manual of the color video camera SSC-DC314/DC310P/
DC318P.
This manual contains the operating instructions, service overview,
circuit descrip-
tion,
adjustments,
spare parts, semiconductor pin assignments, block diagrams,
schematic diagrams and board layouts.
Related manuals In addition to this Service Manual, the following manuals are provided for this unit.
..
..
.Operating Instructions
(Supplied with the SSC-DC314/DC310P/DC318P)
This manual is required for the proper operation and application of this unit.
Part of the Operating Instructions is included also in this Service Manual, in
Section 1, “Operating Instructions” .
Part number: 3-205-479-11
..
..
.“Semiconductor Pin Assignments” CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in B&P Company equipment.
Semiconductors that cannot be searched for on this CD-ROM are listed in the
service manual for the corresponding unit. The service manual contains a com-
plete list of all semiconductors and their ID Nos., and thus should be used together
with the CD-ROM.
Part number: 9-968-546-XX
Manual Structure
1-1
SSC-DC314/DC318P/DC310P (UC, CE)
Section 1
Operating Instructions Reprinted from the
operating instructions
3-205-479-11 (1)
Sony Corporation 2000
Printed in Japan
Owner’s Record
The model and serial numbers are located on the bottom.
Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. Serial No.
Color Video Camera
Operating Instructions
Before operating the unit, please read these instructions
thoroughly and retain them for future reference.
Mode d’emploi
Avant de faire fonctionner cet appareil, lisez attentivement le
présent mode d’emploi et conservez-le pour toute référence
ultérieure.
Manual de instrucciones
Antes de utilizar la unidad, lea las instrucciones con atención y
consérvelas para su consulta en el futuro.
SSC-DC314
SSC-DC310P/DC318P
NOTICE FOR THE SSC-DC314
The graphical simbol is on the unit.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.
WARNING
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the cabi-
net. Refer servicing to qualified personnel only.
For the customers in the U.S.A. (SSC-DC314 only)
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
The shielded interface cable recommended in this manual must be
used with this equipment in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou d’electrocution, ne
pas exposer cet appareil àla pluie ou àl’humidité.
Afin d’écarter tout risque d’électrocution, garder le coffret
fermé. Ne confier l’entretien de l’appareil qu’à un personnel
qualifié.
ADVERTENCIA
Para evitar incendios o el riesgo de electrocución, no
exponga la unidad a la lluvia ni a la humedad.
Para evitar descargas eléctricas, no abra la caja.
En caso de avería, solicite asistencia técnica a personal
cualificado.
1-2 SSC-DC314/DC318P/DC310P (UC, CE)
English
Features
This SSC-DC314/DC310P/DC318P color video camera is equipped
with a 1/3 type Super HAD CCD®*(Super Hole-Accumulated-Diode
CCD) and also has the following features:
•High sensitivity (Minimum illumination: 1.5 lux, F 1.2)
•CCD-IRIS function
•Automatic white balance tracking and adjustment (ATW)
•DC controlled auto-iris lens capability
•Backlight compensation through the center measurement
•Can be operated via power multiplex or DC 12 V (SSC-DC310P)
•Line lock function (SSC-DC314: 60 Hz, SSC-DC318P: 50 Hz)
*Super HAD CCD®is registered trademark of Sony Corporation.
Notes on Use
Power supply
•The SSC-DC314 must always be operated with an AC 24 V (60 Hz)
power supply. In the U.S.A, use a Class 2 power supply which is UL
Listed. In Canada, use a CSA-certified Class 2 power supply.
–When connecting the transformer, be sure to connect each lead to
the appropriate terminal. Wrong connection may cause malfunction
and/or damage to the video camera.
–Ground the unit or an irregular voltage may be generated in the AC
power cord and may cause malfunction and/or damage to the video
camera.
•The SSC-DC310P must always be operated with a DC 12 V power
supply or the YS-W170P/W270P camera adaptor (not supplied).
•The SSC-DC318P must always be operated with an AC 230 V (50 Hz)
power supply.
Handling
Be careful not to spill water or other liquids on the unit, or allow
combustible or metallic objects to fall inside the body. If used with
foreign matter inside, the camera is liable to fail, or be a cause of fire or
electric shock.
Operation and storage locations
Avoid aiming the camera at very bright objects such as the sun or
electric lights for an extended period. Avoid operating or storing the unit
in the following locations.
•Extremely hot or cold places (operating temperature –10 °C to + 50 °C
(14 °F to 122 °F))
•Damp or dusty places
•Where it is exposed to rain
•Where it is subject to strong vibration
•Close to generators of powerful electromagnetic radiation such as
radio or TV transmitters.
•Where it is subject to fluorescent light reflections
•Where it is subject to unstable (flickering, etc.) lighting conditions.
Care of the unit
•Remove dust or dirt on the surface of the lens or CCD with a blower.
•Use a dry, soft cloth to clean the body. If it is very dirty, use a cloth
dampened with a small quantity of neutral detergent, then wipe dry.
•Avoid using volatile solvents such as thinners, alcohol, benzene, and
insecticides. They may damage the surface finish and/or impair the
operation of the camera.
Other
•When BLC is in the “ON”position, “hunting”may occur, that is, the
image may get darker and lighter as the camera “hunts”for the best
exposure level. If hunting occurs, set the BLC switch to “OFF.”
•If you use the CCD-IRIS function in locations where the camera is
exposed to fluorescent light, a slow color change may occur.
In the event of any problems with the operation of the camera, contact
your Sony dealer.
