DDR CONTROL PANEL CASE KIT
BKMA-506
INSTALLATION MANUAL
1st Edition (Revised 1)
Serial No. 10001 and Higher
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
BKMA-506
1 (E)
BKMA-506
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Related manuals................................................................................................... 3 (E)
Contents ............................................................................................................... 3 (E)
1. Installation
1-1. Overview ............................................................................................... 1-1 (E)
1-2. Installation Space ..................................................................................1-1 (E)
1-3. Installing the Control Panel ................................................................... 1-2 (E)
1-4. Installing the Console ............................................................................ 1-4 (E)
2. Service Overview
2-1. Specifications ........................................................................................ 2-1 (E)
2-2. List of Periodic Replacement Parts ....................................................... 2-1 (E)
3 (E)
BKMA-506
Manual Structure
Purpose of this manual
This manual is the installation manual of the BKMA-506 DDR Control Panel Case
Kit.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Related manuals
Besides this Installation Manual, the following manuals are available for the
BKMA-506.
..
..
.MAV-555 Series
Maintenance Manual Volume 1 (available on request)
This manual describes the information that premises the service based on parts
replacement (diagnostics, parts replacement, electrical alignment, and circuit
descriptions, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
..
..
.MAV-555 Series
Maintenance Manual Volume 2 (available on request)
This manual describes the information that premise the service based on parts
replacement (parts list, block diagrams, schematic diagrams, board layouts, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents
The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains the overview of the BKMA-506, how to install the BKMA-506 to the
MAV-555.
Section 2 Service Overview
Explains the specifications and the list of periodic replacement parts of the BKMA-
506.
1-1 (E)
BKMA-506
Section 1
Installation
1-1. Overview
The BKMA-506 is the DDR control panel case kit in which the disk recorder control panel BKMA-505 is
housed. The disk recorder control panel BKMA-505 can control the multi access disk recorder MAV-
555/555A/555SS from a remote location when it is connected to the MAV-555/555A/555SS. At the
same time, the BKMA-506 enables the MAV-777 to be controlled from a remote location by installing
the control panel supplied with the multi access video disk recorder MAV-777. The DDR control panel
case kit BKMA-506 can be installed to the control console using the optional rack angle assemblies.
The BKMA-506 consists of the following unit and parts.
.BKMA-506 main unit
.Pad 2 pcs
.Connection cord 1 pc
.Rubber foot 2 pcs
.Screw (PS4 x14) 2 pcs
.Installation Manual
.Operation Guide
1-2. Installation Space

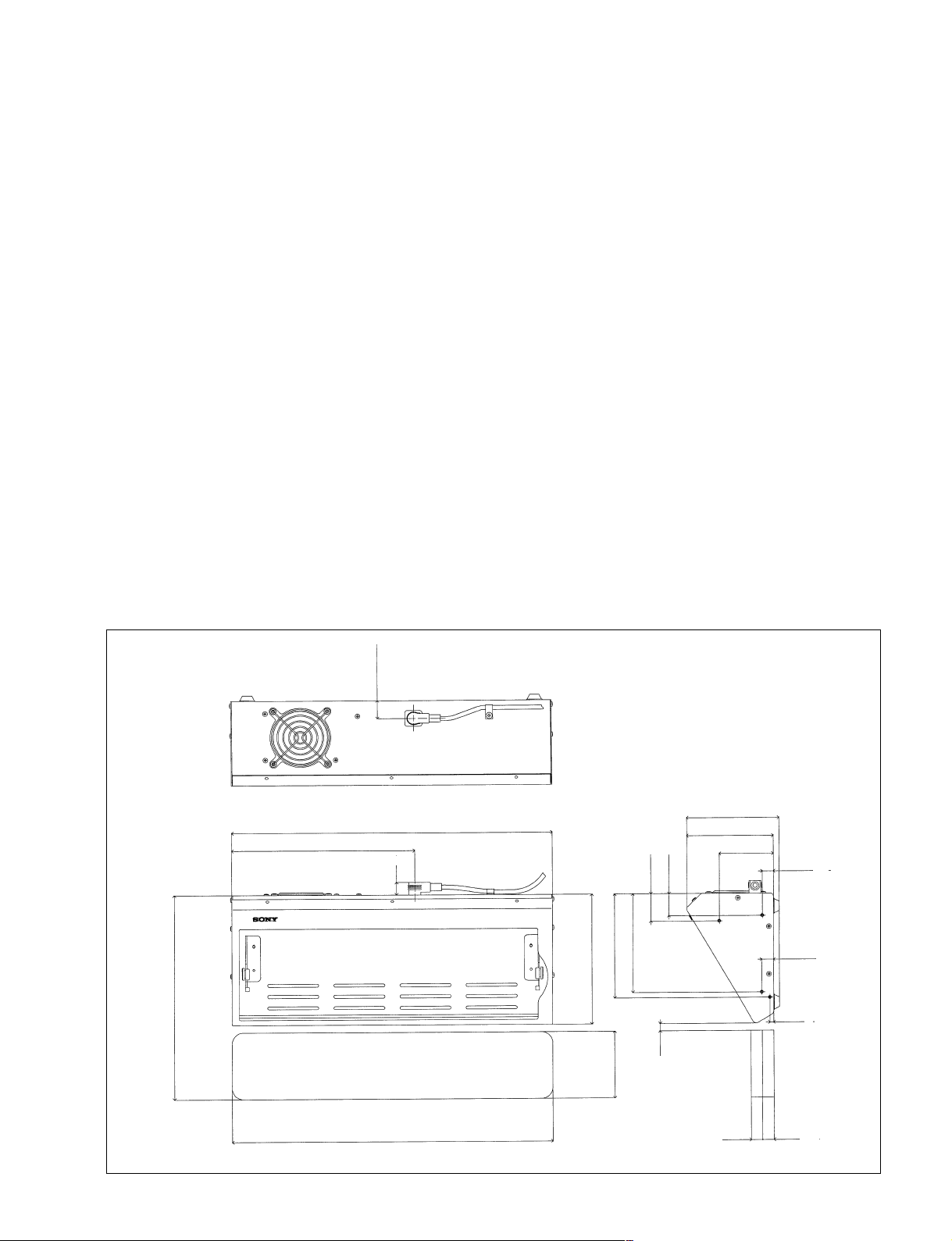

External dimensions
Unit : mm
24.3
424
241.8
(273.2)
424
88
175.2
141.3
134.2
(10)
15 15
5
15.7
14.8
37.2
29.7
122
114.4
71.7
17
1-2 (E) BKMA-506
B3 x 6
Case (A)
B3 x 6
B3 x 6
B3 x 6
B3 x 6
4. Attach the control panel and fasten the two coin
screws in the direction of the arrow.
5. Attach the case (A) in position from the front.
6. Attach the nine screws (B3 x6) in the order shown
below.
Coin screws
1
5
4
3
2
1
5
4
3
1-3. Installing the Control Panel
This section describes how to attach the control panel
(BKMA-505).
1. Remove the nine screws (B3 x6) and remove the case
(A) in the direction of the arrow.
2. Loosen the two coin screws.
3. Connect the cable of the control panel.
n
Route the cable so that it will not contact the fan.
1-3. Installing the Control Panel
Coin screw
Coin screw
Control panel
Fan
1-3 (E)
BKMA-506
Wire clamp
B4 x 8
Wire clamp
Connection cord
B4 x 8
Connection cord
(supplied)
Pad (supplied)
1-3. Installing the Control Panel
7. Remove the screw (B4 x8) and remove the wire
clamp.
8. Connect the supplied connection cord (10 m) and
attach the wire clamp.
9. Connect the panel to the front connector of the MAV-
555/555A/555SS/777.
n
The panel can be connected to the MAV-555/555A/555SS/
777 when the blank panel or the control panel is attached to
the MAV-555/555A/555SS/777.
However, the control panel of the MAV-555/555A/555SS/
777 cannot be used at the same time.
.Connecting when the blank panel is attached
When the MAV-555/555A/555SS/777 with the blank
panel closed is used, put the connection cord through the
notch on the left of the blank panel as shown below.
.Connecting when the control panel is attached
Use the MAV-555/555A/555SS/777 while the control pan-
el is opened. Be careful not to catch the connection cord.
Blank panel
Connector
Connection
cord
Connection cord
Connection
cord
Notch
1-4 (E) BKMA-506
1-3. Installing the Control Panel
1-4. Installing the Console
10. Turn on the main power and check the following
items.
.The fan on the rear of the control panel case must
rotate.
.The main unit can be operated from the control
panel.
When the panel is attached in a gentle angle
n
Adjust the number of pads as required.
The two pads are supplied with the BKMA-506.
When three or more pads are necessary, place an order
separately.
Pad : Sony part cord No. : 3-624-891-01 (1 piece)
11. Attach the two rubber feet with the two screws (PS
4 x14).
1-4. Installing the Console
Required tools
.Rack angle (4U) assembly : 2 pcs
(Sony part number : X-3678-549-1)
.Blank panel : 1 pc (as required)
.Ornamental washer : 4 pcs
(Sony part number : 2-297-913-01)
.Screw (PSW4 x12) : 4 pcs
(Sony part number : 7-682-963-01)
.Screw (RK5 x14) : 4 pcs
(Sony part number : 7-682-377-04)
PS4 x14 (supplied)
Pad
Rubber foot
(supplied)
