Sony Cyber-Shot DSC-KW1 Manuale utente

DSC-KW1/KW11

Reference Guide

Digital Still Camera

数码照相机/數位照相機/디지털

카메라/Dijital Fotoğraf Makinesi/

Kamera Digital/

Digital Still Camera

DSC-KW1/KW11DSC-KW1/KW11

4-548-279-11(1)4-548-279-11(1)

Printed in China

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS DANGER

-TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug

adaptor of the proper configuration for the power outlet.

Reference Guide

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or

even chemical burns. Observe the following cautions.

 Do not disassemble.

 Do not crush and do not expose the battery pack to any shock or force such

as hammering, dropping or stepping on it.

 Do not short circuit and do not allow metal objects to come into contact with

the battery terminals.

 Do not expose to high temperature above 60°C (140°F) such as in direct

sunlight or in a car parked in the sun.

 Do not incinerate or dispose of in fire.

 Do not handle damaged or leaking lithium ion batteries.

 Be sure to charge the battery pack using a genuine Sony battery charger or

a device that can charge the battery pack.

 Keep the battery pack out of the reach of small children.

 Keep the battery pack dry.

 Replace only with the same or equivalent type recommended by Sony.

 Dispose of used battery packs promptly as described in the instructions.

AC Adaptor

Use the nearby wall outlet (wall socket) when using the AC Adaptor.

Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if

any malfunction occurs while using the apparatus.

Notice

If static electricity or electromagnetism causes data transfer to discontinue

midway (fail), restart the application or disconnect and connect the

communication cable (USB, etc.) again.

This product has been tested and found compliant with the limits set out in

the EMC regulation for using connection cables shorter than 3 meters (9.8

feet).

The electromagnetic fields at the specific frequencies may influence the

picture and sound of this unit.

For Customers in Singapore

Checking the supplied items

If any of the following items

is not supplied, consult your

dealer.

The number in parentheses

indicates the number of

pieces.

 Camera (1)

 Ring Stand (1)

 Rechargeable battery pack NP-BN

(1) (This rechargeable battery pack

cannot be used with Cyber-shot

that are supplied with the NP-BN1

battery pack.)

 Micro USB cable (1)

 AC Adaptor AC-UB10C (1)

 Power cord (mains lead) (1) (for

countries or regions other than

China)

 Carrying Case (1)

 Reference Guide (this manual) (1)

 Startup Guide (1)

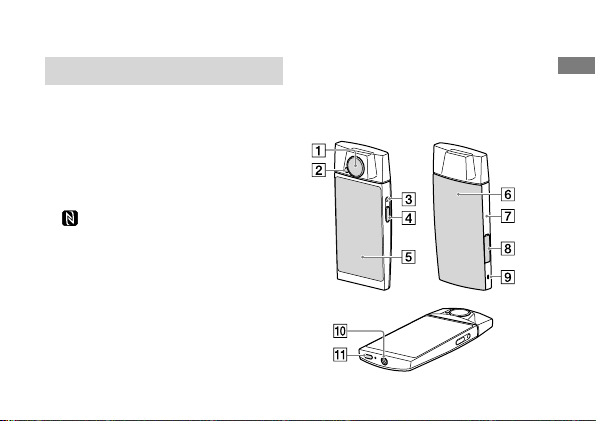

Identifying parts

Lens

LED light

ON/OFF (Power) button

Shutter button

OLED screen/Touch panel

Battery cover

(N Mark)

 Touch the mark when you

connect the camera to a

smartphone equipped with the

NFC function.

 NFC (Near Field Communication)

is an international standard

of the short-range wireless

communication technology.

Memory card cover

Hook for wrist strap

Tripod receptacle

Micro USB Terminal

Using Wi-Fi functions

You can use your smartphone as

the remote controller for the camera

or transfer still images to your

smartphone. To use these functions,

the application “PlayMemories

Mobile” should be installed on your

smartphone.

Download and install the application

“PlayMemories Mobile” from your

smartphone’s application store. If

“PlayMemories Mobile” is already

installed on your smartphone,

be sure to update it to the latest

version.

To connect a smartphone to the

camera, use the SSID and password

that are located on the reverse side

of this product’s battery cover. For

details, refer to the Help Guide.

http://rd1.sony.net/help/

dsc/1420/h_zz/

Specifications

Camera

[System]

Image device:

7.87 mm (1/2.3 type) Exmor RS

CMOS sensor

Total pixel number of camera:

Approx. 21.0 Megapixels

Effective pixel number of camera:

Approx. 19.2 Megapixels

Lens:

f = 21 mm (35 mm film

equivalent)

F2.0

For details on “PlayMemories

Mobile,” refer to the support page

(http://www.sony.net/pmm/).

While shooting movies (16:9):

23 mm

SteadyShot:

Electronic

File format:

Still images: JPEG (DCF, Exif,

MPF Baseline) compliant, DPOF

compatible

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC

Recording media:

Internal Memory (Approx. 28

MB), “Memory Stick Micro”

media, microSD memory cards

[Input and Output connectors]

Micro USB Terminal:

USB communication

USB communication:

Hi-Speed USB (USB 2.0)

[Screen]

OLED:

Wide (16:9), 8.3 cm (3.3 type)

TFT drive

Total number of dots:

1 229 760 dots

[Power, general]

Power:

Rechargeable battery pack NP-

BN, 3.6 V

AC Adaptor AC-UB10C, 5 V
