4-417-939-61(1)

DSC-TX200/TX200V

Digital Still Camera / Instruction Manual GB

The number in parentheses indicates the number of pieces.

• Camera (1)

• Rechargeable battery pack NP-BN (1)

(This rechargeable battery pack cannot be used with Cyber-shot that are

supplied with the NP-BN1 battery pack.)

• Paint pen (1)

• Micro USB cable (1)

• AC Adaptor AC-UB10/UB10B (1)

• Power cord (mains lead) (not supplied in the USA and Canada) (1)

• Wrist strap (1)

• Cleaning Cloth (1)

• Instruction Manual (this manual) (1)

• Notes on the water-proofing (1)

English

Learning more about the camera (“Cyber-shot

User Guide”)

“Cyber-shot User Guide” is an on-line manual. Refer to it for

in-depth instructions on the many functions of the camera.

1Access the Sony support page.

http://www.sony.net/SonyInfo/Support/

2Select your country or region.

3Search for the model name of your camera within the

support page.

• Check the model name on the bottom of your camera.

Checking the supplied items

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the

space provided below. Refer to these numbers whenever you call your Sony dealer

regarding this product.

Model No. DSC-TX200/DSC-TX200V

Serial No. _____________________________

Model No. AC-UB10/AC-UB10B

Serial No. _____________________________

To reduce fire or shock hazard, do not expose the unit to rain or

moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS

DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the

proper configuration for the power outlet.

[Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical

burns. Observe the following cautions.

• Do not disassemble.

• Do not crush and do not expose the battery pack to any shock or force such as

hammering, dropping or stepping on it.

• Do not short circuit and do not allow metal objects to come into contact with the battery

terminals.

• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a

car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

WARNING

CAUTION

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that

can charge the battery pack.

• Keep the battery pack out of the reach of small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions.

[AC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by

disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera

only, and should not be used with other electrical equipment.

[RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used

rechargeable batteries to the collection and recycling location nearest

you.

For more information regarding recycling of rechargeable batteries,

call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

[Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A. and Canada

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669).

The number below is for the FCC related matters only.

[Regulatory Information

[CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

[Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the

limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in the U.S.A.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-TX200V

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

About water-proof and dust-proof performance of

the camera

This camera is equipped to be water-proof and dust-proof. Damage caused

from misuse, abuse or failure to properly maintain the camera is not covered

by the limited warranty.

• This camera is water-proof/dust-proof equivalent to IEC60529 IP58. The

camera is operable up to a water depth of 5 m for 60 minutes.

• Do not subject the camera to pressurized water, such as from a tap.

• Do not use in hot springs.

• Use the camera in the recommended operating water temperature range of

–10°C to +40°C (14°F to 104°F).

• As for dust-proof performance, there is no guarantee that the camera will not

become scratched or dented.

• Sometimes water-proof performance is lost if the camera is subjected to a

strong shock such as from being dropped. We recommend the camera be

inspected at an authorized repair shop for a fee.

• Accessories supplied do not meet water-proof and dust-proof specifications.

Notes before using the camera under/near water

• Make sure that no foreign matter such as sand, hair, or dirt gets inside the

battery/memory card cover. Even a small amount of foreign matter may lead

to water entering the camera.

• Confirm that the sealing gasket and its

mating surfaces have not become

scratched. Even a small scratch may

lead to water entering the camera. If the

sealing gasket or its mating surfaces

become scratched, take the camera to an

authorized repair shop to have the

sealing gasket replaced for a fee.

• If dirt or sand gets on the sealing gasket

or its mating surfaces, wipe the area

clean with a soft cloth that will not leave

behind any fibers. Prevent the sealing

gasket from becoming scratched by touching it while charging a battery or

using a cable.

• Do not open/close the battery/memory card cover with wet or sandy hands or

near water. There is a risk this will lead to sand or water getting inside.

Before opening the cover, perform the procedure described in “Cleaning

after using the camera under/near water”.

1Sealing gasket

2Surface contacting

the sealing gasket

• Open the battery/memory card cover with the camera completely dry.

• Always confirm that the battery/memory card cover has been securely

locked.

Notes on using the camera under/near water

• The touch panel may be activated by water splashes on the screen icons.

When using the camera under/near water, it is recommended that you hide

the icons by touching on the right side of the screen. Touch for a few

seconds to display the icons again.

• The touch panel cannot be operated underwater. Use the buttons of the

camera to perform shooting operations.

• Do not subject the camera to shock such as from jumping into water.

• Do not open and close the battery/memory card cover while under/near

water.

• This camera sinks in water. Place your hand through the wrist strap to

prevent the camera from sinking.

• Faint, white, circular spots may appear in under-water flash photos due to

reflections off of floating objects. This is not a malfunction.

• Select (Underwater) in Scene Selection to shoot underwater with less

distortion.

Cleaning after using the camera under/near water

• Always clean the camera with water after use

within 60 minutes, and do not open the

battery/memory card cover before cleaning is

finished. Sand or water may get inside places

where it cannot be seen. If not rinsed, water-

proof performance will be degraded.

• Allow the camera to sit in pure water poured

into a cleaning bowl for about 5 minutes.

Then, gently shake the camera, press each button, slide the zoom lever inside

the water, to clean away any salt, sand or other matter lodged around the

buttons.

• After rinsing, wipe away water drops with a soft cloth. Allow the camera to

dry completely in a shady location with good ventilation. Do not blow dry

with a hair dryer as there is a risk of deformation and/or degraded water-

proof performance.

• Wipe away water drops or dust on the memory card/battery cover or terminal

cover with a soft dry cloth.

• This camera is constructed to drain water. Water will drain from openings

around the ON/OFF (Power) button, zoom lever, and other controls. After

removing from water, place the camera on a dry cloth for a while to allow

water to drain.

• Bubbles may appear when the camera is placed under water. This is not a

malfunction.

• The camera body may become discolored if it comes in contact with

sunscreen or suntan oil. If the camera does come in contact with sunscreen or

suntan oil, quickly wipe it clean.

• Do not allow the camera to sit with salt water inside or on the surface. This

may lead to corrosion or discoloration, and degradation of water-proof

performance.

• To maintain the water-proof performance, we recommend that once a year

you take the camera to your dealer, or to an authorized repair shop, to have

the sealing gasket of the battery/memory card cover replaced for a fee.

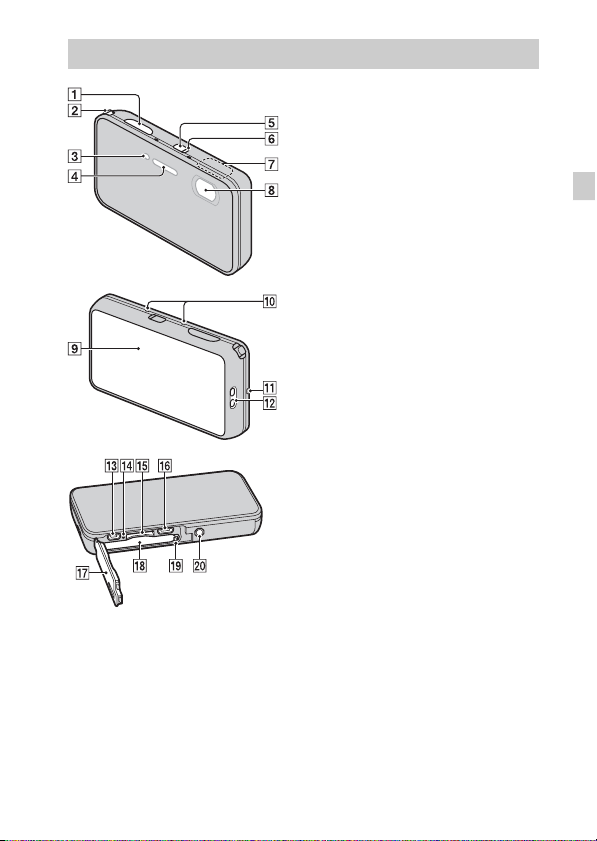

AShutter button

BW/T (Zoom) lever

CSelf-timer lamp/Smile Shutter

lamp/AF illuminator

DFlash

EON/OFF (Power) button

FPower/Charge lamp

GGPS sensor (built-in,

DSC-TX200V only)

HLens

IOLED/Touch panel

JMicrophone

KSpeaker

LHook for wrist strap

MHDMI Micro jack

NAccess lamp

OMemory card slot

PMicro USB connector

QBattery/memory card cover

RBattery insertion slot

SBattery eject lever

TTripod receptacle

• Use a tripod with a screw less

than 5.5 mm (7/32 inches) long.

Otherwise, you cannot firmly

secure the camera, and damage to

the camera may occur.

Identifying parts

Inserting the battery pack

1Open the cover.

2Insert the battery pack.

• Align the battery pack with the guide inside the battery insertion slot.

Insert the battery pack until the battery eject lever locks into place.

• Securely close the battery cover until you hear the slide lock on the

cover catch in place and so that the yellow mark under the slide lock can

no longer be seen.

• Closing the cover with the battery inserted incorrectly may damage the

camera.

Battery eject lever

Altri manuali per Cyber-shot DSC-TX200

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Macchina fotografica digitale

Sony

Sony Cyber-shot DSC-RX100M4 Istruzioni operative

Sony

Sony CMR-PC1 USB Manuale utente

Sony

Sony DSLR-A200 Series Manuale utente

Sony

Sony Cybershot,cyber-shot dsc-w570 Manuale utente

Sony

Sony DSC-S980/B - Cyber-shot Digital Still Camera Manuale utente

Sony

Sony MPK-THH Manuale utente

Sony

Sony Cyber-shot DSC-W5 Istruzioni operative

Sony

Sony Alpha 7CR Manuale utente

Sony

Sony DSC S730 - Cyber-shot Digital Camera Manuale utente

Sony

Sony Cyber-shot DSC-T100 Manuale utente

Sony

Sony Cyber-shot DSC-W200 Manuale utente

Sony

Sony DSC-T500/B - Cyber-shot Digital Still Camera Manuale utente

Sony

Sony a500 Manuale utente

Sony

Sony DSC-TX9 Cyber-shot® Manuale utente

Sony

Sony Cyber-shot DSC-H7 Manuale utente

Sony

Sony DSLR-A390 - alpha; Digital Single Lens Reflex... Manuale utente

Sony

Sony Cyber-shot DSC-H70 Manuale di istruzioni per l'installazione

Sony

Sony ILCA-68 Istruzioni operative

Sony

Sony CMA-D3 Manuale utente

Sony

Sony Cyber-shot DSC-W730 Manuale di istruzioni per l'installazione

Sony

Sony P43 Manuale utente

Sony

Sony Cyber-shot DSC-RX100M6 Manuale utente

Sony

Sony DSC-H50 Manuale utente

Sony

Sony Cyber-shot DSC-W730 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Canon

Canon EOS ELAN7 Manuale utente

Nikon

Nikon Coolpix 100 Manuale utente

Samsung

Samsung SCC-C4253 Manuale utente

JVC

JVC GT-HM890 Manuale utente
