Video Presentation Stand
VID-P110

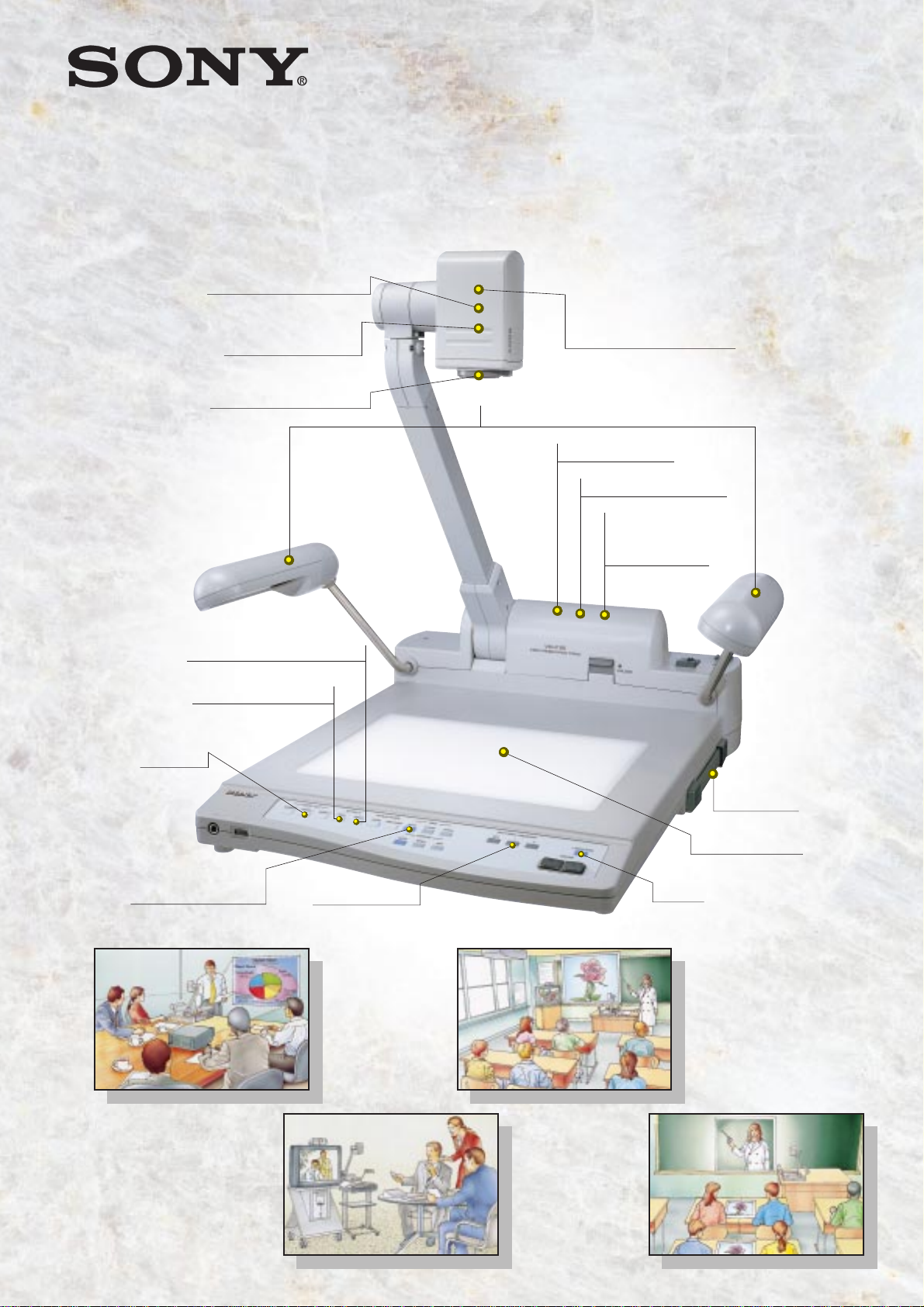

The new, high performance Sony
VID-P110 Video Presentation Stand.
A powerful visual tool to enhance
your presentations.
AV Presentation AV Education
Video Conference Distance Learning
High Picture Quality with
460TV lines (NTSC) and
450TV lines (PAL)
Flip up Camera Head
with Pan/Tilt
Built-in Back Light
Easy to carry
Lighting
Negative / Positive Switching
12 times Powered Zoom
One-touch Close-up Lens
Auto Focus/Auto Iris
AutoWhite Balance
Video Out
Black andWhite Mode
Pattern Memory
Fluorescent Arm Lights
RS-232C Control
S-Video Input / Output
Two video and
audio inputs for
external sources
High Picture Quality
• Excellent image reproduction. The 1/3-inch
CCD camera provides a high horizontal
resolution of over 460 TV lines for the NTSC
model and over 450 TV lines for the PAL
version.
Easy and Functional Operation
• High speed auto focus
• Auto iris control
• Auto white balance
• Two pattern memories. Each memory stores
Focus, Zoom, Iris, White Balance, Lighting
and Effect mode (pos/neg, B&W/ color)
settings for the optimum display of a piece
of presentation material.
• One-touch, swing out, close-up lens.
Versatile Features and Functions
• 12 times powered zoom capability
• Flip up, pan (300°) and tilt (20°)
camera head.
• Dual arm lights, each with two 9 W
fluorescent lamps.
• New built-in back light provides very
even illumination of transparent
sheets, (up to full A4 or letter size),
slides or negative/positive films.
• Input selector for quick switching
between camera and two external
video /audio sources.
• S-video input/output connections.
(Y/C separate/mix circuit)
• Black and white mode for optimum
display of printed documents.
• Optional preview monitor can be
easily attached with the accessory
shoe.
Option
• RS-232C interface for control from a
PC.
• Light-weight, compact and easy-to
carry design.
Features

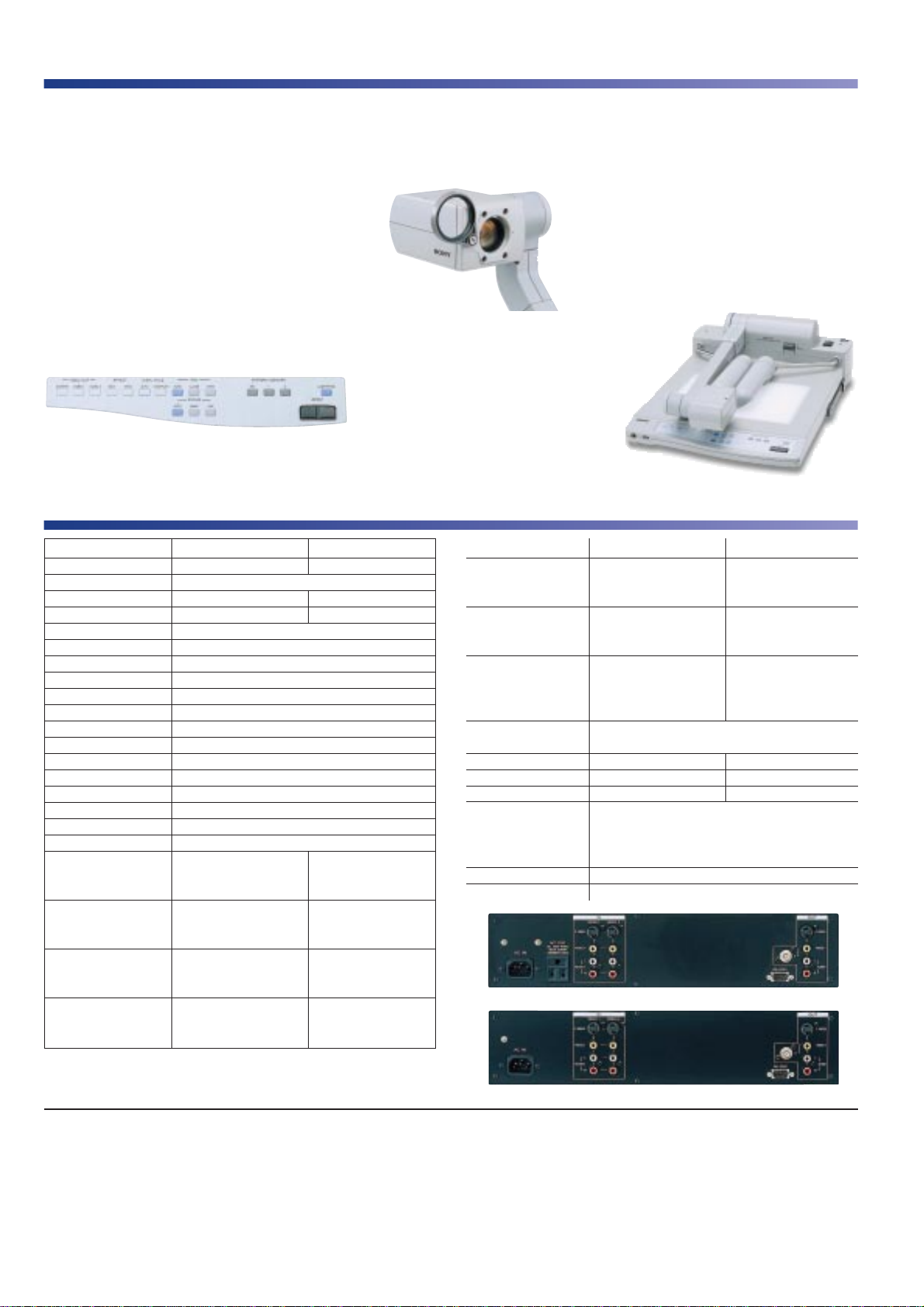

Specifications
VID-P110 (NTSC) VID-P110 (PAL)
Color System NTSC PAL
Pick-up device 1/3 inch interline transfer, CCD
Resolution (HxV) 460x350 TV lines 450x400 TV lines
Picture elements 380,000 (768H x 494V) 440,000 (752H x 582V)
Shooting Area (max.) 325 x 240 mm
Shooting Area (min.) 29 x 22 mm
Lens F=1.8-2.7, f=5.4-64.8 mm
Zoom Powered (Two levels of speed zooming)
Focus Auto / Manual
Iris Auto / Manual
White balance Auto / One push
Pattern Memory 2 patterns
Pos/Neg Switching Included
Mono/Color Included
Output selector Camera/Video1/Video2
Arm light 9 W twin-fluorescent lamp x 2
Built-in Backlight 2.5 W cold cathode ray lamp x 2
Accessory shoe Included
Input connectors
Video in Phono x 2 1Vp-p, 75 Ω, Phono x 2 1Vp-p, 75 Ω,
sync negative sync negative
S Video in 4-pin mini DIN x 2 4-pin mini DIN x 2
Y: 1 Vp-p, 75 Ω, sync negative Y: 1 Vp-p, 75 Ωsync negative
C: 0.286 Vp-p, 75 Ω, C: 0.300 Vp-p, 75 Ω
Audio in Phono x 2 pairs, stereo "Phono x 2 pairs, stereo
Input impedance: 47k ΩInput impedance: 47k Ω
Level: -10 dBu, unbalanced Level: -10 dBu, unbalanced
Mic in Standard jack x 1 Standard jack x 1
Input impedance: 3.3k ΩInput impedance: 3.3k Ω
Level: -60 dBu, unbalanced Level: -60 dBu, unbalanced
VID-P110 (NTSC) VID-P110 (PAL)
Output connectors
Video out Phono x 1, BNC x 1 Phono x 1, BNC x 1
1Vp-p, 75 Ω, sync negative 1Vp-p, 75 Ω, sync negative
S Video out 4-pin mini DIN x 1 4-pin mini DIN x 1
Y: 1 Vp-p, 75 Ω,sync negative Y: 1 Vp-p, 75 Ω, sync negative
C: 0.286 Vp-p, 75 ΩC: 0.300 Vp-p, 75 Ω
Audio out Phono x 1 pair, stereo Phono x 1 pair, stereo
Output impedance: Output impedance:
less than 600 Ωless than 600 Ω
Level: -10 dBu, unbalanced Level: -10 dBu, unbalanced
RS-232C connector D-sub 9-pin, Male
Baud rate:9600 bps
Power Requirements 120 V AC, 60 Hz 230 V AC, 50/60 Hz
Power Consumption 120 V, 0.3 A 30 W
AC outlet max. 300W, unswitched –––
Dimensions (WxHxD) Approx. 446 x 583 x 622 mm
(17 5/8x 23 x 24 1/2inches)
Approx. 446 x 166 x 634 mm (when folded)
(17 5/8x 6 5/8x 25)
Mass Approx. 8.0 kg (17 lb 10 oz)
Supplied accessories AC power code x 1, Operation Manual x 1, Interface Manual x1
ES-042
MK7182/1IW(8/98)
Distributed by
Printed in Japan
© 1998 Sony Corporation
rear view (NTSC)
rear view (PAL)
© 1998 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony corporation.
