Sony Projector Extended Shutdown Guidelines

Shutdown, Maintain and Restart Sony Projectors

Sony Electronics

Prior to Shutdown

SRX-R220/320

SRX-R515

SRX-R815

SRX-R220/320

Exhaust Fan

•Turn off exhaust fan

LMT-200/300- Lithium Battery

•Confirm BATTAlarm is not lit before shutdown

•If BATTAlarm is on, replace the BATT

SRX-R515

Exhaust Fan

•Turn off exhaust fan

XCT-S10/XCT-M10 Lithium Battery

•Confirm BATTAlarm is not lit before shutdown

•If BATTAlarm is on, replace the BATT

SRX-815 Chiller

Option 1 (In case of distilled water only)

•Drain the projector and leave dry until restarting theater operations

Option 2 (Recommended)

•Leave coolant and distilled water in the projector during extended shutdown

•Run the projector for 2 hours a week during shut down

Option 3

•Leave coolant and distilled water in the projector during extended shutdown

•Don’t touch the projector during extended shutdown

Option 1 and 3: Risk of black image change. Readjust by PCAB

Returning to Service

SRX-R220/320

SRX-R515

SRX-R815

SRX-R220/320

Screening Check

• Check DCP

Dust

•Check around the intake port and lens

•Clean around the lens with air

３D convergence check (Single&DS)

•Check and adjust

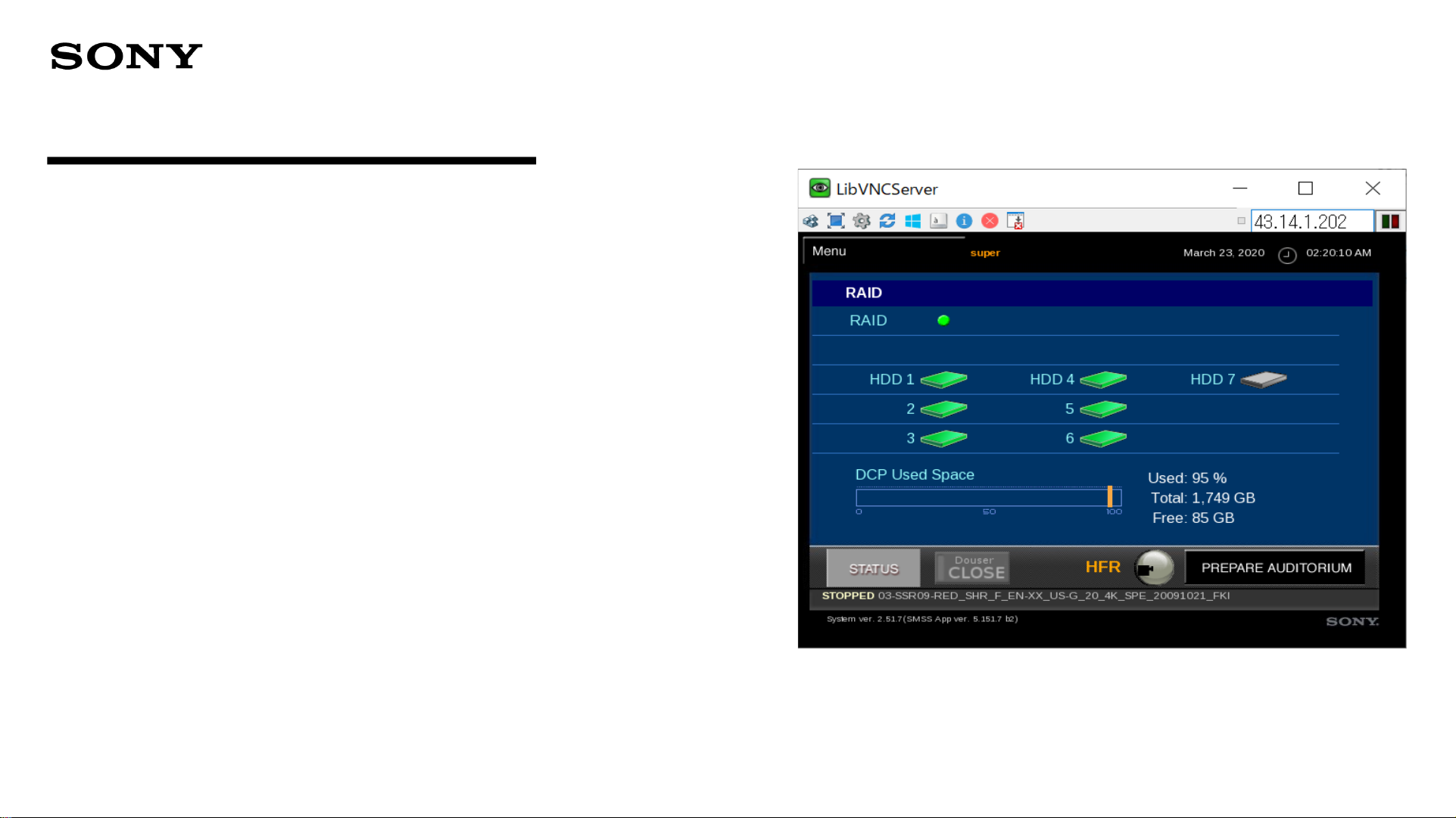

HDD condition

• Confirm that there is no error on the Status screen

•If there is no 1.7TB (around 10MB), contact Sony NOC to perform RAID

initialization. RAID builder->RAID Formatter

SRX-R515

Screening Check

• Check DCP

Dust

•Check around the intake port and lens

•Clean around the lens with air

３D convergence check (Single & DS)

•Check and adjust after adjusting the room temperature appropriately

SRX-815 Chiller

Distilled water only

1. Inject distilled water and run for 15 minutes → check flow rate and filter

visually (Check for dirt)

2. If dirty, perform the manual cleaning according to TN (DPPJ19-210)

Start operation if not dirty (strongly recommend to add Nybrine Z1 coolant)

Coolant (Optishield)

•Run for 15 minutes → check flow rate and filter visually (Check for dirt)

•If dirty, perform the manual cleaning according to TN (DPPJ19-210)

SRX-R815 Projector

Screening Check

• Check DCP

•Check black image (0% image by PGUUT)

•If any issue on black image, readjust Black & Dark UF after taking picture

(except optical compensator adjustment)

• Dust

•Check around the intake port and lens

•Clean around the lens with air

３D convergence check (Single & DS)

•Check and adjust after adjusting the room temperature appropriately according

to TM (DPPJ18-075)
