VIDEO PROJECTOR

VPL-VW50

PROTOCOL MANUAL

1st Edition

VPL-VW50

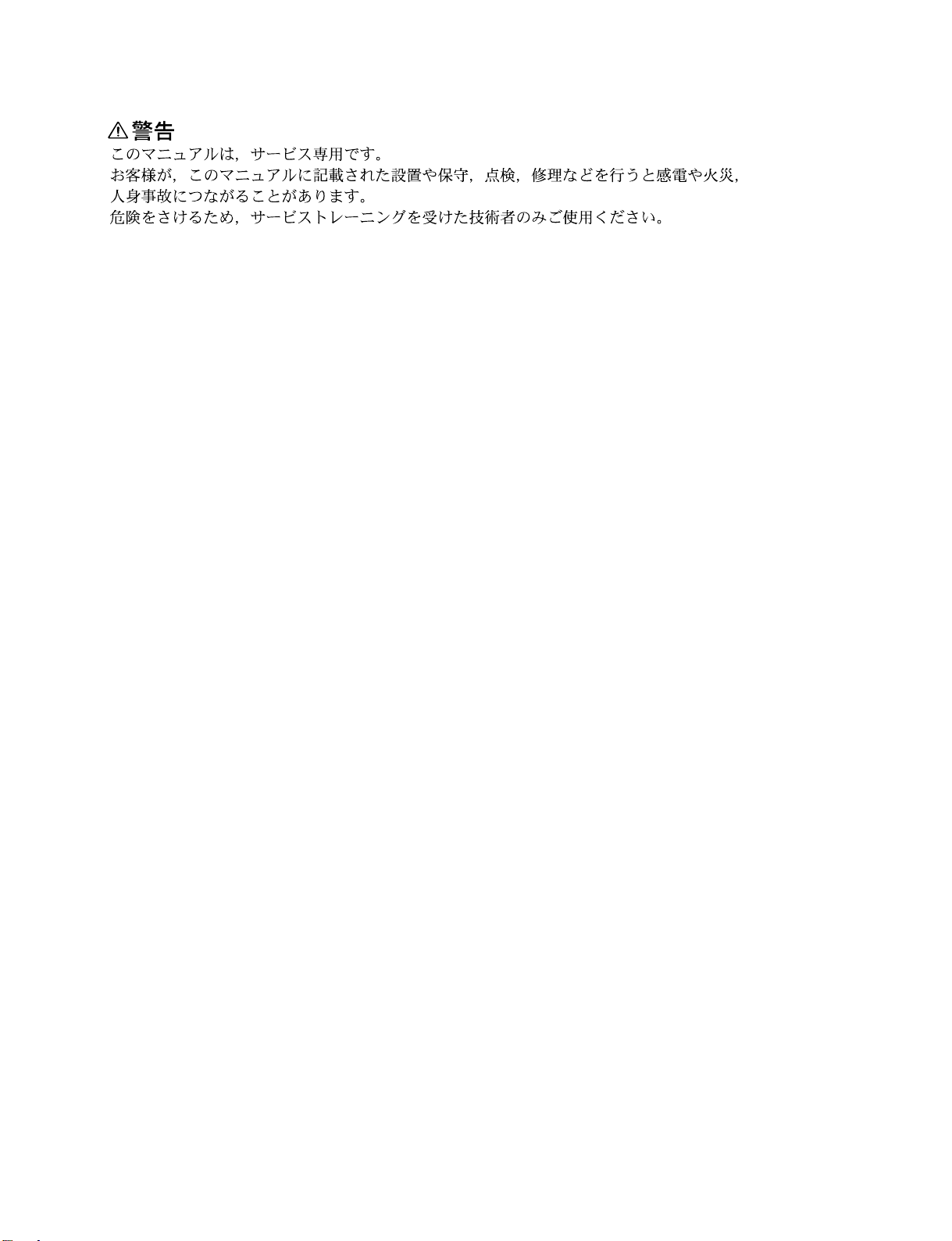

!WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so. Refer all servicing to

qualified service personnel.

!WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung

dazu besitzen.

!AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin

de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les

réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

VPL-VW50

Table of Contents

1. Introduction

2. RS-232C

2-1. Communication Specifications .......................................... 1

2-2. Command Block Format .................................................... 2

2-3. Block Format ..................................................................... 3

2-4. Connection ......................................................................... 4

2-5. Communication Procedure ................................................ 4

2-5-1. Outline of Communication ....................................... 4

2-6. Communication Rules ....................................................... 5

2-7. Approximate Return Waiting Times ................................. 5

Appendix

VPL-VW50

EVEN Parity ...... Total number of “1”s from D0 to D7 is an even number. 80

...... Total number of “1”s from D0 to D7 is an odd number. 81

D4 D5 D6 D7

(MSB)(LSB) (EVEN) BIT

PARITY STOP

BIT

START D3D2D1D0

1. Introduction

This protocol manual describes the basic configuration and basic operations of various commands used

for projector. Projector can be controlled using the commands provided in “Appendix”. Using an external

CONTROLLER , etc., inputs can be switched and the power can also be turned on and off. In the follow-

ing paragraphs, “CONTROLLER” means an external device such as a PC which controls projector using

these commands.

2. RS-232C

2-1. Communication Specifications

<RS-232C Communication Signal>

.Full duplex communication channels (Flow control not performed.)

.Start-stop synchronism system

.Baud rate: 38.4 kbps (bits per second)

.The bit configuration is defined as follows.

1 START Bit +8 DATA Bits +1 PARITY Bit +1 STOP Bit

2VPL-VW50

2-2. Command Block Format

The code from B0 to B7 as described below are transmitted.

START CODE : 0xA9

DATA

ITEM NUMBER ACK / NAK ITEM NUMBER

SET / GET ACK

DUMMY DATA

CHECK SUM

END CODE : 0x9A

DATA

Transmission from

the Master side

Reception in

the Master side

Reception in the Master side

(With Data)

B0 START CORD

Common in the all FORMAT

B6 CHECK SUM

B1 to B5 are calculated by OR;

0xA9 1010 1001 0xA9 1010 1001

0xA9 1010 1001 0x9A 1001 1010

Answer 1010 1001 Answer 1011 1011

0xA9 0xBB

B7 END CODE

Common in the all FORMAT

VPL-VW50

2-3. Block Format

START CODE

DATA

ITEM NUMBER

SET / GET

CHECK SUM

END CODE

START CODEB0

DUMMY DATA

ACK / NAK

ACK

CHECK SUM

END CODE

START CODEB0

DATA

ITEM NUMBER

CHECK SUM

END CODE

Transmission from the Master side

Reception in the Master side

Reception in the Master side (With Data)

Data transmission to the Projector

Start of Command

Set the Data Category Value desired.

Refer to the Appendix Table 1 for details.

SET: 0x00 (Set data)

GET: 0x01 (Get data)

SET: Data to be set (Refer to the Appendix Table 2)

GET: Unused. Set Dummy data [0x00, 0x00]

Check Sum

End of Command

Receive results of the data transmission from the Projector.

Start of Command

Results correspond with the data transmission

Refer to the Appendix Table 3 for the data in detail.

[0x03]

Express Reply data either of ACK, or NAK

This data does not mean any senses.

Dummy Data [0x00, 0x00] is stored.

Check Sum

End of Command

Check Sum

End of Command

Receive data from the Projector

Start of Command

Data to acquire

Refer to the Appendix Table 1 in detail.

[0x02]

Express data to be Reply data

Received data

Refer to the Appendix Table 2 in detail.

4VPL-VW50

2-5. Communication Procedure

2-5-1. Outline of Communication

All communication between CONTROLLER (PC, etc.) and DEVICE (PROJECTOR) is performed by the

command block format. Communication is started by the issue of a command at CONTROLLER and

ended when the return data is sent to CONTROLLER after DEVICE receives the command.

CONTROLLER is prohibited from sending several commands at one time. This means that after CON-

TROLLER sends one command, it cannot send other commands until DEVICE returns the return data.

DEVICE sends the return data after processing the command. The time from when CONTROLLER sends

the command until the return data is returned differs according to the contents of the command.

When Sircs Direct Command is sent, return data may not be returned in some cases.

2-4. Connection

<RS-232C Connection>

Communication is enabled by the use of a D-Sub 9 Pin cross (reverse) cable.

The pin assignment of D-Sub 9 Pin and D-Sub 25 Pin is as follows.

Pins indicated as D-Sub 25 Pin are not used.

Assured cable length: 15 m (However, assurance may not be applicable for some cables.)

The software for controlling the projector from a PC is intended for performing transmission and recep-

tion for only the TxD and RxD lines.

Therefore there is no handshake normally performed by RS-232C.

D-Sub 9 Pin

Shell = FG

D-Sub 25 Pin

Name

TxD

RxD

RTS

CTS

DSR

DCD

DTR

Grounding for safety protection or cable shield

Transmission data

Reception data

Transmission request

Transmission permission

Data set ready

GND for signal

Data channel signal carrier detection

Data terminal ready

Calling display (Presence/absence of calling signal)

VPL-VW50

2-6. Communication Rules

.When sending a command from CONTROLLER, the return data from PROJECTOR should be re-

ceived first before sending the next command. Even if the next command is sent before receiving the

return data, since PROJECTOR will not be able to receive that command, it does not return a response

to CONTROLLER. Consequently, no error code is also sent.

The following lists the approximate waiting times for PROJECTOR to return the return data after

CONTROLLER sends the command.

.When a communication error occurs, PROJECTOR ignores the data received until now, and set into the

reception standby state.

.For undefined commands or commends determined as invalid by PROJECTOR, PROJECTOR will

send the “NAK”return data to CONTROLLER .

.Take note that when data is written when the input signal of PROJECTOR is unstable, that data (value)

will not be incorporated.

.When INDEX specified SIRCS direct command is transmitted, leave an interval of 45 msec until the

next transmission. (Do not return the return data (ACK, NAK) when the SIRCS direct command is

received.)

2-7. Approximate Return Waiting Times

The await-return time is approx. 30 msec.

This is the case, unless the communications are interfered anyway.

6VPL-VW50

Appendix

<Table 1> <Table 2> Remarks

Item Number Data

Item Upper byte Lower byte Data Upper byte Lower byte

Input 00h 01h Video 00h Set/Get

S Video 01h

Input A 02h

Component 03h

HDMI1 04h

HDMI2 05h

Picture Mode 00h 02h Dynamic 00h

Standard 01h

Cinema 02h

User1 03h

User2 04h

User3 05h

Contrast 00h 10h 00h to 64h (0 to 100)

Brightness 00h 11h 00h to 64h (0 to 100)

Color 00h 12h 00h to 64h (0 to 100)

Hue 00h 13h 00h to 64h (0 to 100)

Sharpness 00h 14h Normal 00h to 64h (0 to 100)

ColTemp 00h 17h High 00h

Mid 01h

Low 02h

Custom1 03h

Custom2 04h

Custom3 05h

Lamp Control 00h 1Ah Low 00h

High 01h

DDE 00h 1Bh Off 00h

DDE Progressive 01h

DDE Film 02h

Black Level Adj. 00h 1Ch Off 00h

Low 01h

High 02h

Advanced Iris 00h 1Dh Off 00h

On 01h

Auto1 02h

Auto2 03h

Real Color Processing 00h 1Eh off 00h

User1 01h

User2 02h

User3 03h
