Sony SRF-M606 Manuale utente

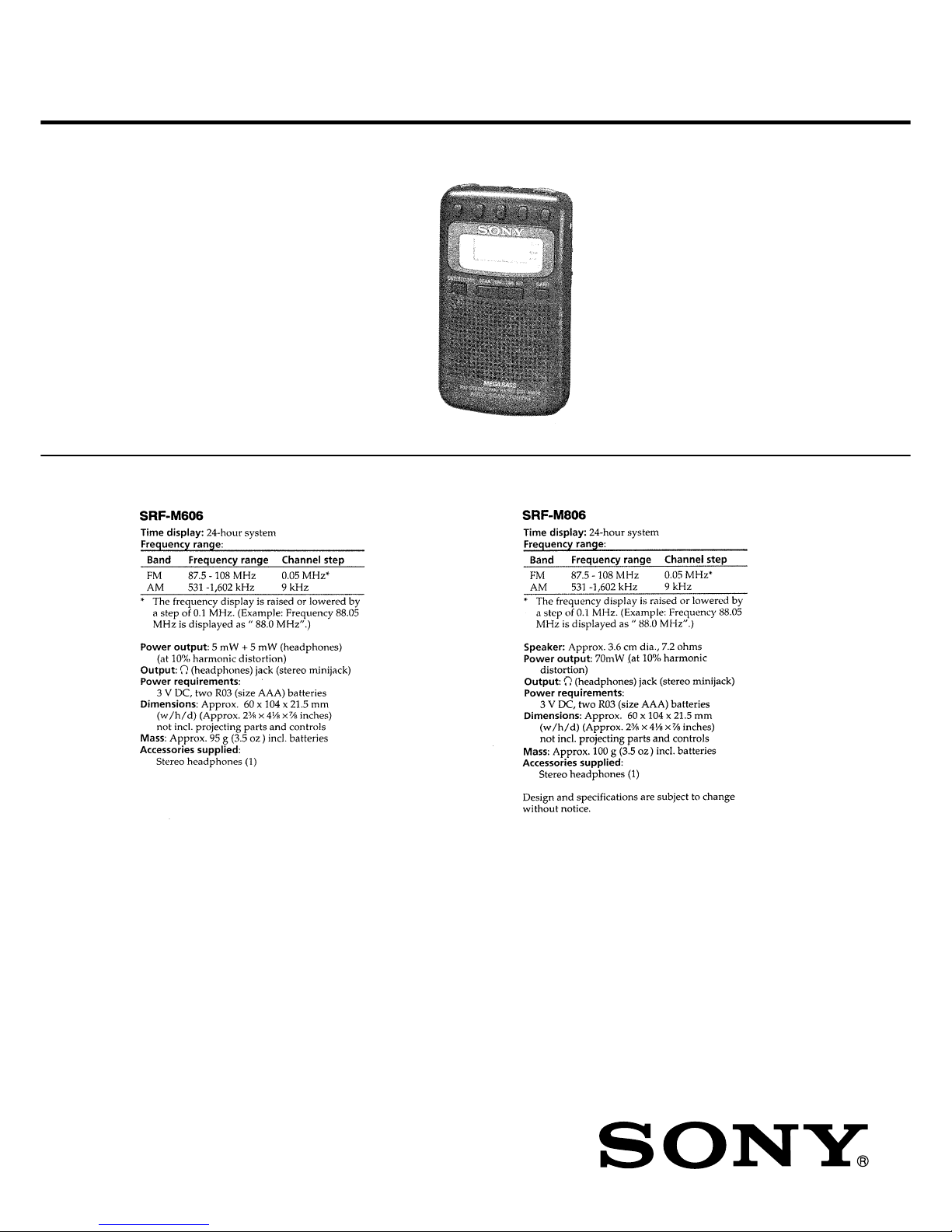

SERVICE MANUAL

FM STEREO/

AM PLL SYNTHESIZED RADIO

AEP Nodel

UK Model

E Model

SRF-M606/M806

Australian Model

SRF-M806

SPECIFICATIONS

SRF-M606/M806

Photo: SRF-M806

Ver 1.1 2002.10

9-923-894-12 Sony Corporation

2002J0500-1 Personal Audio Company

C2002.10 Published by Sony Engineering Corporation

SRF-M606/M806

TABLE OF CONTENTS

1. SERVICING NOTE .................................................. 3

2. GENERAL ................................................................... 4

3. DISASSEMBLY

3-1. Rear Cabinet.................................................................... 6

4. ELECTRICAL ADJUSTMENTS......................... 7

5. DIAGRAMS

5-1. Printed Wiring Boards (Suffix-11) ................................. 8

5-2. Schematic Diagram (Suffix-11)...................................... 9

5-3. Printed Wiring Board (Suffix-12) ................................... 10

5-4. Schematic Diagram (Suffix-12)...................................... 11

6. EXPLODED VIEWS

6-1. Cabinet Section (SRF-M606) ......................................... 12

6-2. Cabinet Section (SRF-M806) ......................................... 12

8. ELECTRICAL PARTS LIST ............................... 13

Notes on chip component replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

Ver 1.1

SRF-M606/M806

SECTION 1

SERVICING NOTE

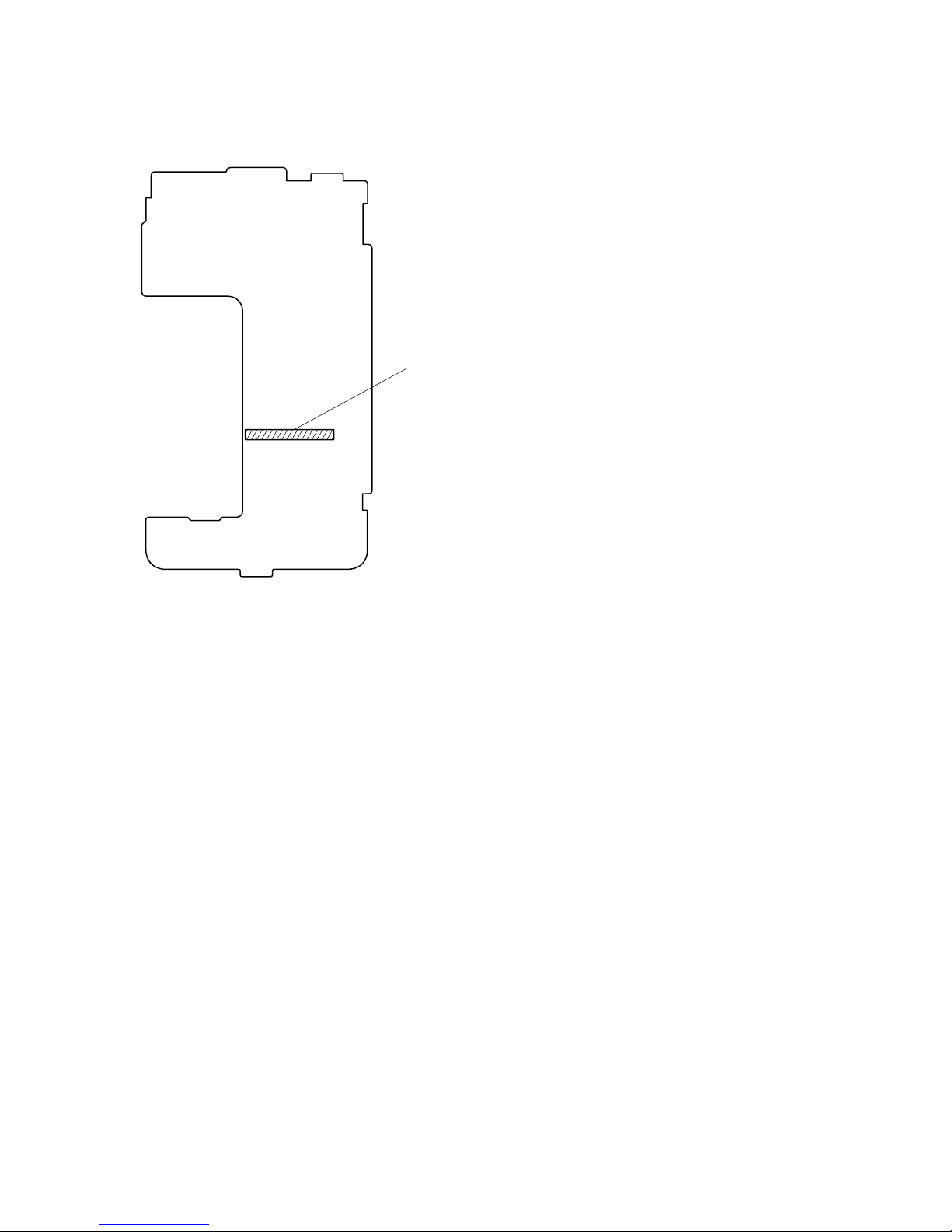

NEW/FORMER DISCRIMINATION

Former: 1-662-527-11

New : 1-662-527-12

– RADIO BOARD (Side A) –

Ver 1.1

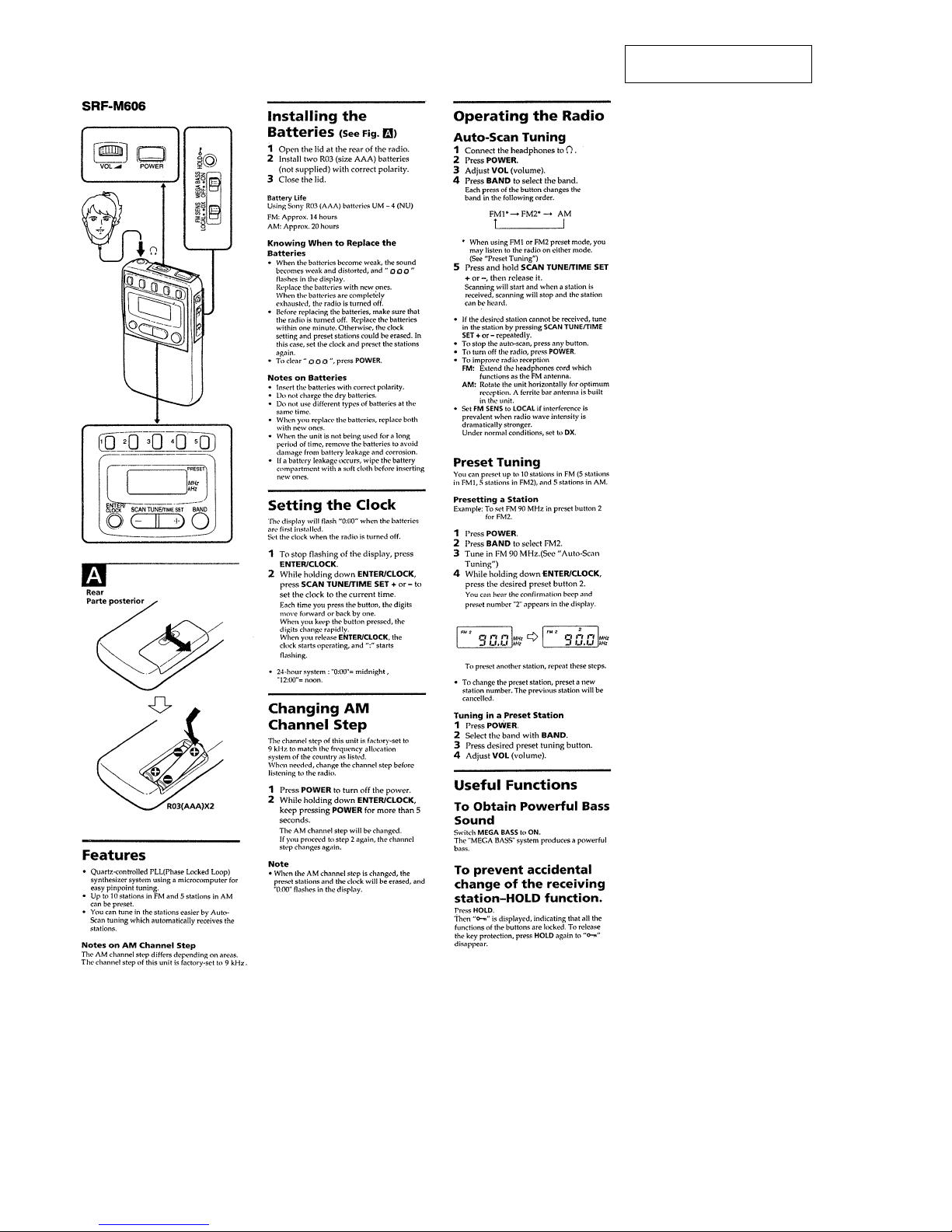

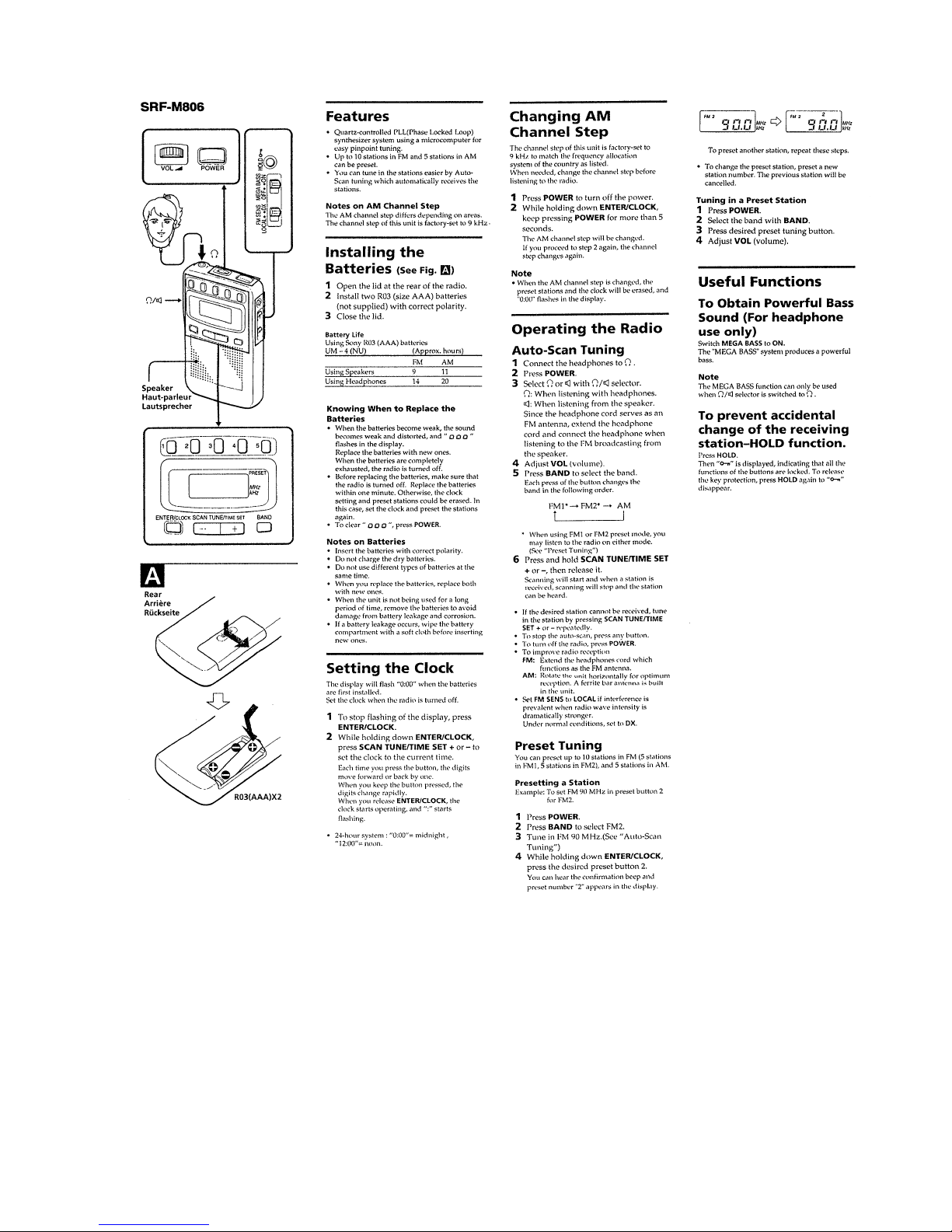

SRF-M606/M806 SECTION 2

GENERAL This section is extracted from

instruction manual.

SRF-M606/M806

SECTION 3

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

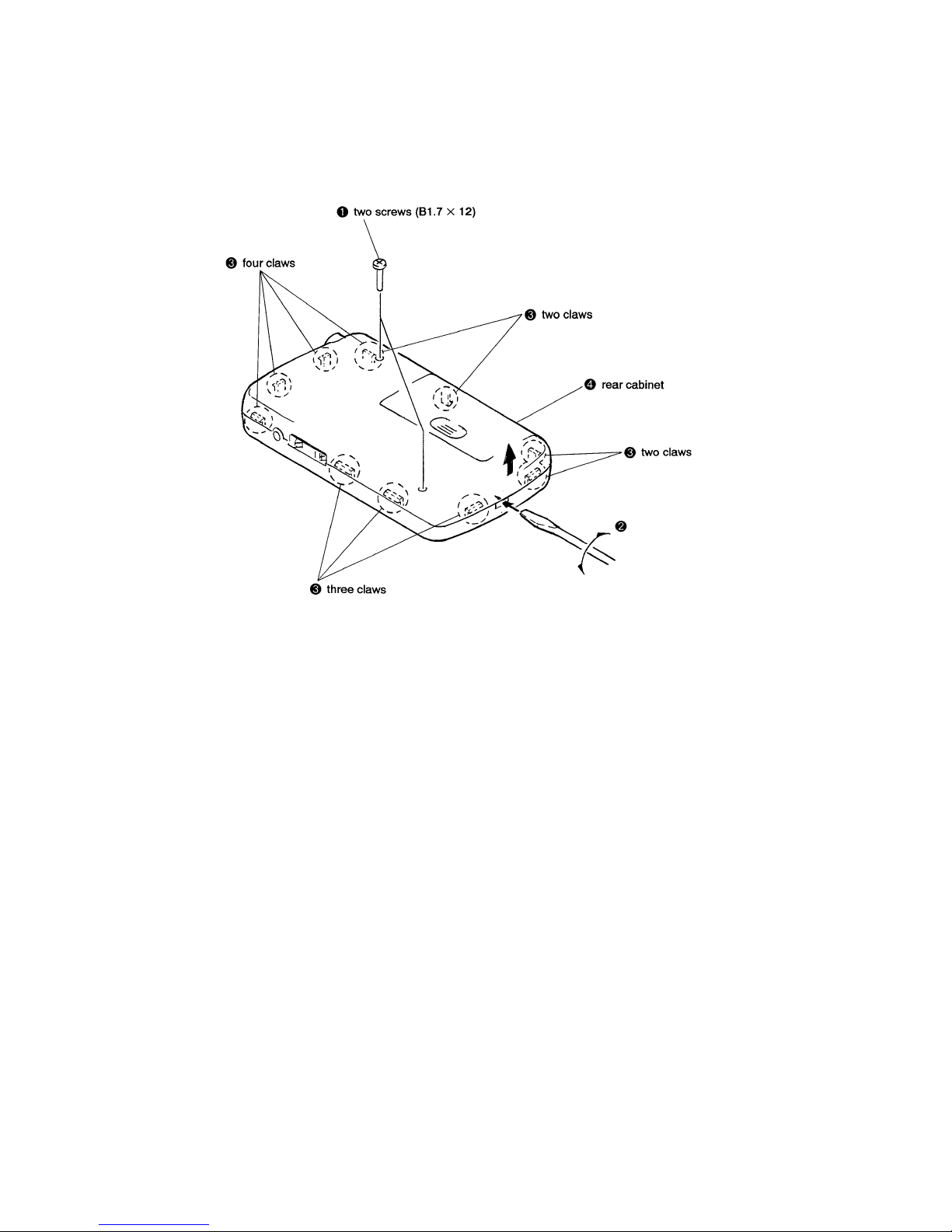

3-1. REAR CABINET

SRF-M606/M806

SECTION 4

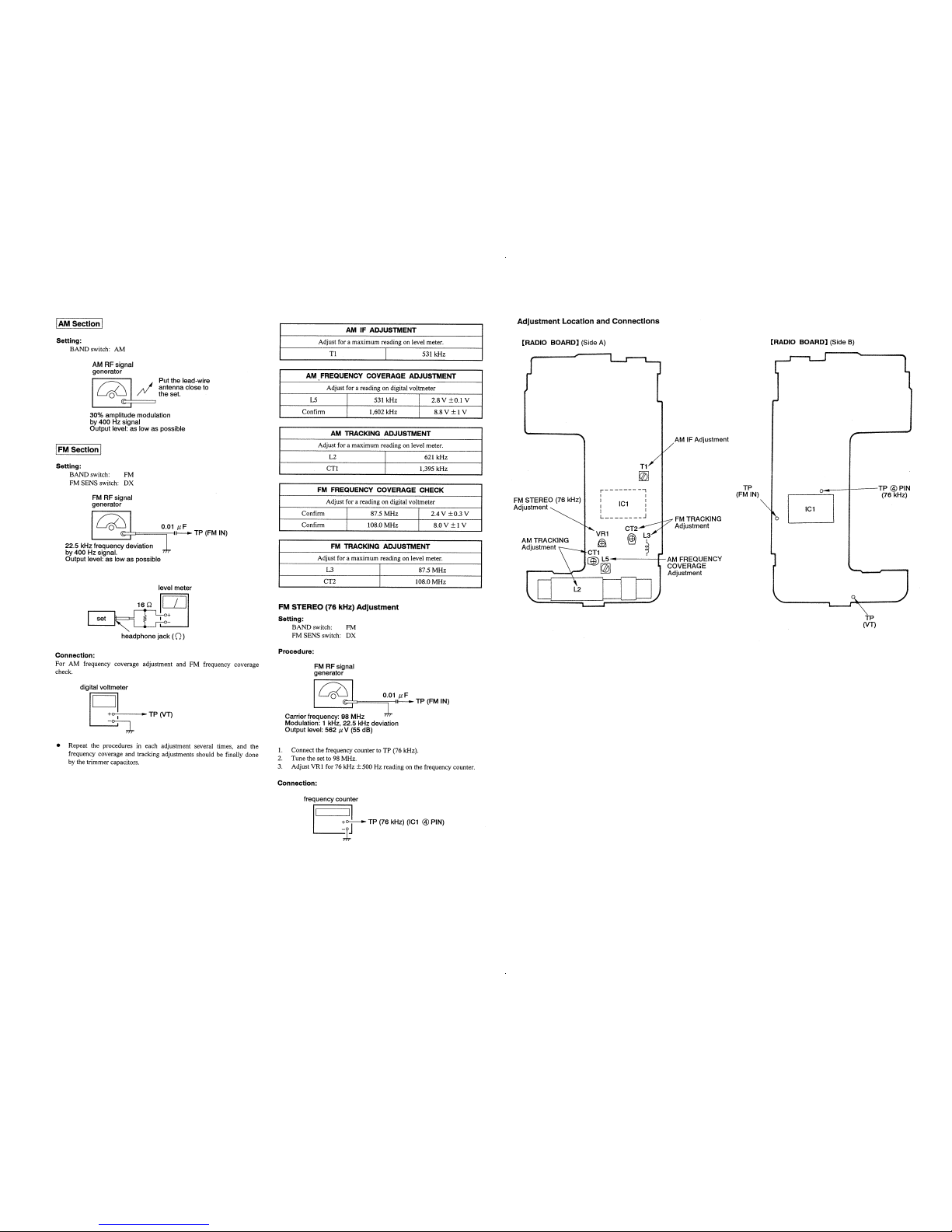

ELECTRICAL ADJUSTMENTS

SRF-M606/M806

M806

SECTION 5

DIAGRAMS

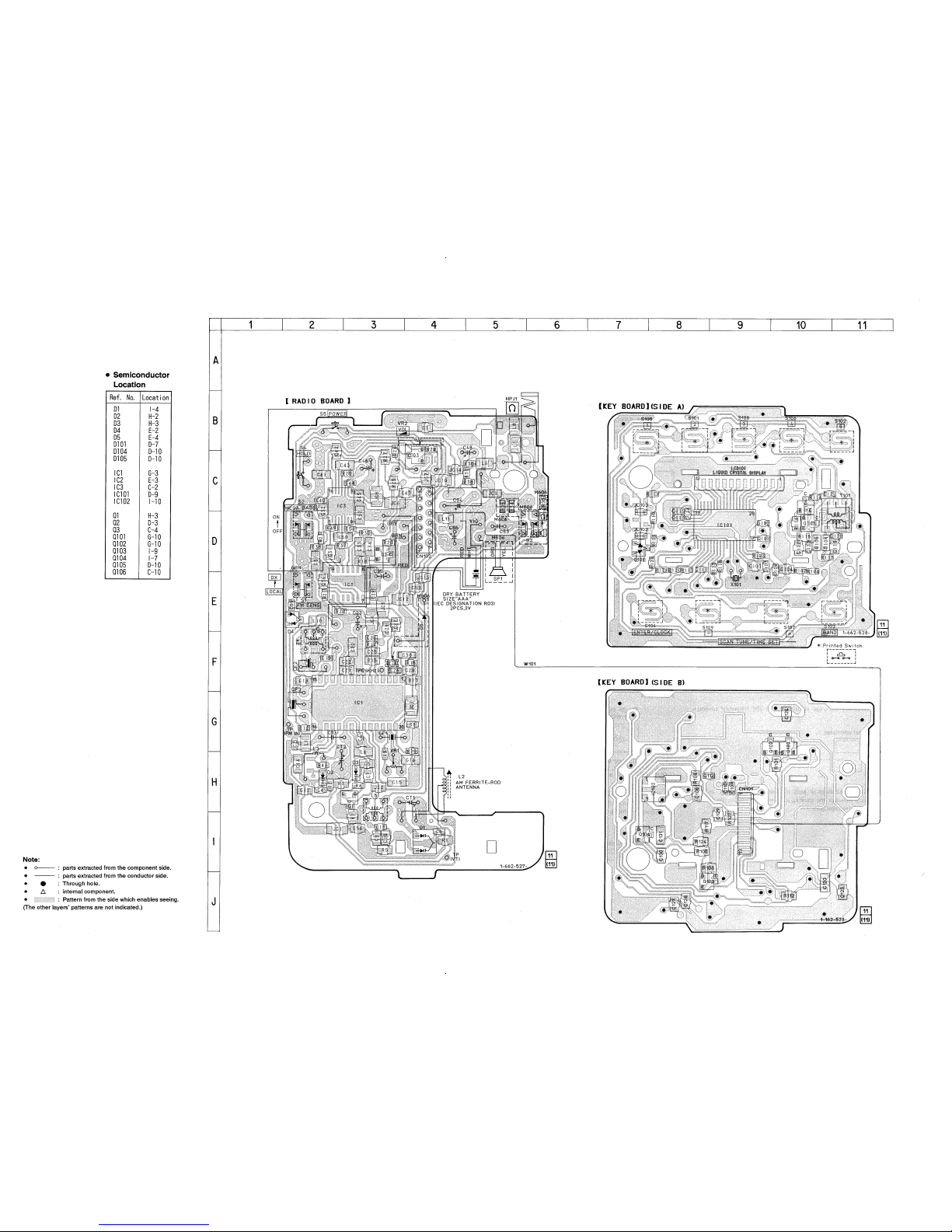

5-1. PRINTED WIRING BOARDS (Suffix-11)

SRF-M606/M806

∗

∗R25

6.8k

100k

(EXCEPT M606: FR)

(M606: FR)

KTC3875

KTC3875 UDZSTE-1713B

KRC104S

∗C33

4.7 4V

3.3 4V

(EXCEPT M606: FR)

(M606: FR)

∗

0.0022

LA3550M-TE-L

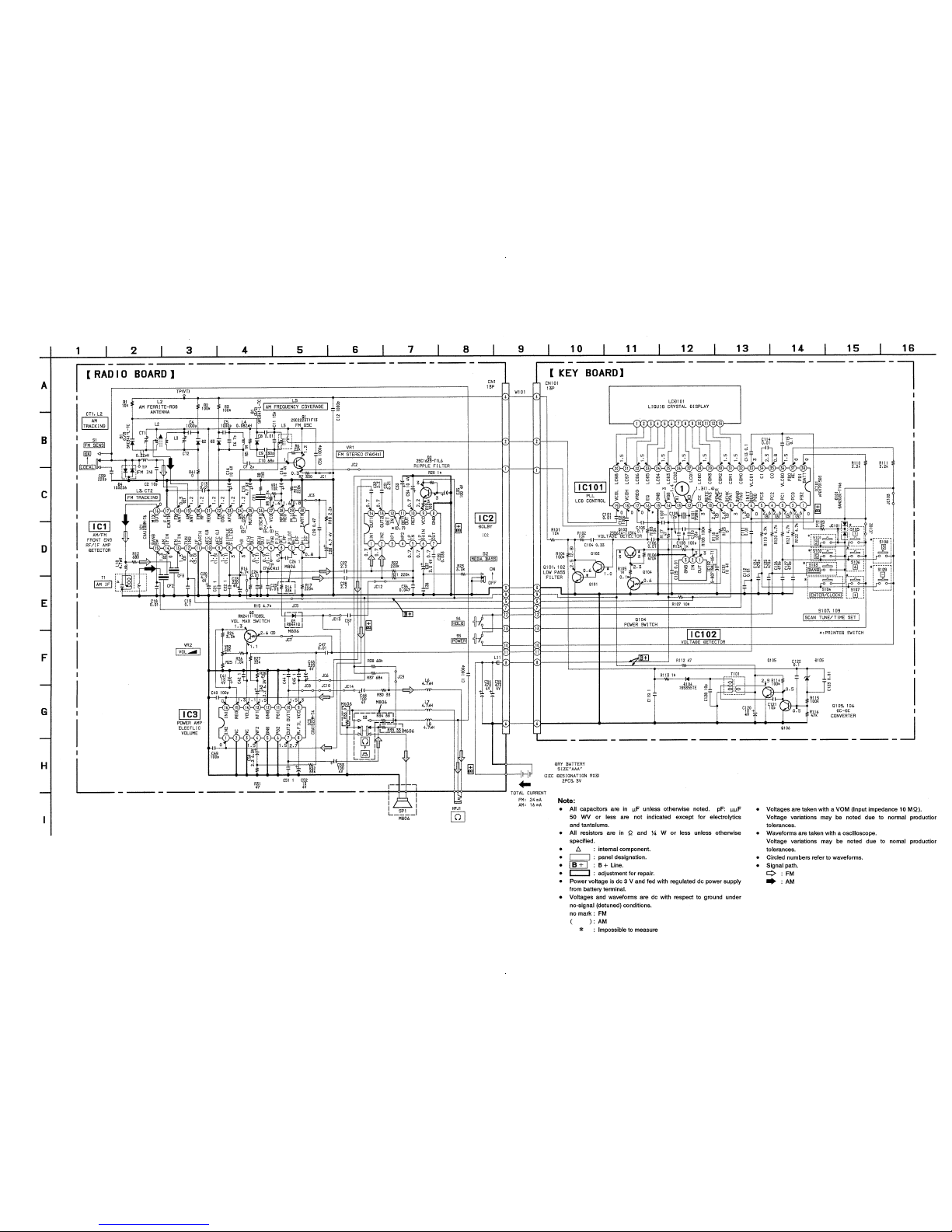

5-2. SCHEMATIC DIAGRAM (Suffix-11) • See page 10 forWaveform. •See page 10 for IC Block Diagrams.

•Abbreviation

FR : French model

Ver 1.1

SRF-M606/M806

1010

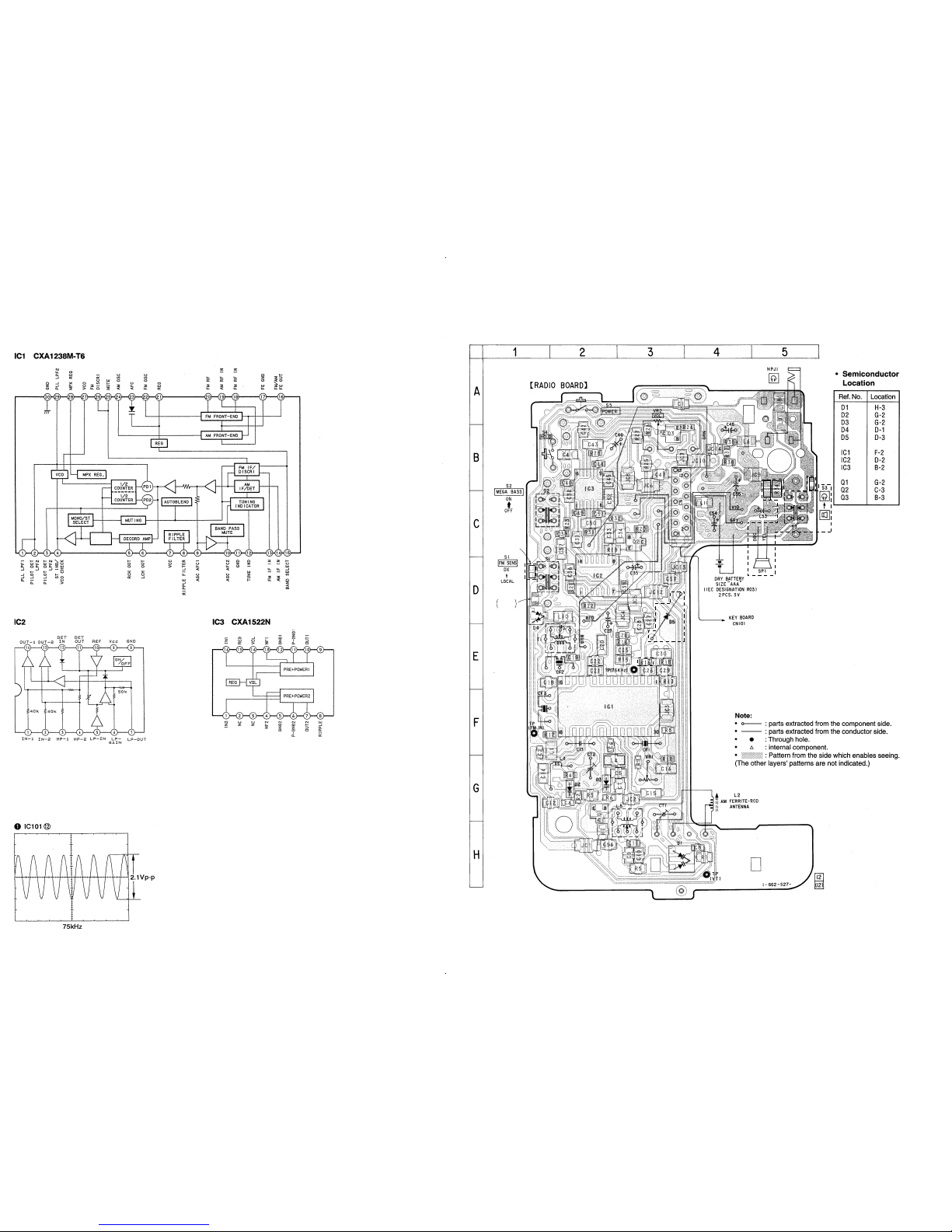

•IC Block Diagrams

– RADIO Board –

LA3550M-TE-L

•Waveform

– KEY Board –

5-3. PRINTED WIRING BOARD (Suffix-12)

JC11

(EXCEPT M806: AR)

R125 (M806: AR)

EXCEPT

M806: AR

C59

(M806)

(M606)

(M806)

R35

R33

(M606)

•Abbreviation

AR : Argentina model

Ver 1.1
