Sony STR-DG910 Manuale d'uso e manutenzione

3-196-613-12(1)

Multi Channel AV

Receiver/

Home Theatre

System

HDMI CONTROL Guide

Guide de la fonction HDMI CONTROL

GBGBGB

2GB

Using the HDMI

CONTROL function for

‘BRAVIA’ Theatre Sync

To use ‘BRAVIA’ Theatre Sync, set the

HDMI CONTROL function as explained

below.

By connecting Sony components that are

compatible with the HDMI CONTROL

function with a HDMI cable (not supplied),

operation is simplified as below:

• One-Touch Play: When you play back a

component such as a DVD/Blu-ray Disc

Player, the receiver and the TV are turned on

automatically and switch to the appropriate

HDMI input.

• System Audio Control: While watching TV,

you can select to output the sound from the

TV speaker or the speakers connected to the

receiver.

• System Power Off: When you turn off the

TV, the receiver and connected components

are also turned off simultaneously.

HDMI CONTROL is a mutual control

function standard used by HDMI CEC

(Consumer Electronics Control) for HDMI

(High-Definition Multimedia Interface).

The HDMI CONTROL function

does not work in the following

cases:

• When you connect the receiver to a

component which is not correspond with

Sony’s HDMI CONTROL function.

• When you connect the receiver and

components using other than HDMI

connection.

We recommend that you connect the receiver

to products featuring ‘BRAVIA’ Theatre

Sync.

Note

Depending on the connected component, the HDMI

CONTROL function may not work. See the

operating instructions of the component.

3GB

Connect audio and video cords according to

the jacks of your receiver and components.

The illustration below is used as reference for

connection purposes only.

To enjoy TV multi channel

surround sound broadcasting

You can listen to TV multi channel surround

sound broadcasting from the speakers

connected to the receiver.

Connect the digital audio output jack of the TV

to any of the DIGITAL IN jacks of the

receiver. Then, reassign the connected jack to

TV input. For details, refer to the DIGITAL

ASSIGN function on the separate operating

instructions supplied with the receiver.

a)Connect to at least one of the audio cords (B, C

or D).

b)Refer to the “Supplied accessories” in the

operating instructions of your receiver for details.

Note

The shape, location, label and number of jacks will

vary according to models and areas.

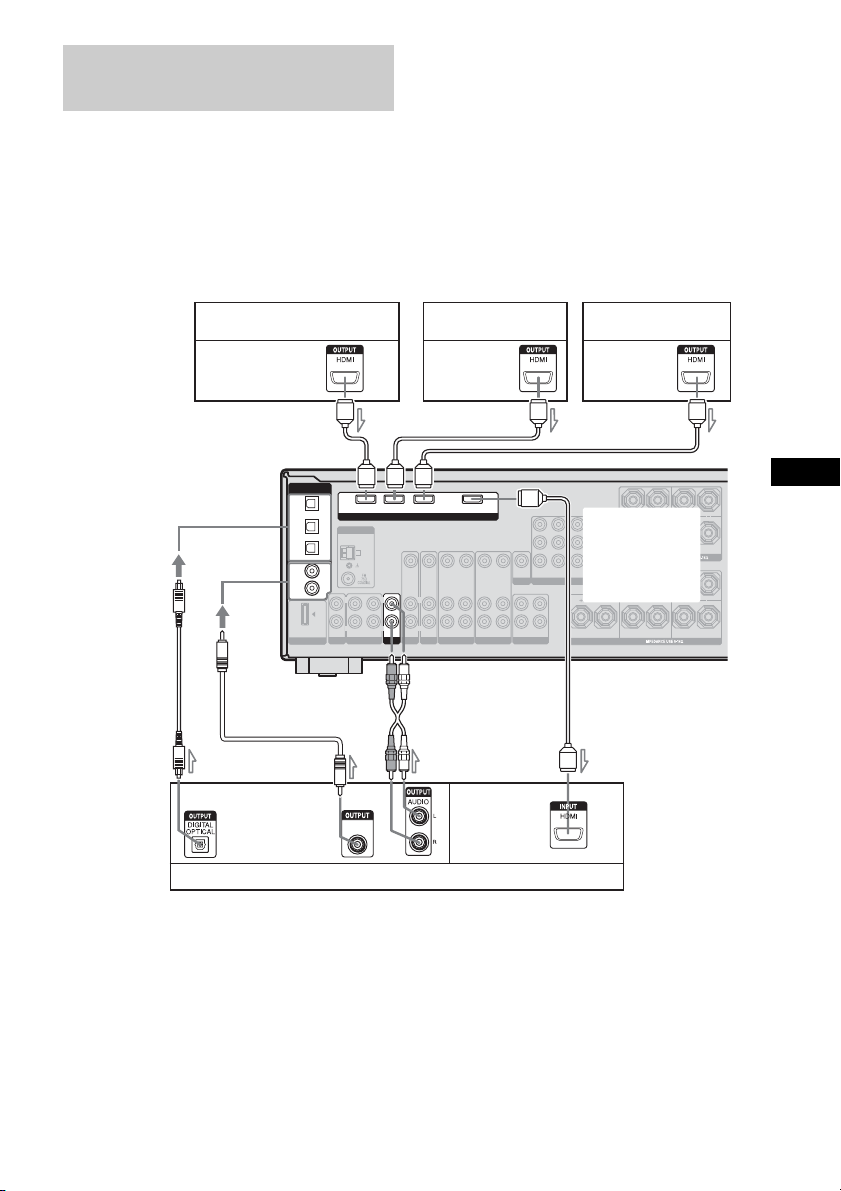

Connecting a TV and other

components

DMPORT

ANTENNA

AUX

MONITOR

COMPONENT VIDEO

DVD VIDEO 2/BD VIDEO 1 SUB WOOFER

IN INOUT AUDIO OUTAUDIO IN AUDIO IN

VIDEO IN

SAT IN DVD IN VIDEO 2/BD IN OUT

VIDEO IN VIDEO OUT VIDEO OUT VIDEO OUT SAT IN DVD IN

VIDEO IN VIDEO IN VIDEO 1 IN MONITOR OUT

AUDIO OUT AUDIO OUTAUDIO IN

FRONT B

FRONT A

SA-CD/CD/CD-R

SPEAKERS

SURROUND

SURROUND BACKCENTER

DIGITAL

(ASSIGNABLE)

SAT

VIDEO 2/

BD IN

COAXIAL

DVD

SA-CD/

CD/CD-R

HDMI

OPTICAL

VIDEO 1

DIGITAL

COAXIAL

BAD

SAT

AUDIO IN

Satellite tuner/Set-top box

AHDMI cable (not supplied)

We recommend that you use a Sony HDMI cable.

BOptical digital cord (not supplied)a)

CCoaxial digital corda)b)

DAudio cord (not supplied)a)

DVD player Blu-ray disc player

Audio/video

signals

Audio/video

signals

Audio/video

signals

Audio

signals Audio/video

signals

TV, etc.

To one of the

COAXIAL IN jacks

To one of the

OPTICAL IN

jacks

For rear panel

illustration, refer

to the operating

instructions of

your receiver.

GBGBGB

4GB

Preparing for HDMI

CONTROL function

Before you use the HDMI CONTROL

function, be sure you have performed the

following procedures. For details on setting

the TV and connected components, see the

operating instructions of the respective

components.

1Make sure that the receiver is connected to

the TV and components (compatible with

HDMI CONTROL function) via HDMI

connection.

2Turn on the receiver, TV and connected

components.

3Set the respective HDMI CONTROL

function for the receiver and TV to on.

See “To set HDMI CONTROL” below.

4Select the HDMI input of the receiver and

TV to match the HDMI input of the

connected component, so that the image

from the connected component is displayed.

5Set the HDMI CONTROL function for the

connected component to on.

6Repeat step 5 for other components that you

want to use the HDMI CONTROL function.

1(For remote RM-AAP016/

RM-AAP017 only)

Press RECEIVER, then press

MENU.

The RECEIVER indicator lights up and

receiver operation is activated.

“1-LEVEL” appears on the display.

(For remote RM-AAU014/

RM-AAU015/RM-AAU017 only)

Press AMP MENU.

“1-LEVEL” appears on the display.

2Press V/vrepeatedly to select

“6-VIDEO”.

3Press or bto enter the

menu.

4Press V/vrepeatedly to select

“CONTROL”.

“HDMI” flashes on the display.

5Press or bto enter the

parameter.

6Press V/vrepeatedly to select

“CTRL ON”.

HDMI CONTROL function is activated.

To set HDMI CONTROL

5GB

Watching a DVD

(One-Touch Play)

Play back a connected component.

The receiver and the TV are turned on

automatically and switch to the appropriate

HDMI input.

Note

Depending on the TV, the start of the content may

not be output.

Watching a DVD by simple

operation

You can also select a connected component,

such as a DVD/Blu-ray Disc Player using the

TV menu. In this case, the receiver and the TV

switch to the appropriate HDMI input.

Enjoying the TV sound

from the speakers

connected to the receiver

(System Audio Control)

You can enjoy the TV sound from the speakers

connected to the receiver by a simple

operation.

If you turn on the receiver while the TV is

turned on, the System Audio Control function

will automatically be set to on and the TV

sound will output from the speakers connected

to the receiver. However, if you turn off the

receiver, the sound will output from the TV

speakers.

You can also operate this function using the

TV menu. For details, see the operating

instructions of the TV.

Notes

• When “CONTROL” is set to “CTRL ON”, the

“AUDIO” settings in the VIDEO menu will set

automatically depending on the System Audio

Control settings.

• When you connect a TV that does not have System

Audio Control function, the System Audio Control

function does not work.

• If the TV is turned on before turning on the

receiver, the TV sound will not be output for a

moment.

Notes for models other than

STR-DG910

• When you switch to an input other than HDMI or

TV, the System Audio Control function will

automatically be set to off.

• If you switch from other input to HDMI or TV

input, the System Audio Control function will

automatically be set to on.

6GB

Turning off the receiver

with the TV

(System Power Off)

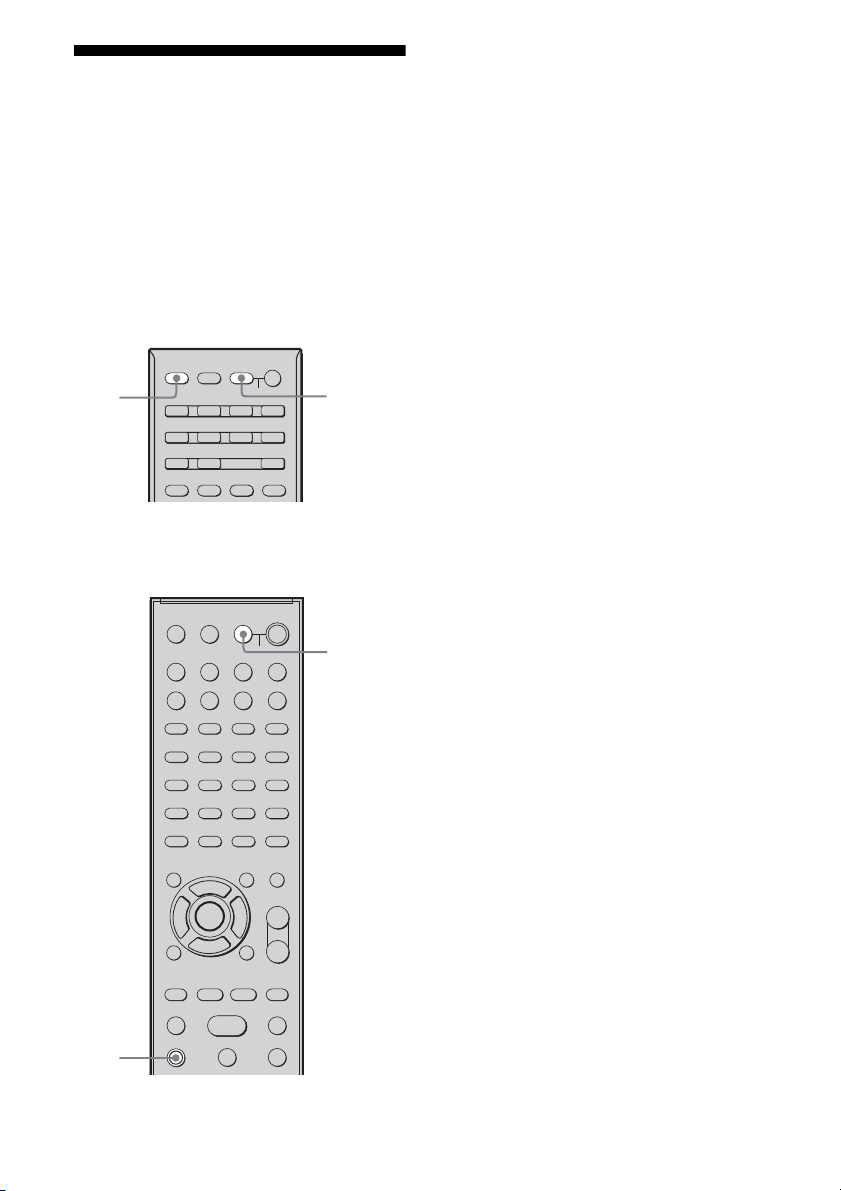

When you turn the TV off by using the

POWER button on the TV’s remote, the

receiver and the connected components turn

off automatically.

You can also use the receiver’s remote to turn

off the TV.

(For remote RM-AAP016/

RM-AAP017 only)

Press TV, then press AV ?/1.

(For remote RM-AAU014/

RM-AAU015/RM-AAU017 only)

Press TV and TV ?/1at the same

time.

The TV, receiver and connected components

are turned off.

Notes

• Set the TV Standby Synchro to “ON” before using

the System Power Off function. For details, see the

operating instructions of the TV.

• Depending on the status, the connected

components may not be turned off. For details, see

the operating instructions of the connected

components.

RM-AAP016/

RM-AAP017

RM-AAU014/

RM-AAU015/

RM-AAU017

TV AV ?/1

TV ?/1

7GB

Troubleshooting

If you experience any of the following

difficulties while using the HDMI CONTROL

function, use this troubleshooting guide to

help you remedy the problem.

The HDMI CONTROL function does not

work.

• Check the HDMI connection (page 3).

• Make sure “CONTROL” is set to “CTRL

ON” in VIDEO menu.

• Make sure the connected component is

compatible with the HDMI CONTROL

function.

• Check the HDMI CONTROL settings on

the connected component. See the

operating instructions of the connected

component.

• If you change the HDMI connection,

connect/disconnect the AC power cord, or

there is a power failure, repeat the

procedures of “Preparing for HDMI

CONTROL function” (page 4).

No sound is output from the receiver

and TV speaker while using the System

Audio Control function.

• Make sure the TV is compatible with the

System Audio Control function.

• If the TV does not have System Audio

Control function, set the “AUDIO”

settings in VIDEO menu to

– “TV+AMP” if you want to listen to the

sound from the TV speaker and

receiver.

– “AMP” if you want to listen to the

sound from the receiver.

2FR

Utilisation de la fonction

HDMI CONTROL pour

‘BRAVIA’ Theatre Sync

Pour utiliser ‘BRAVIA’ Theatre Sync, réglez

la fonction HDMI CONTROL ainsi qu’il est

décrit ci-dessous.

En raccordant les appareils Sony compatibles

avec la fonction HDMI CONTROL

au moyen d’un câble HDMI (non fourni), le

fonctionnement est simplifié de la façon

• One-Touch Play (Lecture par simple

pression sur une touche) : lorsque vous

effectuez une lecture sur un appareil comme

un lecteur DVD/de disques Blu-ray, l’ampli-

tuner et le téléviseur sont automatiquement

mis sous tension et commutent sur l’entrée

HDMI appropriée.

• System Audio Control (Contrôle audio du

système) : pendant que vous regardez la

télévision, vous pouvez choisir d’émettre le

son par le haut-parleur du téléviseur ou par

les enceintes raccordées au ampli-tuner.

• System Power Off (Mise hors tension du

système) : lorsque vous mettez le téléviseur

hors tension, l’ampli-tuner et les appareils

raccordés sont également mis hors tension

simultanément.

HDMI CONTROL est une norme de fonction

de commande mutuelle utilisée par HDMI

CEC (Consumer Electronics Control) pour

HDMI (High-Definition Multimedia

Interface).

La fonction HDMI CONTROL est

inopérante dans les cas

suivants :

• Lorsque vous raccordez l’ampli-tuner sur un

appareil qui n’est pas compatible avec la

fonction HDMI CONTROL de Sony.

• Lorsque vous raccordez le récepteur et les

appareils avec un raccordement autre qu’un

raccordement HDMI.

Il est recommandé de raccorder l’ampli-tuner

à des produits compatibles ‘BRAVIA’ Theatre

Sync.

Remarque

Selon l’appareil raccordé, la fonction HDMI

CONTROL risque de ne pas fonctionner. Reportez-

vous au mode d’emploi de l’appareil.

3FR

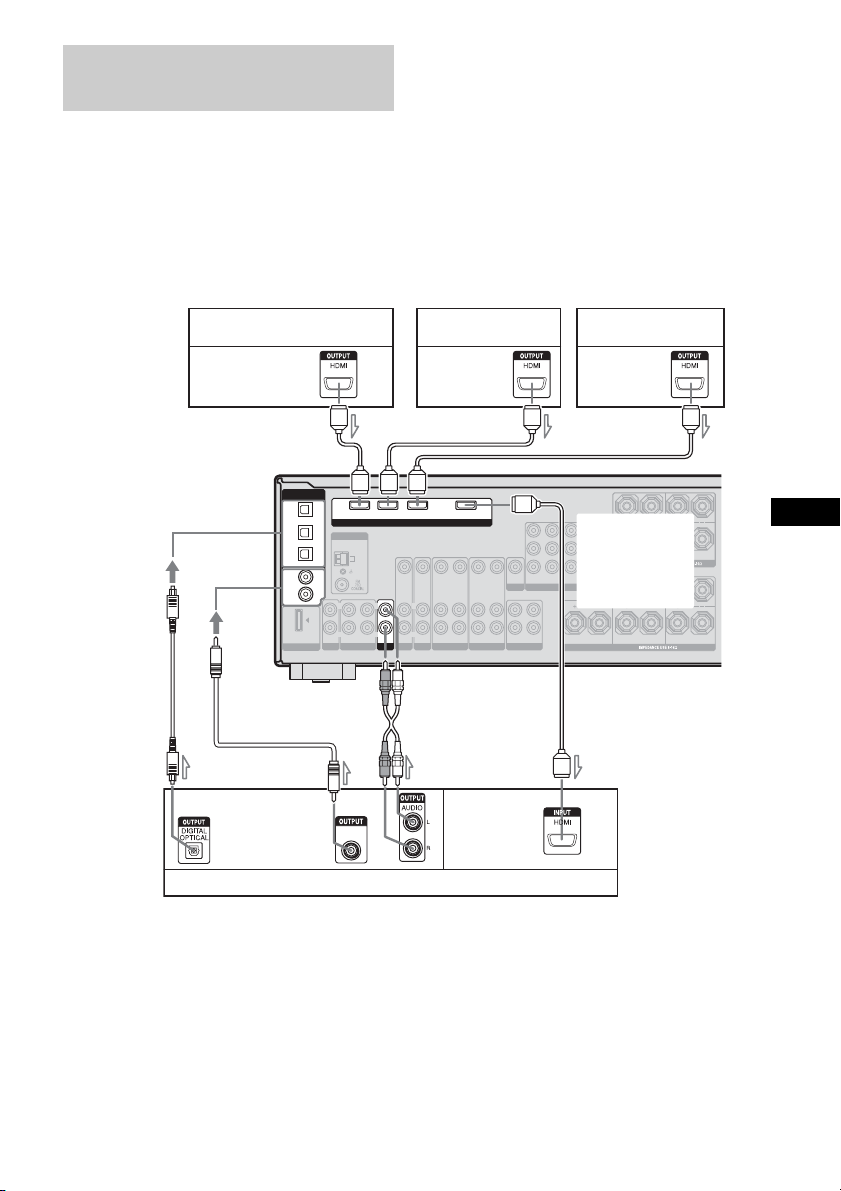

Raccordez les cordons audio et vidéo en

fonction des prises de votre ampli-tuner et de

vos appareils.

L’illustration ci-dessous est utilisée comme

référence à des fins de raccordement

uniquement.

Pour profiter du son surround

multicanal du téléviseur

Vous pouvez écouter le son surround

multicanal du téléviseur à partir des enceintes

raccordées à l’ampli-tuner.

Raccordez la prise de sortie audio numérique

de votre téléviseur à l’une des prises DIGITAL

IN de l’ampli-tuner. Réaffectez ensuite la prise

raccordée à l’entrée TV. Pour plus

d’informations, reportez-vous à la fonction

DIGITAL ASSIGN dans le mode d’emploi

séparé fourni avec l’ampli-tuner.

a)Raccordez-le à au moins l’un des cordons audio

(B, Cou D).

b)Pour plus d’informations, reportez-vous à la

section « Accessoires fournis » du mode d’emploi

de votre ampli-tuner.

Remarque

La forme, l’emplacement, le nom et le nombre de

prises varient en fonction des modèles et des zones.

Raccordement d’un téléviseur

et d’autres appareils

DMPORT

ANTENNA

AUX

MONITOR

COMPONENT VIDEO

DVD VIDEO 2/BD VIDEO 1 SUB WOOFER

IN INOUT AUDIO OUTAUDIO IN AUDIO IN

VIDEO IN

SAT IN DVD IN VIDEO 2/BD IN OUT

VIDEO IN VIDEO OUT VIDEO OUT VIDEO OUT SAT IN DVD IN

VIDEO IN VIDEO IN VIDEO 1 IN MONITOR OUT

AUDIO OUT AUDIO OUTAUDIO IN

FRONT B

FRONT A

SA-CD/CD/CD-R

SPEAKERS

SURROUND

SURROUND BACKCENTER

DIGITAL

(ASSIGNABLE)

SAT

VIDEO 2/

BD IN

COAXIAL

DVD

SA-CD/

CD/CD-R

HDMI

OPTICAL

VIDEO 1

DIGITAL

COAXIAL

BAD

SAT

AUDIO IN

Tuner satellite/Décodeur

ACâble HDMI (non fourni)

Il est recommandé d’utiliser un câble HDMI Sony.

BCordon numérique optique (non fourni)a)

CCordon numérique coaxiala)b)

DCordon audio (non fourni)a)

Lecteur DVD Lecteur de disques

Blu-ray

Signaux audio/

vidéo

Signaux audio/

vidéo

Signaux audio/

vidéo

Signaux

audio

Signaux

audio/vidéo

Téléviseur, etc.

Vers l’une des prises

COAXIAL IN

Vers l’une des

prises

OPTICAL IN

Pour l’illustration

du panneau

arrière, reportez-

vous au mode

d’emploi de votre

ampli-tuner.

4FR

Préparatifs pour la

fonction HDMI CONTROL

Avant d’utiliser la fonction HDMI

CONTROL, vérifiez que vous avez exécuté

les procédures suivantes. Pour plus

d’informations sur le réglage du téléviseur et

des appareils raccordés, reportez-vous au

mode d’emploi fourni avec chaque appareil.

1Vérifiez que l’ampli-tuner est raccordé au

téléviseur et aux appareils (compatibles

avec la fonction HDMI CONTROL) au

moyen d’une connexion HDMI.

2Mettez l’ampli-tuner, le téléviseur et les

appareils raccordés sous tension.

3Activez la fonction HDMI CONTROL de

l’ampli-tuner et du téléviseur.

Reportez-vous à la section « Pour activer

HDMI CONTROL » ci-dessous.

4Sélectionnez l’entrée HDMI de l’ampli-

tuner et du téléviseur afin qu’elle

corresponde à à l’entrée HDMI de l’appareil

raccordé, de sorte que l’image de l’appareil

raccordé s’affiche.

5Activez la fonction HDMI CONTROL des

autres appareils raccordés.

6Répétez l’étape 5 pour les autres appareils

dont vous souhaitez utiliser la fonction

HDMI CONTROL.

1(Pour la télécommande

RM-AAP016/ RM-AAP017

uniquement)

Appuyez sur RECEIVER, puis

sur MENU.

Le témoin RECEIVER s’allume et

l’ampli-tuner est activé.

« 1-LEVEL » apparaît sur l’afficheur.

(Pour la télécommande

RM-AAU014/RM-AAU015/

RM-AAU017 uniquement)

Appuyez sur AMP MENU.

« 1-LEVEL » apparaît sur l’afficheur.

2Appuyez plusieurs fois sur V/v

pour sélectionner « 6-VIDEO ».

3Appuyez sur ou sur bpour

entrer dans le menu.

Appuyez plusieurs fois sur

pour sélectionner « CONTROL ».

« HDMI » clignote dans la fenêtre

d’affichage.

5Appuyez sur ou bpour

saisir le paramètre.

6Appuyez plusieurs fois sur V/v

pour sélectionner « CTRL ON ».

La fonction HDMI CONTROL est

activée.

Pour activer HDMI CONTROL

Altri manuali per STR-DG910

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sony Ricevitore

Sony

Sony DSRM-E1 Manuale utente

Sony

Sony SAT-T60 Welcome to DIRECTV & TiVo Instructions (primary... Manuale utente

Sony

Sony STR-DN1050 Guida di riferimento

Sony

Sony STR-DG710 Manuale utente

Sony

Sony 3-875-814-11(1) Manuale utente

Sony

Sony STR-DH590 Guida utente

Sony

Sony DWR-S03D Manuale utente

Sony

Sony XT-500DTV Istruzioni operative

Sony

Sony STR-DH750 Manuale utente

Sony

Sony HCD-FC7 - System Components Manuale utente

Sony

Sony XAV-AX200 Manuale utente

Sony

Sony STR-KS1000P Manuale utente

Sony

Sony TA-VA8ES Manuale utente

Sony

Sony STR-DH710 - 10str Hifi Manuale utente

Sony

Sony STR-GX49ES Manuale utente

Sony

Sony STR-DG1000 - 7.1 Channel Surround Sound A/v... Manuale utente

Sony

Sony STR-DA3300ES - Multi Channel Av Receiver Manuale utente

Sony

Sony STR-K890 Manuale utente

Sony

Sony STR-DE185 Manuale utente

Sony

Sony HCD-FR1 - Dvd Home Theater System Manuale utente

Sony

Sony STR-DG710 Manuale utente

Sony

Sony STR-DA3200ES - Es Receiver Manuale utente

Sony

Sony STR-DN850 Guida utente

Sony

Sony STR-DA5600ES - Multi Channel Av Receiver Istruzioni per il montaggio

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
