Map of GUI Menu System

Using the home menu

Menu items underlined are default settings.

Home

Watch BD/DVD

SAT/CATV

GAME

STB

VIDEO

Listen AUX

SACD/CD

FM TUNER

AM TUNER

Custom Preset Movie

Music

Party

Night

Sound Effects Sound Field 2ch Stereo

2ch Analog Direct

Auto Format Direct

HD-D.C.S. (Dynamic, Theater, Studio)

Pro logic ll

Pro logic llx

Neo:6

Multi Stereo

Equalizer

Sound Optimizer Normal

Low

Off

InCeiling Speaker Mode On

Off

Pure Direct On

Off

3GB

Setup Input Setup* * Icon

Name

Watch/Listen

Show/Hide

HDMI

OPTICAL/COAXIAL

COMPONENT

VIDEO IN

AUDIO IN

Input Mode

Preset Sound Field

In-Ceiling Speaker Mode

A/V Sync

Subwoofer Low Pass Filter

Subwoofer Level

Trigger (for STR-ZA2000ES/STR-ZA1000ES only)

Trigger 1 (for STR-ZA3000ES only)

Trigger 2 (for STR-ZA3000ES only)

Trigger 3 (for STR-ZA3000ES only)

Speaker Setup Auto Calibration*

Automatic Phase Matching (Auto, Off)

Calibration Type (Full Flat, Engineer, Front Reference,

Off)

Speaker Pattern

SB Speaker Assign (Zone2, Bi-Amp, Front B, Off)

Size* (Large, Small)

Distance* (32ft 9in, 32ft 8in, …, 9ft 10in, …,

6ft7in, 6ft 6in)

Level* (+10.0dB, +9.5dB, …, 0.0dB, …, –9.5dB,

–10.0dB)

Test Tone*

Crossover Frequency* (40Hz, 50Hz, …, 120Hz, …, 190Hz,

200Hz)

Equalizer* (+10.0dB, +9.5dB, …, 0.0dB, …, –9.5dB,

–10.0dB)

Center Speaker Lift Up (10, 9, 8, …, 2, 1, Off)

Ceiling Speaker Height (32ft 9in, 32ft 8in, …, 9ft 0in, …,

6ft7in, 6ft 6in)

Distance Unit (feet, meter)

Network Setup Internet Setup*

Information*

Network Standby (On, Off)

Music Connect Connected Device

Input for Music Connect

4GB

Setup Audio Setup Digital Legato Linear (Auto 1, Auto 2, Off)

Sound Optimizer (Normal, Low, Off)

Sound Field*

HD-D.C.S. Type (Dynamic, Theater, Studio)

In-Ceiling Speaker Mode (On, Off)

Pure Direct (On, Off)

Subwoofer Low Pass Filter (On, Off)

A/V Sync (300ms, 290ms, …, 10ms, 0ms,

HDMIAuto)

Dual Mono (Main, Sub, Main/Sub)

Dynamic Range Compressor (Auto, On, Off)

HDMI Setup 4K Scaling (Auto, Off)

Control for HDMI (On, Off)

Pass Through (Auto, On, Off)

Audio Out (AMP, TV+AMP)

Zone2 Audio Out (AMP, Zone2 TV+AMP, Zone2 AMP)

Subwoofer Level (Auto, +10dB, 0dB)

HDMI Out B Mode (Main, Zone2)

Priority (Main&Zone2, Main Only)

Fast View (Auto, Off)

Zone Setup Main Preset Volume (+23.0dB, +22.5dB, …, –92.0dB, –∞dB,

Off)

Zone2 Power (On, Off)

Zone2 Input (SOURCE, BD/DVD, …, FM TUNER,

AM TUNER)

Zone2 Volume (+23.0dB, +22.5dB, …, –40.0dB, …,

–92.0dB, –∞dB)

Zone2 Preset Volume (+23.0dB, +22.5dB, …, –92.0dB, –∞dB,

Off)

Zone2 Line Out (Variable, Fixed)

Zone3 Power (On, Off)

Zone3 Input (SOURCE, VIDEO, …, FM TUNER,

AMTUNER)

Zone3 Volume (+23.0dB, +22.5dB, …, –40.0dB, …,

–92.0dB, –∞dB)

Zone3 Preset Volume (+23.0dB, +22.5dB, …, –92.0dB, –∞dB,

Off)

Zone3 Line Out (Variable, Fixed)

System Setup Language (English, Español, Français,)

Auto Display (On, Off)

Auto Standby (On, Off)

Volume Display (Relative, Absolute)

Dimmer (100%, 60%, 0%)

Sleep (2:00:00, 1:30:00, 1:00:00, 0:30:00,

Off)

Software Version

USB Update*

Tuner Setup* FM Mode

Name Input

5GB

Setup Install Setup External Control (On, Off)

Trigger* (for STR-ZA2000ES/STR-ZA1000ES only)

Trigger 1* (for STR-ZA3000ES only)

Trigger 2* (for STR-ZA3000ES only)

Trigger 3* (for STR-ZA3000ES only)

Test Picture (On, Off)

Save/Load*

Settings Lock* (On, Off)

Easy Setup Auto Calibration*

Internet Setup*

* You can select the following inputs in Input Setup screen.

BD/DVD, SAT/CATV, GAME, STB, VIDEO, AUX, TV, SA-CD/CD

* You can set up each input using these menu items in Input Setup.

* Detailed information of these menu items is displayed after you select the settings.

* The menu item can be adjusted against each speaker.

6GB

Table of Contents

Map of GUI Menu System ................................................................................................2

Using the home menu.................................................................................. 2

Connections & settings (multi room/single room)

Preparing the receiver...................................................................................................... 7

Outline dimensional drawing....................................................................... 7

Attaching/removing the front cover............................................................ 7

Setting up the receiver................................................................................. 7

Connecting equipment....................................................................................................8

Connecting a 4K TV that supports HDCP 2.2 to a 4K streaming box

using a 4K-compatible HDMI cable......................................................8

Linking with a Hi-Fi music system................................................................9

Making a connection for PoE (Power over Ethernet)

(for STR-ZA3000ES only)..................................................................... 10

Making a multi-zone connection ................................................................ 11

Mixing separate audio/video inputs (Last video mode)............................ 11

Setting up the receiver....................................................................................................12

Outputting a test tone from each speaker (TestTone) ..............................12

Displaying a test screen (Test Picture) ........................................................12

Adjusting the sound balance automatically (Auto Calibration) .................12

List of messages after Auto Calibration measurements ............................13

Saving/loading settings of the receiver .....................................................13

Updating the firmware with a USB flash drive............................................13

Setting up through a web browser............................................................ 14

Using the PING button ............................................................................... 14

Using the hidden commands

Performing commands using the receiver.....................................................................15

Performing commands using the supplied remote control ......................................... 16

Turning on transmitting mode of the discrete code for the main zone ... 16

Turning on transmitting mode of the discrete code for zone2/zone3 .....17

Accessories

Mounting the receiver using the rack mount kit........................................................... 18

Others

Zone distribution............................................................................................................ 19

In-Ceiling Speaker mode................................................................................................20

7GB

Connections & settings (multi room/single room)

Preparing the receiver

Outline dimensional drawing

Top

Front Side

174 mm (6 7/8 in)

430 mm (17 in) 378 mm (15 in)

410 mm (16 1/4 in)

10 mm (13/32 in)

Attaching/removing the front cover

The front cover can be completely removed from the receiver.

Remove the front cover by inserting

your fingers under the cover.

Setting up the receiver

We recommend that you activate the following menu items in advance.

To activate the network standby mode

Select [Setup] - [Network Setup] - [Network Standby] - [On] from the home menu.

To turn on the control mode to make an external controller connection

Select [Setup] - [Install Setup] - [External Control] - [On] from the home menu.

Notes

•When the receiver is in standby mode, the /(on/standby) indicator on the front panel lights up in

amber if [Network Standby] is set to [On].

•Set [External Control] to [On] to activate the network connection or to activate control from an external

controller connected to the RS232C port.

8GB

Connecting equipment

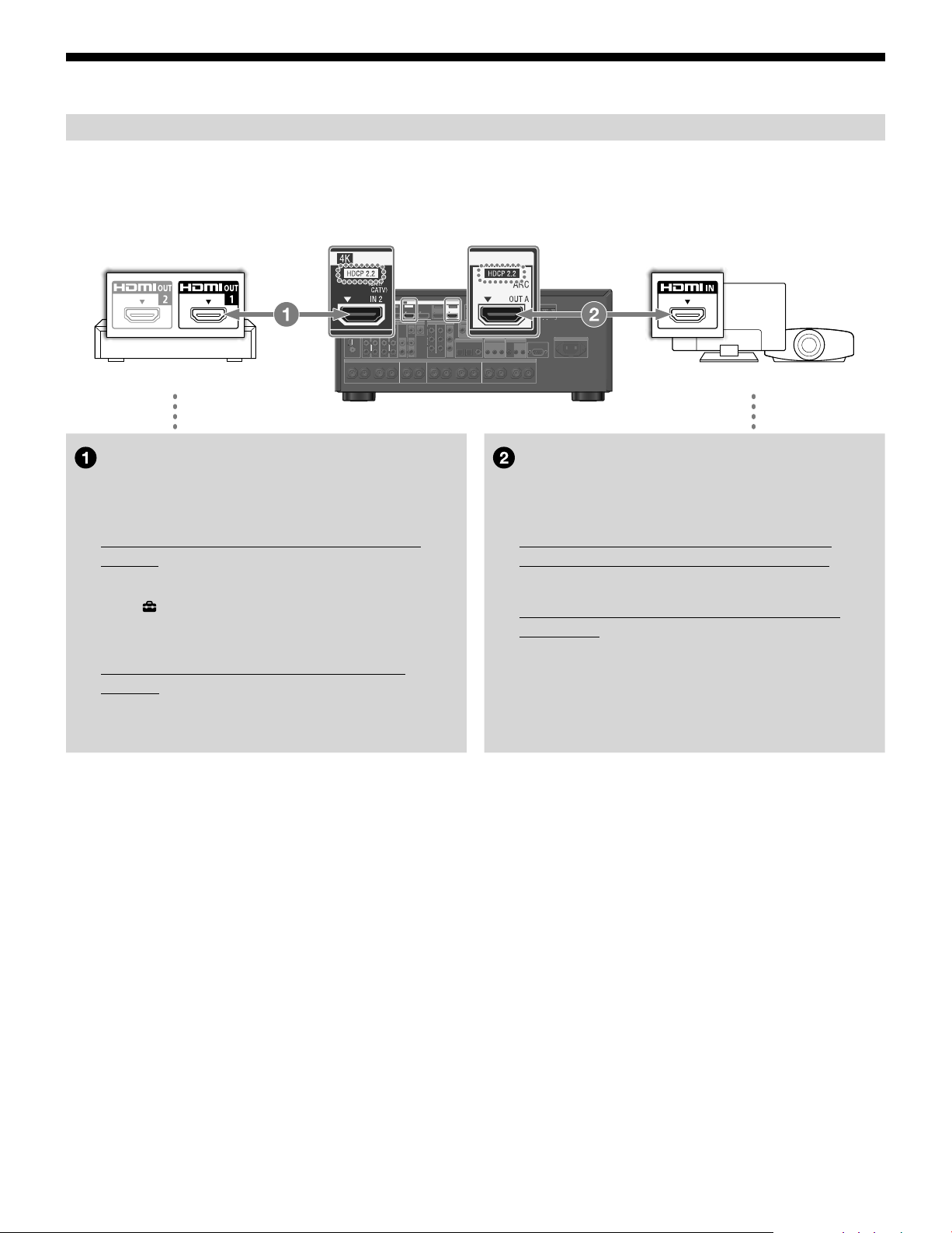

Connecting a 4K TV that supports HDCP 2.2 to a 4K streaming box using a 4K-compatible HDMI cable

To enjoy audio from 4K content such as 4K movies, connect the HDMI OUT/IN jacks of each

device that supports HDCP 2.2* using HDMI cables, as illustrated below.

* HDCP 2.2 (Highbandwidth Digital Content Protection 2.2) is newly enhanced copyright protection

technology that is used to protect content such as 4K movies from Studios.

4K media player 4K TV or 4K projector

Connect the receiver to a 4K media player

using a High Speed HDMI cable (not

supplied).

Connect the receiver to your 4K TV using a

High Speed HDMI cable (not supplied).

If you are using an FMP‐X10/X5 Media

Player:

Connect the cable to the HDMI OUT 1 (for AUDIO VIDEO) jack

of the player.

Select [ (Settings)]  [Sound]  [Audio from HDMI OUT]

 [HDMI OUT1] in the Home menu of the FMP-X10/X5 Media

Player after Initial Setup is complete.

If you are using a different 4K media

player:

Connect the cable to one of the HDCP 2.2 compatible HDMI

OUT jacks. For details, refer to the operation manual supplied

with your player.

If you are using a BRAVIA TV with the

series name X950B, X900B or X850B:

Connect the cable to the HDMI IN 1 jack of your TV.

If you are using a different 4K TV or 4K

projector:

Connect to one of the HDCP 2.2 compatible HDMI IN jacks. If

the jack is not compatible with the ARC (Audio Return

Channel) function, also connect an optical digital cable. For

details, refer to the operation manual supplied with your 4K

TV or 4K projector.

9GB

Connections & settings (multi room/single room)

Linking with a Hi-Fi music system

This receiver can switch its power and input automatically by linking with playback operation

of the Hi-Fi music system.

Configure settings to enable the receiver to operate linked with a Hi-Fi System device.

1 Select [Setup] - [Network Setup] - [Music Connect] from the home.

2 Select the setting you want.

Connected Device: Select the connected device to enable the function.

Input for Music Connect: Select the input to link with.

3 Start playback on the player device.

The receiver will be turned on and the input switched automatically.

To disable Music Connect

Select [Setup] - [Network Setup] - [Music Connect] - [Connected Device] - [Remove Connected

Device] from the home menu.

Notes

•The Music Connect feature can be linked only with the power source and input of the main zone. This

feature does not link with zone 2 or zone 3.

•The link feature of Music Connect may not work correctly depending on factors such as the

specifications of the connected device.

•We recommend that you set [Network Standby] to [On] to activate the feature for linking with Music

Connect even if the receiver is in standby mode.

•Only one Hi-Fi music system device can be linked with the receiver at a time using the Music Connect

feature.

10GB

Making a connection for PoE (Power over Ethernet) (for STR-ZA3000ES only)

The following illustration is an example of configuration of a home network with the receiver

and a computer.

STR-ZA3000ES

LAN cable

Modem

Wireless access point, etc.

Network camera, etc.

LAN cable

Computer Router

Internet

Notes

•Connect a router to one of ports 1 to 8 on the receiver using a single LAN cable. Do not connect the

same router to the receiver using more than one LAN cable. Doing so may cause a malfunction.

•Ports No. 1 and No. 2 support PoE (Power over Ethernet, Alternative A). If you connect a PoE-compatible

device to one of these ports, power will be supplied to the device from the receiver.

•You can also connect a device that does not support PoE to the PoE port.

•The PoE port lights in red while supplying power.

•This receiver supports PoE Class 3.

Altri manuali per STR-ZA3000ES

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sony Ricevitore

Sony

Sony SAT-A55P Manuale utente

Sony

Sony icf 2010 Manuale utente

Sony

Sony ROOMLINK PCNA-MR10 Manuale utente

Sony

Sony MSAC-SR1 Manuale utente

Sony

Sony STR-DB930 - Fm Stereo/fm-am Receiver Guida utente

Sony

Sony STR-DA3200ES - Es Receiver Manuale utente

Sony

Sony STR-DA1500ES Manuale utente

Sony

Sony STR-DA4300ES - Multi Channel Av Receiver Manuale utente

Sony

Sony HCD-DZ110 Manuale utente

Sony

Sony STR-DE575 - Fm Stereo/fm-am Receiver Guida utente

Sony

Sony STR-DA3500ES Manuale utente

Sony

Sony HCD-BC150 - Dvd Home Theater System Manuale utente

Sony

Sony STR-DG910 Manuale utente

Sony

Sony STRDG920 - STR AV Receiver Manuale utente

Sony

Sony ICF-SW1E Manuale utente

Sony

Sony STR-ZA3000ES Manuale utente

Sony

Sony STR-DE595 Guida utente

Sony

Sony STR-DA3400ES Manuale utente

Sony

Sony STR-DE698 - A/v Receiver Manuale utente

Sony

Sony STR-DA3100ES - Fm Stereo/fm-am Receiver Manuale utente

Sony

Sony HCD-GZR88D Manuale utente

Sony

Sony STR-DA5300ES - Multi Channel Av Receiver Manuale utente

Sony

Sony HCD-DZ20 Manuale utente

Sony

Sony STR-DN1040 Guide Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
