Sony Bravia KE-55XH9005 Istruzioni operative

Dismantling information for use

by professional recyclers

LCD TV

9-888-784-41

Model

：

KE-55XH9005

KE-55XH9077

KE-55XH9096

KE-55XH9288

KE-55XH9296

KE-55XH9299

FW-55BZ40H

KE-65XH9005

KE-65XH9077

KE-65XH9096

KE-65XH9288

KE-65XH9296

KE-65XH9299

FW-65BZ40H

KE-75XH9005

KE-75XH9096

KE-75XH9288

KE-75XH9296

KE-75XH9299

FW-75BZ40H

KE-85XH9096

FW-85BZ40H

ORIGINAL MANUAL ISSUE DATE: 2021.02

Conditions of Use:

(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any

purpose other than the purpose described foregoing is forbidden.

(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the

prior written permission of the author.

Revision of Information:

This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date

before using it.Sony Home Entertainment & Sound Products Inc.

MODEL LISTS

MODEL REMOTE DESTINATION

KE-55XH9005 RMF-TX500E CEI , UKA

KE-55XH9077 RMF-TX500E CEI

KE-55XH9096 RMF-TX500E CEI

KE-55XH9288 RMF-TX600E CEI

KE-55XH9296 RMF-TX500E UKA

KE-55XH9299 RMF-TX600E CEI

FW-55BZ40H RMT-TB400U CEI

KE-65XH9005 RMF-TX500E CEI, UKA

KE-65XH9077 RMF-TX500E CEI

KE-65XH9096 RMF-TX500E CEI

KE-65XH9288 RMF-TX600E CEI

KE-65XH9296 RMF-TX500E UKA

KE-65XH9299 RMF-TX600E CEI

FW-65BZ40H RMT-TB400U CEI

KE-75XH9005 RMF-TX500E CEI, UKA

KE-75XH9096 RMF-TX500E CEI

KE-75XH9288 RMF-TX600E CEI

KE-75XH9296 RMF-TX500E UKA

KE-75XH9299 RMF-TX600E CEI

FW-75BZ40H RMT-TB400U CEI

MODEL REMOTE DESTINATION

KE-85XH9096 RMF-TX500E CEI, UKA

FW-85BZ40H RMT-TB400U CEI

RMF-TX600ERMF-TX500E RMT-TB400U

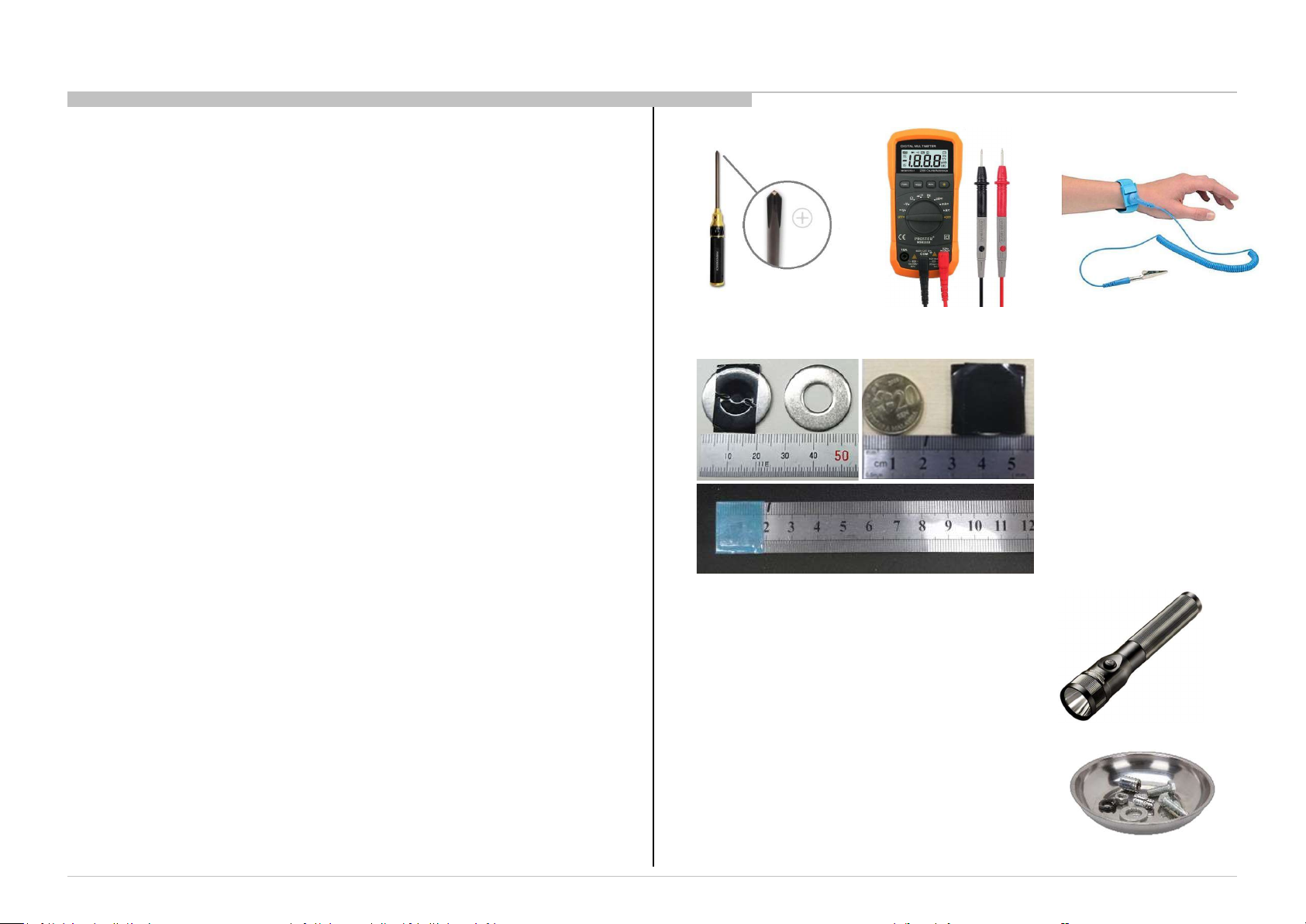

TOOLS & EQUIPMENTS

1 LIST OF ITEMS TO BRING

1. Screwdriver (e.g. #2 Phillips Screwdriver)

2. Multimeter

3. ESD Wrist Straps

4. Metal Washer (Flat) or Coin (for remove Rear Cover)

5. Ruler (for remove Rear Cover)

2 OPTIONAL EQUIPMENT

1. Screwdriver (e.g. #0 Phillips Screwdriver)

2. Parts Tray for loose screws and small items

3. Flashlight

For Surface Mounted Parts/Connectors;

Hot-Air Type soldering Iron is needed.

Thickness: approx. 1.5mm

Diameter: 20~25mm

(wrap in tape (L=50mm))

Plastic or Metal Ruler

(In case of Metal ruler, wrap

in tape (L=50mm) for prevent

scratches)

DISSASSEMBLY AND REMOVAL CAUTION 55”

Stand

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

•! and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

The reference number beside the part indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

1-4 EXPLODED VIEW AND

PART LIST

17 18

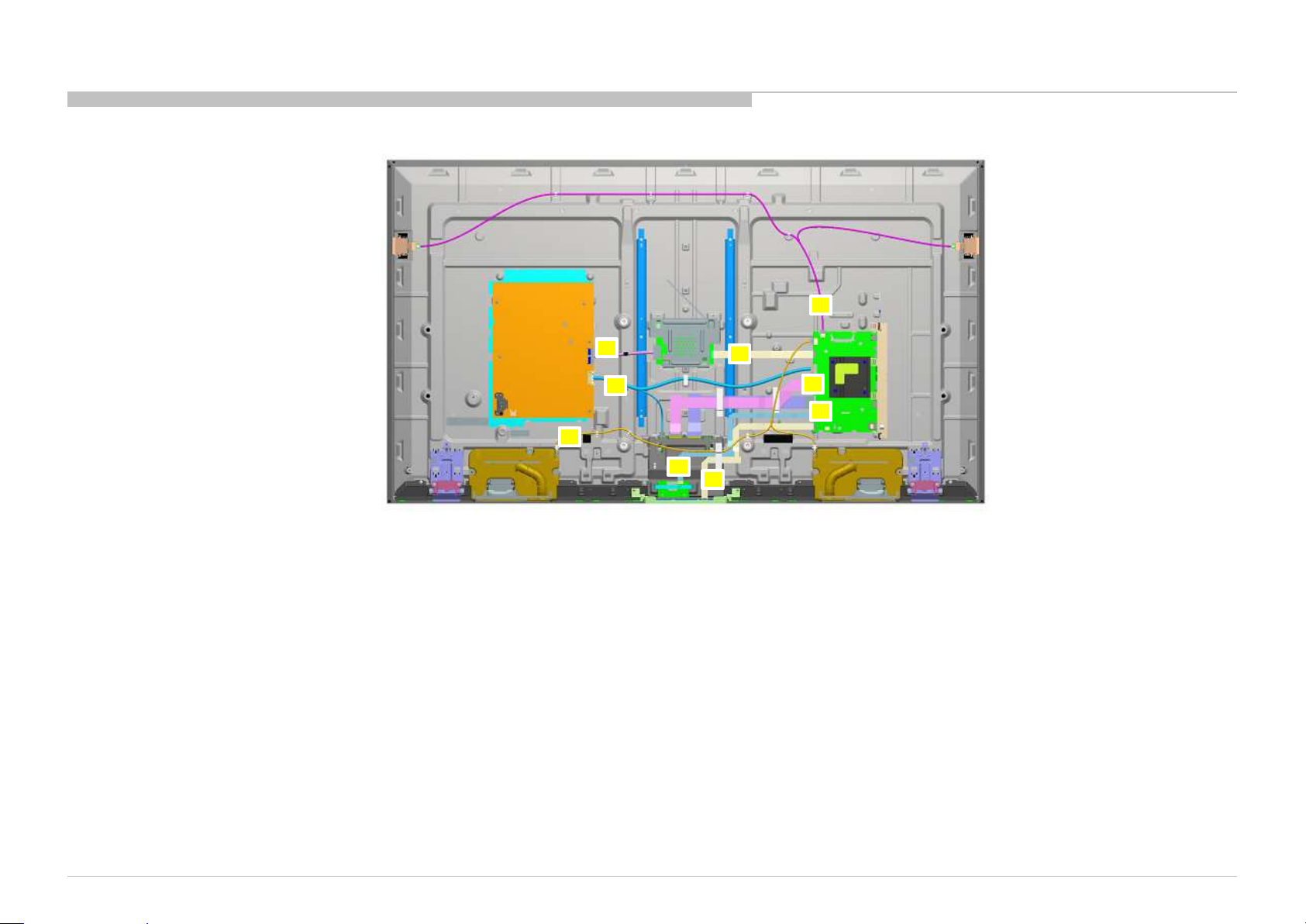

EXPLODED VIEW 55”

REF. NO PART NO. DESCRIPTION REMARKS

11-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-

CN1202(BT)(1)

21-006-508-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-

CN102(H)(1)

31-007-098-11 CONNECTOR ASSY 15P CN6601(PSU)-

CN1003(LD)(1)

41-007-185-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-

CN1000(LD)(1)

51-007-218-11 CONNECTOR ASSY 6P (SP) CN3501(B)-

SP(1)

61-007-220-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-

CON3(TCON)(1)

71-007-186-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-

U2(TCON)(1)

81-007-460-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-U1(TCON)(1)

HARNESS/CABLES 55”

REF. NO PART NO. DESCRIPTION REMARKS

2 1-005-621-11 C7L AC POWER CODE SETS (EU) (CEI)

2 1-005-628-11 C7L AC POWER CODE SETS (UK) (UKA)

10 A-5014-805-A COMPL SVC BM5_WW_B2B_55 FW-55BZ40H

10 A-5014-795-A COMPL SVC BM5_EUUK_55 Except FW-55BZ40H

12 1-006-134-21 G04P - STATIC CONVERTER(TV)

14 A-5012-968-A 20LD24A1 COMPL

15 1-007-573-11 MOUNTED PWB E-T-CON(55)

16 A-5016-544-A P-MOD (YDAS055DND01) FW-55BZ40H

16 A-5016-501-A P-MOD (YDAS055DND01) KE-55XH9005/9096/9288/9296/9299 (CEI/UKA)

16 A-5016-506-A P-MOD (YDAS055DND01) KE-55XH9077 (CEI)

SET PART LIST

Cable

Printed Circuit Board, incl. capacitors

Liquid Crystal Display

PARTS LIST 55”

DISSASSEMBLY AND REMOVAL CAUTION 65”

18 19

Stand

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

•! and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

The reference number beside the part indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

2-4 EXPLODED VIEW AND

PART LIST

EXPLODED VIEW 65”

REF. NO PART NO. DESCRIPTION REMARKS

11-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-

CN1202(BT)(1)

21-006-508-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-

CN102(H)(1)

31-007-098-11 CONNECTOR ASSY 15P CN6601(PSU)-

CN1003(LD)(1)

41-007-113-11 CONNECTOR ASSY 4P (PZ) CN3500(B)-

PZ(1)

51-007-185-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-

CN1000(LD)(1)

61-007-219-11 CONNECTOR ASSY 6P (SP) CN3501(B)-

SP(1)

71-007-220-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-

CON3(TCON)(1)

81-007-187-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-

U2(TCON)(1)

91-007-461-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-

U1(TCON)(1)

HARNESS/CABLES 65”
