REMOTE CONTROL UNIT

RM-B150

MAINTENANCE MANUAL

1st Edition (Revised 2)

Serial No. 15001 and Higher

!WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so. Refer all servicing to

qualified service personnel.

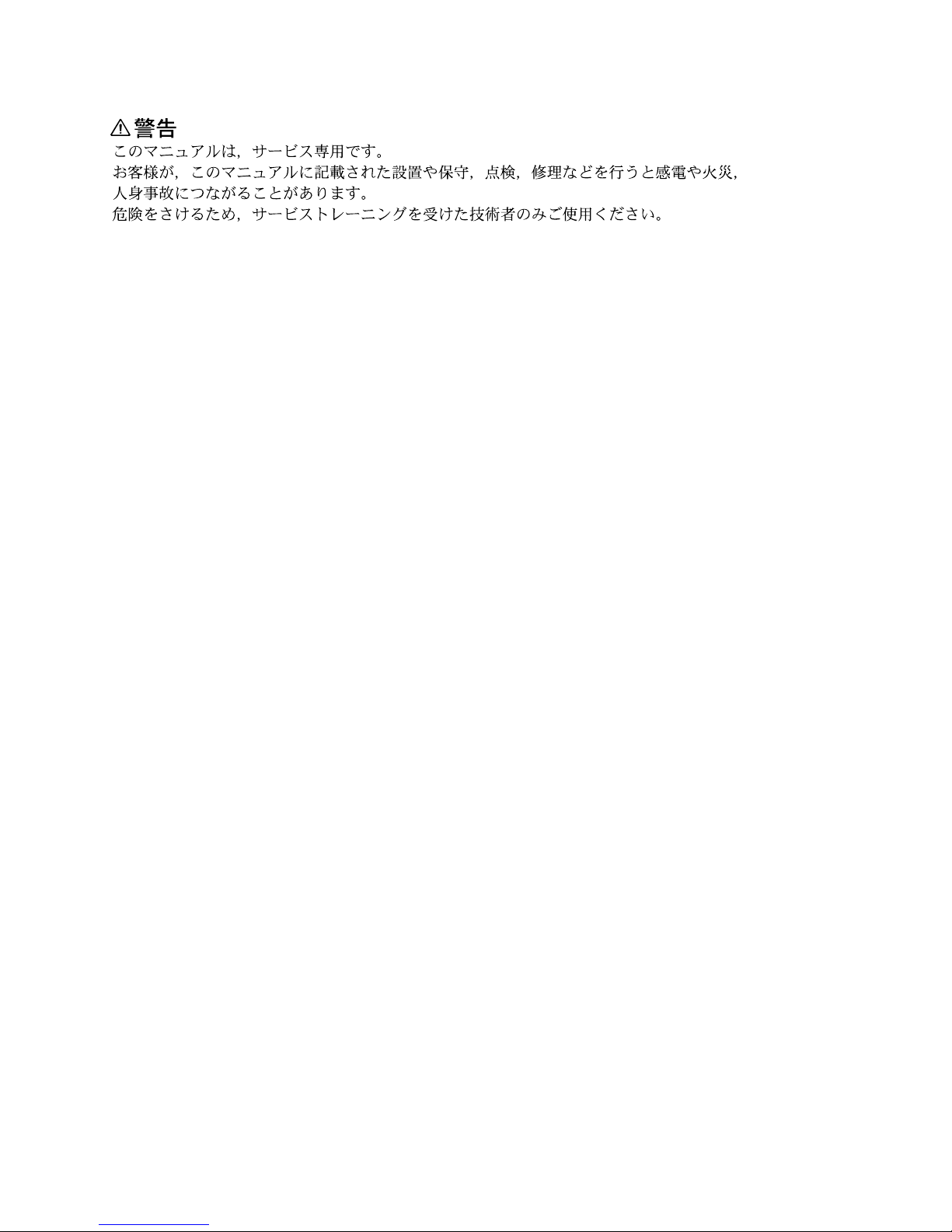

!WARNUNG

DieAnleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt dieAngaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung

dazu besitzen.

!AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien.Afin

de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les

réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

1(E)

RM-B150

Table of Contents

Manual Structure

Purpose of this manual ......................................................................................... 3(E)

Contents ................................................................................................................ 3(E)

Related manual ..................................................................................................... 3(E)

1. Installation

1-1. Connectors and Cables...........................................................................1-2(E)

1-1-1. Connector Input/Output Signals............................................1-2(E)

1-1-2. Connection Connector...........................................................1-2(E)

1-1-3. Wiring Diagrams for Cables .................................................1-3(E)

1-2. Notes on Installation ..............................................................................1-4(E)

1-3. Function of Internal Switch....................................................................1-4(E)

2. Service Overview

2-1. Removing the Cabinet............................................................................2-1(E)

2-2. Location of Printed Wiring Boards ........................................................2-2(E)

2-3. Circuit Description .................................................................................2-3(E)

2-4. Self-Diagnosis ........................................................................................2-4(E)

2-5. Description on Flexible Card Wire ........................................................2-6(E)

2-5-1. Disconnecting/Connecting the Flexible Card Wire ..............2-6(E)

2-5-2. Forming Before Installation ..................................................2-6(E)

2-6. Replacing the Printed Wiring Board ......................................................2-7(E)

2-6-1. Replacing the CN-1651 board...............................................2-7(E)

2-6-2. Replacing the SW-963 board ................................................2-8(E)

2-7. Recommended Replacement Parts.........................................................2-9(E)

2-8. Notes on Service ....................................................................................2-9(E)

2-8-1. Note on Rubber Key..............................................................2-9(E)

2-8-2. Note on Flash Memory........................................................2-10(E)

2-8-3. Notes on Repair Parts..........................................................2-10(E)

2-8-4. Optional Fixture ..................................................................2-10(E)

3. Electrical Alignment

3-1. Preparation .............................................................................................3-1(E)

3-2. Adjusting the Video Level .....................................................................3-2(E)

2(E) RM-B150

4. Spare Parts

4-1. Exploded View ............................................................................................4-2

4-2. Electrical Parts List .....................................................................................4-4

4-3. Supplied Accessory ...................................................................................4-10

4-4. Optional Fixture ........................................................................................4-10

4-5. Changed Part .............................................................................................4-11

5. Semiconductor Pin Assignments

6. Block Diagram

Overall Block ..............................................................................................6-1

7. Schematic Diagrams

VA-186........................................................................................................7-1

CPU-266......................................................................................................7-3

SW-962 .......................................................................................................7-5

Frame Wiring ..............................................................................................7-6

8. Board Layouts

CPU-266......................................................................................................8-1

SW-962 .......................................................................................................8-3

VA-186........................................................................................................8-5

CN-1651, LED-317, SW-963 .....................................................................8-7

3 (E)

RM-B150

Purpose of this manual This manual is the maintenance manual for Remote Control Unit RM-B150.

This manual describes the information items necessary when the unit is supplied and

installed, items that premise the service based on the components parts such as

alignment, schematic diagrams, board layouts and spare parts lists, assuming use of

system and service engineers.

Contents The following are summaries of all the sections for understanding the contents of

this manual.

Section 1. Installation

Describes information about ROM version check, connectors and cables, function of

internal switches and instance of system configuration.

Section 2. Service Overview

Describes circuit description, information about replacement of board and notes on

service.

Section 3. Electrical Alignment

Explains the general information for electrical adjustment and the adjustment

procedure of this unit.

Section 4. Spare Parts

Describes exploded views, parts list, supplied accessories and optional fixtures used

in the unit.

Section 5. Semiconductor Pin Assignments

Describes function diagrams and pin names of semiconductor used in the unit.

Section 6. Block Diagram

Describes overall block diagram and block diagrams for every circuit board.

Section 7. Schematic Diagrams

Describes schematic diagrams for every circuit board and frame wiring.

Section 8. Board Layouts

Describes board layouts for every circuit board.

Related manual Besides this maintenance manual the following manual is available for this unit.

.Operation Manual (Supplied with this unit)

This manual is necessary for application and operation of this unit.

Manual Structure

1-1(E)

RM-B150

The RM-B150 is equipped with various kinds of new functions. Depending on the camera that is connect-

ed to the unit, some functions require settings by using the menu of the RM-B150 and some functions

cannot be activated. See the following table for details.

Some functions become activated if the camera is equipped with the updated ROM. If the ROM version is

not applicable, make the settings by the menu or replace the ROM as necessary.

If the menu setting is required, refer to the operation manual supplied with the RM-B150. If ROM

replacement is required, consult your Sony service organization.

Section 1

Installation

Function BVP-900/950 BVP-700/750 BVP-570 BVP-500/550 HDC-700A/750A HDC-700/750 HDW-700/700A

Filter number

auto recognition Yes *1 Yes *2 Yes *2*2

GAIN L/M/H select

interlocking Yes *1 Yes *2 Yes *2*2

Iris Open/Close value

auto recognition Yes *1 Yes *2 Yes *2*2

White

Preset Yes No Yes *3 Yes *3*3

VTR

Control Start/Stop Yes No Yes *3 Yes *3*3

Except above No No No No No No *3

Camera setup menu

operation Yes No Yes *3 Yes No *3

Video monitor

output Yes No *4*4No No*5

*1: These are not functioned automatically. Perform manual settings by the menu of the RM-B150.

*2: If using these functions, check whether the ROM version for the camera/camcorder is applicable to the version shown below, or not.

If not, replace the ROM. Or perform manual settings by the menu of the RM-B150.

*3: If using these functions, check whether the ROM version for the camera/camcorder is applicable to the version shown below, or not.

If not, replace the ROM.

*4: Monitoring the video signals is enabled only for the BVP-550 series that is used together with the CA-570/530 series.

For the BVP-550 series that is used together with the CA-550/550P, or BVP-500/500P, monitoring is disabled.

*5: If using these functions, check whether the ROM version for the camcorder is applicable to the version shown below, or not.

If not, replace the ROM. The output signal is the only Y signal.

Applicable ROM Version

BVP-500/550 (IC36/AT-95 board): Ver. 4.00 or higher

HDC-700/750 (IC26/IF-569 board, IC24/SG-226 board): Ver. 3.00 or higher (for both ICs)

HDW-700/700A (IC15, 16/IF-667 board): Ver. 1.24 or higher (for both ICs)

1-2(E) RM-B150

1-1. Connectors and Cables

1-1-1. Connector Input/Output Signals

MONITOR

BNC 75 Z, 1.0 Vp-p

REMOTE (8P FEMALE)

No. Signal Specifications

1 TX (+) RM SERIAL DATA

2 TX (_)

3 RX (+) BVP/CCU/CNU

4 RX (_)SERIAL DATA

5 VIDEO (G) GND for VIDEO

6 POWER (+) IN +10.5 to 30 V

7 POWER (_) IN GND for POWER

8 VIDEO (X)OUT VBS 1.0 Vp-p, Zo = 75 Z

CHASSIS GND CHASSIS GND

1-1-2. Connection Connector

Connection made with the connector panel during installation or service, should be made with the

connectors/complete cable assemblies specified in the following list, or equivalent parts.

Connector Name Connection Connectors Connection Cables

MONITOR 1-569-370-12 Plug, BNC

(BNC)

REMOTE 1-766-848-11 Plug, 8P Male REMOTE cable 1-783-372-11

(8P FEMALE) (supplied with RM-B150, 10 m)*1, or

CCA-5 cable assembly (Option)

CCA-5-10 (10 m)/CCA-5-3 (3 m)*1*2

*1: If using a cable of length different from a standard product, consult your Sony organization.

*2: Use of the CCA-5 cable disables to monitor the video signals.

(External View)



1-1. Connectors and Cables

1-3(E)

RM-B150

1-1-3. Wiring Diagrams for Cables

1-1. Connectors and Cables

CCA-5 Cable

(Outer sheath color : White)

287

Black

Red

Brown

BrownBrown

White

Orange

8P CONNECTOR(MALE)

(WIRING SIDE) 8P CONNECTOR(MALE)

(WIRING SIDE)

Black

Red

Brown

White

8P CONNECTOR(MALE)

(WIRING SIDE) 8P CONNECTOR(MALE)

(WIRING SIDE)

287

REMOTE Cable (supplied with RM-B150)

(Outer sheath color : Black)

1-4(E) RM-B150

1-2. Notes on Installation

Screw length limitations

When installing the unit in a console, use the specified screws (M2.6) in length as shown in the

figure.

Installation space

To avoid damage to a cable, leave the cable space shown in the figure to the rear of the unit.

1-3. Function of Internal Switch

CPU-266 board

S1: Not used

Always set to OFF.

Factory-set position: OFF

1-2. Notes on Installation

1-3. Function of Internal Switch

CAMERA MONITOR

Screw Screw

Screw holes

Screw 

holes

10 mm or below

179

151

4686

Cable space

Unit : mm
