Sony DSP COLOR CCD CAMERA Manuale utente

SERVICE MANUAL

1/3” SONY DSP COLOR CCD CAMERA

TRUE DAY & NIGHT (IR-CUT REMOVABLE) &

O.S.D. (ON SCREEN DISPLAY) SERIES

The serial number of this product may be found

on the bottom of the unit.

You should note the serial number of this unit in

the space provided and retain this instruction as a

permanent record of your purchase to aid

identification in the event of theft.

Model No.

SerialNo.

▲Before attempting to connect this product, please read and keep this

manual for future use.

Safety Warning

1. Do not open the cover, it may cause electric shock.

Ask a qualified service person for maintenance when you encounter any

problems.

2. Install the camera away from TV, radio transmitter, magnet, electric

motor, transformer, audio speakers because the magnetic fields

generated from above devices will distort the video image.

3. Place this camera on a solid base. Install the camera away from

stoves or other heat generating devices as the high temperature could

cause deformation, discoloration or other damages to the camera.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is interned to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

①

Install the camera at where the temperature range does not exceed 0°C

to 50°C (32°F to 122°F)

4. Do not expose and operate the camera in the rain and humid areas.

5. Use only soft dry cloth to clean the camera. Also use lens tissue or

cotton tipped applicator and ethanol to clean the CCD sensor and

camera lens.

6. When the camera is not in use, put the cover cap on the lens mount.

Please do not touch the surface of CCD by bare hand.

Introduction

This OSD series CCD camera introduces a new level of high picture quality

through the digital signal processing LSI’s technology for advanced video

surveillance. It provides the most reliable and accurate color picture in

security industries.

Main Features

zColor camera with SONY 1/3” Super HAD CCD sensor in metal case.

zEmploys Digital Signal Processor (DSP) chip-set for image control.

zControlled by OSD Menu.

zAdditional Functions, motion detection, mirror, sharpness.

zOLPF auto switching (IR-Cut Removable).

zHigh sensitivity, CCD enables a clear image at 0.3Lux (0.1Lux B/W).

zVideo drive lens or DC drive lens can be selected. Supports both C and

CS mount lens

zThe PRIVACY function enables you to select areas that will be masked

during monitoring.

②

Parts Names & Components

Hex Screwdriver

Auto Iris Plug

C-Mount Ring

Manual

Power LED Selection & setting buttons

Hole to fix lens

Auto iris connector

③

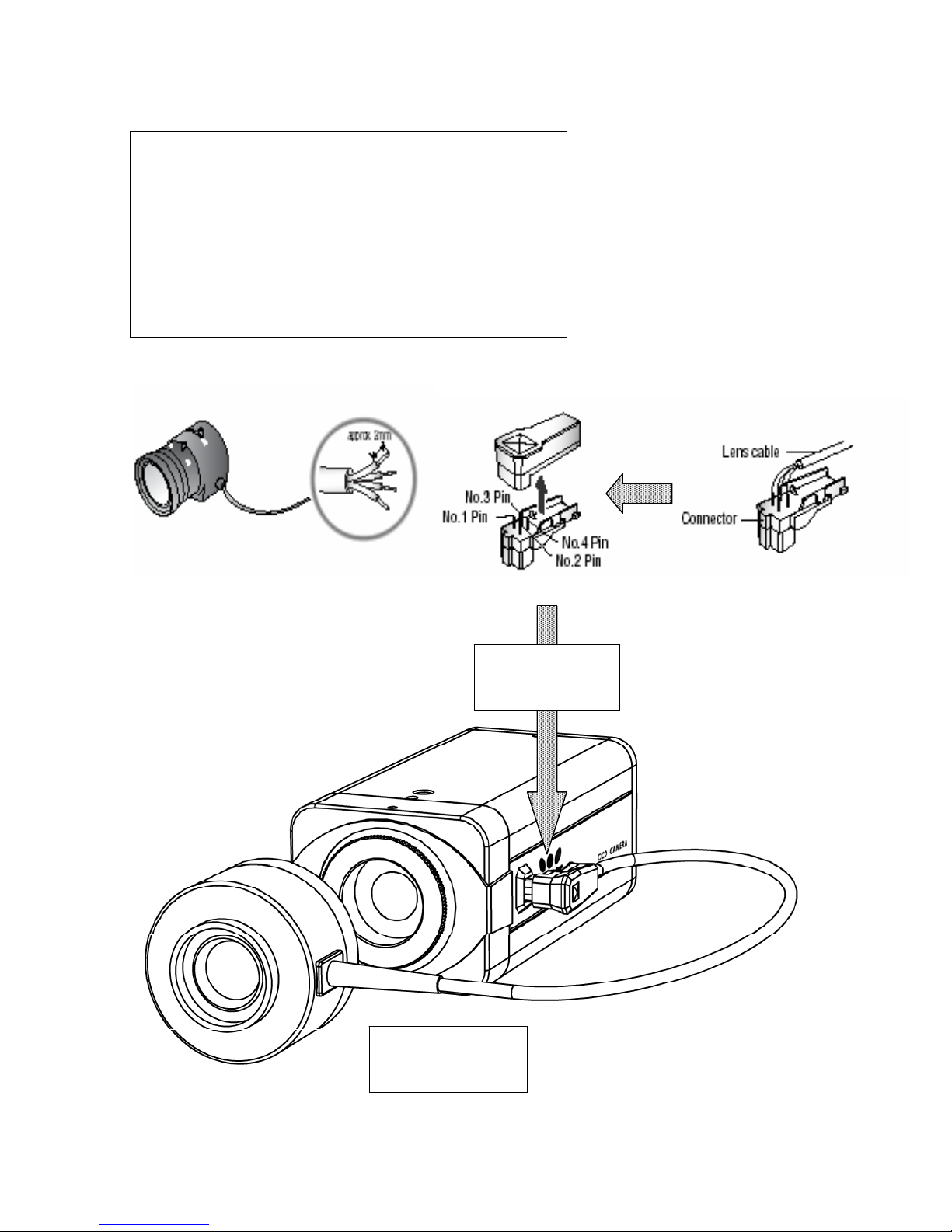

Auto Iris Function

DC DRIVE VIDEO DRIVE

Pin 1 (Red) Drive - Volt +

Pin 2 (N.C) Drive + N.C

Pin 3 (White) Damp + IRIS

Pin 4 (Black) Damp - GND

④

Plug in auto iris

connector

Screw the auto iris

lens on CS mount

Installation Instructions

(1) Remove the cap from the lens mount.

(2) Select the C mount lens (with mount ring) or CS mount lens.

(3) Screw and fasten the lens into the lens mount.

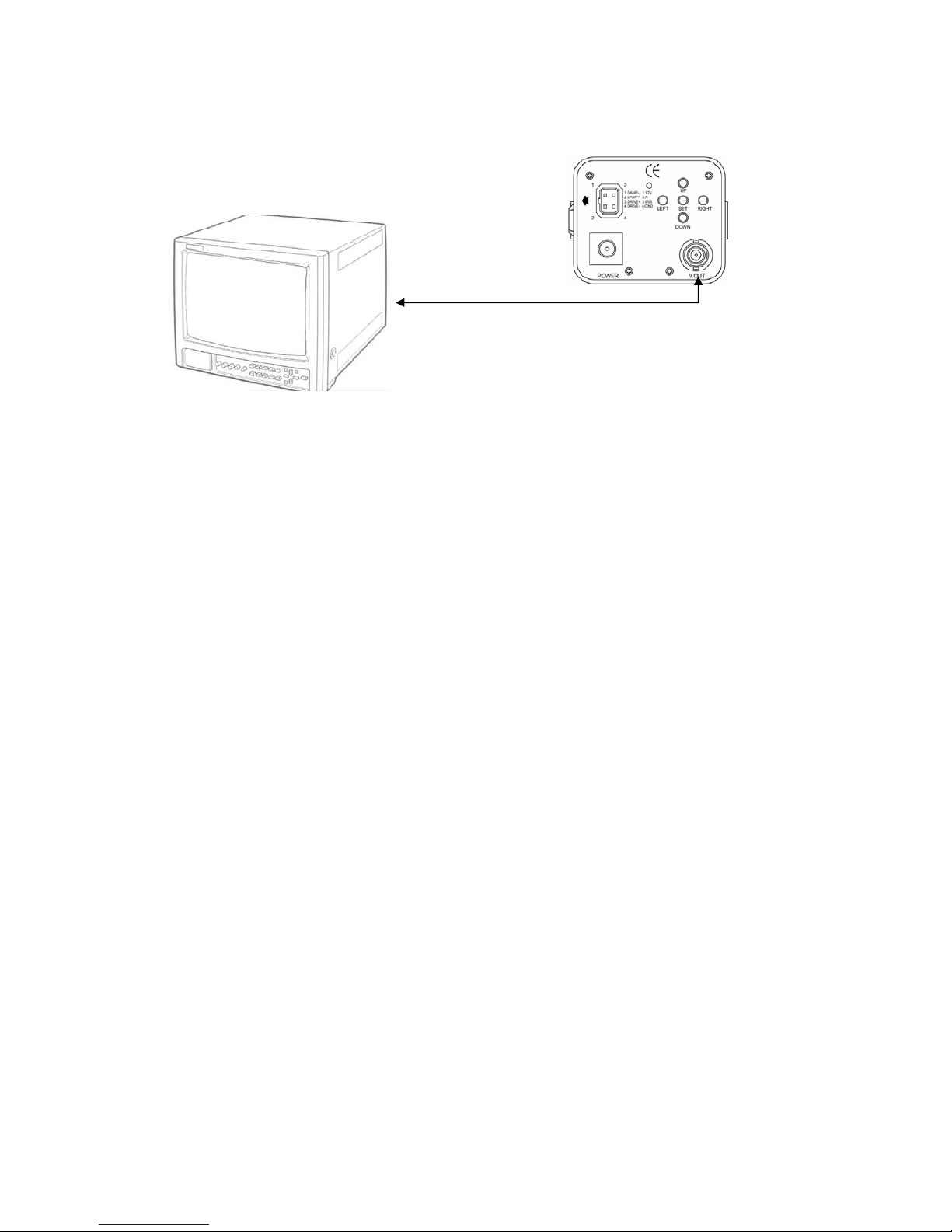

(4) Connect the video output wire between monitor and camera through

75ohm type coaxial cable.

(5) Connect the power cord input.

(6) When monitor shows the picture, please adjust the focus and iris of the

lens to obtain the best image according to the following procedures:

‧ Choose objects at a distance about 5 ~ 10 meter away.

‧ Loosen the mount lens fixing screw (use L wrench), if necessary.

‧ Turn the lens and the mount together until image is clear.

‧ Screw the mount to camera.

(7) Fix camera to the bracket, if necessary.

⑤

Switch Definition

SET button

Press to display the menu. In the menu, this button functions as “ENTER”.

UP & DOWN buttons

Press to select the item of menu.

LEFT & RIGHT buttons

Press to change the item value.

MAIN MENU

DOWN button

LEFT SET RIGHT

button button button

UP button

⑥

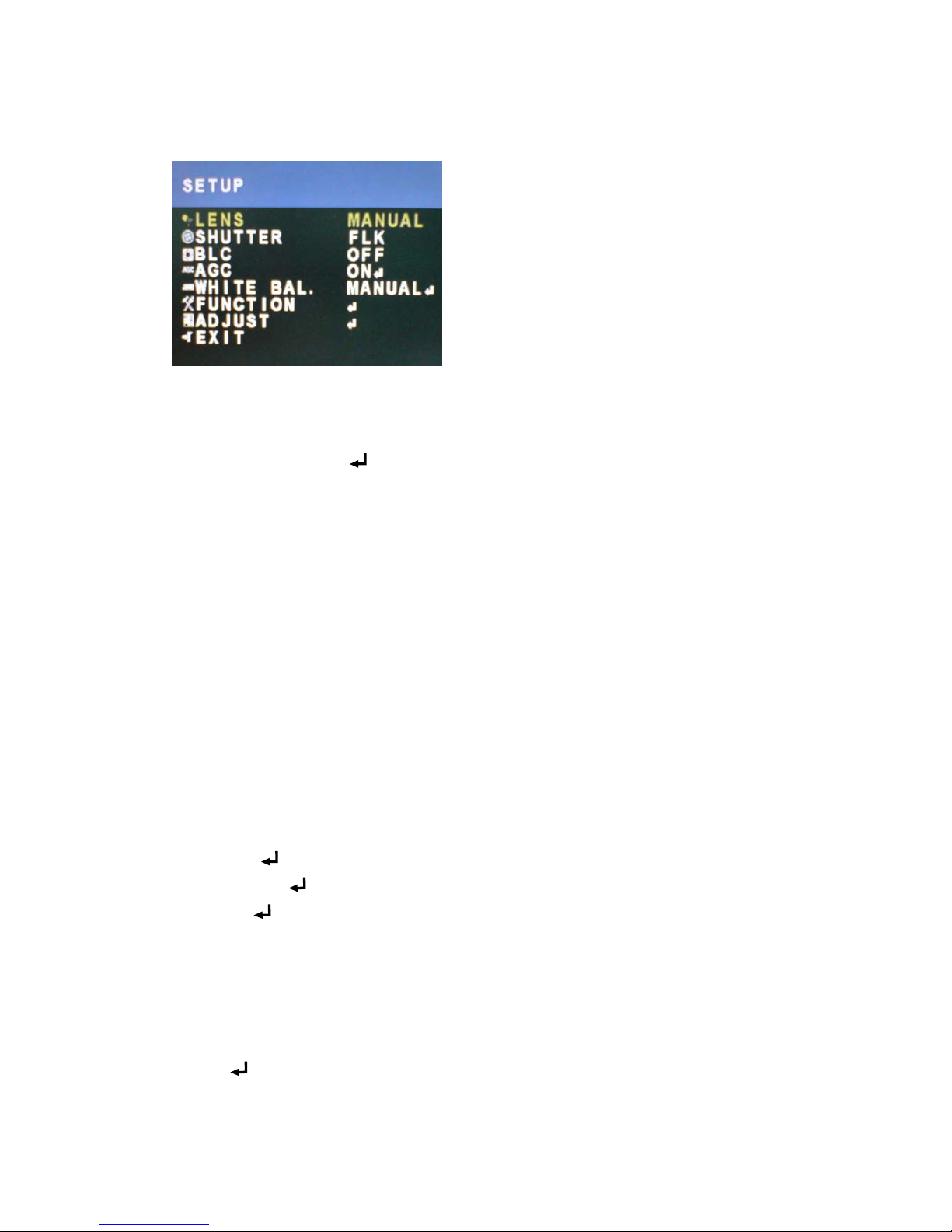

Menu Operation

‧ Press the SET button to display the menu on screen.

‧ Press the UP or DOWN button to select the item.

‧ The selected item will be displayed in yellow text.

‧ Press the LEFT or RIGHT button to change mode.

‧ The ENTER symbol means there is a sub-menu. Press the SET button to

enter to the sub-menu.

‧ Select the EXIT item and press the SET button to finish setting.

LENS

To select the lens mode depending on the lens used:

‧ MANUAL When manual iris lens is used.

‧ DC When auto iris lens that requires a DC drive signal is used.

‧ VIDEO When auto iris lens that requires a video drive signal is used.

SHUTTER

To change the shutter setting and speed based on the environment.

‧ FLK Select when flickering occurs on the screen due to an imbalance

between illumination and frequency. Under this mode, the

shutter speed is NTSC: 1/100; PAL: 1/120

‧ FIXED Immobile control of the shutter speed can be achieved.

‧ MANUAL The shutter speed can be controlled manually.

‧ AUTO After an immobile brightness value is set, the shutter speed will

adjust automatically to achieve the value.

BLC (Backlight Compensation)

When there is strong backlight behind the object, enable this function to achieve a

clear image of the background as well as the object.

‧ ON To enable this function.

-- BLC Area: User defines which zone to enable.

-- BLC Ratio: Set between 0 and 63. When the value is bigger,

the compensation to the BLC area will be more.

‧ OFF To disable this function.

⑦

AGC (Auto Gain Control)

Enable this function to heighten the brightness signal automatically. The effective

value is between 0 and 255 (0dB ~ 40dB). (Bigger value, more noise).

<<ATTENTION>> Disable this function for IR-Cut Removable.

WHITE BAL.

To change the white balance mode:

‧ ATW Auto Tracking White Balance. The white balance will adjust

continually according to the color temperature of the object. The

rage of color temperature is 1,800°K~10,500°K.

‧ AWB Auto White Balance Control. The white is correct in any

condition. (To adjust the white balance, focus the camera to

white paper and press SET button to obtain the optimum state

under current illumination. If the environment including the light

source is changed, the white balance has to be adjusted again).

‧ FIXED Four modes are available for selection by user.

‧ MANUAL The manual adjustment mode enables finer adjustment of ATW

and AWB. Please select ATW mode or AWB mode first and

change to MANUAL mode. Set the appropriate color

temperature and then increase or decrease the red and blue color

values while monitoring the color changes on the object.

FUNCTION

‧ RETURN To save the option and return to the SETUP menu.

‧ CAMERA ID

1. Please move the cursor to the letter you wish to choose by

using the UP and DOWN buttons.

⑧

2. Select an ID from A~Z, a~ z, 0, 1~9 by using the UP, DOWN,

LEFT and RIGHT buttons.

3. Move the cursor to “C” to clear the letter.

4. Please lock in the letter by using the SET button.

5. Please repeat the above to input the ID, up to 15 letters.

6. When a name has been chosen, select a position on the screen

for the name to display. Move the cursor to and press the

SET button.

7. Select “RETURN” and press the SET button to complete

ID input.

‧ MIRROR Select “ON” for mirror image or “OFF” for normal image.

‧ DAY NIGHT

-- COLOR: Common mode.

--AUTO: Thedefaultsetting. Automatically changes between

color mode under bright light environment and B/W

mode under low light environment. Set the value of

“DELAY”, “START LEVEL” and “END LEVEL”

to define the changing time.

-- B/W: Stay in B/W mode for clearer image and better

visibility under low light environment.

<<ATTENTION>> Select AUTO for IR-Cut Removable.

‧ MOTION When the object on screen is moving, the camera will detect the

changes and display a warning on screen.

-- OFF: Not active.

-- ON : Any motion in the selected areas is observed.

1. AREA:

There are 64 areas. Adjust the size of zone by

pressing UP, DOWN, LEFT, RIGHT and SET

buttons.

2.MOTIONTH.:

Higher sensitivity when the value is bigger

3.MOTIONTRACE:

Shows the location where the motion was detected.

⑨
