Sony SS-CN290 Manuale utente

SS-CN290/CR290/SR290

US Model

Canadian Model

AEP Model

UK Model

E Model

SERVICE MANUAL

SPEAKER SYSTEM

MICROFILM

SS-CR290 is composed for following model.

SPECIFICATIONS

COMPONENT MODEL NAME FOR SS-CR290

Center Speaker SS-CN290

Rear Speaker SS-SR290

Photo: SS-CN290 Photo: SS-SR290

[SS-CN290] (Center speaker)

Speaker system 2-way, magnetically shielded

Speaker units Woofer: 12 cm, cone type ×2

Tweeter: 2.5 cm, balance drive type

Enclosure type Bass reflex

Rated impedance 8 Ω

Power handling capacity Maximum input power: 120 W

Sensitivity level 89 dB (1W, 1m)

Frequency range 85 Hz – 20,000 Hz

Dimensions (w/h/d) Approx. 380 ×150 ×168 mm, not

including front grille

Mass Approx. 3.5 kg

Supplied accessories Speaker cord 2.5m (1)

Foot (4)

[SS-SR290] (Rear speaker)

Speaker system Full range, magneticallly shielded

Speaker units 12 cm, cone type

Enclosure type Bass reflex

Rated impedance 8 Ω

Power handling capacity Maximum input power: 100 W

Sensitivity level 86 dB (1W, 1m)

Frequency range 85 Hz – 20,000 Hz

Dimensions (w/h/d) Approx. 190 ×150 ×168 mm, not

including front grille

Mass Approx. 1.5 kg

Supplied accessory Speaker cord 10m (2)

Design and specifications are subject to change without notice.

— 2 —

EXPLODED VIEW AND PARTS LIST

NOTE:

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delayshouldbeanticipated whenordering these

items.

• Themechanical partswith no reference number

in the exploded views are not supplied.

1 X-4950-945-1 FRAME ASSY (CN), GRILLE

2 4-874-614-11 SCREW (4) (3.5 ×14), TAPPING

3 1-775-758-11 LEAD (WITH CONNECTOR)

4 A-4411-430-A CABINET ASSY, SPEAKER

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

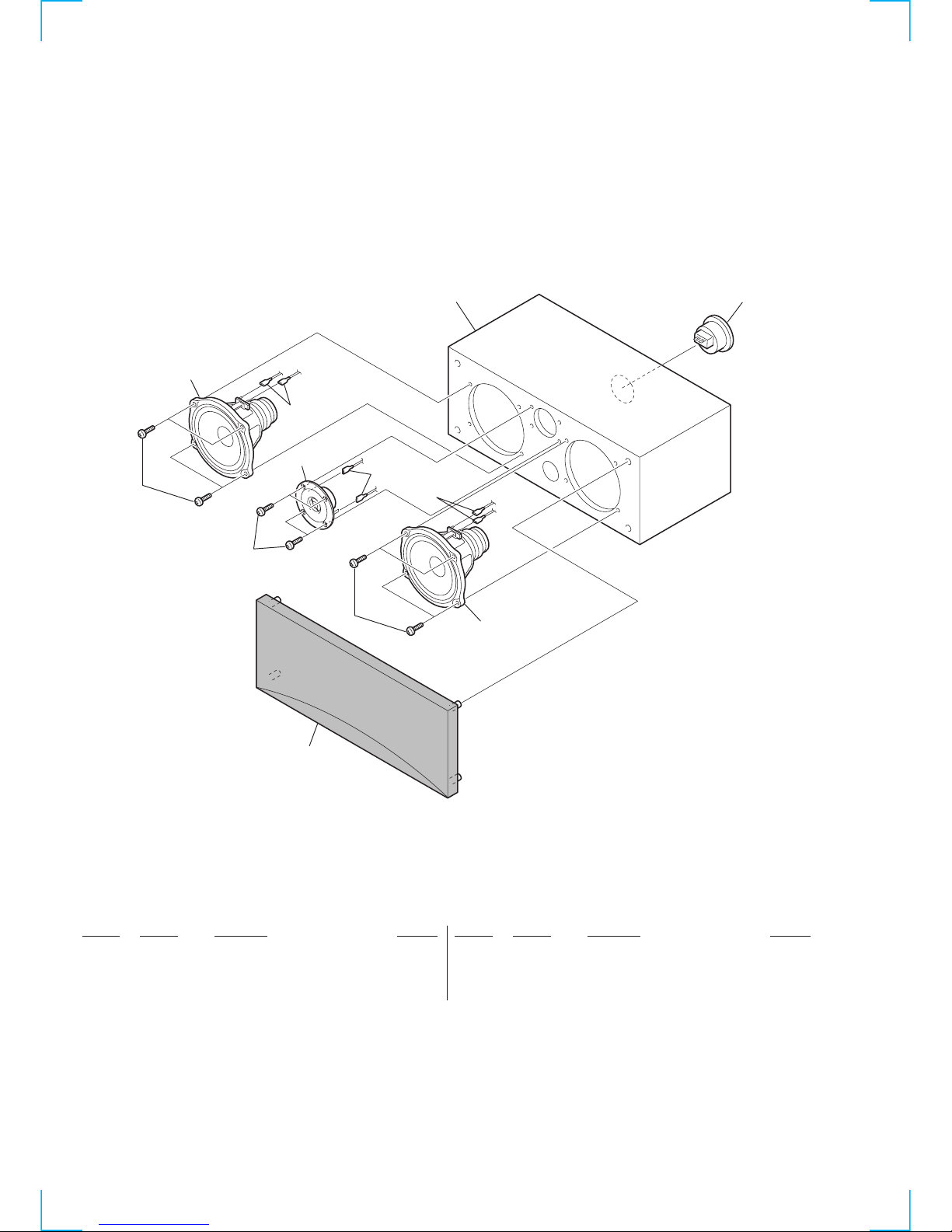

(1) SS-CN290

SP1

SP2

5 1-537-332-11 TERMINAL BOARD

SP1 1-529-249-11 SPEAKER (12CM)

SP2 1-529-251-11 SPEAKER (2.5CM)

— 3 —

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

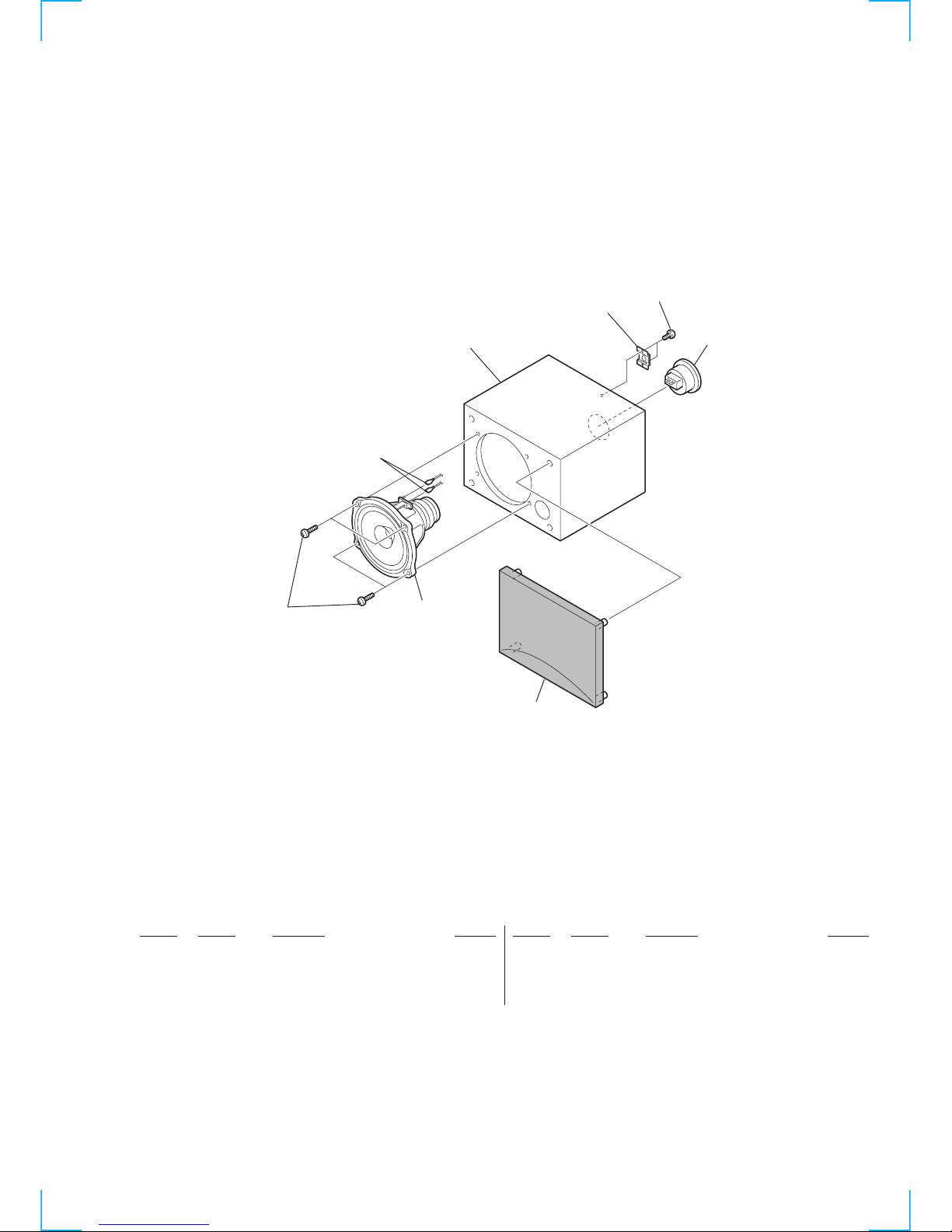

(2) SS-SR290

SP1

1 X-4950-944-1 FRAME ASSY (SR), GRILLE

2 4-874-614-11 SCREW (4) (3.5 ×14), TAPPING

3 1-775-758-11 LEAD (WITH CONNECTOR)

4 A-4411-428-A CABINET ASSY, SPEAKER

*5 4-983-074-01 BRACKET, HOOK

6 7-621-849-10 SCREW, WOOD +R3.1 ×13

7 1-537-332-11 TERMINAL BOARD

SP1 1-529-250-11 SPEAKER (12CM)

— 4 —

Sony Corporation

Home Audio Company

9-928-886-11 99D1687-1

Published by Quality Assurance Dept.

SS-CN290/CR290/SR290

(3) SS-CR290

Ref. No. Part No. Description Remarks

ACCESSORIES & PACKING MATERIALS

********************************

1-769-433-11 CORD, SPEAKER (10m)

1-769-433-21 CORD, SPEAKER (2.5m)

3-866-212-11 MANUAL, INSTRUCTION

(ENGLISH,FRENCH,SPANISH,PORTUGUESE,CHINESE)

4-972-322-01 FOOT (Y) (SS-CN290)
