Sony SS-MF450H Manuale utente

SERVICE MANUAL

SPEAKER SYSTEM

AEP Model

9-877-364-01 Sony Corporation

2003E05-1 Home Audio Company

C2003.05 Published by Sony Engineering Corporation

SPECIFICATIONS

SS-MF450H

Ver 1.0 2003.05

Speaker system

3-way-speaker system

Magnetically shielded type

Speaker units

Woofer: 16 cm, cone type

Midrange:8.0 cm, cone type

Tweeter: 2.5 cm, Nano-Fine

Balanced Dome

Enclosure type

Bass reflex

Rated impedance 8 ohm

Power handling capacity

Maximum input power 150 W

Sensitivity 88 dB (1 W, 1 m)

Effective frequency range

50 Hz – 50,000 Hz

Dimensions

(w/h/d)

Approx. 220 ×850 ×255 mm,

including front grille

Mass

Approx. 10.2 kg per speaker, net

Approx. 25.0 kg in shipping carton

Design and specifications are subject

to change without notice.

SS-MF450H

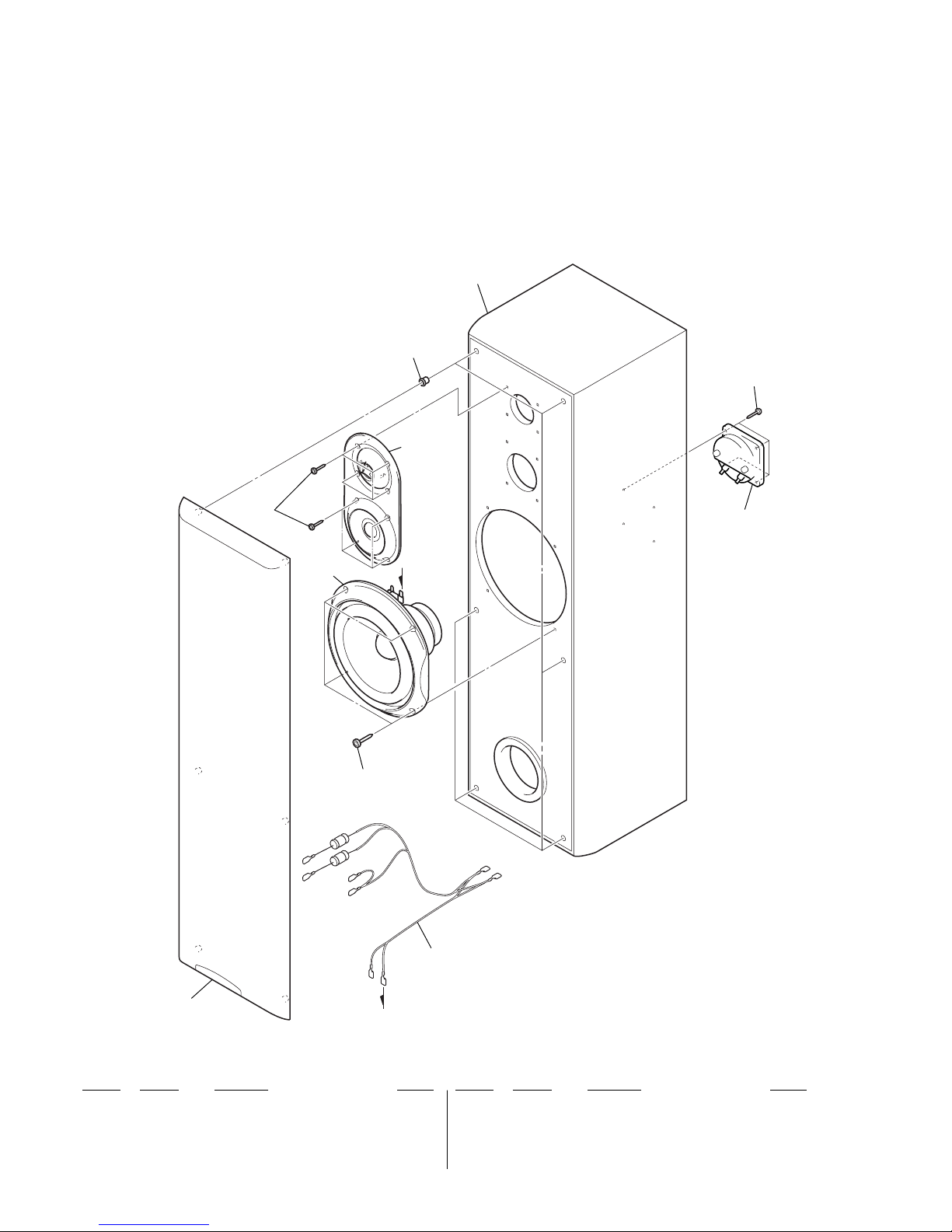

EXPLODED VIEW

•Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.

NOTE:

•-XX and -X mean standardized parts, so they

may have some difference from the original

one.

•Color Indication of Appearance Parts

Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1X-4955-780-1 FRAME ASSY, GRILLE (MAPLE)

1X-4955-782-1 FRAME ASSY, GRILLE (BLACK)

24-247-436-01 SCREW (T15, 4X25)

34-248-283-01 SCREW (T15, 3.5X20)

4X-4955-697-1 CABINET ASSY, SPEAKER (MAPLE)

4X-4955-781-1 CABINET ASSY, SPEAKER (BLACK)

54-220-563-01 CATCHER

SP1 1-825-497-11 SPEAKER (16cm)

SP2 X-4955-367-1 TW ASSY (M/T FRAME) (2.5cm, 8cm)

not supplied

SP1

SP2

not supplied

SS-MF450H

ACCESSORIES

Ref. No. Part No. Description Remark

4-248-285-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH, PORTUGUESE,

GERMAN, DUTCH, SWEDISH, ITALIAN,

POLISH, GREEK, DANISH, FINNISH,

HUNGARIAN, CZECH, SLOVAKIAN,

TURKISH, RUSSIAN)

SS-MF450H

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2003.05 New
