Sony SS-CCP300 Manuale utente

SS-CCP300

Canadian Model

AEP Model

UK Model

E Model

SERVICE MANUAL

SPEAKER SYSTEM

Sony Corporation

Audio Entertainment Group

General Engineering Dept.

9-873-887-11

2001D1600-1

© 2001.4

• SS-CCP300 is the speaker system

in CMT-CP300

SPECIFICATIONS

Ver 1.0 2001. 04

Speaker system Two-way, bass reflex

system

Speaker units 13 cm dia., cone type

woofer

2.5 cm dia., semi-dome-

type tweeter

Rated impedance 6 ohms

Dimensions (w/h/d) Approx. 170 ×275 ×

265 mm

Mass Approx. 3.0 kg net per

speaker

Design and specifications are subject to change

without notice.

Photo: (L-ch)

2

SS-CCP300

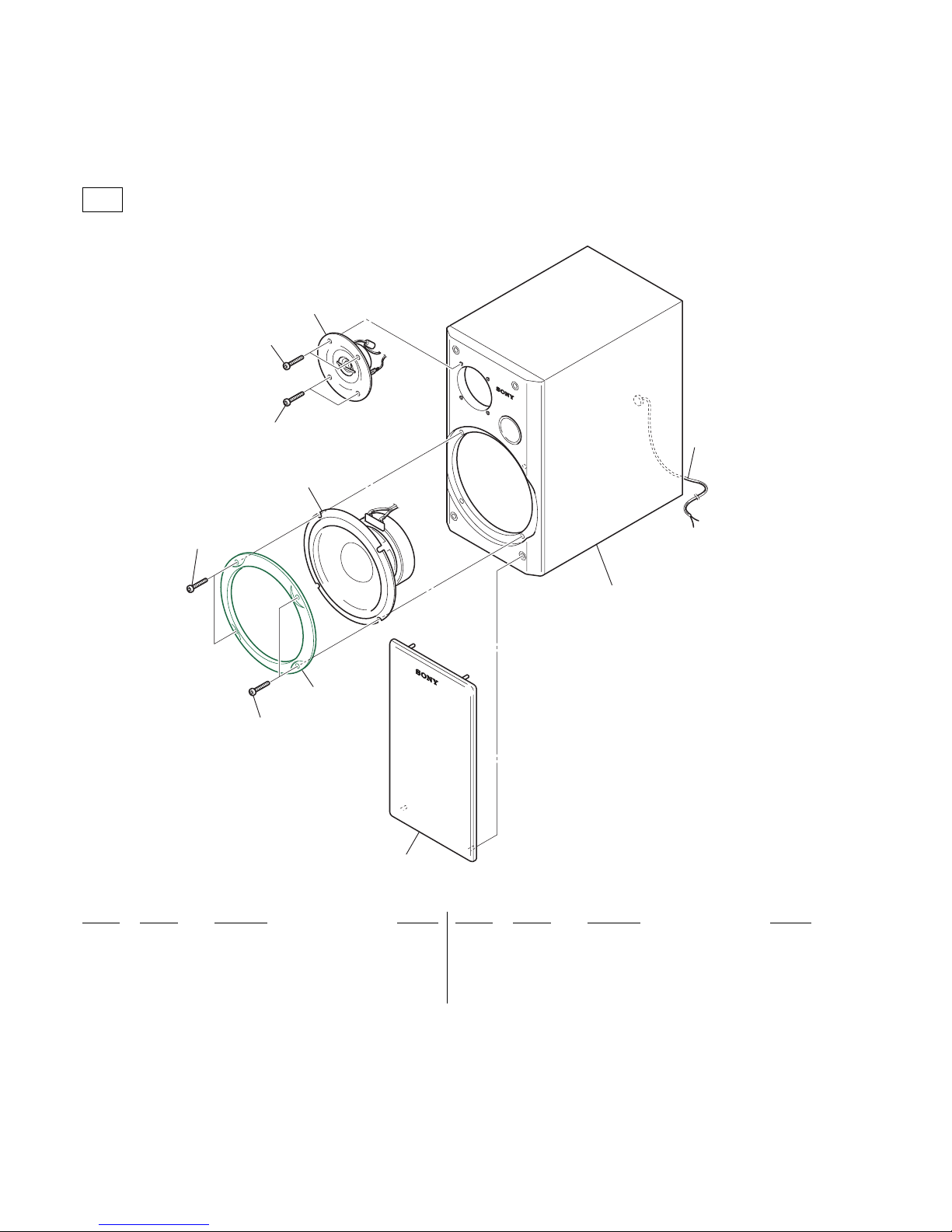

EXPLODED VIEW AND PARTS LIST

NOTE:

• Themechanicalpartswithnoreferencenumber

in the exploded views are not supplied.

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 X-4953-651-1 NET ASSY, SPEAKER

2 4-932-425-01 SCREW (3.5X20)

3 4-233-497-01 BOX (L), SPEAKER

3 4-233-498-01 BOX (R), SPEAKER

4 4-870-003-00 CLIPPER, CODE

5 4-233-481-01 RING, SPEAKER

SP1 1-544-865-11 SPEAKER (13cm)

SP2 1-544-866-11 SPEAKER (TWEETER) (2.5cm)

1

2

5

2

2

2

SP2

SP1

3

4

L-ch

3

SS-CCP300

MEMO

SS-CCP300

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2001.04 New
