SERVICE MANUAL

SPEAKER SYSTEM

AEP Model

UK Model

SS-LX5

E Model

Australian Model

SS-LV60/LX6

SPECIFICATIONS

Speaker System

(SS-LV60/LX6) 3-way BUILT IN SW,

magnetically shielded type

(SS-LX5) 3-way BUILT IN SW

Speaker units

Super Woofer/Woofer: 17 cm dia, cone type

Tweeter: 2.5 cm dia, horn type

Rated impedance: 6 ohms

Dimensions(w/h/d) Approx. 255 ×530 ×385 mm

Mass Approx. 10 kg net per speaker

Supplied Accessories Speaker cords (2)

Cushion (foot) (8)

Instruction manual

Design and specifications are subject to change without notice.

SS-LV60/LX5/LX6

• SS-LV60/LX5/LX6 is the speaker system in

LBT-LV60/LX5/LX6. Photo: SS-LX6

SERVICING NOTES

To remove the front panel assy, remove the horn

tweeter part first then remove the front panel

assy pull the bottom part of it forward.

Sony Corporation

Home Audio Division Company

9-929-068-11 2000B051670-1

Printed in Japan C2000. 2

Published by Quality Assurance Dept.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 X-4952-662-1 PANEL ASSY, FRONT

2 4-999-101-01 SCREW, HEXAGON HOLE TAPPING

3 4-226-576-01 HORN

4 4-874-614-31 SCREW (4) (3.5X12), TAPPING

5 4-227-036-01 BRACKET

6 4-228-557-01 PACKING (TW)

7 7-685-661-19 SCREW +BVTP 4X12 TYPE2 N-S

8 4-226-966-01 PACKING, DUCT

9 A-4412-010-A CABINET ASSY, SPEAKER

10 4-942-029-01 PACKING

SP1 1-529-655-11 SPEAKER (2.5cm) (LV60/LX6)

SP1 1-529-680-11 SPEAKER (2.5cm) (LX5)

SP2 1-529-610-11 SPEAKER (16cm) (LV60/LX6)

SP2 1-529-656-11 SPEAKER (16cm) (LX5)

SP3 1-529-611-11 SPEAKER (16cm) (LV60/LX6)

SP3 1-529-657-11 SPEAKER (16cm) (LX5)

************************************************************

ACCESSORIES & PACKING MATERIALS

*******************************

1-775-512-21 CORD, SPEAKER CONNECTION

4-210-254-01 CUSHION (FOOT)

4-228-574-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, GERMAN, SPANISH,

DUTCH, SWEDISH, ITALIAN, PORTUGUESE,

POLISH, RUSSIAN, DANISH, FINNISH,

HUNGARIAN, GREEK, TURKISH) (AEP)

• The mechanical parts with no reference num-

ber in the exploded views are not supplied.

NOTE:

• -XX and -X mean standardized parts, so they

may have some difference from the original

one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.

SP2

SP1

SP3

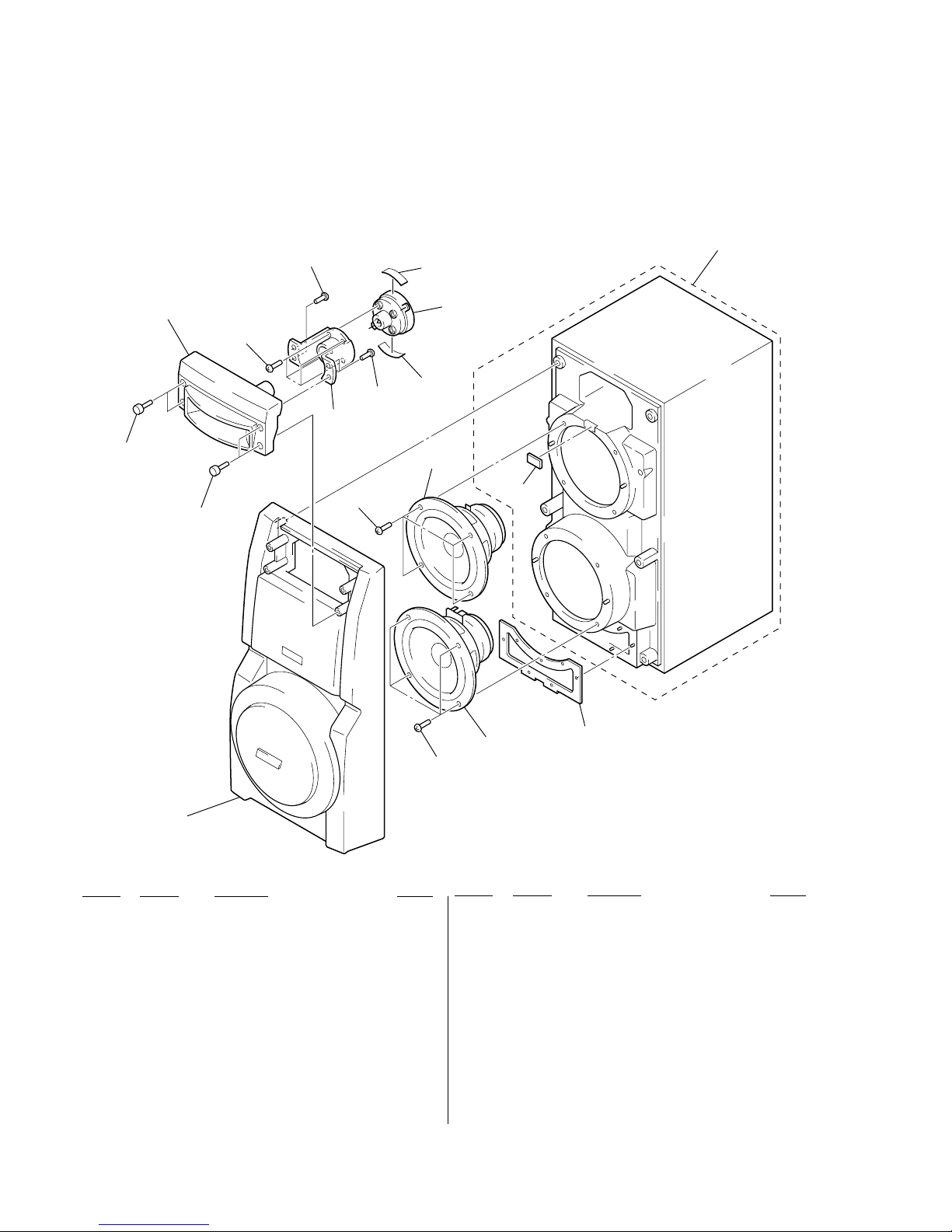

EXPLODED VIEW AND PARTS LIST
