Sony SS-WS300 Manuale utente

SPEAKER SYSTEM

MICROFILM

SS-WS300

SPECIFICATIONS

SERVICE MANUAL

Speaker system : Bass reflex

Speaker unit : 7 1/8inches (180 mm) dia. cone type

Rated impedance : 3 ohms

Dimensions (approx.) : 6 3/8 x 14 x 14 inches (160 x 355 x 355 mm) (w / h / d)

Mass (approx.) : 11 lb 15 oz (5.41 kg)

Design and specification are subject to change without notice.

US Model

AEP Model

UK Model

E Model

Chinese Model

AUS Model

This set is the speaker system in DAV-S300.

2

NOTE:

• The mechanical parts with no reference number in

the exploded views are not supplied.

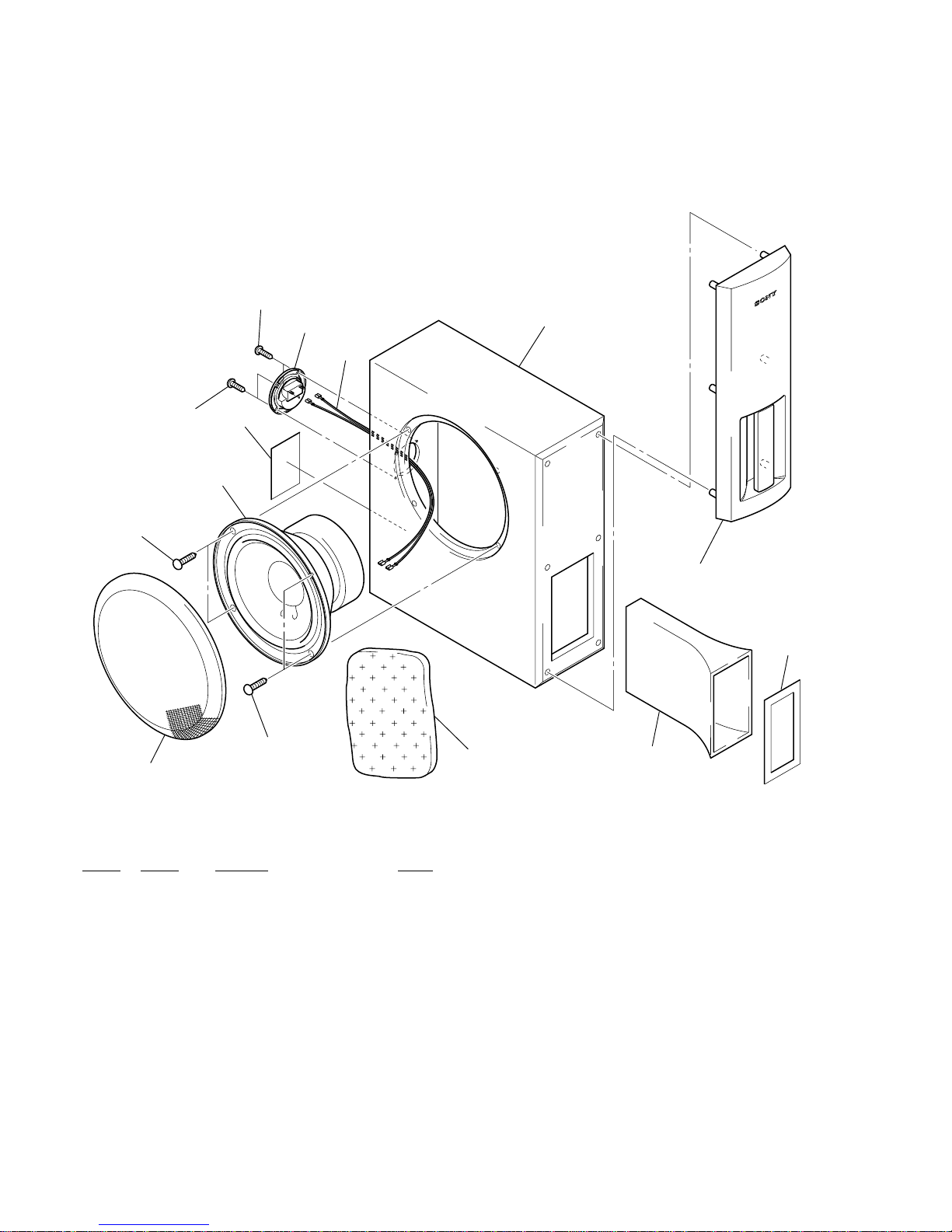

EXPLODED VIEW AND PARTS LIST

SS-WS300

Sony Corporation

Home Audio Division Company

9-929-053-11 2000A091681-1

Printed in Japan © 2000. 01

Published by Quality Assurance Dept.

SP1

not supplied

not supplied

1

2

9

3

4

5

56

7

7

8

Ref. No. Part No. Description Remark

1 3-043-791-01 FRONT (SW) PANEL

2 3-043-790-01 CUSHION (SW)

3 3-043-786-01 SPK (SW)CABINET

4 3-043-787-01 TERMINAL

5 7-621-849-20 +R3.1X16

6 4-228-407-01 MODEL NUMBER LABEL

7 7-621-846-58 +R4.1X20

8 X-4952-583-1 GRILLE FRAME ASSY

9 4-228-911-01 DUCT

SP1 1-529-617-11 SPEAKER (200 mm)
