Sony SS-TS300 Manuale utente

SPEAKER SYSTEM

MICROFILM

SS-TS300

SPECIFICATIONS

SERVICE MANUAL

Speaker system : Acoustic suspension

Speaker unit : 2 7/8inches (70 mm) dia. cone type

Rated impedance : 3 ohms

Dimensions (approx.) : 3 7/8 x 4 1/8x 4 1/4inches (97 x 102 x 105 mm) (w / h / d)

Mass (approx.) : 1 lb 4 oz (0.57 kg)

Design and specification are subject to change without notice.

US Model

AEP Model

UK Model

E Model

Chinese Model

AUS Model

This set is the speaker system in DAV-S300.

2

Sony Corporation

Home Audio Division Company

NOTE:

• The mechanical parts with no reference number in

the exploded views are not supplied.

Ref. No. Part No. Description Remark

1 X-4952-567-1 GRILLE FRAME ASSY

2 4-228-909-01 SPECIAL HEAD SCREW

3 3-043-782-01 FRONT (SPK) PANEL

4 7-685-904-59 +PWH 4X16

5 3-043-779-01 REAR (SPK) CABINET

6 3-043-781-01 TERMINAL

7 4-226-303-01 LABEL (FR)

7 4-226-304-01 LABEL (FL)

7 4-226-305-01 LABEL (RR)

7 4-226-306-01 LABEL (RL)

7 4-226-375-01 LABEL (C)

8 4-228-406-01 MODEL NUMBER LABEL

SP1 1-529-616-11 SPEAKER (80 mm)

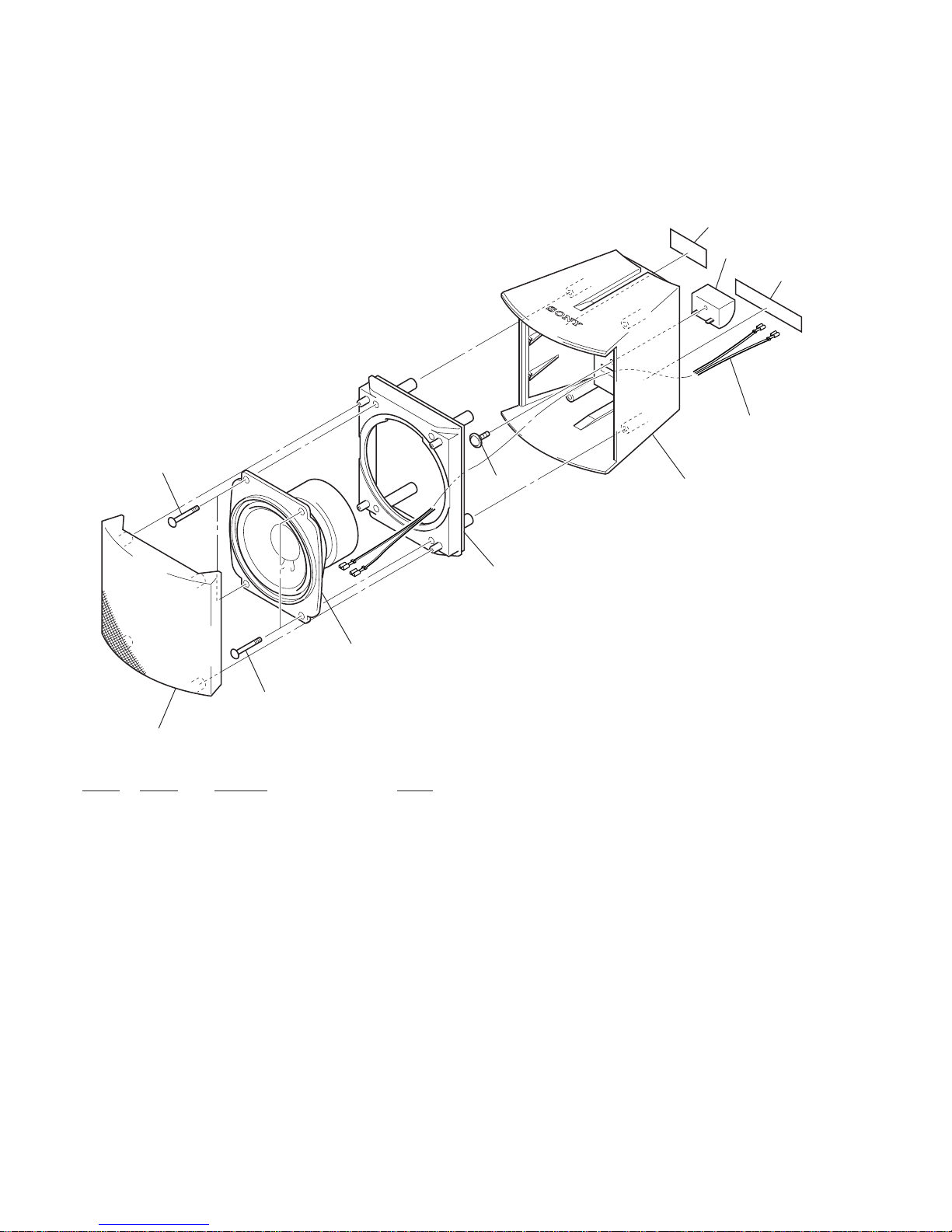

EXPLODED VIEW AND PARTS LIST

SS-TS300

9-929-052-11 2000A091681-1

Printed in Japan © 2000. 01

Published by Quality Assurance Dept.

SP1

not supplied

1

2

3

4

25

6

8

7
