Sony WLA-NWB1 Manuale utente

WLA-NWB1 [GB,CT,CS] 2-895-766-25(1) WLA-NWB1 [GB,CT,CS] 2-895-766-25(1)

Bluetooth™

Audio Transmitter

WLA-NWB1

2-895-766-25 (1)

Operating Instructions

使用說明書

使用说明书

Printed in China

WLA-NWB1 [GB,CT,CS,KR] 2-895-766-22(1) WLA-NWB1 [GB,CT,CS,KR] 2-895-766-22(1)

Bluetooth™

Audio Transmitter

WLA-NWB1

2-895-766-22 (1)

Printed in China

Operating Instructions##

䉫䙴䍅䁵䋺##

䉫䙴䁵##

⏷⧴#⑯󰵱⑧##

G B

C T

C S

K R

Bluetooth™

音频发射器

WLA-NWB1 [GB] 2-895-766-24(1)

2GB

WLA-NWB1 [GB] 2-895-766-24(1)

WARNING

To reduce the risk of re or

electric shock, do not expose this

apparatus to rain or moisture.

Do not install the appliance in a conned

space, such as a bookcase or built-in cabinet.

To reduce the risk of re, do not cover the

ventilation of the apparatus with newspapers,

tablecloths, curtains, etc. And do not place

lighted candles on the apparatus.

To reduce the risk of re or electric shock, do

not place objects lled with liquids, such as

vases, on the apparatus.

e Bluetooth word mark and logos are

owned by the Bluetooth SIG, Inc. and any

use of such marks by Sony Corporation is

under license.

Other trademarks and trade names are those

of their respective owners.

Complies with

IDA Standards

DB00353

WLA-NWB1 [GB] 2-895-766-24(1)

Table of Contents

Features..................................... 4

Basic operation of Bluetooth

devices ..........................................5

Getting Started

Location and

Function of Parts ................... 6

Connecting to a Walkman ....... 7

Pairing....................................... 8

What is pairing?............................8

Pairing procedures........................8

On Indicators.......................... 10

Listening to music

Bluetooth Connecting /

Playing back......................... 11

Controlling by the Remote .... 13

Additional Information

What is Bluetooth

technology? .......................... 14

Precautions ............................. 14

Troubleshooting ..................... 16

Initializing this unit ............... 18

Specications.......................... 19

WLA-NWB1 [GB] 2-895-766-24(1)

4GB

WLA-NWB1 [GB] 2-895-766-24(1)

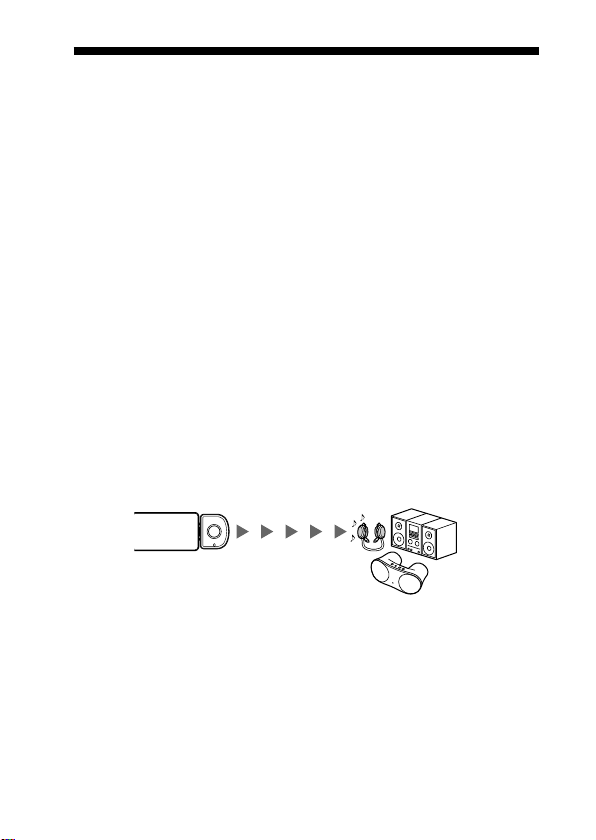

Features

is unit is an audio transmitter using Bluetoothtechnology.

You can enjoy music wirelessly by transmitting the audio signals

to a Bluetooth receiving device (headset, car stereo, speaker, stereo

component system, etc.)*, if you connect this unit to the Walkman

with the WM-PORT* (22 pin).

* Bluetooth receiving devices are required to support A2DP (Advanced Audio

Distribution Prole).

* WM-PORT is a dedicated multiple connector for connecting accessories to your

Walkman.

is unit’s features are as follows:

Audio transmission using Bluetooth wireless technology.

Can be used with any Walkman with a WM-PORT (22 pin).

AVRCP (Audio/Video Remote Control Prole) supported

– Allows basic operation of a Walkman by Bluetooth headsets*, etc.

– Allows volume control (+/-) operation of Bluetooth speakers*, etc., by a

Walkman.

* AVRCP compatibility required

* AVRCP (Vol +/-) compatibility required

No need to charge; receives power from Walkman.

Walkman with

WM-PORT (22 pin)

This unit

Bluetooth headset, etc.

Tip

For details on Bluetooth technology, see page 14.

For details on available Bluetooth devices, visit the following web sites:

USA: http://www.sony.com/walkmansupport/

Canada: http://www.sony.ca/ElectronicsSupport/

Europe: http://www.sonydigital-link.com/DNA/

China: http://service.sony.com.cn/KB/

Taiwan: http://www.twsupport.css.ap.sony.com/

Korea: http://scs.sony.co.kr/walkman/

Other countries or areas: http://www.css.ap.sony.com/

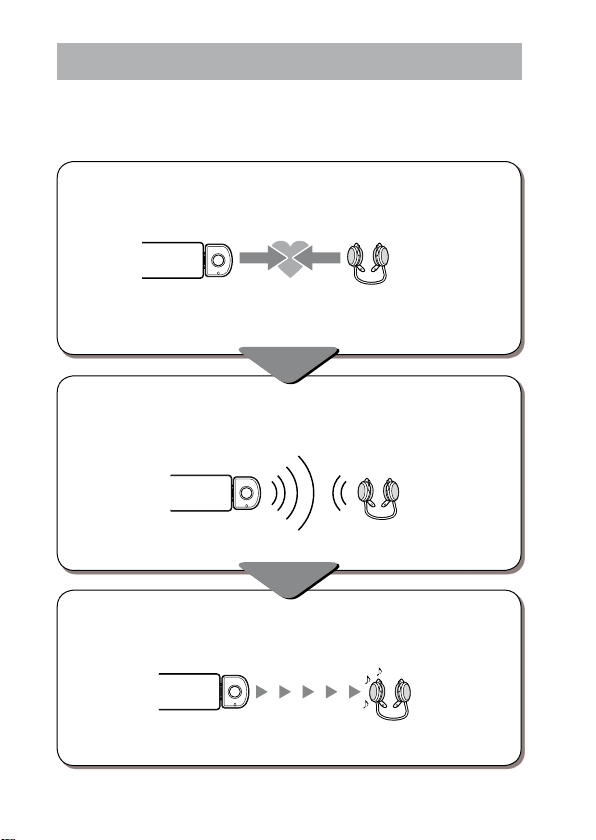

Basic operation of Bluetooth devices

 e following example describes how you can transmit music played

on a Walkman connected to this unit, and listen on a Bluetooth

receiving device (headset).

Pairing

Enables a Bluetooth receiving device and this unit to recognize one another.

You do not need to recognize one another next time if you did once.

Walkman with

WM-PORT (22 pin)

This unit Bluetooth receiving device (headset)

Bluetooth connecting

Turn on the Bluetooth receiving device and play the Walkman. Bluetooth

connection is established automatically.

Listening to music

You can enjoy listening to music played on your Walkman connected to this

unit through the Bluetooth receiving device.

For more details, see page 11.

For more details, see page 8.

WLA-NWB1 [GB] 2-895-766-24(1)

6GB

WLA-NWB1 [GB] 2-895-766-24(1)

Getting Started

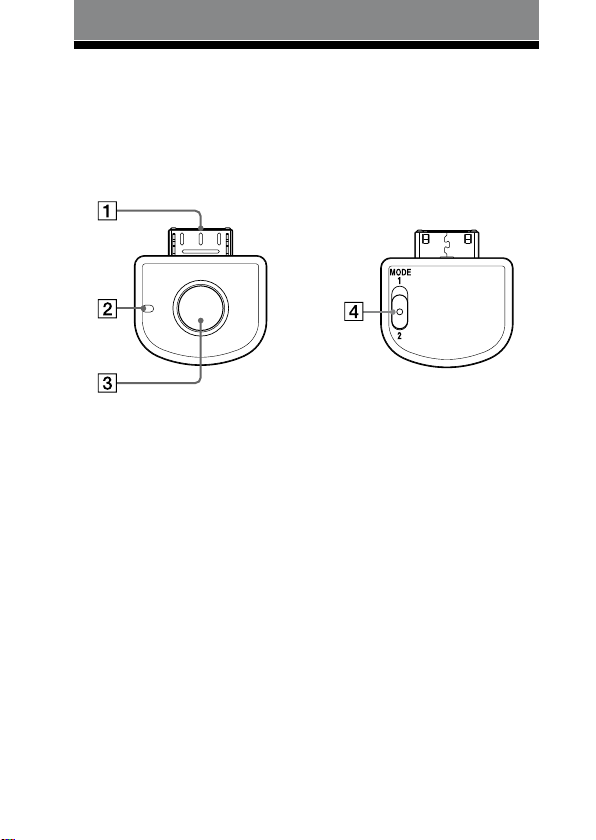

Location and Function of Parts



WM-PORT (22 pin)

Connects to the

WM-PORT of a Walkman

(page 7).



Indicator

Indicates this unit’s status

(page 10).



Power button

Performs the following:

• Turning on/o of this unit

(page 7).

• Pairing (page 8).

• Initializing this unit

(page 18).



MODE switch

Selects the transmission

mode by sliding the switch

to 1 or 2 (page 12).

Front Rear

WLA-NWB1 [GB] 2-895-766-24(1) WLA-NWB1 [GB] 2-895-766-24(1)

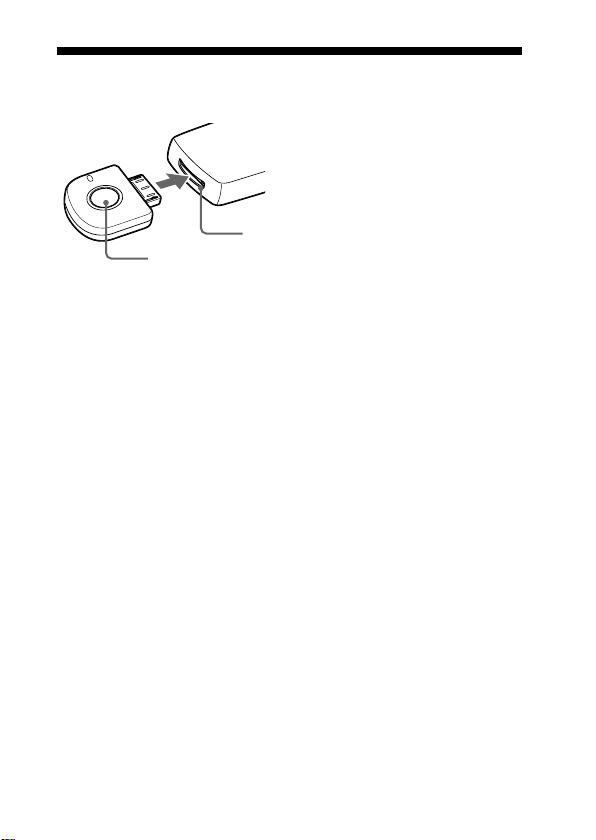

Connecting to a Walkman

Connect this unit to the WM-PORT of a Walkman rmly.

To turn on this unit

Connect this unit to the Walkman, then the power of this unit will

turn on automatically. If the power of this unit is o while the unit is

connected to the Walkman, press and hold the unit’s power button

for about 2 seconds to turn it on. When this unit turns on, the

indicator ashes twice.

To turn oﬀ this unit

To turn o this unit, press and hold this unit’s power button for

about 2 seconds. e indicator ashes once and this unit turns o.

Tip

Maximum Communication time or standby time may vary depending on your

Walkman. For details, visit the following web sites:

USA: http://www.sony.com/walkmansupport/

Canada: http://www.sony.ca/ElectronicsSupport/

Europe: http://www.sonydigital-link.com/DNA/

China: http://service.sony.com.cn/KB/

Taiwan: http://www.twsupport.css.ap.sony.com/

Korea: http://scs.sony.co.kr/walkman/

Other countries or areas: http://www.css.ap.sony.com/

Notes

To listen to music from the headphone jack of the Walkman, disconnect this unit

from the Walkman.

While this unit is turned on, it consumes power from the Walkman. We

recommend turning o this unit when not using the Bluetooth function.



If you turn o this unit while the Walkman is playing back, playback will stop.



ere is no need to charge this unit as it will receive power from the connected

Walkman. It is recommended to check the Walkman’s remaining battery before using.

Depending on the Walkman model, you may not be able to connect the

headphone to it when this unit is connected to the Walkman.

WM-PORT (22 pin)

Power button

WLA-NWB1 [GB] 2-895-766-24(1)

8GB

WLA-NWB1 [GB] 2-895-766-24(1)

Pairing

What is pairing?

Bluetooth devices need to be “paired” with each other beforehand.

Once Bluetooth devices are paired, there is no need for pairing

again, except in the following cases:

Pairing information is deleted aer repair, etc.



is unit is paired with 9 or more receiving devices.

is unit can be paired with up to 8 Bluetooth receiving device. If a

new device is paired aer 8 devices have been paired, the device whose

latest connection time is the oldest among the 8 paired devices is

replaced by the new one.

is unit is initialized.

All pairing information is deleted (page 18).

Pairing procedures

Connect this unit to the Walkman (page 7).

e power of this unit turns on.

Press

and hold the power button of this unit for about 2 seconds to turn it

oﬀ.

Place this unit and the Bluetooth receiving device to be paired

together within 1 m.

Set

the Bluetooth receiving device to enter “Pairing in process.”

(See the operating instructions supplied with the Bluetooth receiving

device.)

Note

Passcode* of this unit is xed at “0000.” Depending on the Bluetooth receiving

device, it may be necessary to input the passcode (in this case, “0000”). is

unit cannot be paired with a Bluetooth receiving device whose passcode is not

“0000.”

* Passcode may be called “Passkey,” “PIN code,” “PIN number,” or “Password.”

WLA-NWB1 [GB] 2-895-766-24(1)

Press

and hold the power button of this unit for more than about 7

seconds to enter“Pairing in process.”

Aer about 2 seconds, the indicator will ash twice but keep

pressing the power button.

When the indicator of this unit ashes quickly, stop pressing it.

is unit enters “Pairing in process.”

is unit’s indicator status will vary as follows, and pairing is

established with the Bluetooth receiving device.

Indicator ashes quickly: Pairing in process

 

Indicator ashes when responding to the Bluetooth receiving device.

(Paring successful)

 

Indicator ashes (at about 5-second intervals): Connectable

Notes



“Pairing in process” of this unit is released aer about 5 minutes. If pairing is

not established within about 5 minutes, repeat the above procedure from step



To enter “Pairing in process,” you need to turn o the power of this unit rst.

When not completed paring

Repeat the procedure from step

To quit“Pairing in process”

Press and hold the power button of this unit for about 2 seconds to

turn o this unit.

Tip

When paring this unit with a number of Bluetooth receiving devices, repeat steps 2

and 5for each device individually.

Note

Depending on the Bluetooth receiving device, the unit may not enter “Connectable”

automatically. In this case, see the operating instructions supplied with the device.

WLA-NWB1 [GB] 2-895-766-24(1)

10 GB

On Indicators

Status Indicator

Power on Flashes twice

Power o Flashes once

Pairing in process Flashes quickly

Paring successful Flashes twice

Connecting in process Flashes (at about

1-second

intervals)

Connecting successful Flashes twice

Connecting

Flashes slowly (at about 5-second intervals)

Connectable Flashes

(at about 5-second intervals)

Altri manuali per WLA-NWB1

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sony Trasmettitore

Sony

Sony TMR-RF915R Istruzioni per la costruzione

Sony

Sony IFV-FX1 Manuale utente

Sony

Sony TMR-BR100 Manuale utente

Sony

Sony TMR-BT10 - Bluetooth Wireless Audio... Manuale utente

Sony

Sony TMR-BT10 - Bluetooth Wireless Audio... Manuale utente

Sony

Sony TMR-RF975R Manuale utente

Sony

Sony WRT-860A Manuale utente

Sony

Sony WRT-822A Manuale utente

Sony

Sony WRT-822B Manuale utente

Sony

Sony TMR-BT10A Manuale utente

Sony

Sony DWT-B30 Manuale utente

Sony

Sony Walkman WLA-NWB1K Manuale utente

Sony

Sony TMR-PJ2 Manuale utente

Sony

Sony S-AIR EZW-T100 Manuale utente

Sony

Sony WLL-CA50 Manuale utente

Sony

Sony WRT-808A Manuale utente

Sony

Sony TMR-BR100 Manuale utente

Sony

Sony TMR-IF130 Manuale utente

Sony

Sony WRT-8B Manuale utente

Sony

Sony AIR-PC10T Operating Instructions (AIR-PC10T) Manuale utente

Sony

Sony WRT-822A Manuale utente

Sony

Sony DWZ-B50I Manuale utente

Sony

Sony AIR-PC10T Marketing Specifications... Manuale utente

Sony

Sony TMR-IF630R Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
