Installation Manual Page - 3 -
Table of Contents
WARNING STATEMENTS .............................................................................................................................- 4 -
PARTS LIST ......................................................................................................................................................- 5 -
FLAT PANEL LIST ..........................................................................................................................................- 5 -
INSTALLATION TOOLS ................................................................................................................................- 5 -
FLAT PANEL MOUNT LOCATION ..............................................................................................................- 6 -
MOUNTING BRACKET POSITIONING ........................................................................................................- 6 -
GRIPLATES™ ..................................................................................................................................................- 8 -
WOOD STUD LOCATION ..............................................................................................................................- 9 -
MARKING THE MOUNTING POINTS ........................................................................................................- 10 -
SECURING THE WALL PLATE TO THE WOODEN STUDS ...................................................................- 11 -
SECURING THE WALL PLATE TO A CONCRETE WALL ......................................................................- 12 -
SECURING THE FLAT PANEL TO THE WALL MOUNT ........................................................................- 13 -
LATERAL SHIFT ADJUSTMENT ................................................................................................................- 13 -
CSL2 SECURITY CABLE .............................................................................................................................- 14 -
TECHNICAL SPECIFICATIONS ..................................................................................................................- 15 -
WARRANTY ..................................................................................................................................................- 16 -
CUSTOMER SUPPORT .................................................................................................................................- 16 -
NOTES .............................................................................................................................................................- 16 -
Great user manuals database on UserManuals.info
SFM1
Page - 4 - Installation Manual
Warning Statements
WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE (5)
TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE WALL STRUCTURE MUST BE
REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE
TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE
ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL
INJURY, OR EVEN DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE
INSTALLATION OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR
THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY.
WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION
INSTRUCTIONS SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE
INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY
AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN
EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
Indicates that the power plug is to be
disconnected from the power outlet.
Contact Sony Electronics with any
questions.
Safety precautions must be taken at all
times.
Warning and Caution statements.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do
so could result in damage to the display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat
energy. Failure to do so may result in damage to the display and could increase the risk of fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can
result from dropping or mishandling the plasma display.
Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be
installed on any surface other than wooden studs, use suitable hardware (which is commercially
available).
Great user manuals database on UserManuals.info
SFM1
Installation Manual Page - 5 -
Parts List
NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that
none of these parts are missing and/or damaged before beginning installation. If there are parts
missing and/or damaged, please stop the installation and contact Sony Electronics (800)222-7669.
Wall Plate
(Qty 1)
Mounting
Brackets (Qty 2)
Griplates™
(Qty 4)
5/16” x 3” Lag
Bolts (Qty 4)
(Wooden studs
only)
M6 x 16mm
Phillips Pan
Head Screws
(Qty 4)
5/16” Flat
Washers-Metal
(Qty 4)
M5 x 16mm
Phillips Pan
Head Screws
(Qty 4)
PCB-CSL2
Security Cable
(Qty 1)
Flat Panel List
SONY
FWD-40LX2
FWD-32LX2
Installation Tools
Phillips Head Screw Driver Portable Drill ¼” Drill Bit (Wood Installations Only)
Level Soft Material/ Blanket Pencil
Tape Measure Wrench with ½” Drive Socket
Great user manuals database on UserManuals.info
SFM1
Page - 6 - Installation Manual
Flat Panel Mount Location
WARNING: INVERT THE FLAT PANEL. PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT
DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO
WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON
THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. THE FLAT PANEL IS
HEAVY AND FRAGILE. AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY
RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO
COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT
PANEL.

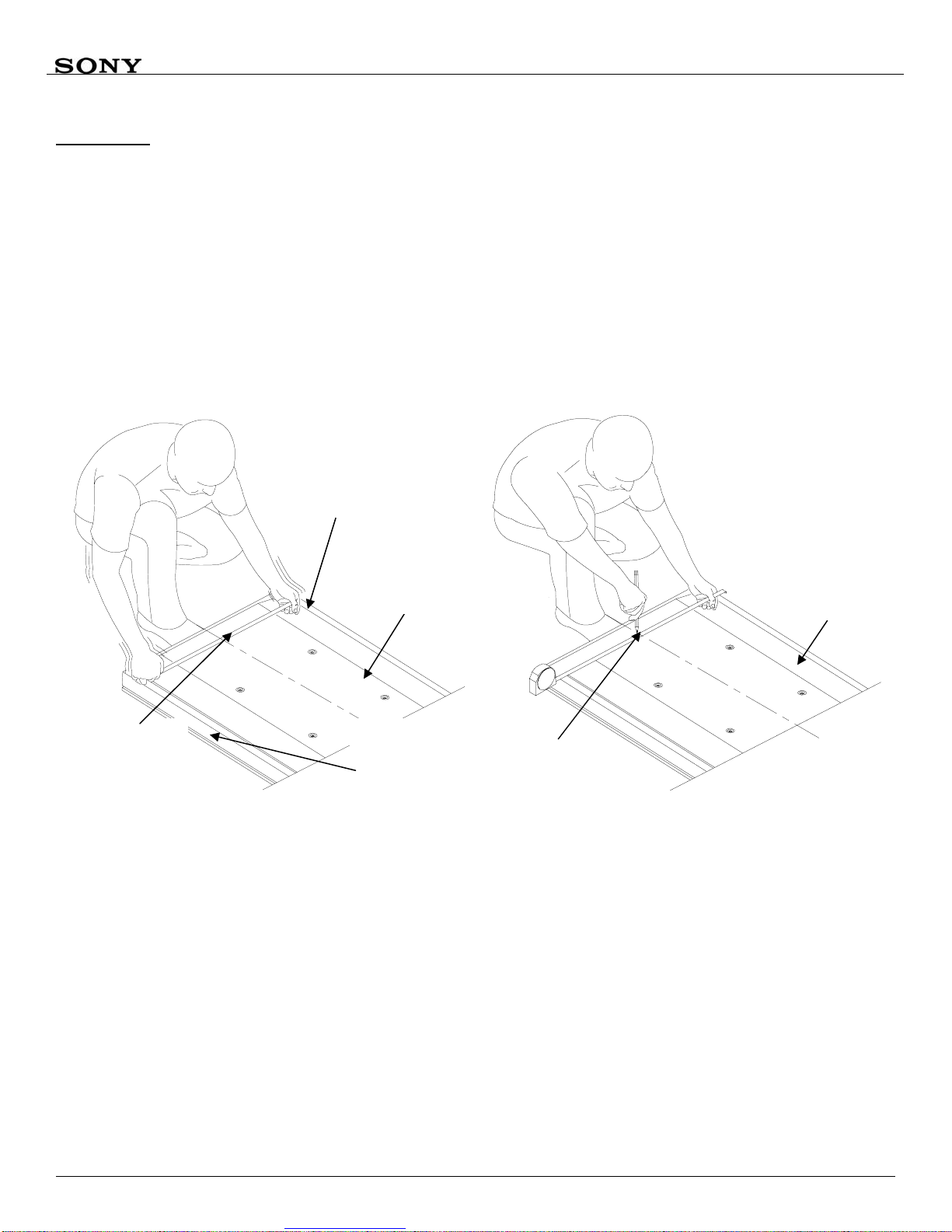

1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring from
outside to outside of the chassis (Figure 1).
2. Using a pencil lightly mark the center of your flat panel (Figure 2).
C
L
L
C
Figure 1. Flat Panel Mount Location Figure 2. Marking the Display
Mounting Bracket Positioning
1. Lay the left and right mounting brackets (stamped arrows facing out) (Figure 3).
To
p
of Flat Panel
Inverted Flat
Panel
Measurin
g
Ta
p
e Bottom of Flat
Panel
Inverted Flat
Panel
Mark the Center
of the Flat Panel
Great user manuals database on UserManuals.info
SFM1
Installation Manual Page - 7 -
Figure 3. Mounting Bracket Installation
NOTE: The mounting guides are designed with a center viewing guide on the side of them. There will be a
“notch” cut on the side of the bracket (Figure 4).
Figure 4. Locating the Center of the Flat Panel
2. Match the center of the viewing guide with the centerline you marked in Step 1 (Figure 5).
Bottom of Flat Panel
Arrows Facing OUT
Mounting Bracket
Bottom of Flat
Panel
Center of
Viewing Guide
Center of Flat
Panel
Mounting Brackets
Great user manuals database on UserManuals.info
SFM1
Page - 8 - Installation Manual
Griplates™
1. The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that the flat panel requires.
Example: If your display uses M8 x 20 Phillips head screws. Use the M8 mounting points (Figure 5).
Figure 5. Griplates™ Orientation
2. Once the mounting brackets are aligned, secure the Griplate™ to the flat panel.
NOTE: The dimples of the top plates have to be facing up and the bottom dimples must be facing down. Use
(1) Griplate™ per mounting point (Figure 6).
CAUTION: Do not over tighten the mounting hardware.
DIMPLES
FACING UP
3/4"
DIMPLES
FACINGUP
DIMPLES
FACING DOWN
DIMPLES
FACING DOWN
Figure 6. Griplate™ Attachment
Dimples M8
M6
M5
M4
Phillips Screw
Drive
r
Bottom Flat Panel
Great user manuals database on UserManuals.info
SFM1
Installation Manual Page - 9 -
Wood Stud Location
1. Using a stud finder, locate the 16” or 24” stud centers behind the wall.
2. Once found, make a pencil mark on the center of the wood studs (Figure 7).
NOTE: The wall plates have three 16” and 12” mounting slot positions.
16"
Figure 7. Locating the Wooden Stud
3. Measure from the floor to the desired viewing height and mark the wall (Figure 8).
NOTE: This marking will reference the center of your flat panel display once mounted to the wall.
16"
Figure 8. Measuring the Height
Wooden Studs
behind the Wall
Structure
Wooden Studs
Stud Finder
Measure and
Mark the Desired
Viewing Height
on the Wall
Great user manuals database on UserManuals.info
SFM1
Page - 10 - Installation Manual
Marking the Mounting Points
1. Place the bottom portion of the wall plate to the reference line and mark the four (4) lag bolt mounting
points through the wall plate slots on the wall.
2. Level the wall plate with the reference arrow pointing up to the ceiling (Figure 9).
16"
Figure 9. Marking the Mounting Points
Wall Plate
Mounting Slots
Level
Wood Studs
