Wall-Mount Bracket
© 2003 Sony Corporation
SU-W210
4-095-518-22 (1)
Instructions
•This Wall-Mount Bracket is designed for use with the Sony KLV-23HR2/
KLV-21SR2/KLV-21SG2/KLV-23M1 LCD Color TV.
Instructions
•Ce support de fixation mural est conçu pour être utilisé avec le téléviseur
couleur LCD KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-23M1 Sony.
Instrucciones
•Este soporte de montaje mural ha sido diseñado para el televisor en color
de pantalla de cristal líquido KLV-23HR2/KLV-21SR2/KLV-21SG2/
KLV-23M1 de Sony.
US
FR
ES
2
Thank you for purchasing this product.
For Customers
Sufficient expertise is required for installing this product, especially to
assure the strength of the wall. Be sure to entrust the attachment of this
product on the wall (Step 1 to Step 3 in “Installation”) to Sony dealers or
contractors and pay adequate attention to safety during the installation. We
are not liable for any damage or injury caused by mishandling or improper
installation.
WARNING
To avoid risk of serious injury or damage to the TV caused by dropping it,
observe the following precautions.
•Do not hang from the TV or the Wall-Mount Bracket installed on the wall.
• Be careful not to trap the AC power adaptor cord of the TV when you secure
the TV to the Wall-Mount Bracket.
•Follow the installation procedures and installation direction described in this
manual.
For a safety installation, consult your Sony dealer or qualified service
personnel.
•Before installing, confirm that the wall has sufficient strength to support the
TV and the Wall-Mount Bracket. The installation location should be a flat,
perpendicular wall with a reinforcing material inside.
• Do not apply a weight other than the TV to the Wall-Mount Bracket installed
on the wall.
•Do not disassemble, modify or change the parts of the Wall-Mount Bracket.
For Sony Dealers
Sufficient expertise is required for installing this product. Be sure to read this
instruction manual thoroughly to do the installation work safely. We are not
liable for any damage or injury caused by mishandling or improper
installation. After installation, please hand this instruction manual to the
customers.
3
Caution
•This Wall-Mount Bracket is only for the specified Sony LCD Color TVs.
Do not use the bracket with a TV whose operating instructions do not specify
the use of this bracket.
•Be especially careful not to drop the TV when you install it high on a wall.
Installation
For the installation, have ready eight commercially available mounting screws,
anchor bolts, etc. that are appropriate for the wall.
The type and length of the screws required depend on the material and
strength of the wall. If you do not know which material your wall is made of,
consult your Sony dealer or qualified service personnel.

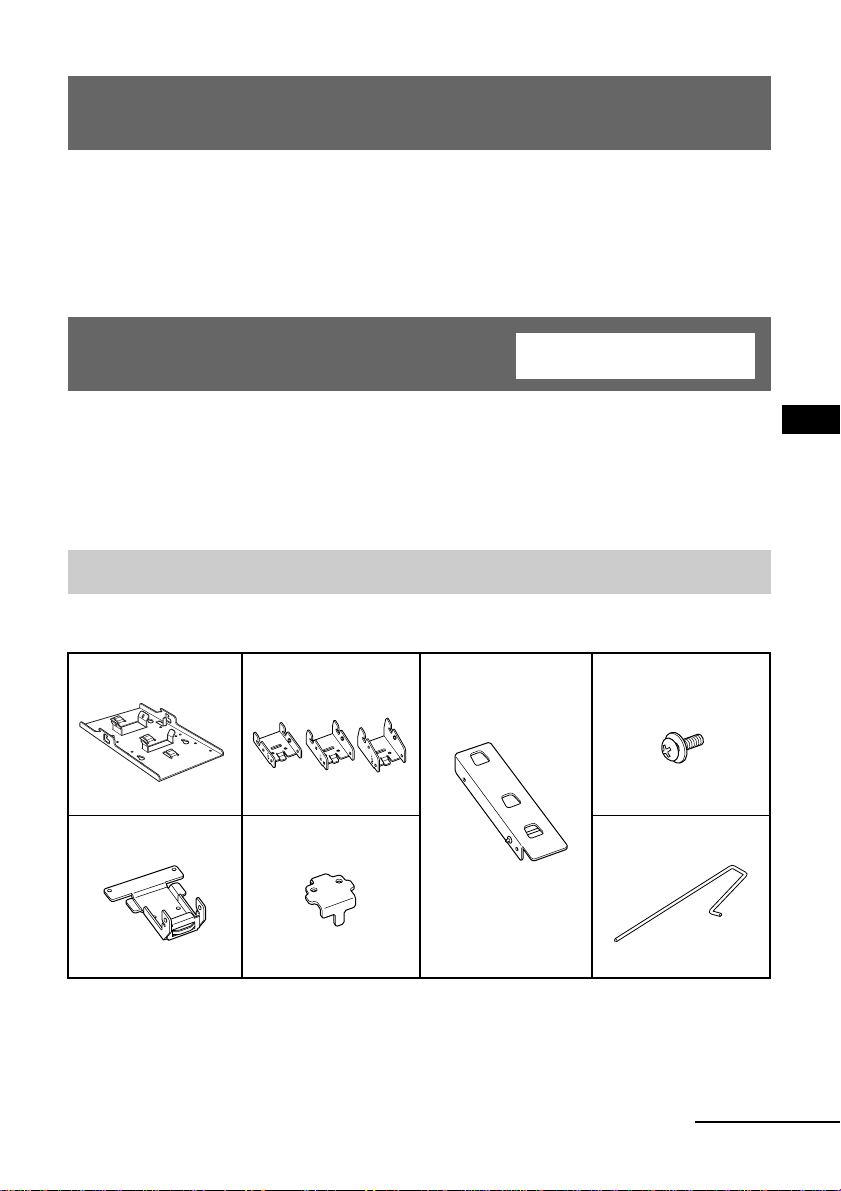

Step 1: Check the parts
Check all the parts are included in the package.
For Sony Dealers
Bracket A(1) Bracket C(3)
(0°, 5°, 10°)
Bracket E(1) Screw (6)
(with washer)
Bracket B(1) Bracket D(1) Locking rod (1)
US
continued
4

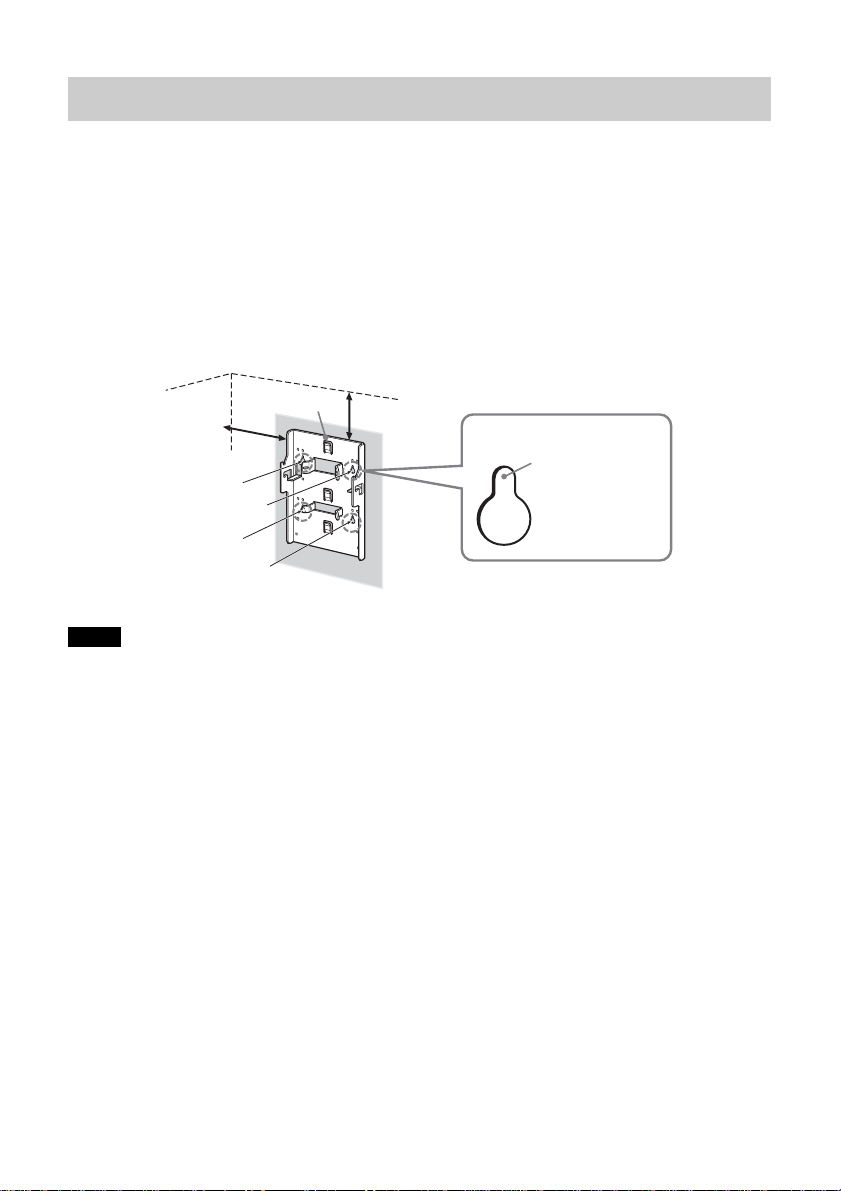

Step 2: Decide the installation location
Decide the location on the wall to install the TV.
Then, place bracket Aon the installation location and mark the four screw
holes on the wall using a pencil.
Before marking the location of the holes, make sure that the distance between the
upper edge of bracket Aand the ceiling is 15 cm (5 29/32 inches) or more, and that
between the side edge of bracket Aand the side wall is 25 cm (9 27/32 inches) or
more.
Note
Attach bracket Alevel with the floor.
Bracket A
Ceiling
15 cm (5 29/32
inches) or more
Wall
Mark this
portion using
a pencil.
25 cm (9 27/32
inches) or more
5

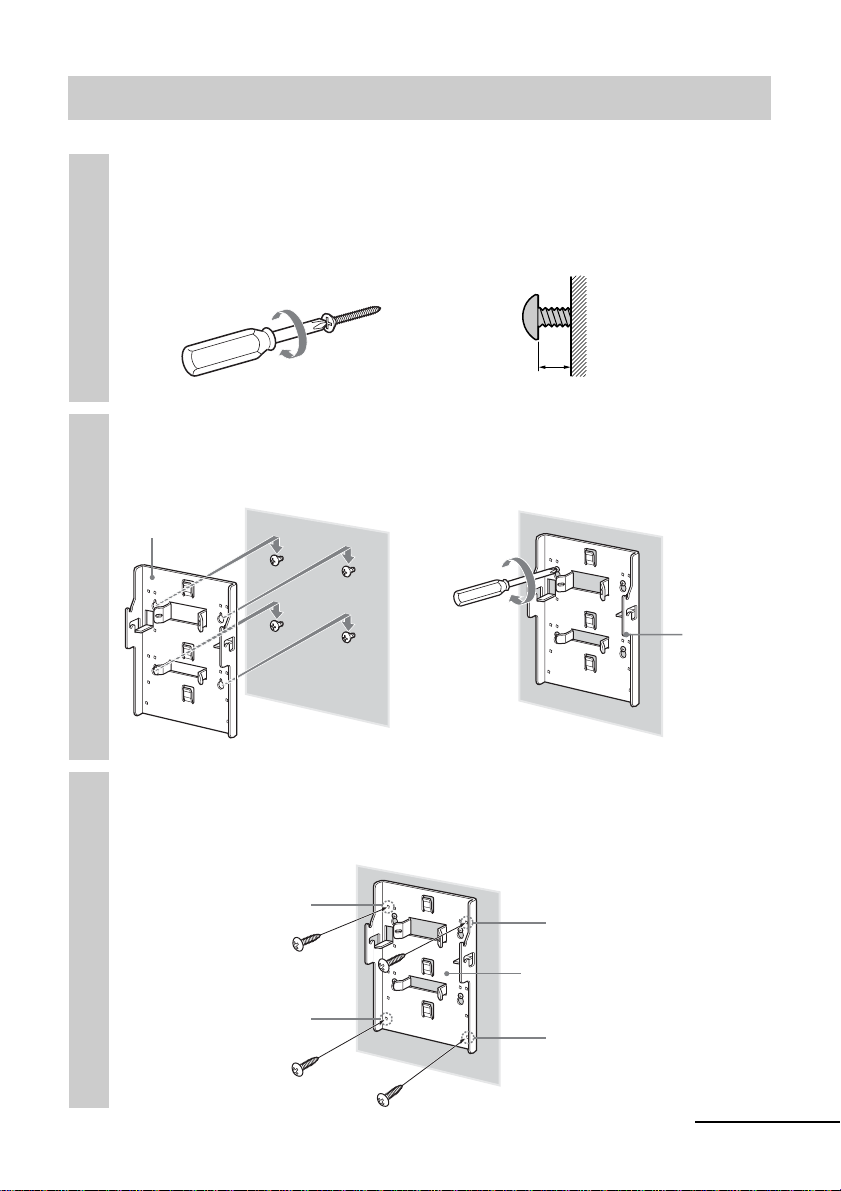

Step 3: Secure bracket Ato the wall
1Insert four of the screws you prepared at the positions
marked in Step 2 (page 4).
Do not tighten the screws completely for the moment. Keep a space of
2 to 3 mm (3/32 to 1/8inches) from the wall.
2Press bracket Ato the wall and slide it down. Then fully
tighten the four screws on the wall.
3Insert four of the screws you prepared in the screw holes,
and tighten them securely in the order of 1to 4as
shown below.
Screws you
prepared
Wall
2 - 3 mm (3/32 - 1/8inches)
,
Wall
Bracket A
Wall
Bracket A
continued
Screws you
prepared Bracket A
1
3
2
4
6

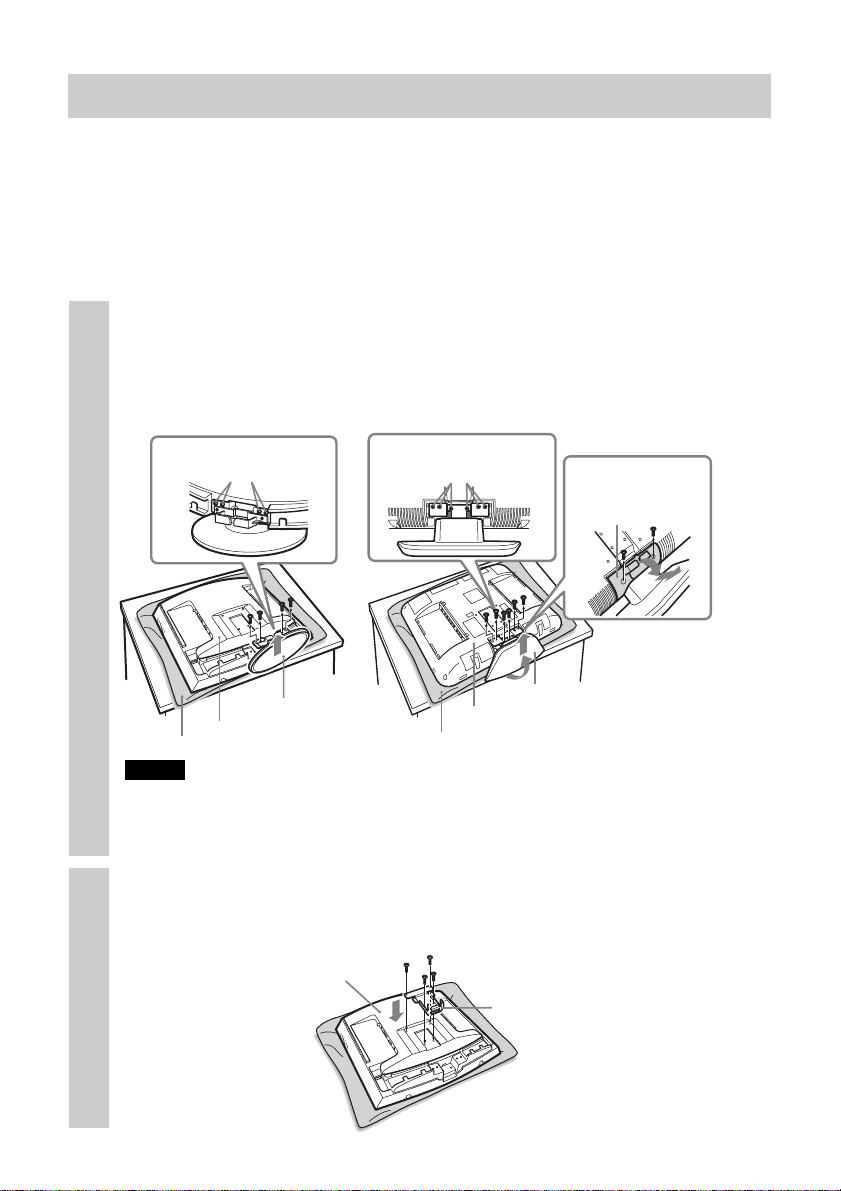

Step 4: Attach bracket Bto the TV
Before attaching bracket B, remove the rear cover of the TV and disconnect all
the cables from the TV.
For how to remove the rear cover of the TV, refer to the Operating Instructions
supplied with the TV.
(The illustrations used in this manual show the KLV-21SR2/KLV-23M1 as
examples.)
1Remove the screws as shown below, and remove the TV
stand from the TV.
To prevent damaging the surface of the LCD display, place the TV on a
soft mat.
Notes
• Place the TV body only on the table as shown above. If the TV stand is also on the
table, the TV body may be unstable and cause damage.
•When removing the TV stand, hold it firmly.
2Secure bracket Bto the TV firmly using the four screws
removed in step 1.
Rear of the TV
Bracket B
Rear of the TV
Soft mat
TV stand
Remove the four
screws. Remove the six
screws. (M4 type for
bracket B)Remove the two
screws and hinge
cover.
Rear of the TV
Soft mat
TV stand
KLV-21SR2 KLV-23M1
To secure bracket Bto
the TV, use the screws
removed from the TV
stand, not the ones
from the hinge cover.
7

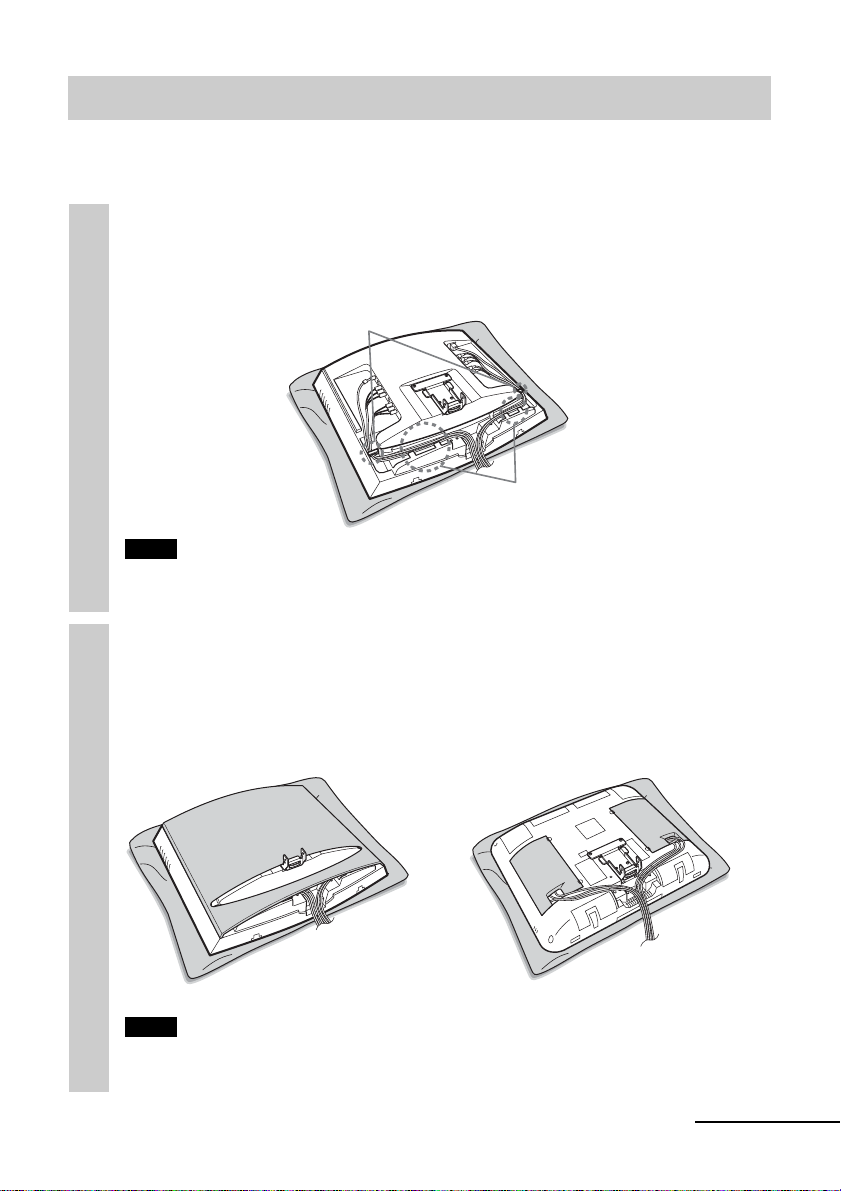

Step 5: Attach the rear cover on the TV
(The illustrations used in this manual show the KLV-21SR2/KLV-23M1 as
examples.)
1Connect the cables.
How to connect/bundle the cables differs depending on the TV model.
For details, refer to the Operating instruction for your TV.
Note
If the cables are not neatly stored in the grooves, you may not be able to attach the
rear cover.
2Attach the rear cover.
For KLV-23M1, attach the cable covers instead of the rear cover.
For details on how to attach the rear cover, refer to the Operating
Instructions of the TV.
Note
When you attach the rear cover, make sure that bracket Bdoes not damage the rear
cover.
Clips
Tabs
continued
KLV-21SR2 KLV-23M1
8

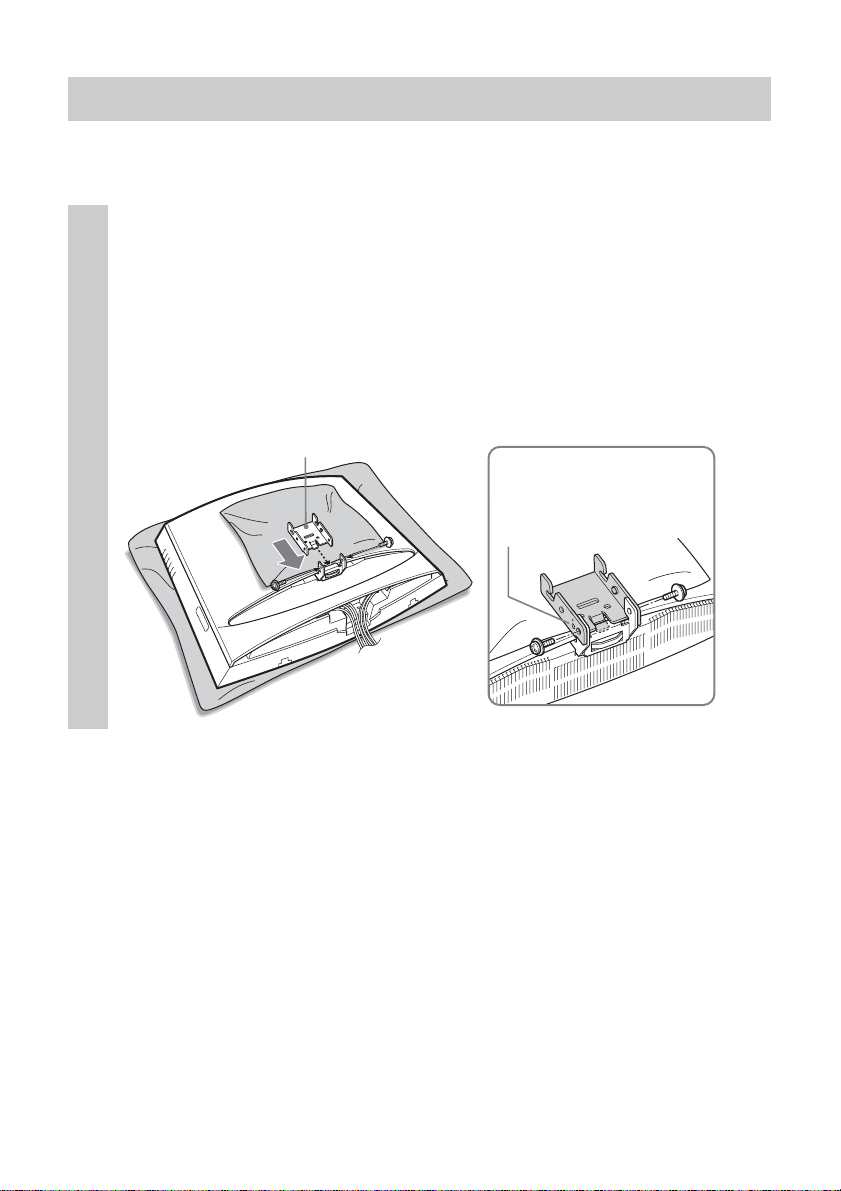

Step 6: Attach brackets C, D, and Eto the TV
To prevent damaging the surface of the rear cover of the TV, put a soft mat on
the rear cover.
1Attach bracket Cof the desired angle to bracket B.
Insert the hooked part of bracket Cinto bracket Bas illustrated below.
Confirm that both sides of bracket Care outside bracket B, and secure
them firmly with two of the supplied screws.
There are three types of bracket C, each with a different angle: 0°, 5°,
and 10°. Choose the bracket Cwith the desired angle to attach.
The illustration below shows an example of how to attach bracket C
with an angle of 0°.
Bracket C
The angle “0°,” “5°,” or
“10°” is marked on the
side of bracket C.
9

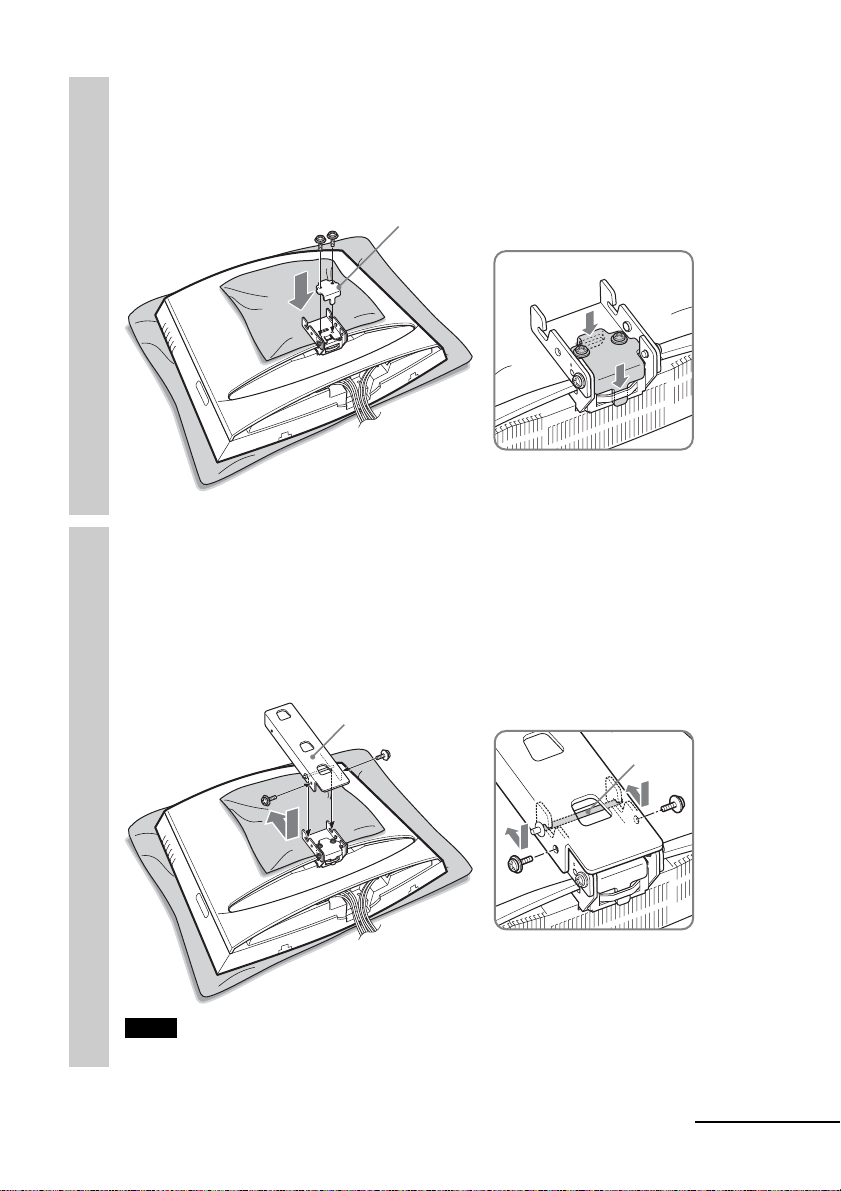

2Attach bracket Dto bracket C, and secure them firmly
with two of the supplied screws.
Place bracket Donto bracket Cas illustrated below, and secure them
with the two screws.
3Attach bracket Eto bracket C, and secure them firmly
with two of the supplied screws.
Slide the shaft of bracket Einto the notches of bracket Cas illustrated
below, and secure them with the two screws one on each side. When you
complete attaching bracket E, remove the soft mat from the rear cover
of the TV.
Note
Be careful not to get your fingers caught between the brackets when attaching them.
Bracket D
Bracket E
Shaft
continued
10

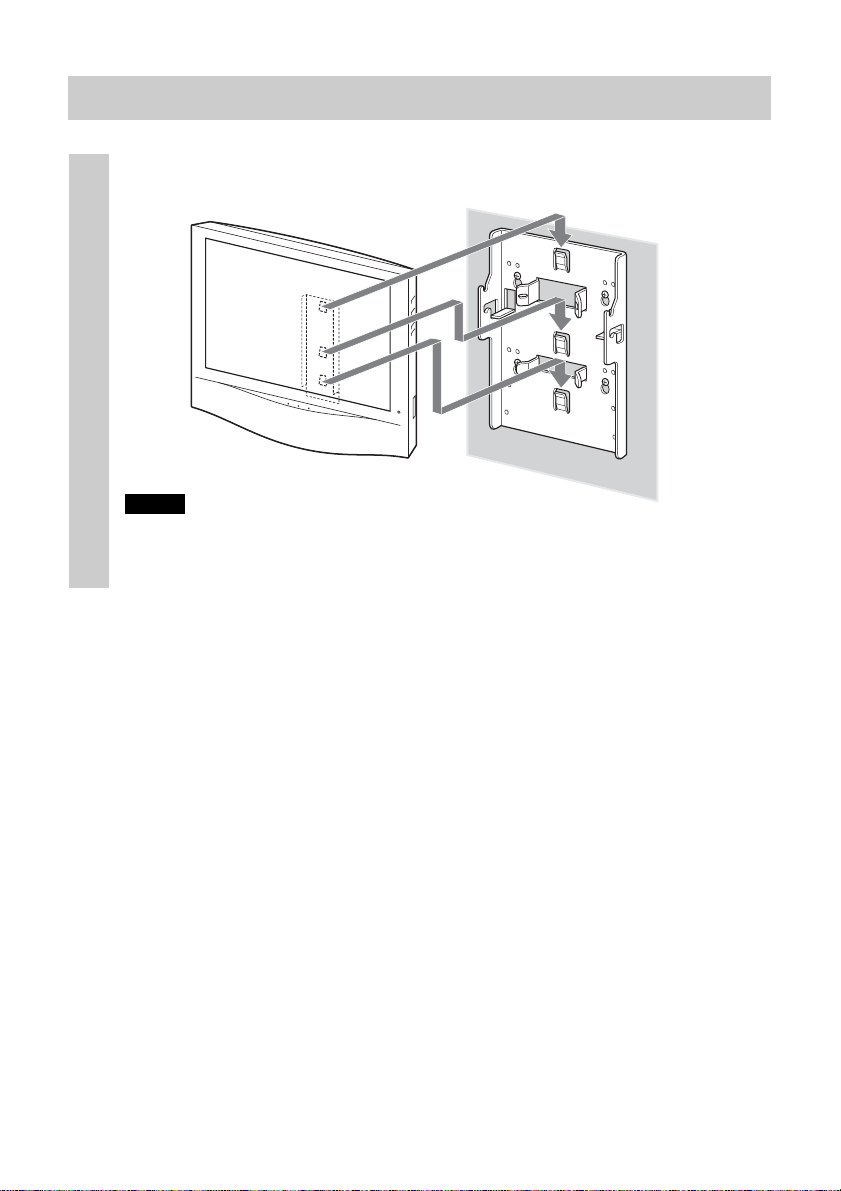

Step 7: Secure the TV to the wall
1Hook bracket Eon bracket A.
Notes
•Hold the TV firmly. Be especially careful when you secure the TV in a high place.
•Do not release the TV until you confirm that bracket Eis firmly secured to bracket
Aat three locations.
Bracket E
Bracket A
Wall
