Tr initron Color TV

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

KV-XR34

KV-XR29

KV-XR25

M31

01GB01COV-OCE.p65 31/7/1918, 1:02 AM1

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

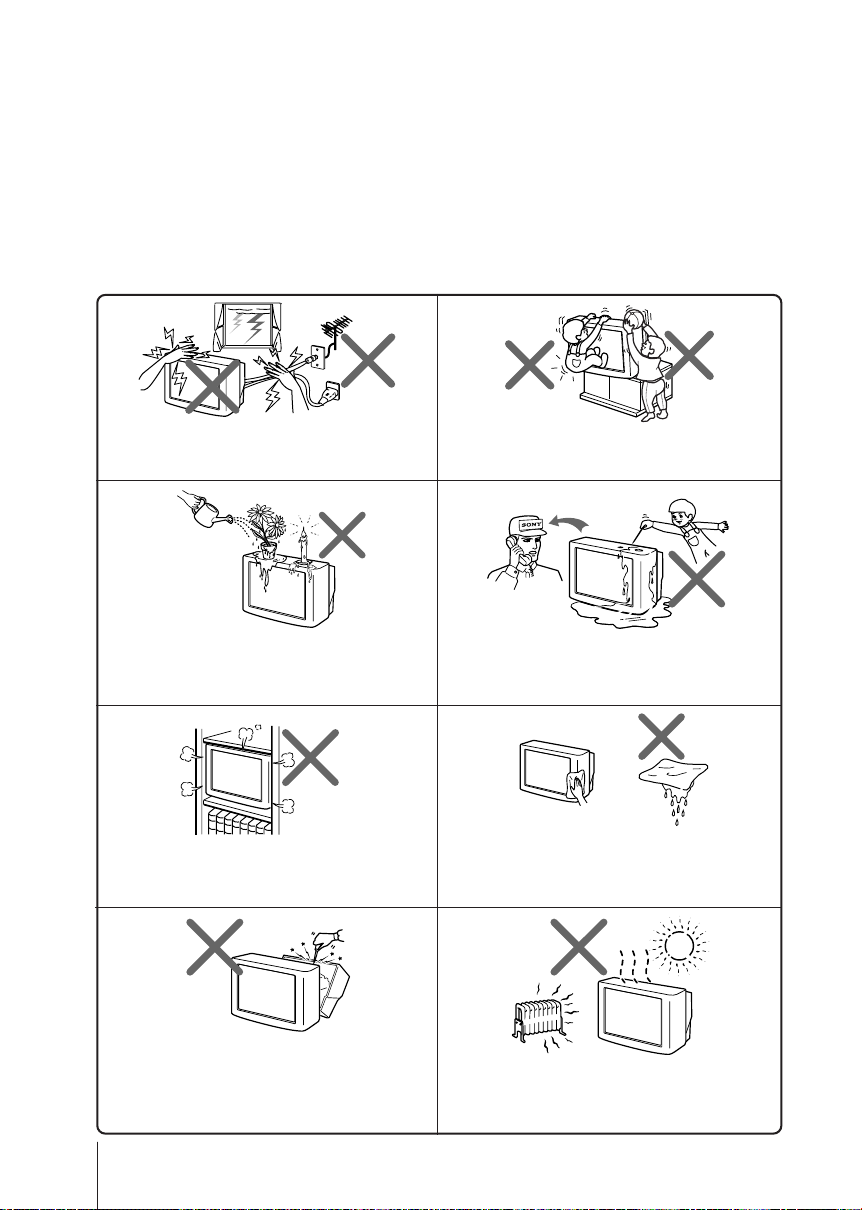

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

01GB02WAR-OCE.p65 31/7/1918, 12:38 AM2

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

01GB02WAR-OCE.p65 31/7/1918, 12:38 AM3

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

01GB02WAR-OCE.p65 31/7/1918, 12:38 AM4

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

Menu Adjustment

Introducing the menu system .......... 14

Changing the “Picture” setting ........ 17

Changing the “Sound” setting ......... 18

Changing the “Timer” setting .......... 20

Changing the “Channel Setup”

setting .................................................. 21

Changing the “Setup” setting .......... 23

Additional Information

Connecting optional components ... 24

Troubleshooting ................................. 26

Specifications ...................... Back cover

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and

sound modes ...................................... 11

Enjoying stereo or bilingual

programs ............................................. 12

Viewing Teletext ................................. 13

01GB03TOC-OCE.p65 31/7/1918, 12:38 AM5

6Installation

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

Installation

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 24).

01GB04INS-OCE.p65 31/7/1918, 12:39 AM6

Installation

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear.

You may change the menu language, preset the TV channels automatically and adjust

the picture position using the buttons on the TV front panel.

Tip

•The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically or

select “No” to skip automatic channel

presetting.

Once you select “Yes”, your TV will start

searching for all the available channels.

If the message “No channel found. Please

connect cable/antenna.” appears, check your

TV connections, then press t.

3Press 2+/– to adjust the bars on the

top and bottom of the menu if they are

slanted, then press t.

If no adjustment is necessary, then press

4Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

•You can immediately go to the end of the “Initial Setup” menu by pressing MENU.

•You can also set up your TV using the menu system (see page 14).

•You can also preset the channels automatically by pressing MENU (AUTO PROG) button on

the TV front panel for about five seconds.

Start auto program now?

01GB04INS-OCE.p65 31/7/1918, 12:39 AM7

8Overview of Controls

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

Overview of Controls

RLYC

qf qd

PROG

SOUND

MODE

L(MONO) R

(AUTO PROG)

AUTO PROG:Press ([MENU] for 5sec

PROGRMENU AUTO

PROGR

ENTER SELECT

L(MONO)

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1Remote control sensor. –

21Standby indicator. 6

2Wake Up indicator. 20

3!Turn off or turn on the TV. 6

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 24

Menu operations

52+/– Select and adjust items. –

6tConfirm selected items. –

7MENU Display or cancel the menu. –

7(AUTO PROG) Preset channels automatically. 7

8SOUND MODE Select sound mode options. 11

5-Band Graphic Equalizer display will appear.

9t3Video input terminal 3. 24

0iHeadphone jack. –

qa Component video input terminal. 25

qs 8Antenna input terminal. 24

qd TMonitor output terminal. 24

qf t1, t2Video input terminal 1, 2. 24

01GB04INS-OCE.p65 31/7/1918, 12:39 AM8

Overview of Controls

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

xUsing the remote control and basic

functions

123

789

PROG

A/B

RESET

continue

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to last program number that has been –

watched for at least five seconds.

4PROG +/– Select program number. –

52+/– Adjust volume. –

9Change the picture size: –

“On” (16:9 wide-mode), “Off”.

0Mute the sound. –

Display on-screen information. –

qd tSelect TV or video input. 24

qf 0 – 9, -Input numbers. –

qj Select surround mode options: –

“On” (surround), “Simulated” (stereo-like

monaural sound), “Off”.

ql RESET Set TV to factory setting. 26

01GB04INS-OCE.p65 31/7/1918, 12:39 AM9

10 Overview of Controls

Sony KV-XR29M31 GRP C6 (GB)_4-098-884-11 (2)

continued

Button Description Page

w; Select sound mode options. 11

5-Band Graphic Equalizer display will appear.

wa Select picture mode options. 11

Menu operations

6MENU Display or cancel the menu. 16

7Confirm selected items. 16

qk V, v,B,b Select and adjust items. 16

Timer operations

qg Set TV to turn on automatically. –

qh Set TV to turn off automatically. –

Teletext operations (green label)

4, Display the next or previous page. 13

8Display Teletext broadcast. 13

qa Reveal concealed information. 13

qs Enlarge the Teletext display. 13

qd Stop Teletext display from scrolling. 13

qg Display Teletext service contents. 13

qh Show TV screen while waiting for Teletext page. 13

ws x(red, green, Access a FASTEXT menu. 13

yellow, blue)

Stereo/bilingual operations

qs A/B Select stereo/bilingual mode 12

01GB04INS-OCE.p65 31/7/1918, 12:39 AM10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony TV

Sony

Sony KD-55S8500D Manuale utente

Sony

Sony Bravia XR XR-85X9 K Series Manuale utente

Sony

Sony KD-30XS955 Instructions: TV stand Manuale utente

Sony

Sony FD Trinitron WEGA KV-20FV300 Manuale utente

Sony

Sony Trinitron KV-XA34 Manuale utente

Sony

Sony KDS-50A2000 - 50" Rear Projection TV Manuale utente

Sony

Sony KV-34HS420N Manuale utente

Sony

Sony KP-51DS1U Manuale utente

Sony

Sony BRAVIA KD-65X7000E Manuale utente

Sony

Sony XBR-49X800D Manuale utente

Sony

Sony KV-XA29M31 Manuale utente

Sony

Sony KV-20FS100 - 20" Fd Trinitron Wega Manuale utente

Sony

Sony BRAVIA KD-32W830K Manuale utente

Sony

Sony BRAVIA KLV-40S550AE Manuale utente

Sony

Sony KDL-48W605B Bravia Manuale utente

Sony

Sony BRAVIA KDL-60EX700 Manuale del proprietario

Sony

Sony BRAVIA KD-65A9F Manuale utente

Sony

Sony TRINITRON KV-29FS60A Manuale utente

Sony

Sony BRAVIA KDL-48W650D Manuale utente

Sony

Sony FD Trinitron WEGA KV-32FQ80 Manuale utente

Sony

Sony WEGA KLV-S26A10 Manuale utente

Sony

Sony Trinitron WEGA KV-DB34 Manuale utente

Sony

Sony TRINITRON KV-10FMR20 Manuale utente

Sony

Sony XR-65A90J Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente
