Sound Tube STNet-Switch Manuale utente

Warning

SoundTube products must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

STNet-Switch

STNet Owner’s Manual

Contents

1. Safety Instructions

2. Overview

a. Illustration of connections

3-4. Installation

a. Rack mounting

b. Table Top installations

c. Illustrated pictures of front and back

d. Hardware connections

e. Connecting speakers

f. Connecting CobraNet devices to STNet-Switch

5. Hardware Connections

5. Connecting Speakers

6. Connecting CobraNet Devices to STNet-Switch

6. Speaker Adjustments

7. System Monitoring

a. External fault alarm set up

b. Reset port

c. Installing a reset switch

8. Email Notication Setup

9. Expanding beyond 16 speakers

a. Conguring a Slave Switch

10. Multi-switch system set up

10. Expanding with PoE+ switches

10. Expanding with a non-powered switch using local power

Install Instructions For:

IP Series

FCC Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est

autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the

separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain

approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should

be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain

maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à

l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

MPE Notice

To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device

and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended.

Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm.

Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. La FCC

des États-Unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement.

IC Notice

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this

device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est

autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

For Module only:

Information for the OEMs and Integrators- This device is intended for OEM integrators only. Please see the full Grant of Equipment document

for restrictions. This device must be operated and used with a locally approved access point.

Label Information to the End User by the OEM or Integrator- If the FCC ID of this module is not visible when it is installed inside another

device, the the outside of the dvice into which the module is installed must be labeled with “Contains FCC ID: SU3RM2400A” in a visible area.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that

produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

10. Only use attachments/accessories specied by SoundTube.

11. Unplug this apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

14. When permanently connected, on all-pole mains switch with a contact separation of at least 3mm in each pole shall be

incorporated in the electrical installation of the building.

15. If rack mounting, provide adequate ventilation. Equipment may be located above or below this apparatus but some equip-

ment (like large power ampliers) may cause an unacceptable amount of hum or may generate too much heat and degrade the

performance of this apparatus.

16. This apparatus may be installed in an industry standard equipment rack. Use screws through all mounting holes to provide

the best support.

WARNING -- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR

MOISTURE.

Install Instructions For:

IP Series

Overview

The STNet-Switch is an intelligent audio grade 16 port, proprietary 40w PoE, CobraNet®-network Switch. The STNet-Switch allows

users to connect up to 16 SoundTube IP speakers via Cat-5 and power them using the internal 40w PoE. Expansion beyond 16

speakers can be done one of three ways; with additional STNet-Switches, using a PoE+ switch or using a non-powered switch with

local power. The Switch has 2 non-powered gigabit ports for high speed expansion and a WAN port for external communication.

The Switch has a built in DHCP server for IP assignment which it uses to identify each end point on the CobraNet network. It

constantly monitors the health of the SoundTube network and speakers and reports if it detects faults. The switch has visual fault

indicators on the front panel and 2 contact closure ports on the rear for external audible and visual fault alarms. It also has the ability

to send an email, either at user preferred intervals indicating the system is operating normally, or immediately upon detection of a

fault. The system monitors PoE power, endpoints on the network, and 3 variables on the speakers: the voice coil, operating

temperature and the amplier.

Install Instructions For:

IP Series

Cobranet System Controller

High power PoE port (Ethernet connection)

WAN port

Gigabit port

Visual/Audible Alarms

Fault Reset and Bypass

Email Notication

Audio Device

Add Additional ST-NET Switches

for more than 16 Speakers

In-House Network Router

(not included)

IP-CM52s-BGM

IP-CM62-BGM

IP-CM82-BGM

IP-SM500i-II

Power Supply

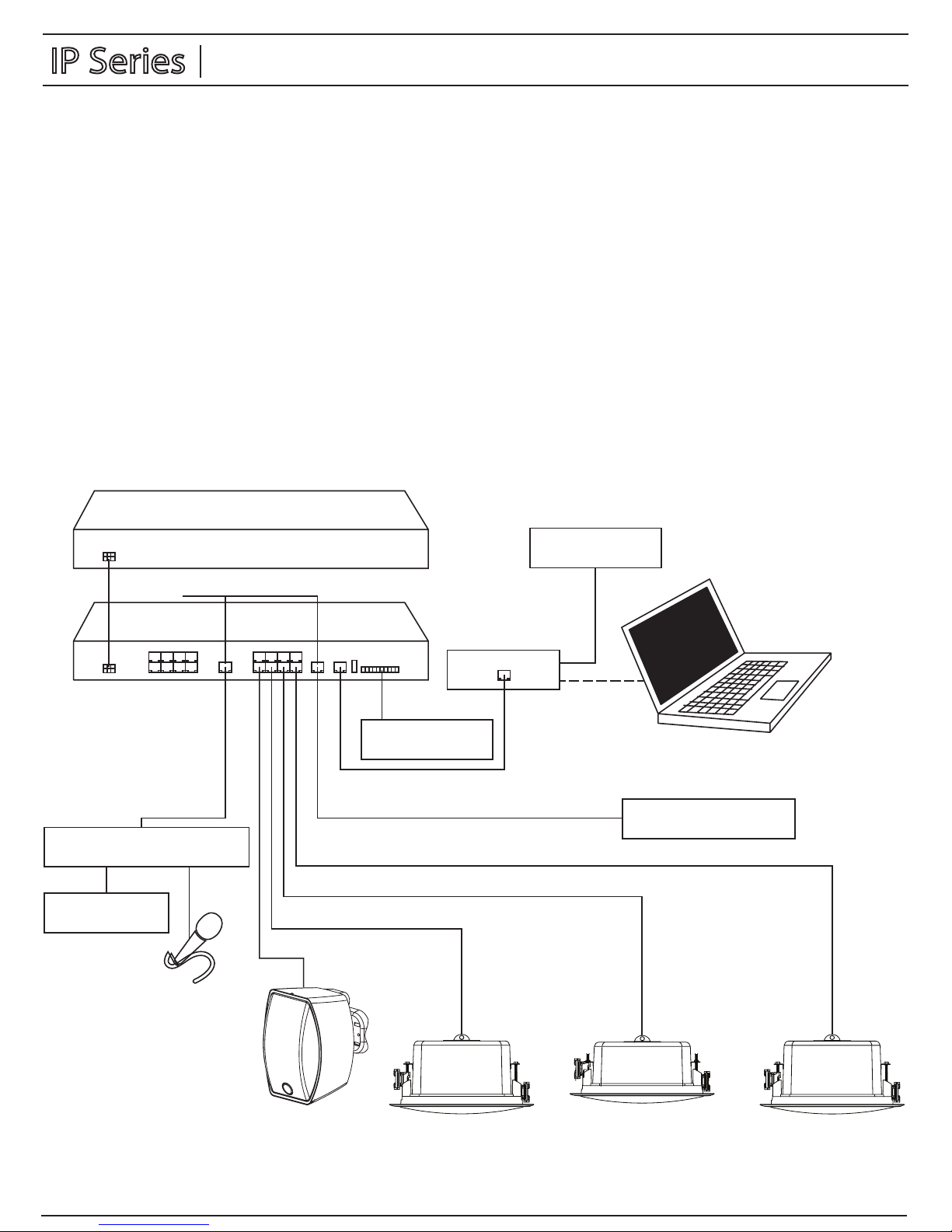

Illustration 1

Slave switch connection

Typical System Layout

Installation

The STNet Switch and Power Supply can be table top or rack mounted.

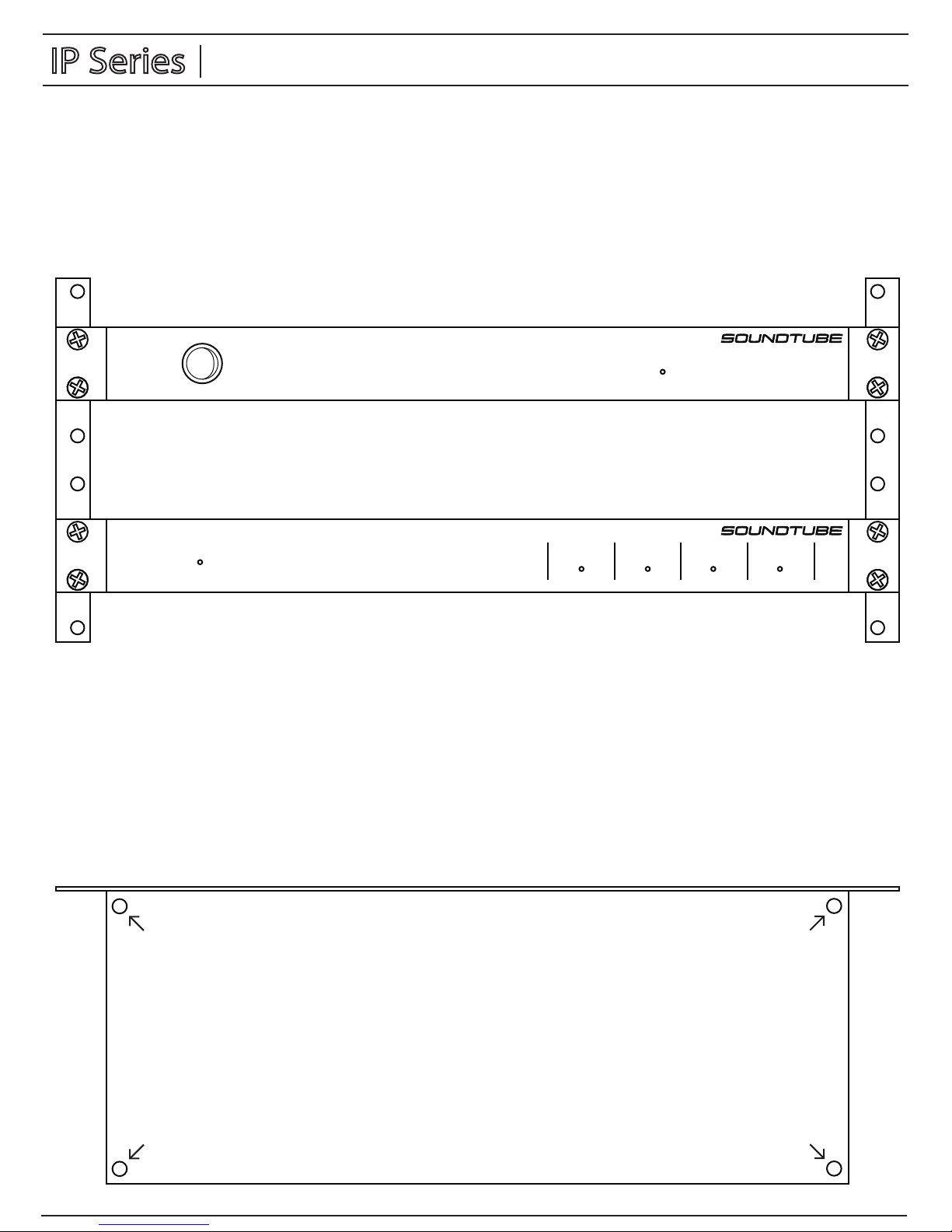

Rack Mounting:

To Rack mount the STNet Switch and Power Supply attach the rack mount ears to the left and right sides. The front of the ears

should be even with the front panel.

Install Instructions For:

IP Series

STNet-Power Supply

STNet-Switch

Illustration 2

POWER

OFF ON

1. Line up the rack. See illustration 2

2. Using 8 screws (include in the box) fasten the ears to the side panels.

3. Follow the directions that came with the rack to mount the STNet-Switch and Power Supply.

Table Top:

The STNet-Switch and Power Supply each come with 4 rubber pads with two sided adhesive already attached. Remove the protec-

tive lm from the pads and attach one to each corner. See illustration 3

Bottom View

Illustration 3

Install Instructions For:

IP Series

Illustrated pictures of front and back

6. USB port used for updating rmware

7. Audible Alarm relay 30VDC/1A max rating

8. Visible Alarm relay 30VDC/1A max rating

9. Unused

10. Fault reset/on/off I/O port

11. Unused

STNet-Switch Front

STNet-Switch Back

Power Supply Front

Power Supply Rear

1. Power cable input

2. 40w PoE IP Cobranet ports 1-16 for IP speakers (can also be

used for IEEE 802.3 CobraNet devices)

3. Gigabit CobraNet port

4. Gigabit CobraNet port

5. WAN port used to communicate and setup STNet. Connects

to router

3. Power Status indicator LED - PoE+ is not in it's normal range.

4. System Fault indicator LED - STNet-Switch is not operating

normally.

5. Speaker Fault indicator LED - One of the speaker functions is

not operating normally.

Green lights represent that the system is operating properly,

ashing amber lights indicate a fault.

1. Power indicator LED

2. Network Fault indicator LED - A device is no longer com-

municating with the switch.

2. Power indicator LED - Illuminates when the decice is on.1. Power On/Off switch

2. Power cord AC 100-240V1. Power cable output

Hardware connections

Overview: CobraNet operates on its own network, but for control and email alerts, the STNet-Switch (through its WAN port) must

be connected to an outside network that has internet access. (Most installations will use the existing internet access network that

is on-site). This will allow the ST-NET switch to send email alerts on the status of the system and allow access to the ST-Net from

any location as long as there is access to the network. Connecting a computer through the router on the existing ofce network will

allow the SoundTube Control Center software to communicate with all the devices on the CobraNet.

Connections:

1. Make sure the front panel rocker switch on the front of the Power Supply is set to off.

2. Connect the 6 pin power cable between the Power Supply and the Switch. Push the cable all the way in until you feel it lock.

3. Connect the AC power cable to the back of the Power Supply and to a 110/220v power source.

4. Connect the WAN port on the STNet-Switch to a LAN port on the router. See illustration 4.

Connecting Speakers:

Install Instructions For:

IP Series

1. Load the Control Center software on your PC.

Note: Software installation and instructions are included with the software.

2. Start the Control Center Program.

3. The rst time the Control Center software is started, it will be necessary to choose the appropriate network adapter

(wired or wireless).

4. Turn the power switch to the on position on the STNet-Power Supply. The Switch should boot up in approximately 45

seconds. Once the 4 indicators on the front panel are lit green the Switch is ready. The STNet Switch should be visible on

the screen.

5. Right click on the Switch and enable routing.

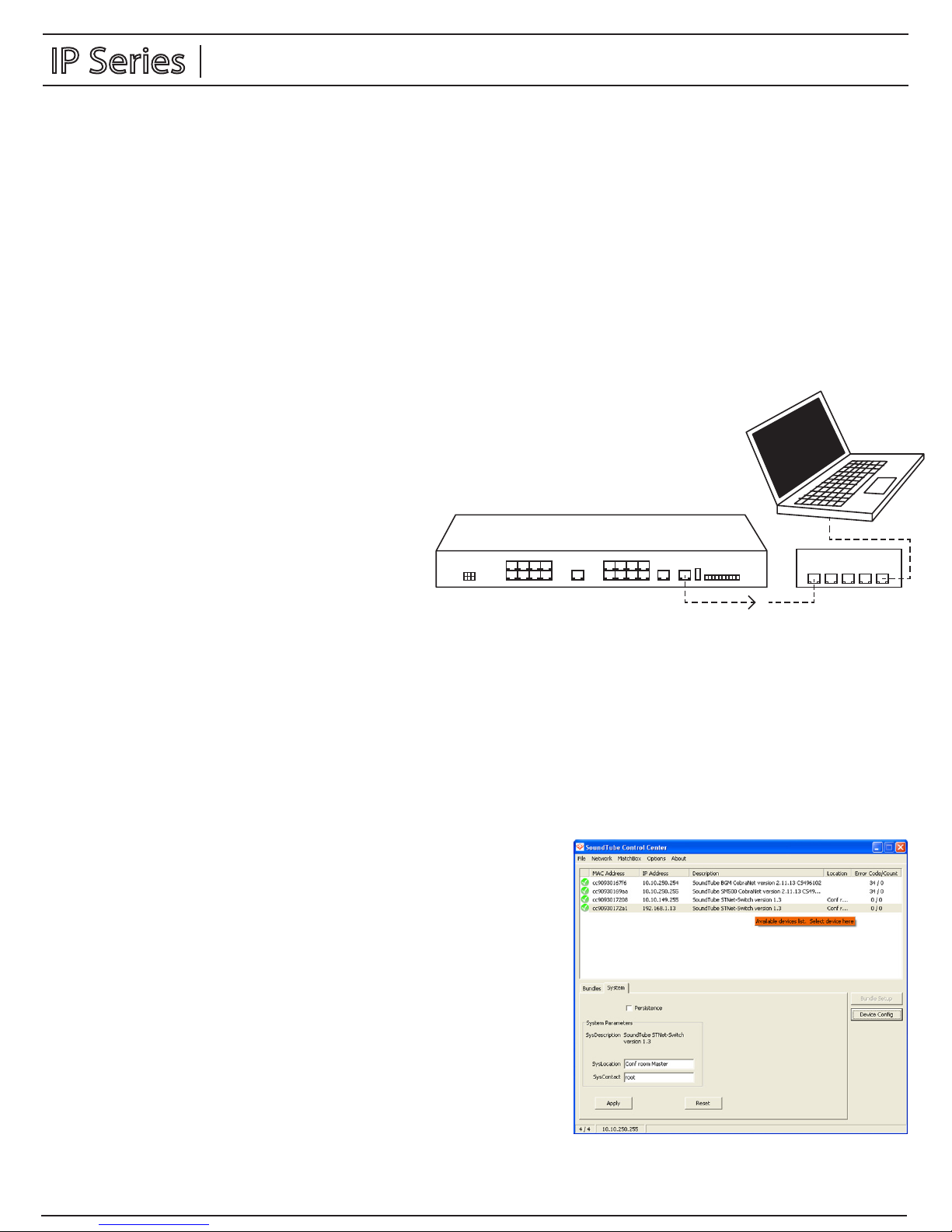

WAN port

In-House Network Router

(not included)

Back of STNet-Switch

LAN port

Illustration 4

Image 1

5. Connect a computer to a second LAN port on the

router.

6. Make sure the router is on.

Note: Do not connect the speakers to the ST-Net

switch at this time.

6. Connect the speakers one at a time to the STNet-Switch using a

Cat-5 or Cat-6 cable with RJ-45 connectors on each side.

7. The speakers will populate the main screen of the Control Center

software as they are recognized. As each speaker comes up use

the Sys Location eld on the main page to identify it. For example

“Left Front in ballroom 1”.

8. Checking the persistence box and click on apply on the main

Control Center screen to save your settings if the system has to be

restarted. See Image 1.

Speaker Adjustments

Install Instructions For:

IP Series

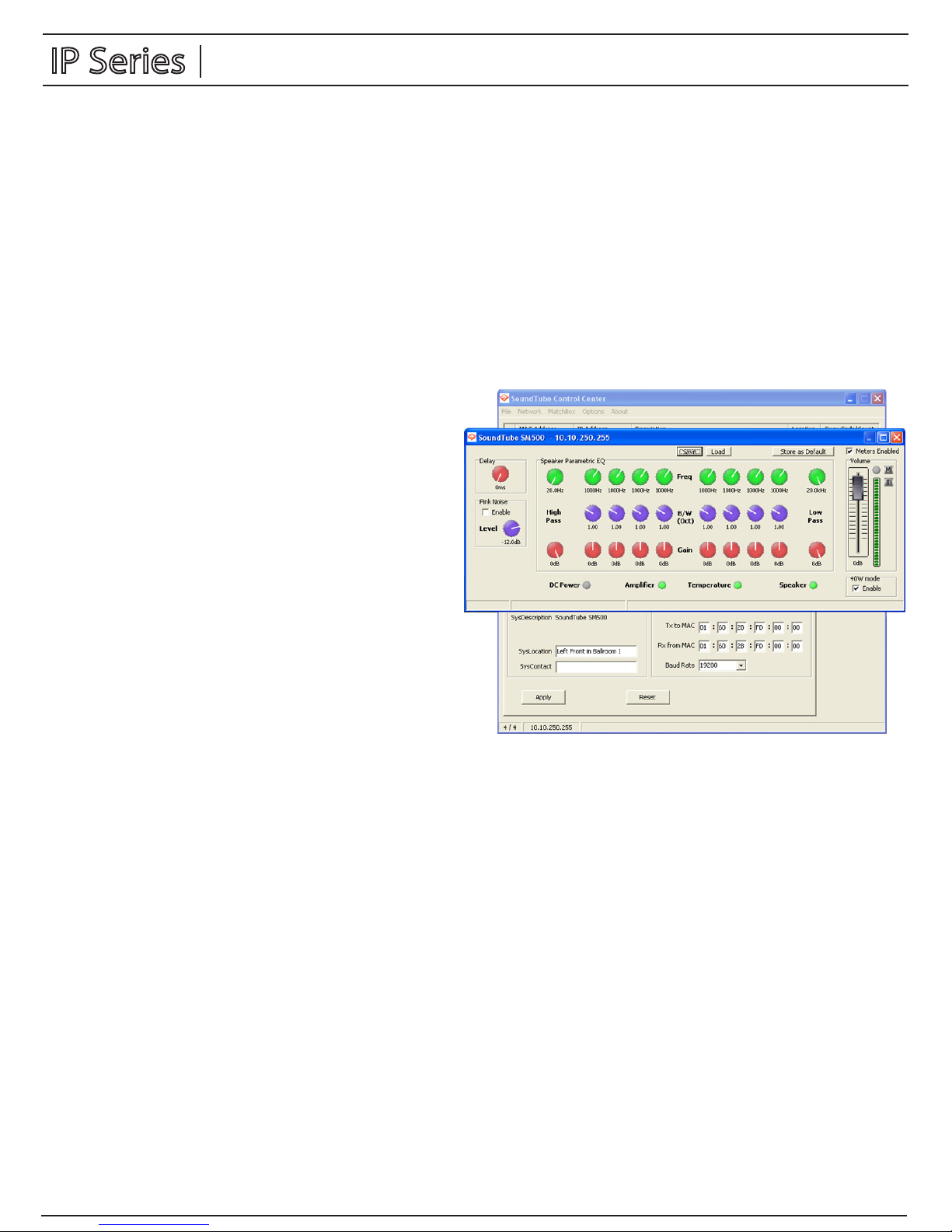

1. Highlight the speaker to be set up.

2. Click on the device Cong tab; the speaker screen will come up. From this screen, each speaker can be individually

adjusted for EQ, delay and level.

Note: Do not set the level lower than -25dB. Doing

so will give you incorrect readings on the speaker

monitoring fault detection circuit.

3. If using the speaker with a PoE plus switch,

uncheck the 40w mode box. This will automatically

set the limiters to the PoE plus mode.

4. The speaker screen has a pink noise generator

that can be used to equalize and set levels on the

speaker. Lower the level on the slide control and click

the Pink noise enable box. Slowly increase the level

until the SPL is sufcient to equalize the speaker. Use

an RTA to help equalize the speaker to the desired

response.

Connecting Cobranet devices to the STNet switch

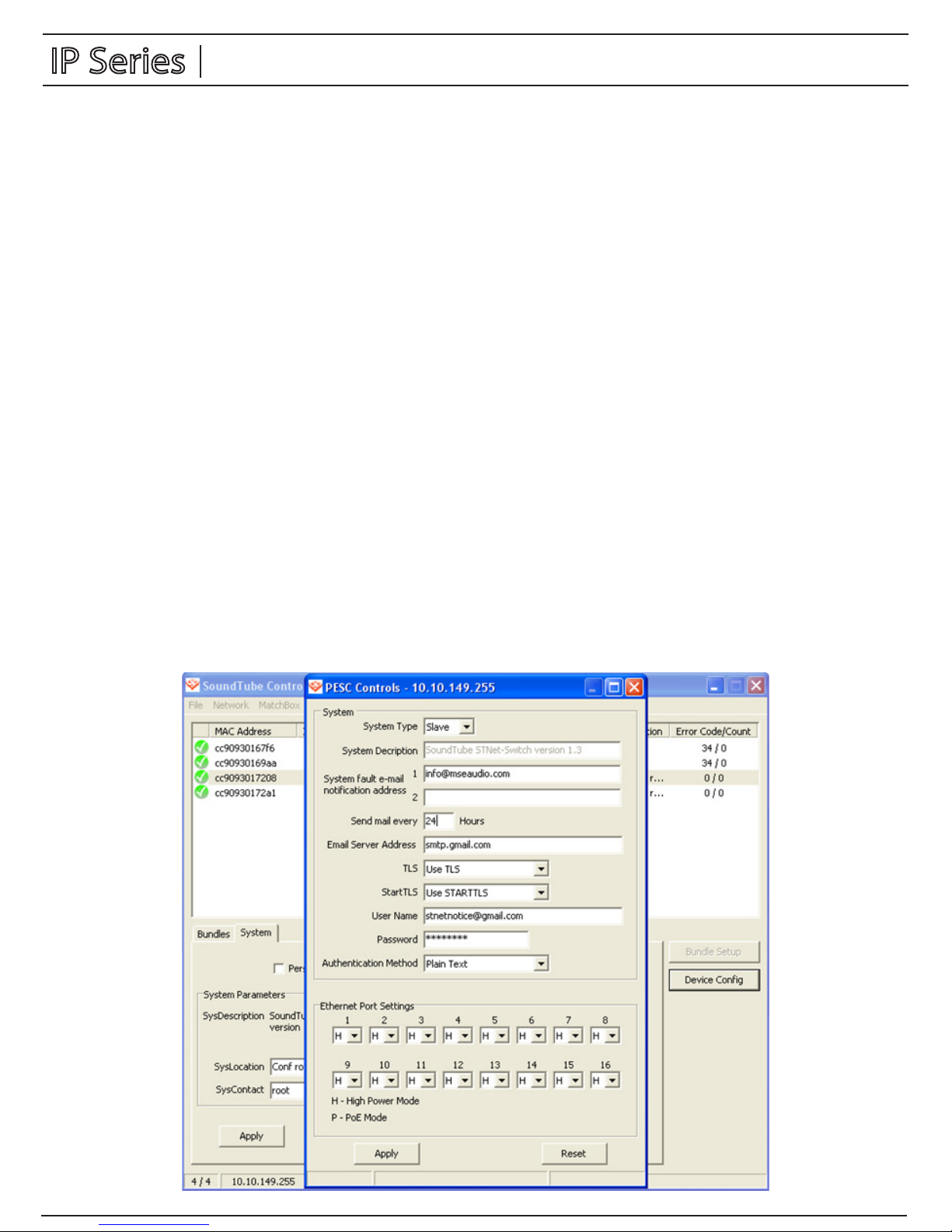

The STNet switch is a IEEE 802.3 compatable PoE switch. Any device needing PoE or PoE plus may be connected to the switch

using one of the 1-16 LAN ports. Prior to connecting the device go into the STNet Switch device cong screen and in the Ethernet

port setting section select P for the setting. The default is H for the STNet proprietary 40W PoE.

5. Once all the parameters have been set correctly save the settings by clicking on the “Store as Default” Button.

6. The speaker screen has two buttons for saving and loading the speaker parameters set in section 4. Saving the

conguration allows the same conguration to be loaded on another speaker (or multiple speakers) and if there is a

failure to load the congurations on a new speaker.

To save a conguration:

a. Click Save.

b. Name the conguration.

c. Select yes to start the speaker with these setting.

7. Once you are nished close the speaker screen, make sure persistence is checked and click on the apply button.

8. To load a saved conguration:

a. Highlight the speaker and click on Device cong .

b. Select Load Cong.

c. Find the program le you wish to load and double click on it.

System Monitoring

Overview: The STNet has its own built-in self-monitoring system. The system monitors the operational functions of the switch

and speakers and alerts the user of faults in three ways. The status lights on the front panel will go from green to amber, external

visual and audible devices connected to the rear connectors will activate and an email alert will be sent. If there is a fault in the

system, the user will be notied by any of the alarms, or any combination of the alarms, depending on user preferences.

External fault alarm setup

Both the audible and visual alarm ports in the back of the STNet-Switch can be congured to turn on an external alarm when

the system encounters a fault. The ports are relays which are either open or closed.

To use the ports for external alarms, connect the audible or visual device to the Phoenix connector. The port acts as an on/off

switch for the device. When the system is operating normally the contact is open and creates an open circuit. When a fault is

detected the port closes and creates a closed circuit. The relays are rated for 30VDC/1A

When using multiple switches each switch will monitor the speakers connected to it. In this case the External alarms should be

hooked up to each switch in parallel so if one has a contact closure caused by a fault it will set off the audible or visual alarm.

Reset port

Overview: The reset port needs a single pole single throw switch to turn fault monitoring on/off and reset the fault alarms. It

clears faults once they have been xed by closing then reopening the contacts on the port. It also acts as a turn off switch for

the fault alarms by keeping it in the closed position. This is useful if is there is a fault that cannot be repaired right away.

Note: When storing the settings to a speaker the fault alarms should be turned off or the network alarm will activate.

Installing a reset switch

1. Install a SPST (single pole, single throw) switch (not included) in an convenient area so an authorized person can turn the

switch on (open) or off (closed). If security is a concern use a key activated switch.

2. Wire the SPST switch in step 1 to the Alarm Reset port on the back of the switch using a Euro Connector (included in the box).

3. Leave the switch in the open position to turn the fault monitoring on.

4. If an alarm activates turn the switch to the closed position and x the fault.

5. Once the fault is xed turn the switch back to the open position to reactivate the Fault Alarms.

Install Instructions For:

IP Series

Email Notication Setup

Overview: Email notications are sent for two reasons. The rst is to let you know if the system is operating properly. The switch

can be set up to send this email from as frequently as once every hour to once every three days. The second reason an email

will be sent is if the system detect a fault. Under this circumstance an email will be sent immediately.

Install Instructions For:

IP Series

The following is an example of how to setup a gmail server.

1. Highlight the STNet-Switch in Control Center.

2. Click on Device cong.

3. Under “System Fault e-mail notication address” enter the email addresses that are designated to receive the status

and fault notications. Up to two email addresses may be entered.

Note: If more that two email addresses are required to receive fault notications, use an email addresses use an email

address with forwarding capabilities.

4. Under “send mail every” enter the desired interval, in hours (1-72), for the status emails.

5. Email server address : smtp.gmail.com

6. TSL : Use TLS

7. Start TLS: use StartTLS

8. User name: Email account name ie. [email protected]

9. Password: Email account password

10. Authentication Method: Plain Text

Indice

Altri manuali Sound Tube Interruttore

Sound Tube

Sound Tube STNet Switch II Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
