SOUNDMASTER BSR-1 Manuale utente

ENGLISH

BSR-1

ENGLISH

ENG 1

The Lightning flash with arrowhead

symbol, with an equilateral triangle

is intended to alert the user of the

presence of uninsulated dangerous

voltage within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

he exclamation point within an

nstructions

equilateral triangle is intended to

alert the user of the presence of

important operating and

maintenance (servicing) i

in the literature accompanying the

appliance.

CAUTION : TO PREVENT ELECTRIC SHOCK,

MATCHWIDEBLADEOFPLUG

TOWIDESLOT,FULLYINSERT.

WARNING : TO REDUCE THE RISK OF FIRE

ORELECTRICSHOCK,DONOT

EXPOSE THE APPLIANCE TO RAIN

ORMOISTURE.

ENGLISH

ENG 2

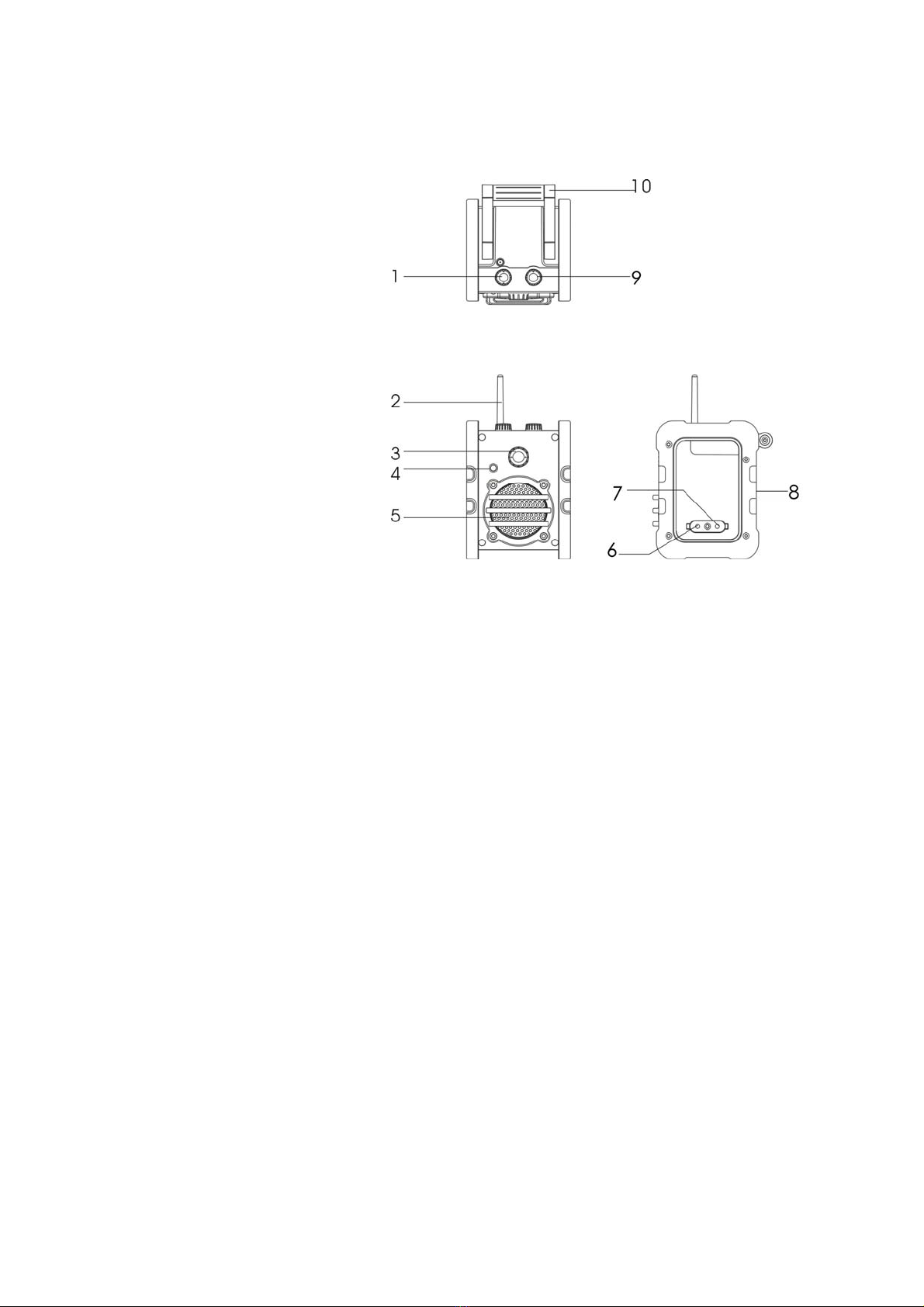

1. Volume Button

2. FM Antenna

3. Tuning Knob

4. Power indicator

5. Speaker

6. Earphone jack

7. AC adaptor jack

8. Battery Compartment

9. AM/FM/Power Selector

10. Carrying Handle

Installing Batteries

1. Unscrew the compartment fixture with a tool, lift up the battery compartment cover

located on the rear of your Utility Radio

2. Insert 4 “C” size (UM-2) batteries into the compartment. Ensure that battery is

inserted in accordance with the diagram shown.

3. Close the battery cover and screw the compartment fixture.

4. Reduced power, distortion, shuttering sound or while low battery LED is lighted on

are all signs that batteries may need replacing.

5. If the radio is not to be used for any extended period of time, it is recommended that

the battery is removed from the radio.

Power Supply By AC Adaptor

1. Connect the AC/DC adaptor to the DC inlet of the unit.

2. Connect the AC/DC Adaptor to a properly installed wall socket.

Note: Whenever the adaptor is used, the batteries are automatically disconnected. To

operate the set on batteries, check that the AC plug is detached from the DC inlet of the

unit.

Note: Unplug the adaptor from the mains and the unit, when the unit is not used for a

longer period of time.

Operating your radio FM

1. Turn on your radio by switching the Power knob to FM position.

ENGLISH

ENG 3

2. Rotate the Tuning Control to select the desire station. On FM, the tuning scale is

marked in MHz (Megahertz).

3. Adjust the Volume Control for comfortable listening.

4. To switch off the radio, turn the Power knob to Off position.

5. The soft spring antenna is used for FM band reception.

Operating your radio AM

6. Turn on your radio by switching the Power knob to AM position.

7. Rotate the Tuning Control to select the desire station. On AM, the tuning scale is

marked in kHz (Kilohertz).

8. Adjust the Volume Control for comfortable listening.

9. To switch off the radio, turn the Power knob to Off position.

10. The soft spring antenna is used for FM band reception.

Headphone Socket

A headphone socket has been provided. To use it, plug in headphones (3.5mm

connector/32ohm) available at your local dealer and adjust the volume control to a

comfortable listening level.

When external headphones are connected, the sound to the unit’s main speaker will be

muted.

Maintenance

zWipe the exterior of the set with a soft, if necessary damp, cloth.

zDo not use any scouring cleaning agents.

zOnce a year check the condition of the batteries in the battery compartment to avoid

any damage to the unit from battery leakage.

Always unplug the set before cleaning. Never put the unit into water or any other liquid.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand

it over at a collection point for the recycling of electrical and electronic appliances. The

symbol on the product, the instructions for use or the packing will inform about the methods

for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other

forms of re-utilization of old appliances, you are making an important contribution to protect our

environment.

Please inquire at the community administration for the authorized disposal location.

ENGLISH

ENG 4

Technical Data

FM 87,5 – 108MHz

AM 530 – 1600KHz

Mains operation 230V ~ 50Hz with AC adaptor 6V 600mA

Battery operation DC 6V (4 x 1.5V C/UM-2 type)

Rated power: 2W

Rating current: 600mA 6V

Output 2W
