Owner’s Manual and
Installation Guide
LW1.1100D
LW1.1700D
LW1.2600D
T E C H N O L O G I E S
CONGRATULATIONS!
You now own a Limited Edition LIL’WONDER Amplifier, the product of an uncompromising
design and engineering philosophy.
To maximize the performance of your system, we recommend that you thoroughly acquaint
yourself with its capabilities and features. Please retain this manual and you sales receipt
for future reference.
Soundstream amplifiers are the result of American innovation and the highest quality control
standards. When properly installed, they will provide you with many years of listening
pleasure. Should your amplifier ever need service or replacement due to theft, please record
the following information which will help protect your investment.
Serial #
Dealer’s Name
Date of Purchase
Installation Shop
Installation Date
Prolonged listening at extremely high levels may result in hearing loss. Even though your
new Soundstream Limited Edition LIL’WONDER Amplifier, sounds better than anything
you’ve heard, exercise caution to prevent hearing damage.
C A U T I O N !
2
FEATURES
Mono-Block Class D Amplifier
Total Harmonic Distortion:0.5%
Frequency Response: 15-150Hz
Signal to Noise Ratio: 105dB
Damping Factor: >250
Input Sensitivity 100mV - 8V
50-150Hz,12dB Low Pass Fiter
45Hz, 0-18dB Bass Boost
180° Phase Switch
Midnight Black Finish w/ Brushed Accents
Remote Gain Control
Master/Slave Operation
Pre-amp Outputs
3
SPECIFICATIONS
Frequency Response 15Hz-150Hz
LPF
Signal/Noise Ratio
Input Voltage Range
>105dB
THD 50Hz -150Hz,12dB
11-16 Volts DC
30K Ohms
High Impedance RCA/LINE
Level Input Impedance
POWER RATINGS & FUSE
MODEL 4 ohm 2 ohm 1 ohm FUSE
LW1.1100D
LW1.1700D
LW1.2600D
600W
700W
1000W
900W
1200W
1800W
1100W
1700W
2600W
35A X 3
40A X 4
250A
0.50%
DIMENSIONS
MODEL Length Width Height
LW1.1100D
LW1.1700D
LW1.2600D
390mm
450mm
580mm
205mm
205mm
205mm
60mm
60mm
60mm
4
TOOLS/PARTS FOR INSTALLATION
NOTE: TOOLS ARE NOT SUPPLIED
Small flat blade screwdriver phillips screwdriver (#2 or medium sized),
Wire cutters, Wire strippers, - #6 round head screws, and 1 - #8 sheet metal
screw (or nut, bolt flat washer, start washer) (see detail) 2 Ring connectors
(large enough to accommodate your method of grounding) In-line fuse or
Grommets (Sized to work with the power wire you plan to use in your
installation) Tube of silicone seal.
Protection Circuitry
The amplifier protection circuitry will disable the amplifier if the inputs are
overloaded, short-circuited or extremely high temperature conditions are detected.
When the protection mode is in operation, the LED indicator on the front panel will
be illuminated , indicating the amplifier has gone into a self-preservation mode.
If you observe that the protection LED is lit, please check the system carefully to
determine what has caused the protection circuit to engage. The amplifier can be
reset by turning the remote power off and then on again. If the amplifier shuts down
due to a thermal overload condition, please allow it to cool down before powering
up. If the amplifier shuts down because of an input overload or short circuit, be sure
to repair these conditions before attempting to power up the amplifier again.
5
Electrical Wiring
All LIL’WONDER Amplifiers are equipped with easy top access screw terminals .
These terminals are nickel-plated in order to ensure excellent electrical contact
and to resist corrosion.
When making electrical connections to the amplifier, please observe the following :
Use at least 4 gauge or heavier wire for power and ground connections.
Wire the amplifier directly to the car battery. Make sure there is circuit protection
(Such as a fuse) on the positive power lead, within 18 inches of the battery.
For the ground connection, use the shortest possible wire to a good chassis ground
point.
Wire the Remote connection to the remote turn-on lead of your equalizer or head unit.
In some cases this may be the power antenna lead of the head unit.
Remote Subwoofer Level Control
The LIL’WONDER Amplifiers are equipped with a dashboard mount remote
subwoofer level control. Run the supplied dashboard remote control from the
front panel of your amplifier. By turning the level knob clockwise, you will
increase the output of low frequencies.
Fuses
Fuses protect both the amplifier and the electrical system of your vehicle from faulty
conditions . If you must replace the fuse in your LIL’WONDER Amplifier, use a
fuse of exactly the same type and rating. A different type or rating may resuit in
damage or cause a fire.
Mounting the Amplifier
Mark the location for the mounting screw holes by positioning the amplifier where you
wish to install it and use a scribe (or one of the mounting screws) inserted in each
mounting hole to mark the mounting surface. If the mounting surface is carpeted,
measure the hole centers and mark with a felt tip pen.
Drill pilot holes in the mounting surface for the mounting screws and insert the
mounting screws into these holes. Tighten them securely.
Note: Before beginning your installation, be sure to take note of any wires, lines or
other devices in your vehicle which may be located behind any mounting surface.
6

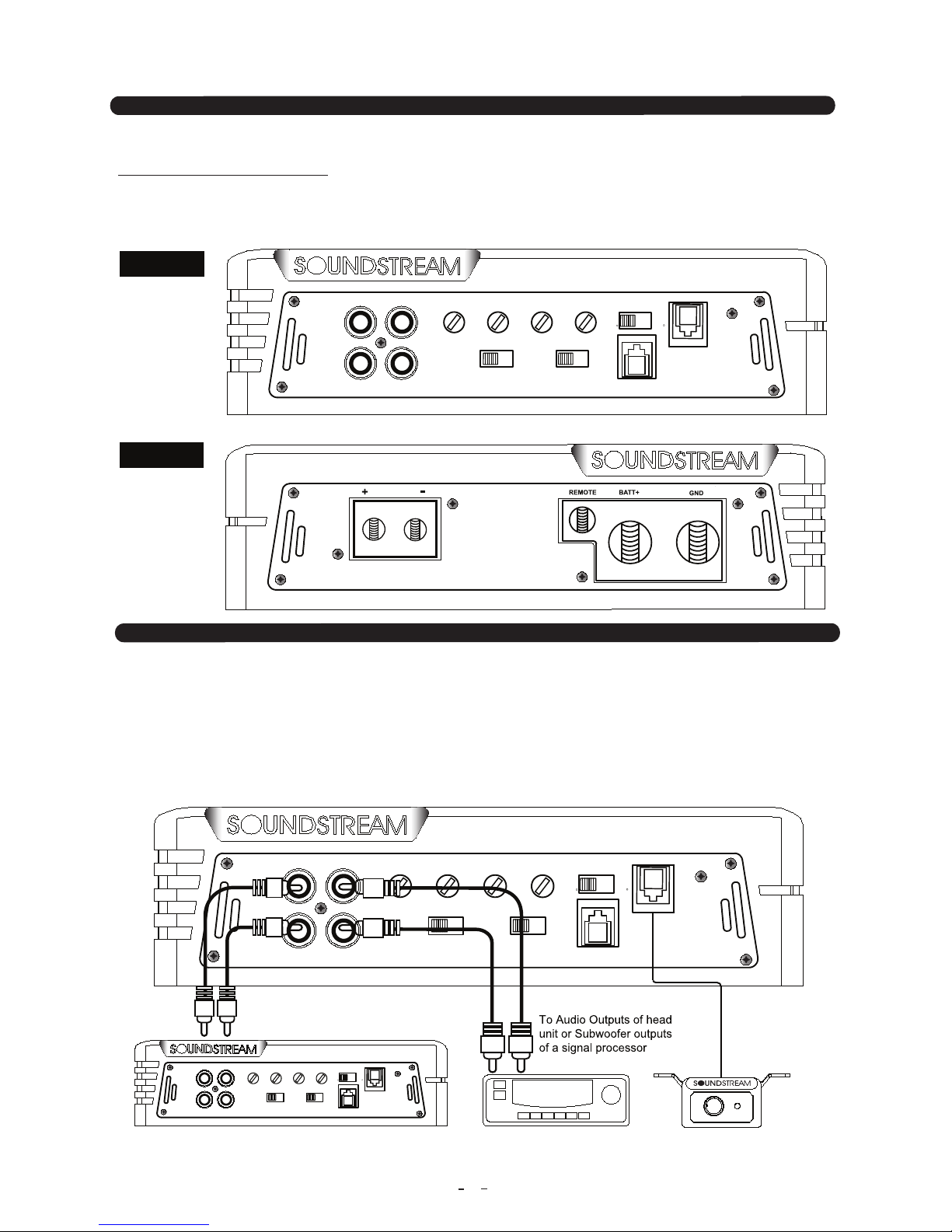

PANEL LAYOUT
LW1.1100D
LW1.1700D
L
RR
L
Line Out Line Input Input
Level Subsonic
Filter Bass
Boost PHASE
0 180
Low Pass
Filter
Input Sensitivity Bridged
Mode DATALINK
PROTECTION
REMOTE
CONTROL
Master Slave
.1V-2V 2V-8V
Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB
L
RR
L
Line Out Line Input Input
Level Subsonic
Filter Bass
Boost PHASE
0 180
Low Pass
Filter
Input Sensitivity Bridged
Mode DATALINK
PROTECTION
REMOTE
CONTROL
Master Slave
.1V-2V 2V-8V
Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB
POWER CONNECTIONS
BATT+ REMOTE GND
FUSES
SPEAKER
FUSES
SPEAKER POWER CONNECTIONS
BATT+ REMOTE GND
LEFT VIEW
RIGHT VIEW
LEFT VIEW
RIGHT VIEW
7
PANEL LAYOUT
LW1.2600D

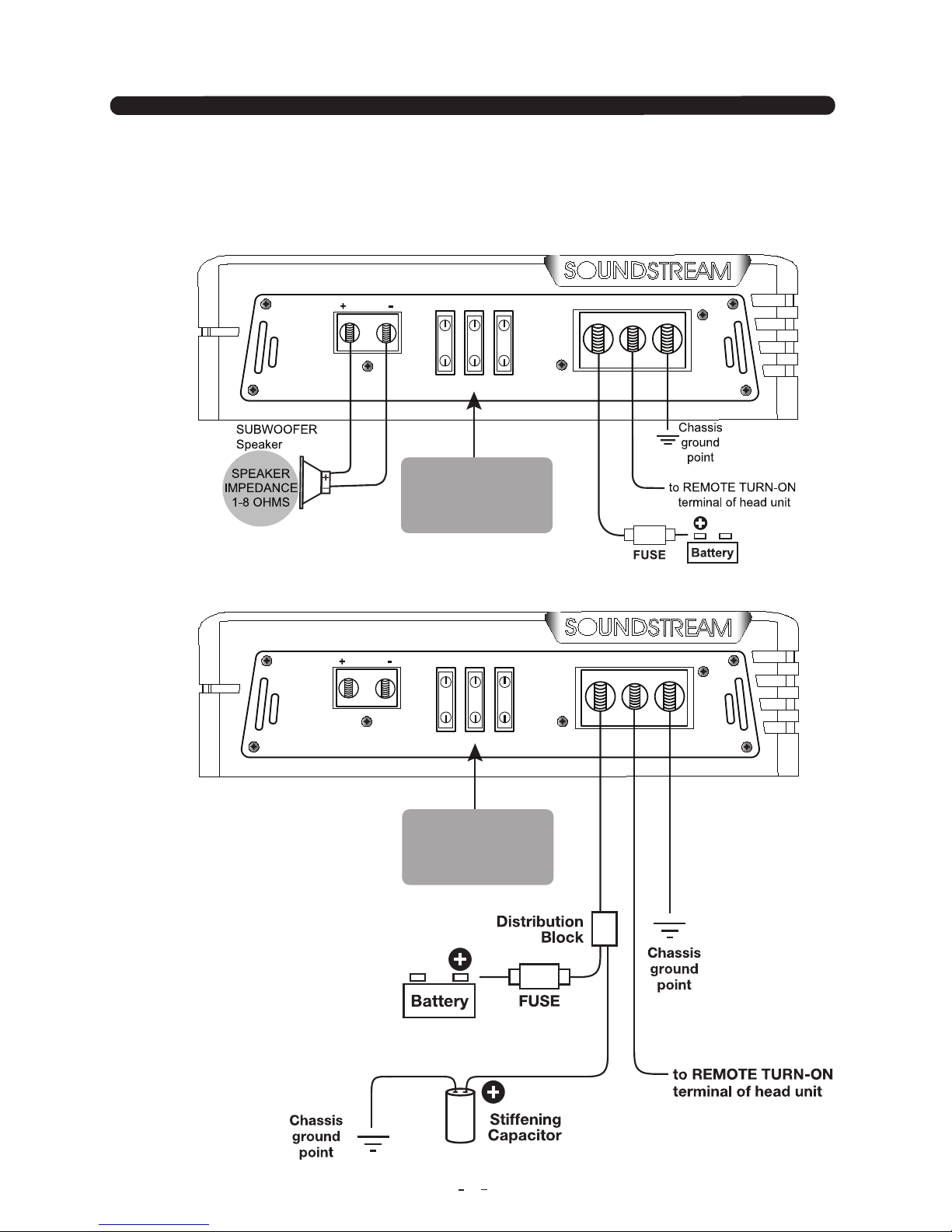

Class D Monoblock Amplifier Installation Wiring
LW1.1100D/LW1.1700D/LW1.2600D
R
min max
Power
L
RR
L
Line Out Line Input Input
Level Subsonic
Filter Bass
Boost PHASE
0 180
Low Pass
Filter
Input Sensitivity Bridged
Mode DATALINK
PROTECTION
REMOTE
CONTROL
Master Slave
.1V-2V 2V-8V
Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB
L
RR
L
Line Out Line Input Input
Level Subsonic
Filter Bass
Boost PHASE
0 180
Low Pass
Filter
Input Sensitivity Bridged
Mode DATALINK
PROTECTION
REMOTE
CONTROL
Master Slave
.1V-2V 2V-8V
Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB
Low Level Inputs
L
RR
L
Line Out Line Input Input
Level Subsonic
Filter Bass
Boost PHASE
0 180
Low Pass
Filter
Input Sensitivity Bridged
Mode DATALINK
PROTECTION
REMOTE
CONTROL
Master Slave
.1V-2V 2V-8V
Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB
LEFT VIEW
RIGHT VIEW
POWER CONNECTIONS
SPEAKER
8
Class D Monoblock Amplifier Installation Wiring
LW1.1100D/LW1.1700D
LW1.1700D
has four fuses
here
LW1.1700D
has four fuses
here
FUSES POWER CONNECTIONS
BATT+ REMOTE GND
SPEAKER
FUSES POWER CONNECTIONS
BATT+ REMOTE GND
SPEAKER
9
POWER CONNECTIONS
SPEAKER
POWER CONNECTIONS
SPEAKER
Class D Monoblock Amplifier Installation Wiring
LW1.2600D
10
