UNIVERSAL MINI NICHE
RETRO FIT MANUAL
AGRX R2
INSTALLATION & OWNER’S MANUAL
2
CONTENTS
QUICK REFERENCE TABLE 3
READ THIS FIRST 3
TOOLS REQUIRED 4
INCLUDED PARTS 5
TRANSFORMER VERIFICATION 6
LIGHT REMOVAL 7
CABLE PREPARATION 8
ADAPTOR PLATE INSTALLATION 12
ADAPTOR INSTALL - TYPE A 13
ADAPTOR INSTALL - TYPE B 14
AGRX 002 PLATE ASSEMBLY 17
POST INSTALLATION CHECK 19
PRODUCT SUPPORT AND INFORMATION
Telephone: 03 9793 2299 (Business hours 8:30 – 4:30)
www.spaelectrics.com.au
SALES ENQUIRIES
TECHNICAL SUPPORT
3
QUICK REFERENCE TABLE
READ THIS FIRST
BEFORE YOU START
• If required, ensure that the transformer is
installed by a suitable qualified persons
(e.g., registered pool builder and/or qualified
electrician), in accordance with AS/NZS
3000:2018 standards.
• For safe and proper installation, ensure that
only those parts supplied with the system are
used.
• Check that there is enough cable behind the
existing light to allow for servicing above water,
preferably at ground-level pool-side.
• Ensure the pool light end of cable is circular
and free of damage or imperfections i.e., cuts,
cracks or deformation. If possible, trim back
until fresh end of cable is available.
• Confirm existing transformer is a iron core type,
12V AC ONLY and in good working order (If in
doubt contact Spa Electrics).
CLEANING
• Only use warm water and a soft brush or cloth
to clean AGRX Series. DO NOT use detergents
or spirits as this can damage the light and void
your warranty.
USE
• Operating the light for at least 15 minutes
every week is advised (all year round)
• AGRX Series lights are suited for both
domestic and commercial installations.
This booklet contains important information about the correct installation and
handling of the AGRX Series lights. Please read this booklet carefully before
commencing installation to familiarise yourself with the included parts, accessories
and correct installation procedures.
LIGHT INSTALLATION TYPE INSTALL TYPE (A)
SCREW LOCATIONS
INSTALL TYPE (B)
ADAPTOR REQUIRED
ASTRAL CALIDORAY CONCRETE/FIBREGLASS - PAL ADAPTOR
ASTRAL FLX FIBREGLASS C-C-C -
AQUAQUIP EVO-FG FIBREGLASS SLOTS (SEE PG 13) -
AQUA DE LIGHT/AUTUMN SOLAR CONCRETE/FIBREGLASS - *AGRX 002
LUMASCAPE CONCRETE/FIBREGLASS B-B -
PAL EVENGLOW CONCRETE A-A -
FIBREGLASS - PAL ADAPTOR
PAL 2000 CONCRETE/FIBREGLASS - PAL ADAPTOR
SPA ELECTRICS EMF/EMC CONCRETE/FIBREGLASS - EM ADAPTOR
SPA ELECTRICS EMV VINYL - *AGRX 002
WATERCO SLIM 90 FIBREGLASS - PAL ADAPTOR
4
WARNING
• The AGRX Series light must only be powered by a 12V AC iron core type transformer.
• DO NOT use electronic or switch-mode transformers with AGRX Series lights. These
transformers will damage the light and void your product warranty.
• Pool chemicals & pH levels: Due to the corrosive nature of unbalanced pool chemicals,
Spa Electrics strongly recommends that your pool water is balanced prior to installing your
pool lights or any plastic or stainless-steel components and tested weekly to maintain these
levels. pH level should be maintained between 7.2 – 7.6 at all times to ensure the longevity
of these components.
- Failure to do so can result in chemical damage to the light housing and pool fittings,
including stainless steel components
- Please note: Lights or components found to have excessive chemical damage will not be
covered under our manufacturer’s warranty policy
• This light contains no user-serviceable parts; opening the light will void the product warranty.
TOOLS REQUIRED
Flat-blade screw driver Cable stripper/Side Cutters
Phillips Head (No 2) screw-driver Pliers
IMPORTANT NOTES
The use of power tools (such as 240V and cordless drills) during installation is not
recommended as these devices can cause faults and damage to light components.
If you are unsure, please contact Spa Electrics
5
INCLUDED PARTS
MODEL: AGRX R2
PLUG ASSEMBLY (P/N: AGRX 003)
R2 ADAPTOR PLATE
(P/N: SAMB 003)
EM ADAPTOR
(P/N: SAMB 004)
PAL ADAPTOR
(P/N: SAMB 009)
ADAPTOR TOOL
(P/N: VIVO 045 )
ADAPTOR THREAD
(P/N: VIVO 041)
Connector
Collar
Gland
Nut
Connector
Barrel
Screw Terminal
End with filling
screws attached
Glands X 3
Sizes Provided
LANOLIN 1 X WARRANTY
CARD
2 X LUMASCAPE
SCREWS
AGRX LIGHT R2 RIM
(P/N: AGRX 008R2)
6
TRANSFORMER VERIFICATION
TURN POWER OFF
1
CHECK TRANSFORMER
2
EXISTING TRANSFORMER
MUST BE:
• 12V AC ONLY
• MIN 15 WATT (PER LIGHT)
• IN GOOD WORKING ORDER
EXISTING TRANSFORMER
MUST NOT BE:
• DC OR LED DRIVER
• ELECTRONIC OR SWITCH MODE
• WEATHER DAMAGED OR IN
OTHERWISE POOR CONDITION
TO EXISTING 12V
TRANSFORMER
TURN
POWER
OFF
7
LIGHT REMOVAL
REMOVE EXISTING LIGHT
3
DISCONNECT EXISTING LIGHT
4
REMOVE EXISING LIGHT
FROM NICHE
DISCARD OLD
LIGHT HOUSING
IMPORTANT
RETAIN EXISTING
MOUNTING SCREWS.
SEE PAGE 12
8
CABLE PREPARATION
CABLE PREPARATION
5
START ASSEMBLY OF CONNECTOR PLUG
6
STRIP WIRES
7mm (9/32”)
19mm (3/4”)
STRIP POWER CABLE
TO SPECIFIED LENGTH
GLAND NUT CONNECTOR
COLLAR
FEED THE CONNECTOR
COLLAR AND GLAND
NUT ONTO THE CABLE,
AS SHOWN
NOTE
IF CABLE LENGTH ALLOWS,
CUT CABLE BACK UNTIL
FRESH COPPER APPEARS
9
CHOOSE THE APPROPRIATE GLAND
7
CONTINUE ASSEMBLY OF CONNECTOR PLUG
8
SELECT A CABLE
GLAND FROM THE
THREE SUPPLIED
THAT SNUGLY
FITS THE EXISTING
POWER CABLE
GLANDS
X 3 SIZES
PROVIDED
SMALL GLAND
YELLOW
MEDIUM GLAND
RED
LARGE GLAND
BLUE
FEED THE
CONNECTOR
BARREL ONTO
THE CABLE
CONNECTOR
BARREL
IMPORTANT
IF GLAND IS EXCESSIVELY TIGHT OR
BULDGING WHEN FITTED, REPLACE
WITH LARGER GLAND SIZE
10
1
2

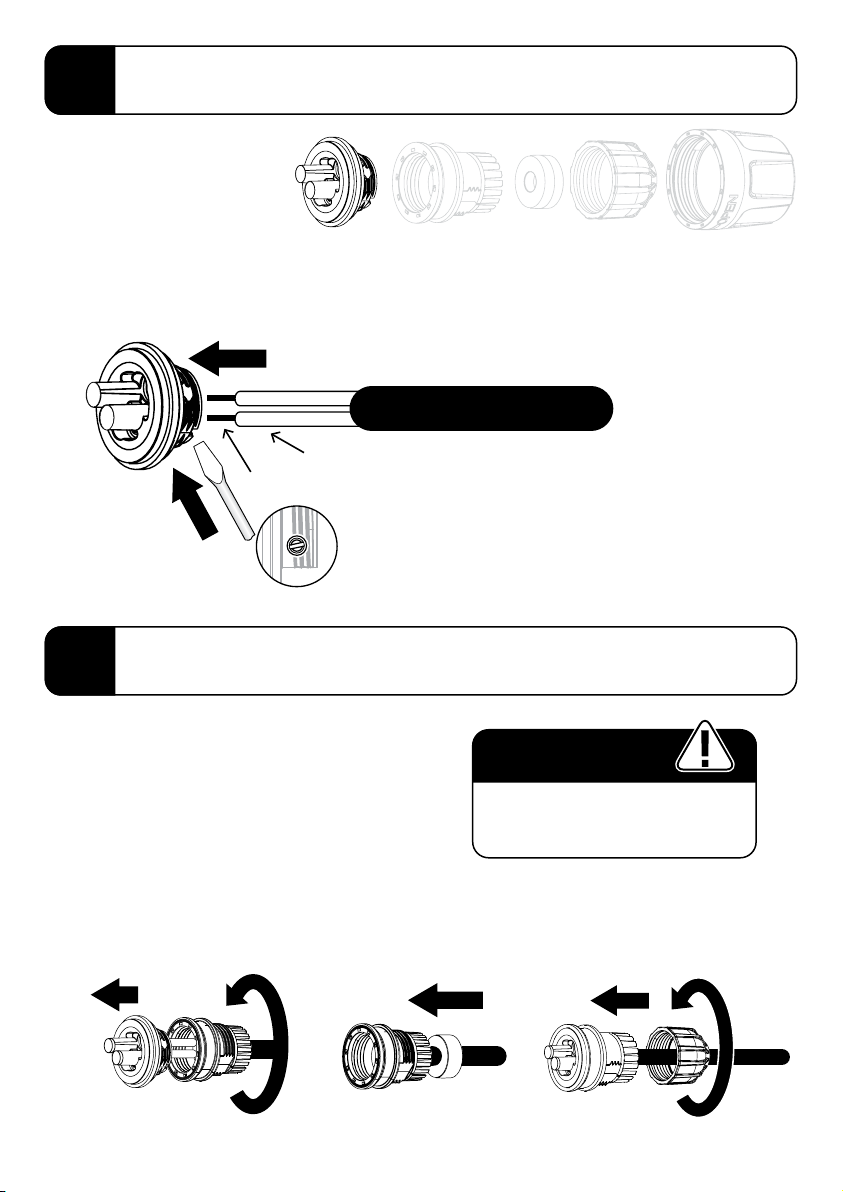

CONNECT THE SCREW TERMINAL END
9
CONTINUE ASSEMBLY OF CONNECTOR PLUG
10
1: FEED THE TWO STRIPPED CABLE ENDS THROUGH THE
TWO HOLES IN THE BACK OF THE SCREW TERMINAL END
1: CAREFULLY THREAD CONNECTOR
BARREL ONTO SCREW TERMINAL END
AND TIGHTEN FIRMLY BY HAND
2: SEAT CABLE GLAND ALL THE WAY
INTO CONNECTOR
3: CAREFULLY THREAD GLAND NUT
ONTO CONNECTOR BARREL AND
TIGHTEN FIRMLY BY HAND
19mm
7mm
SCREW TERMINAL END
2: USE A FLAT BLADE SCREWDRIVER TO
TIGHTEN THE FASTENERS ON EITHER
SIDE OF THE SCREW TERMINAL
321
IMPORTANT
ONCE ASSEMBLED DO A VISUAL
CHECK TO ENSURE A TIGHT
SEAL ON CABLE
