Assembly Guide

MOUNTAIN & ACTIVE

INTRODUCTION

THIS BRIEF ASSEMBLY GUIDE CONTAINS IMPORTANT INFORMATION.

PLEASE READ CAREFULLY AND STORE IN A SAFE PLACE.

This Assembly Guide shows you how to build your bicycle from out of the box. The

directions covered in this guide are general guidelines and apply to all Specialized flat bar

(mountain/active) bicycles. If you’re unsure of the correct setup of your bicycle, contact

Specialized Rider Care or visit an Authorised Specialized Retailer.

This document is not intended as a use, service, repair, or maintenance guide. Please visit

an Authorised Specialized Retailer for all service, repairs, or maintenance.

Some bicycles come with a specific User Manual. This assembly guide is not a replacement

for your bicycle’s User Manual. The user manual contains important safety, performance,

and technical information specific to your bicycle, which you should read and keep for

reference.

You should also read the entire Specialized Bicycle Owner’s Manual (“Owner’s Manual”) as

it has additional important, general information and instructions you should follow. If you

don’t have a copy of the Owner’s Manual, you can download it at www.specialized.com or

obtain it from Specialized Rider Care or your nearest Authorised Specialized Retailer.

Additional safety, performance, and service information for specific components such as

suspension or pedals on your bicycle or accessories such as helmets or lights, may also

be available. In case of a conflict between the information in this assembly guide and

information provided by a component manufacturer’s manuals, please contact Specialized

Rider Care or an Authorised Specialized Retailer.

Please note all instructions and notices are subject to changes and updates without notice.

Please visit www.specialized.com for periodic tech updates.

SYMBOLS

When reading this assembly guide, you will note various important symbols and warnings,

which are explained below:

WARNING! The combination of this symbol and word indicates a potentially

hazardous situation which, if not avoided, could result in serious injury or death.

Many of the Warnings say “you may lose control and fall.” Because any fall can

result in serious injury or even death, we do not always repeat the warning of

possible injury or death.

CAUTION: The combination of the safety alert symbol and the word CAUTION

indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury, or is an alert against unsafe practices.

The word CAUTION used without the safety alert symbol indicates a situation

which, if not avoided, could result in serious damage to the bicycle or the voiding

of your warranty.

This symbol alerts the reader to information that is particularly important.

This symbol means that high-quality grease should be applied as illustrated.

This symbol means that carbon friction paste should be applied as illustrated to

increase friction.

Tech tips are helpful tips and tricks regarding installation and use.

Refer to the Owner’s Manual supplied with your bicycle for more specific

information.

Where applicable, refer to the User Manual supplied with your bicycle for more

specific information.

This assembly guide was drafted in the English language and may have been translated

into other languages as applicable.

ADDITIONAL LANGUAGES ARE AVAILABLE FOR DOWNLOAD AT www.specialized.com.

ASSEMBLY

WARNING: IN THE INTERESTS OF SAFETY IT IS RECOMMENDED THAT YOU

HAVE THIS BICYCLE ASSEMBLED BY A SKILLED BICYCLE MECHANIC.

BIKE INSPECTION

When removing all the parts from the packaging, ensure nothing was damaged during

shipping. Call Specialized Rider Care if you notice any damage.

TORQUE SPECIFICATIONS

• The torque specifications for the bicycle build can be found in the user manual

supplied with the bicycle (where applicable) or printed on the part near the bolt

you are torquing.

• General torque specifications may also be found in the Owner’s Manual.

WARNING: Correct tightening force on fasteners (nuts, bolts, screws) on your

bicycle is important for your safety. If too little force is applied, the fastener may

not hold securely. If too much force is applied, the fastener can strip threads,

stretch, deform or break.

An incorrect tightening force can result in component failure, which can cause

you to lose control and fall. Where indicated, ensure each bolt is torqued to

specification. After your first ride, and consistently thereafter, recheck the

tightness of each bolt to ensure secure attachment of the components.

PACKAGING

Please keep all your packaging as you can reuse it to transport your bicycle.

RECYCLE: Please follow your local recycling guidelines to dispose of the

packaging responsibly.

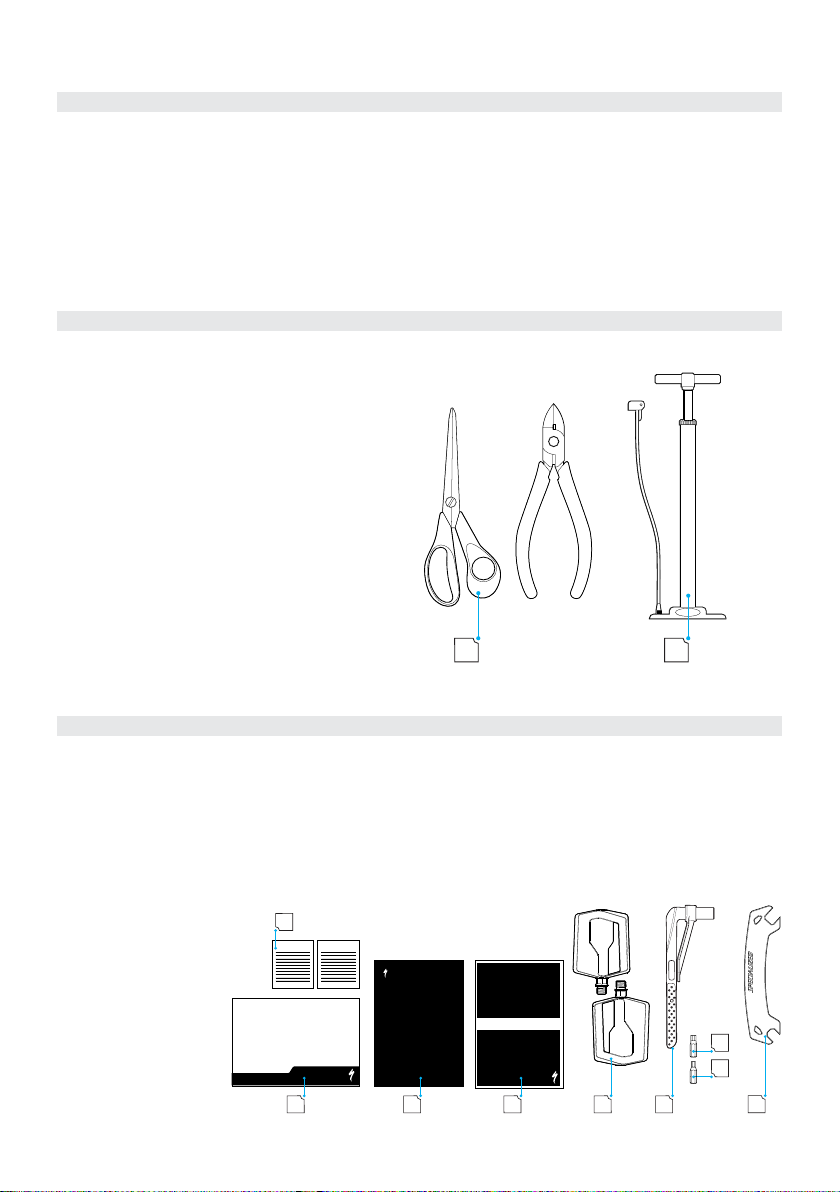

WHAT’S IN THE SMALL PARTS BOX

1. User Manual (where applicable)

2. Assembly guide

3. Owner’s Manual

4. Component manuals

5. Pedals (optional)

6. Torque wrench (1 - 10 Nm)

7. 5 mm hex key/bit

8. 4 mm hex key/bit

9. Flat wrench

WIRELESS COMPONENTS

• Bicycles equipped with wireless components must be charged before use. Please see

the component manufacturer’s user manual for more information.

• When shipping the bicycle, ensure the component batteries are below 30% charge

level.

REQUIRED TOOLS

1. Scissors or cable tie cutters

2. Bicycle floor pump (with gauge)

Assembly Guide

MOUNTAIN & ACTIVE

USER MANUAL

ENGLISH

OWNER’S MANUAL

321 5 6

COMPONENT COMPONENT

LET’S BUILD

THIS SWEET

RIDE!

GET

TO KNOW

YOUR BIKE

19 20 21

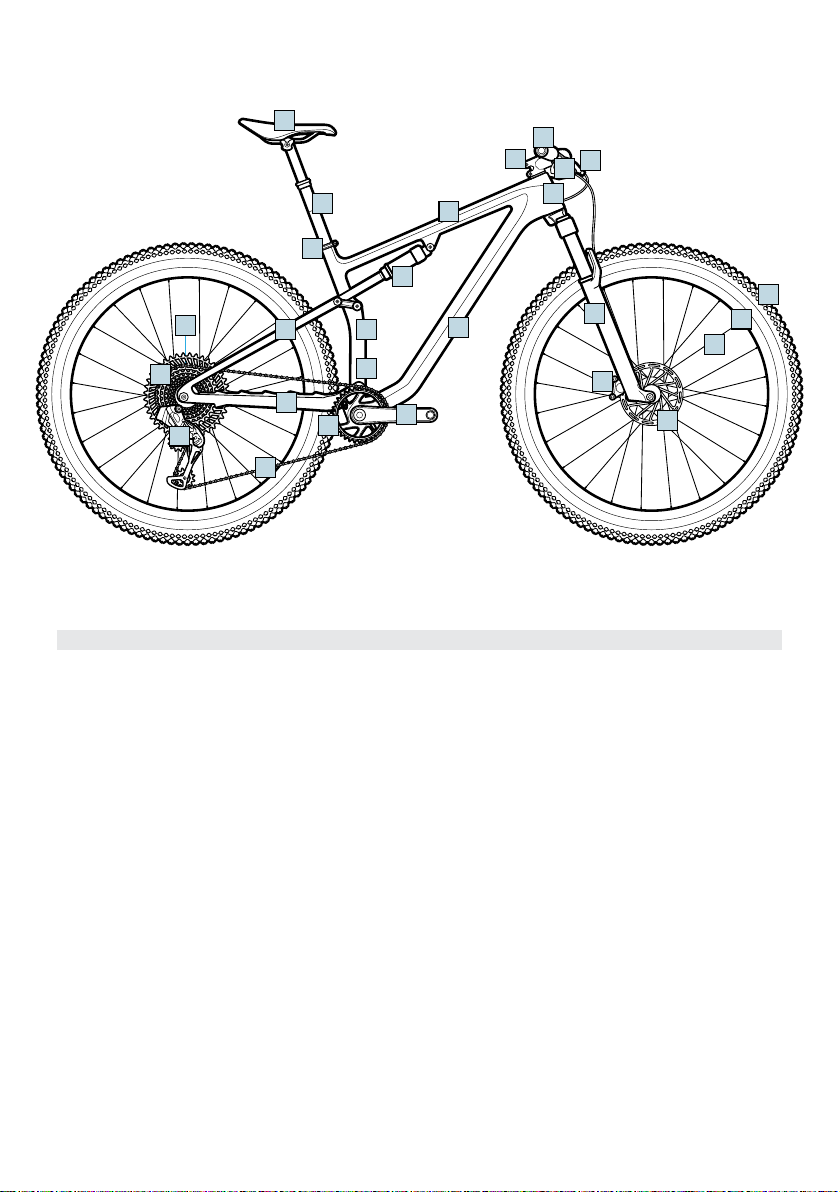

MOUNTAIN & ACTIVE BIKES

1. Top tube

2. Downtube

3. Seat tube

4. Chainstay

5. Seatstay

6. Headtube

7. Saddle

8. Seatpost

9. Seatpost clamp

10. Front brake

11. Rear brake

12. Disc brake rotor

13. Cassette

14. Chainring

15. Front Derailleur or Chainguide

16. Rear Derailleur

17. Chain

18. Crankset

19. Stem

20. Brake Lever

21. Shifter

22. Handlebar

23. Spoke

24. Rim

25. Tyre

26. Rear Shock

27. Front Suspension

The assembly of this bicycle is best completed with the help of another

person.

CAUTION: The inner packaging is not suitable for use as a bicycle stand.

Place the bicycle into a bicycle stand or lean it against a stable surface to

support the bicycle during assembly.

LET’S

GET

STARTED

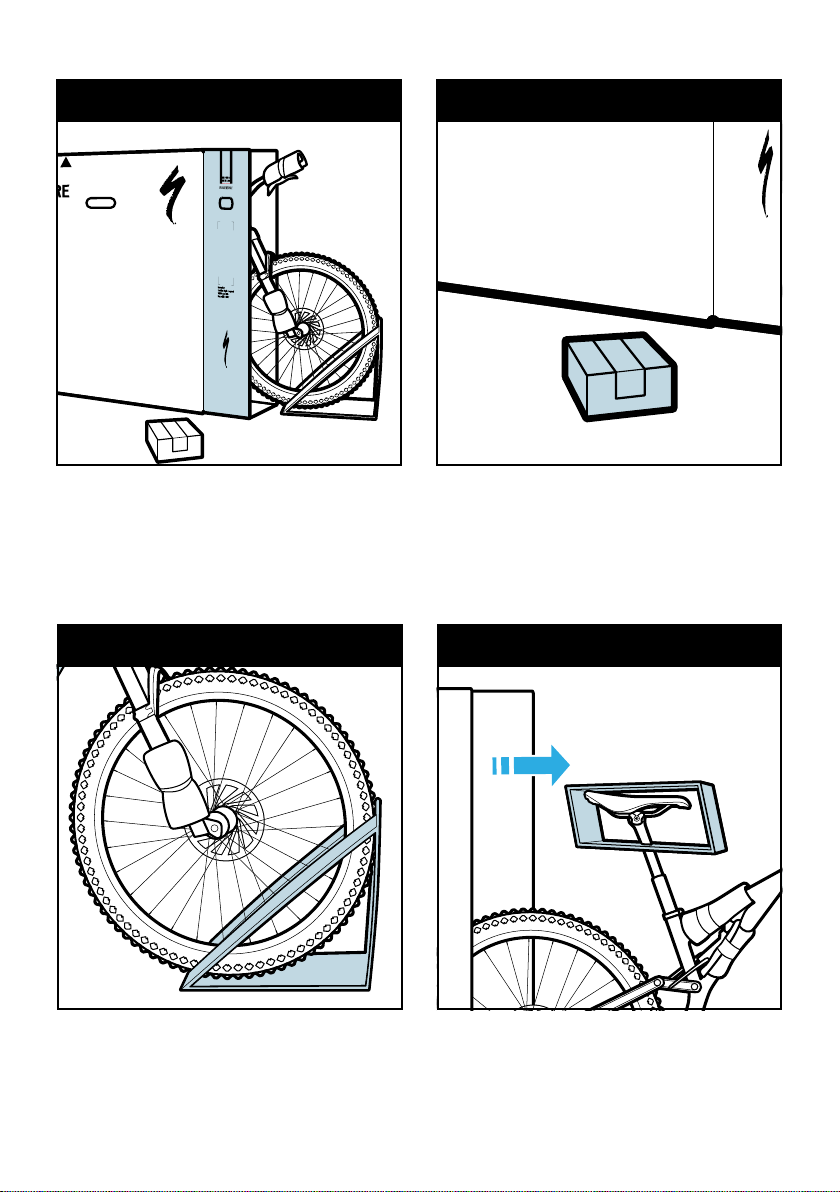

STEP 1

STEP 3 STEP 4

Remove any tape from the marked

side of the box then open the box.

Remove the front wheel brace from the

box and set it aside.

Locate and remove the small parts box,

then remove all the parts supplied to

assemble your bicycle.

Roll the bicycle out of the box and

remove the seatpost brace.

STEP 2
