Speco HT61iLHB Manuale utente

INSTRUCTION

MANUAL

960H 700TVL Weather Resistant Intense Light

Miniature Turret

HT61iLHB

HT61iLHW

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 9/01/2014

To avoid electrical shock, do not open the case of this product.

Only use a regulated DC 12V Power supply to operate this product.

Do not overload electrical outlets or extension cords. This can result in a fire or

electrical shock.

Keep this product away from strong magnetic fields.

Do not expose this product in direct sunlight or strong reflected rays.

Refer servicing to qualified personnel only.

Do not change or modify this product. This will void the warranty.

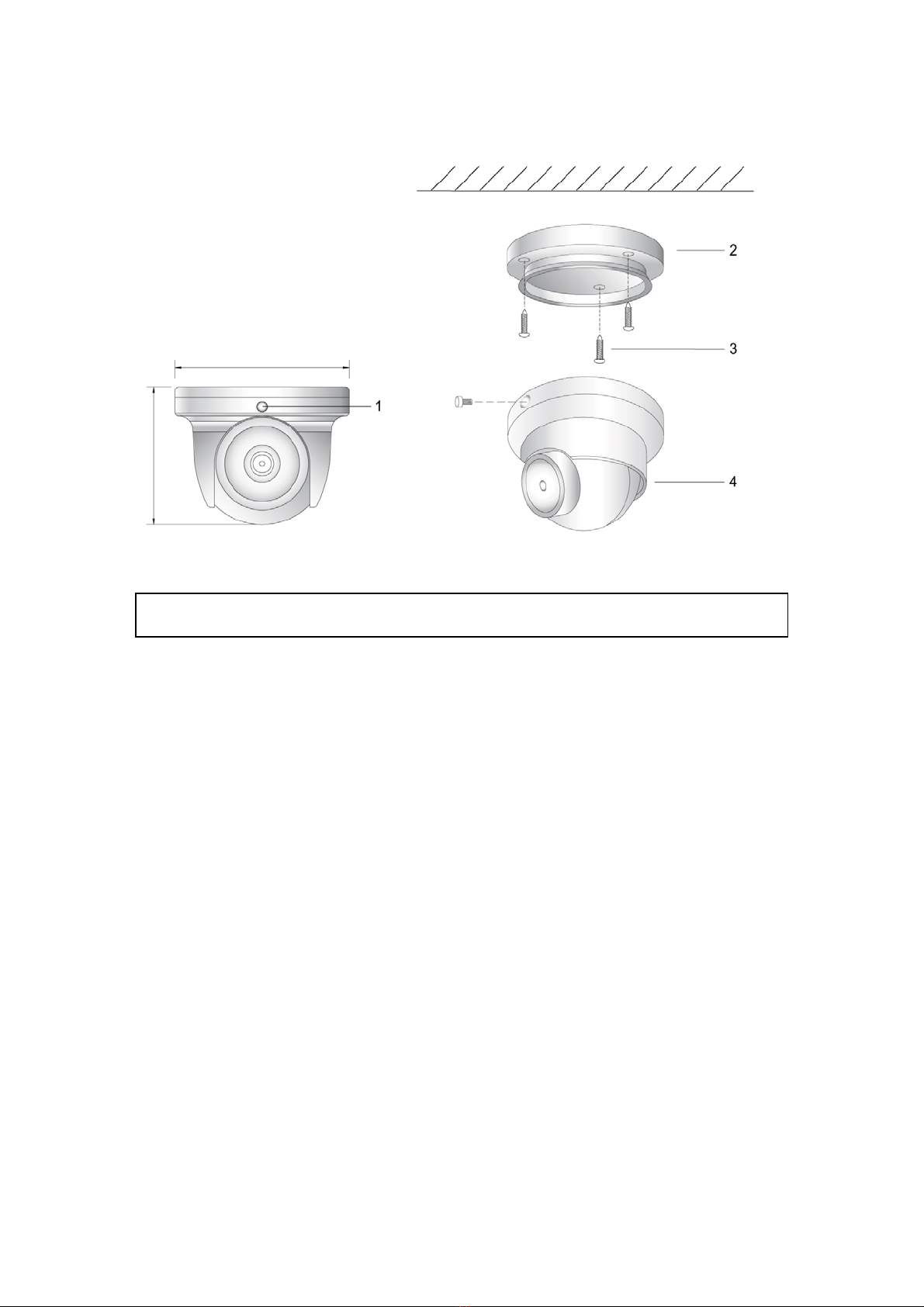

1. Loosen the two locking screwsཛ, using the supplied hex-head wrench and remove

the mounting base.

2. Attach the mounting baseཛྷto a suitable solid surface, such as a wall or ceiling. On

partitioning locate a wall stud or ceiling joist. Secure the mounting base using the

supplied screwsཝ. Fit the cameraཞto the mounting base ཛྷand fix in to position

using the two locking screwsཛ, secure them with the hex-head wrench.

3. How to set the angle of view:

Loosen the two locking screwsཛ, using the supplied hex-head wrench, and set the

desired camera angle by moving the camera right /left and up/down.

4. Connect the video connector (BNC) of the camera cable to the incoming video

cable. The other end of the video cable should be connected to a DVR or Monitor.

Plug the camera power connector (red DC jack) into the DC12V regulated power

supply. Switch on the power supply and the picture will be displayed on a monitor.

Precautions

Features

Installation

1/3” Inch Color 960H CCD

700 TV Lines Super High Resolution

Compact Size - Only 1.89” In Diameter!

Vandal Resistant Housing

Cast Aluminium Construction

Integrated 3mm Fixed Lens

Impressive Picture Quality

Weatherproof (IP66 Rated)

12V DC Required

•

Specifications

1.89” dia

1.46”

Image Sensor

Horizontal Resolution

Sensitivity

Lens

Effective Pixels (H x V)

Electronic Shutter Speed

Scanning System

Synchronization

Video Output

S/N Ratio

Gain Control

White Balance

IP Rating

Operating Temperature

Power Supply

Power Consumption

Dimensions

Weight

1/3” Inch Color 960H CCD

700 TV Lines

0.00001 Lux

3mm Fixed Lens

NTSC=976 x 494 / PAL=976 x 582

Auto: 1/50 SEC, 1/60 SEC ~ 1/5,000 SEC

2:1 Interlace

Internal

1.0Vp-p~75 Ohm

>52dB (AGC Off)

Auto

ATW

IP66

-4 ~ +140° F

12V DC Required

120mA Max.

1.89”(Dia) x 1.46”(H)

0.25 lbs.

GG Sense-Up Auto (X32)

•
