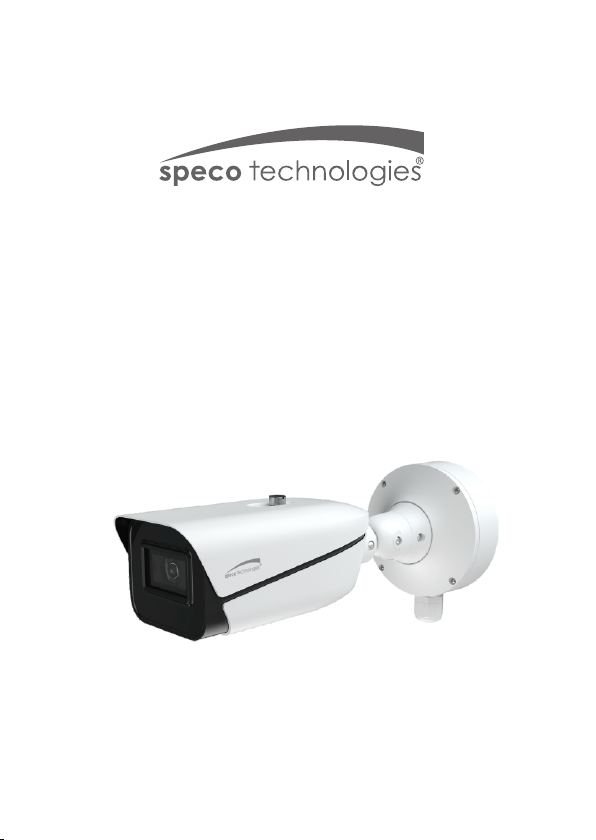

Speco O4BM Manuale utente

Quick Start Guide

O4BM

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC/24VAC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Package

Camera Quick start guide Screw anchor × 4

Tapping screw×4

Overview

8 Plastic screw

anchors

Junction box

Overview

4 Screws

4 Screws (PA 4×25mm)

1Screw (PWM3×5mm)

(6.5×38mm)

4 Screws

(PM 4×10mm)

4 Rubber o-rings

for screws

CVBS&DC

IN cables

CD Drill template Screwdriver Terminal for 12VD

C/24VAC power

CVBS&DC

IN cable

PWR VO RS 485 ALM-I ALM-O

GND

10-pin Interface

10-pin Interface：

Network Interface

Audio InInterface

Audio Out Interface

SDcardslot

DC12VPower

Interface

AC24VPower

Interface

Zoom+

Zoom-

CVBS&DC

INInterface

Reset

12V+ GND CVBS D- D+ GND INA NO COM

DC12V Output CVBS Output RS 485 Interface Alarm Input Alarm Output

(200mA)

Reset: Press Reset button for about 10s when the camera is powering on to restore the

default settings.

Installation

Please make sure that the wall or ceiling is strong enough to

withstand 3 times the weight of the camera. Please install the

camera in a dry environment.

① Install a micro SD card (optional) as shown below.

② Unscrew the mounting base of the camera and then remove the

junction box.

③ Drill the screw holes and the cable hole according to the drill

template.

63.6 (mm)

Ø155.4

4-Ø7.0

Ø90.0

63.6

Mounting

Base

④ Mount the junction box to the wall.

Rubber o-ring

If conduit pipe is not

used, apply

weatherproofing

sealant to prevent

water intrusion.

6.5x 38mm

⑤ Connect the cables.

⑥ Coilupthesecablesandthenattachthecamera onto the junction

box.

Earth wire

connection

Rotation:360°

Tilt:90° Pan:360°

CVBS&DC

IN Cable

Zoom+

Zoom-

⑦Bracket adjustment-Before adjustment, preview the image of

the camera on a monitor and then loosen the lock screws to adjust

view angle of the camera. After that, tighten the lock screws.

⑧ Open the cover of the camera as shown below. Press T/W to

obtain an optimum image. Finally, install the cover back. Make

sure the cover is installed firmly.

Lock screws

Monitor

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.Or

download from https://www.specotech.com/ip-scanner/

5C :F2:0 7: 24: 68 :B9

O4 BM
