Speco O4iB1M Manuale utente

Quick Start Guide

O4iB1M

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same time;

it may result in device damage! The product must be grounded to reduce the risk of

electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation,

storage and installation.

This product should be installed in a cool, dry place away from direct sunlight and heat

sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS

sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Package

Camera Quick start guide CD Screwdriver Drill template

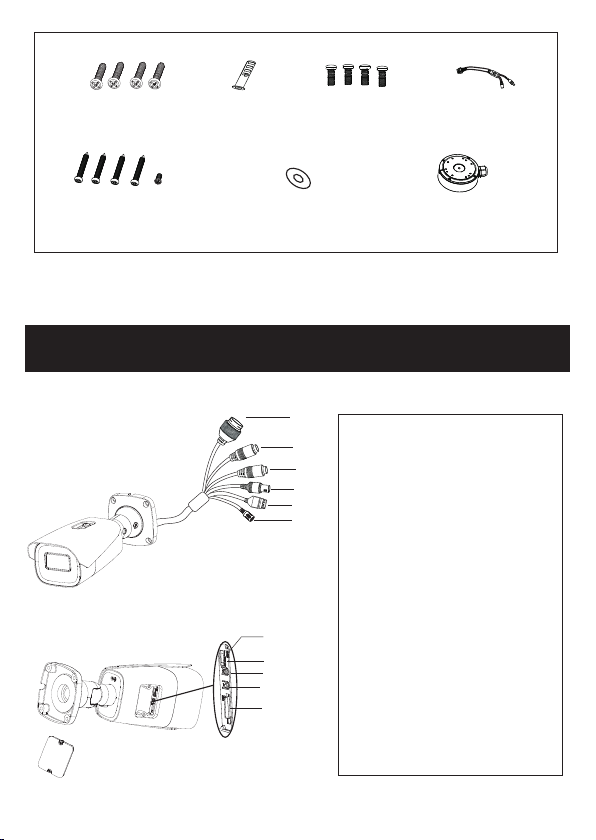

Overview

Plastic plug × 8

Junction box

Overview

1 Ethernet Connector *

2 Audio Input (MIC)

3 Audio Output (HP)

4 CVBS Video Output

5 Alarm Input/Output

6 Power Connector *

7 Reset*

8 DC IN&CVBS Interface

9 Zoom -

10 Zoom +

11 Micro SD Card Slot

ALARM

4 3 2 1

4 Screws

4 (PA 4screws ×25mm)

1 (PWM3 5mm)screw ×

(6.5×38mm)

4 screws

(PM 4 10mm)×

4 Screw waterproof

rings

CVBS&DC

IN cables

* 1 It is recommended to install the water-proof connector for outdoor installations.

* 2 DC 12V/AC24V power supply is not required if a PoE switch or injector is used

to power the camera.

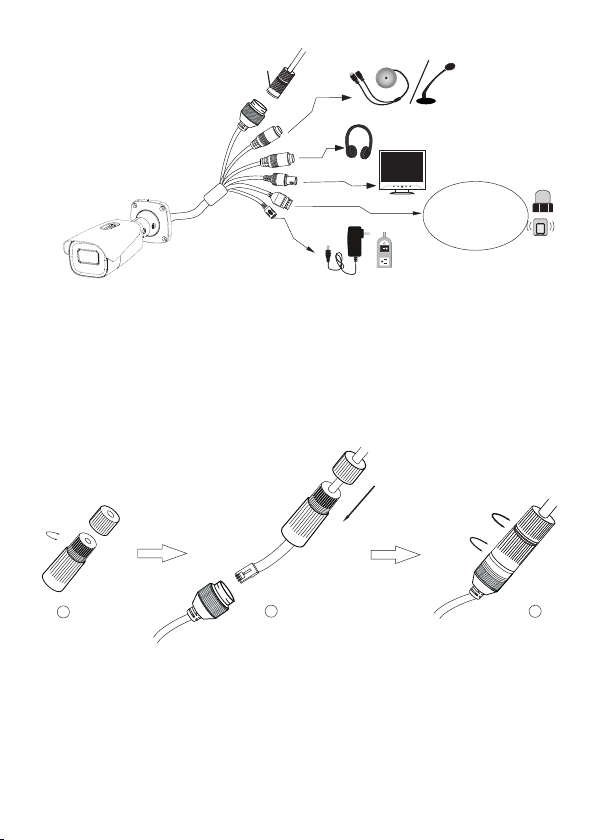

► Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the water-proof connector. Then tighten the

nut and the main cover.

Water-proof connector

1--ALM-COM

2--ALM-OPEN

3--ALM-INA

4--ALM-GND

12VDC/24VAC

ALARM

4 3 2 1

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

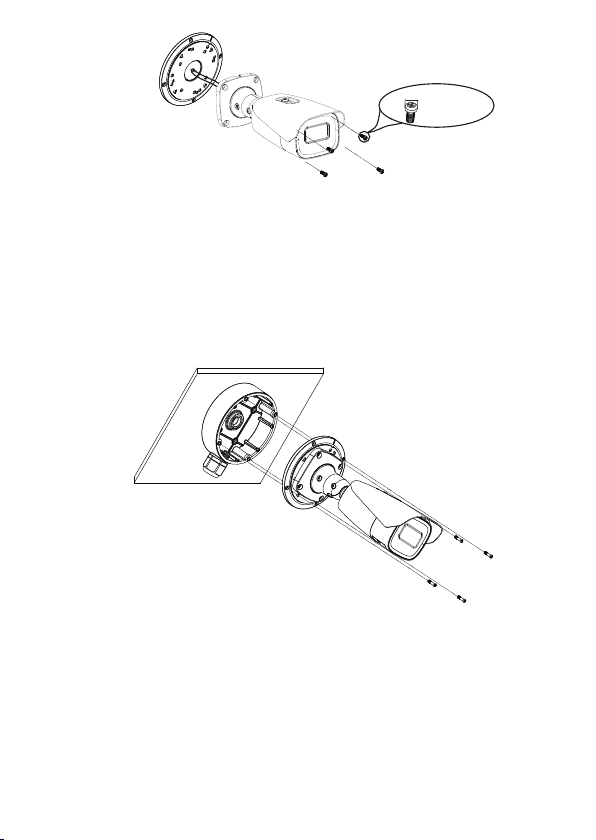

① Open the mounting base and the upper cover of the junction box.

② Attach the drill template of the junction box to the place where you

want to install the junction box and then rill the screw hole and calbe

hole on the wall according to the drill template.

③ Install junction box onto the wall by using the screws provided.

④ Fix the mounting base of the camera to the upper cover of the junction

box.

Mounting base

Upper cover

12mm

6.5×38mm

4×

Screw water-proof

ring

⑤

the camera onto the mounting base of the junction box.

Route the cables through the cable hole and connect the camera. Then install

Three-axis Adjustment-Before adjustment, preview the image of the camera

on a monitor and then loosen the fixed screws to adjust the camera according to

the figure below to get an optimum angle.

⑥

PM 4 10mm×

6.6mm

4×

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

Web Operation and Login

● Operation

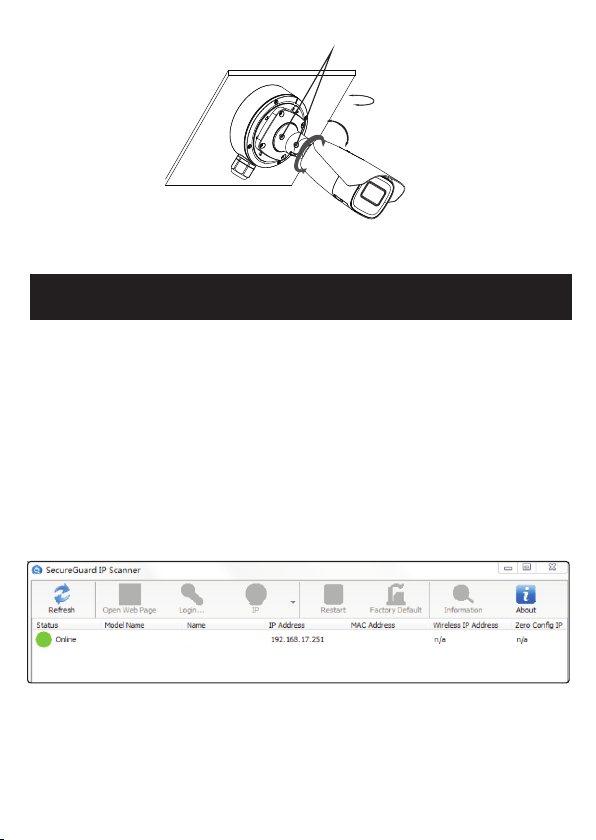

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.Or

download from https://www.specotech.com/ip-scanner/

Tilt 90°

Pan 360°

Rotate

360°

Fixed screws

5C :F2:0 7: 24:68 :B9

O4 iB1M

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.
