Spectra Logic Spectra 20K Manuale utente

P.N. 90920000 Revision A

Spectra®20K Library

Transport Tray Assembly

Replacement Guide

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Notices

Except for Spectra Logic Corporation’s express repair/replacement warranty, Spectra Logic

provides the unit “as is” without warranty of any kind, either expressed or implied, including but

not limited to the implied warranties of merchantability or fitness for a particular purpose. In no

event shall Spectra Logic be liable for any loss of profits, loss of business, loss of use or data,

interruption of business, or for indirect, special, incidental, or consequential damages of any

kind, even if Spectra Logic has been advised of the possibility of such damages arising from any

defect or error.

Information furnished in this manual is believed to be accurate and reliable. However, no responsibility

is assumed by Spectra Logic for its use. Due to continuing research and development, Spectra Logic may

revise this publication from time to time without notice, and reserves the right to change any product

specification at any time without notice.

Spectra 20K Library Transport Tray Assembly Replacement Guide

Spectra Logic Contact Information

Corporate Headquarters European Office

Address

Phone

Fax

Spectra Logic Corporation

1700 N 55th Street

Boulder CO 80301

USA

(800) 833-1132 or (303) 449-6400

(303) 939-8844

Address

Phone

Fax

Spectra Logic Europe Limited

Magdalen Centre

Robert Robinson Avenue

Oxford Science Park

Oxford

UK OX44 7 RW

+44 (0) 870 112 2150

+44 (0) 870 112 2175

Web Site http://www.SpectraLogic.com

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Contents

Introduction ................................................................................................4

Prepare the Library and Host System ........................................................ 6

Remove the Robotic Rack Assembly .......................................................... 7

Remove the Transport Tray Assembly ..................................................... 12

Unpack the Replacement Transport Tray Assembly................................ 17

Install the Replacement Transport Tray Assembly .................................. 21

Replace the Robotic Rack Assembly ........................................................ 26

Prepare the Library for Tests.................................................................... 29

Tests .......................................................................................................... 30

Finish......................................................................................................... 33

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Introduction

About this Manual

This manual describes the procedure for replacing the transport tray assembly in a

Spectra 20K library and how to configure and calibrate the assembly after it has been

installed.

About the Transport Tray Assembly

The transport tray assembly in Spectra 20K libraries moves within the robotic rack

assembly. Its job is to transport tape cartridges between the tape drives, tape slots, and

the entry/exit (E/E) port. The main component of the transport tray assembly is the

robotic picker, which handles the tape cartridges. The robotic picker has arms that

grab and hold one tape cartridge at a time while it travels along the transport tray. A

bar code reader located on the robotic picker reads the bar code label on each tape

cartridge to ensure accuracy.

Estimated Time Required

This procedure should take about one and one-half hours.

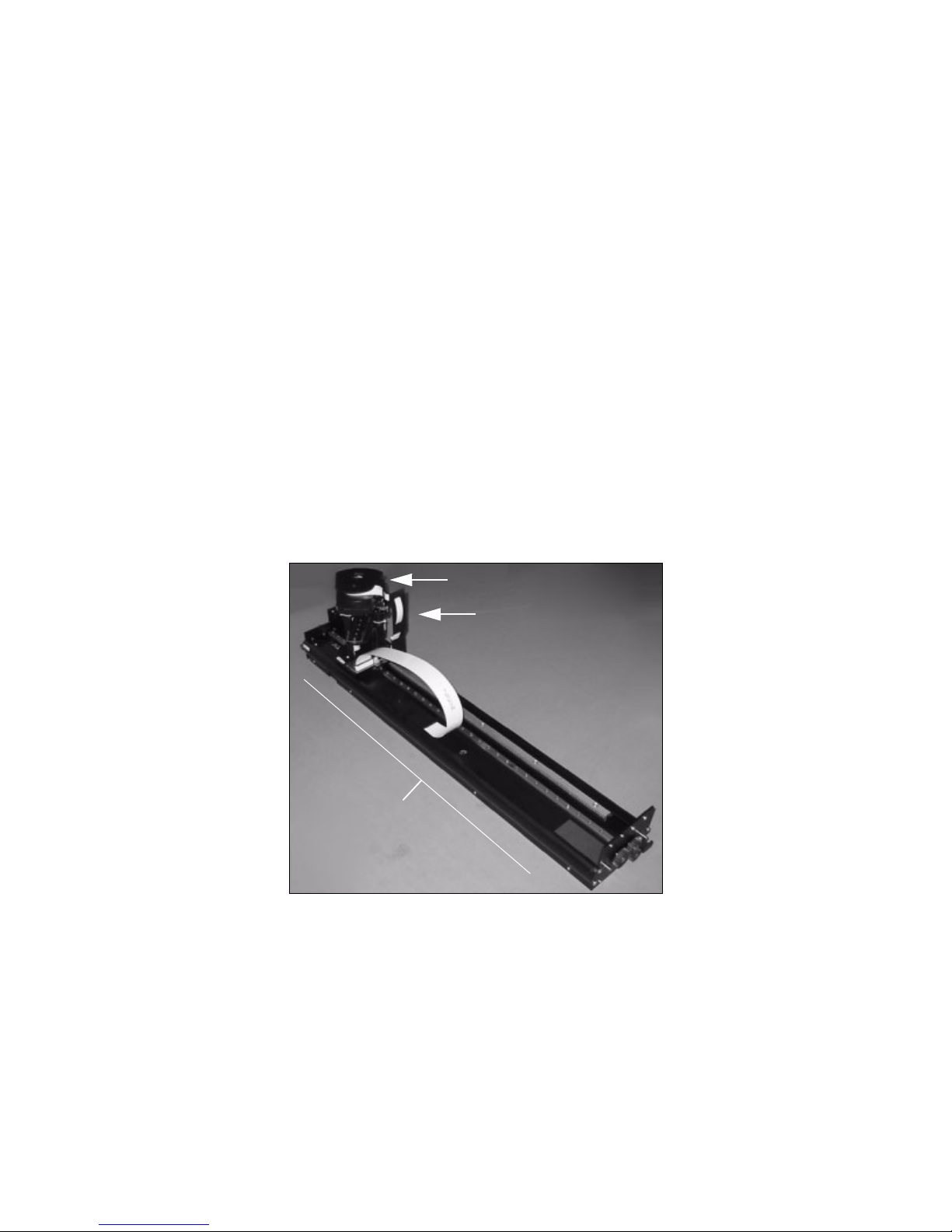

Figure 1 The transport tray assembly.

Robotic picker

Transport tray

Cable mast

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Materials and Tools Required

You will need a transport tray assembly from Spectra Logic or an authorized reseller:

• Transport Tray Assembly, P.N. 90929001

You will also need the following tools:

• A #1 Phillips screwdriver

• A #2 Phillips screwdriver

• A flat head screwdriver

• A wire cutter

• Snap ring pliers

• The library door key

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Prepare the Library and Host System

Shut down the library while keeping the host interface connected to the host system.

1. Disable any backup software that might try to access the library.

Warning: Electric shock inside the library can cause injury or death.

Disconnect AC power before opening the library door.

2. Turn off the power. The power switch is located at the rear of the library on the

lower left.

3. If necessary, move the library to a location where you have full access to the front

of the library.

Caution: The library weighs approximately 240 pounds (108.86 kg). Get

help when moving the library.

4. Use the library key to unlock and open the front door of the library.

5. Remove the drives from the drive bay and set them aside in a safe place.

Note: It is not necessary to remove the media.

6. Proceed to Remove the Robotic Rack Assembly on page 7.

Spectra® 20K Library Transport Tray Assembly Replacement Guide

Remove the Robotic Rack Assembly

1. Lower the transport tray to bottom of the robotic rack by gently raising the counter

weight (Figure 2).

Figure 2 The robotic rack counter weight is raised.

Spectra® 20K Library Transport Tray Assembly Replacement Guide

2. Rotate the picker so that the bar code scanner faces the rear of the library.

The location of the barcode scanner is shown in Figure 3.

3. Slide the picker along the transport tray to the front of the library (Figure 4).

Figure 3 The location of the bar code scanner.

Figure 4 The picker is slid to the front of the library.

Location of the

bar code scanner

Spectra® 20K Library Transport Tray Assembly Replacement Guide

4. Unplug the 25-wire black connector at the bottom front of the robotic rack

assembly (Figure 5).

5. Using the flat head screwdriver, remove the three cone head screws that hold the

robotic rack to the drive slot assembly (Figure 6).

Figure 5 The 25-wire black connector.

Figure 6 The cone head screws circled (the third cone head

screw is out of view.)

Spectra® 20K Library Transport Tray Assembly Replacement Guide

6. Using the #2 Phillips screwdriver, remove the screws that hold the robotic rack

assembly to the chassis: first the top, then the bottom (Figure 7).

7. From the front of the library, carefully slide the robotic rack assembly outward

about six inches (15.24 cm) (Figure 8).

Figure 7 The robotic rack screws.

Figure 8 The robotic rack assembly is moved outward.
