Spectro-UV Spectroline E Series Manuale utente
1
OPERATOR’S MANUAL
E-Series
Ultraviolet Hand Lamps
9/20 AM15036-4
PRINTED IN U.S.A.
www.Spectro-UV.com
4 Dubon Ct., Farmingdale, NY 11735
866-230-7305
2
WARNING
UV light emitted from this product. Avoid eye and skin exposure to
unshielded products.
FOR PROFESSIONAL EXAMINATION USE ONLY
OPERATION
1. Connect the plug to a power outlet that complies with the electrical
requirements specified on the lamp’s label. The E-Series lamps are
available in 120V/60Hz, 230V/50Hz, 240V/50Hz or 100V/50-60Hz versions.
2. The power supply cord is the disconnect for this unit.
3. To turn on the 120V and 100V models, press and hold the dimple on the
rocker switch(es) for approximately 5 seconds to power the tube(s). To power
the 230V/FE and FBE and 240V/FA models, press the rocker switch to the
ON (I) position. The 230V models designed to produce two wavelengths have
a 3-position power switch. The tube(s) should become energized and emit
a steady light. The light may initially flicker, especially if the lamp is cold, but
should stabilize after a few seconds.
4. To turn off the 120V and 100V models, press down on the opposite side
of the switch. Press the rocker switch to the OFF (O) position on the 230V
and 240V models.
IMPORTANT SAFETY INSTRUCTIONS (Read all instructions prior to lamp usage)
• Never use this lamp in any manner not specified in these instructions.
• Do not use if a tube, cord or plug is not fully serviceable.
• We recommend using Spectroline UV-absorbing protective eye and face wear
(i.e., UVS-30 spectacles, UVG-50 goggles or UVF-80 face shield).
• FOR LABORATORY USE ONLY
3
NOTE: For even greater comfort and convenience, all E-Series hand
lamps are now equipped with a carrying handle. To increase fluorescent
contrast, all 4-, 5-, and 6-watt E-Series lamps may be used with
Spectroline CM-Series UV viewing cabinets.
OPERATOR SERVICING
The following servicing instructions are intended for limited maintenance
of the lamp. Do not perform any servicing other than that contained in
these instructions. Return the lamp to the factory for maintenance not
covered in this section.
HOUSING AND FILTER MAINTENANCE
The aluminum lamp housing is designed for protection of the
internal parts. Using a soft cloth, immediately clean spills from the
housing with water and a mild detergent and wipe dry. Take care not to
allow any liquids to leak into electrical components. Periodically clean the
filter with a glass cleaner and a soft cloth.
TUBE AND REFLECTOR MAINTENANCE
To clean the tubes and/or reflectors, remove the tubes
according to the instructions outlined in the ‘‘TUBE REPLACEMENT’’
section below. Using a soft cloth, the reflectors may be cleaned
with a glass cleaner, while the tubes may be cleaned with a mild
detergent solution. Wipe dry with a soft cloth.
TUBE REPLACEMENT
If a tube fails to operate correctly, review the procedures outlined
in the ‘‘OPERATION’’ section. If the problem persists and it is found
necessary to replace a tube, unplug the lamp from its power source
before proceeding.
WARNING
To avoid the risk of electrical shock, always unplug the lamp from
its power source before cleaning or servicing.
4
1. Lay the lamp housing on a flat, level surface.
2. Remove the 2 screws that secure the endcap opposite the power
cordset. For lamps without a filter, proceed to Step #4.
3. Slide the filter assembly off the lamp housing’s open end, and set aside.
4. Grasp the tube by the metal bases located at each end. Applying
even pressure, gently rotate the tube a quarter of a turn until
it loosens. The tube may now be easily removed from its
sockets.
5. Install the new tube by reversing the above procedure.
6. Where applicable, replace the filter assembly by reversing the
procedure in Step #3.
7. Replace the endcap removed in Step #2 and test the function of the
new tube.
8. If installation of the new tube fails to yield correct lamp operation,
check to make sure the two pins at each end of the tube
are properly connected with the two copper contacts in each socket.

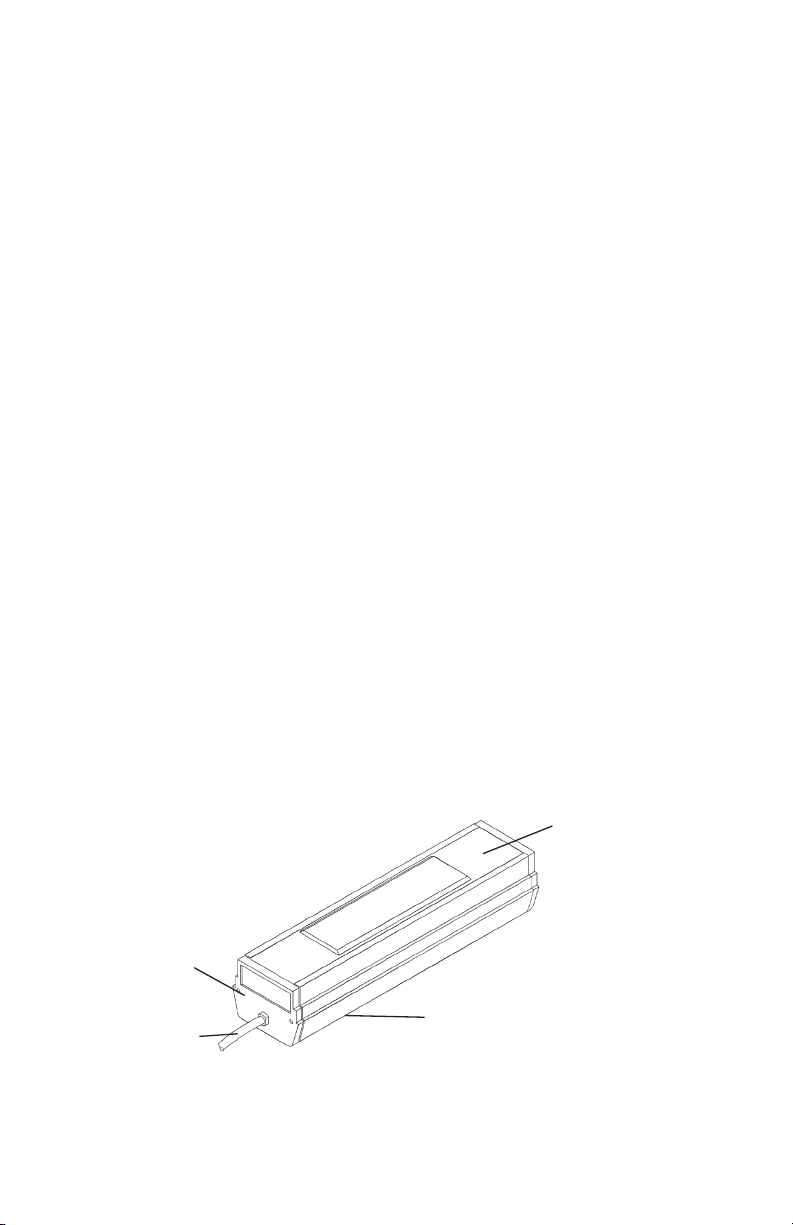

LAMP WITH
FILTER ASSEMBLY
Endcap
On/Off Power Switch(es)
(top of unit)
Filter Assembly
Power Cord
FILTER REPLACEMENT
If it is necessary to replace the filter assembly, follow Step #3 in the ‘‘TUBE
REPLACEMENT’’ section to remove the old filter. Install the new filter by
reversing this procedure.
5
ENVIRONMENTAL CONDITIONS
The E-Series UV lamps are designed to be safe under the following
conditions:
• Indoor use;
• Altitude up to 2,000 m (6,562 ft.);
• Temperature 5°C to 40°C (41°F to 104°F);
• Maximum relative humidity 80% for temperatures up to 31°C (88°F)
decreasing linearly to 50% relative humidity at 40°C (104°F);
• Mains supply voltage fluctuations not to exceed ±10% of the nominal
voltage;
• Installation Category II;
• Pollution Degree 2.
WARRANTY
The warranty policy for the E-Series lamps is provided on the Certificate
of Limited Warranty enclosed separately with each unit.
NOTE: For assistance of any kind, including help with a lamp under warran-
ty, contact the Customer Service Department at Spectro-UV. Call toll-free
1-866-230-7305. Give full details of the difficulty and include the model
and serial numbers of the unit and date of purchase.
If return of the lamp to the factory is deemed necessary, shipping
instructions will be provided. If an estimate of charges for non-
warranty work or other service work is required, a quote will be
furnished upon evaluation of the unit. Out-of-warranty service work will not
be performed without customer approval.
SHIPPING
Carefully pack the lamp in the original shipping container and packing
materials. Insure it for full value and ship it prepaid to the factory.

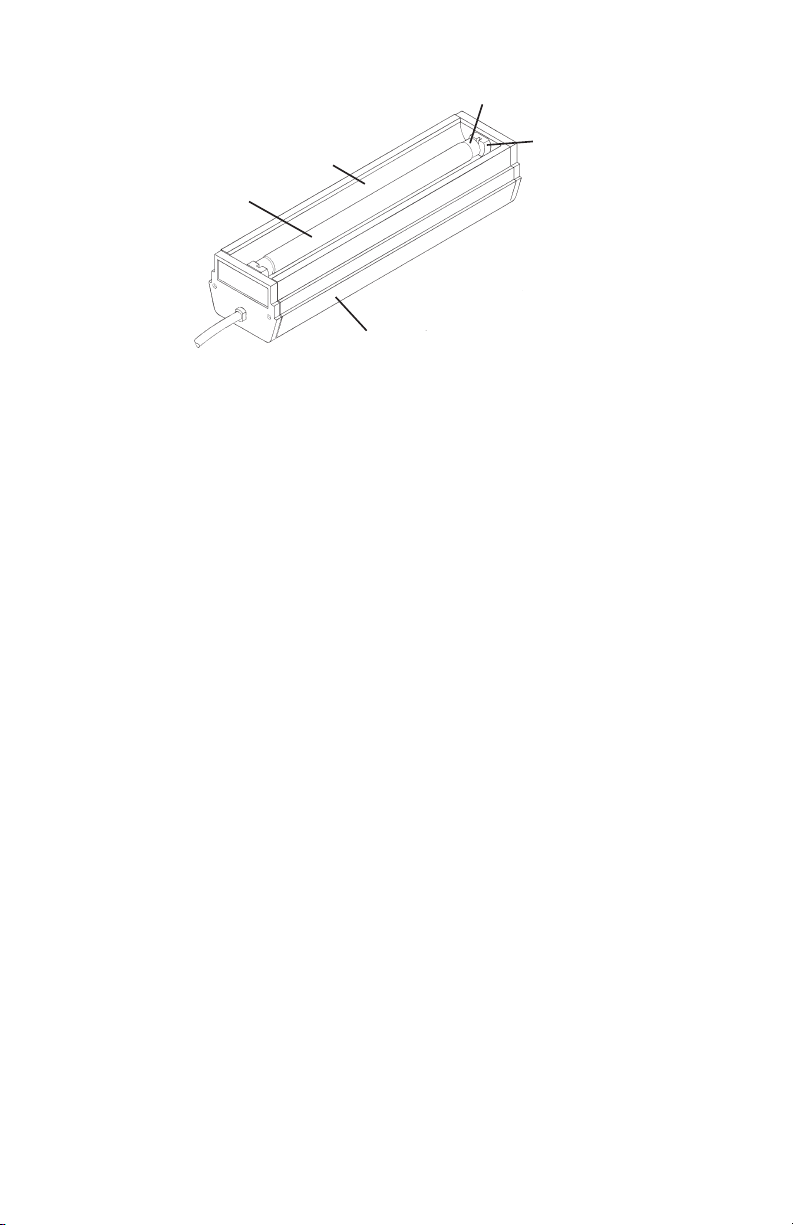

LAMP WITHOUT
FILTER ASSEMBLY
Lamp Housing
Socket
Tube Base
Reflector
Tube
6

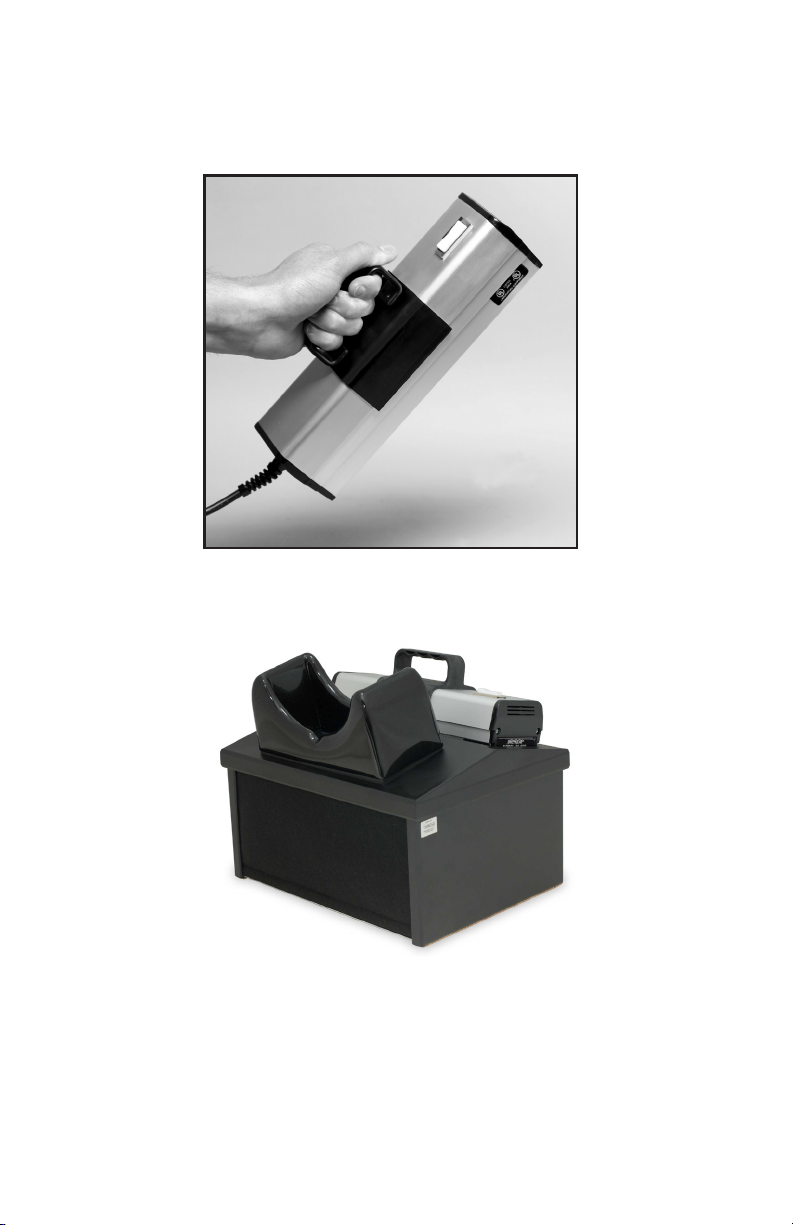

ACCESSORIES
LAMP WITH CARRYING HANDLE
CM-26A UV VIEWING CABINET
7
E-SERIES ELECTRICAL SPECIFICATIONS
MODELS1
/FE2/FBE2/FA3/FC4/J4WAVELENGTH TUBE FILTER
EA-140¹; /FE²; /FBE²; /FA3; /FC4UV-A BLE-220B
EA-160; /FE; /FBE; /FA; /FC; /J4UV-A BLE-480B
ENF-240C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-270W
BLE-2537S
2F001
ENF-260C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-6T365
BLE-6254S
2F006
ENF-280C; /FE; /FBE; /FA; /FC; /J UV-A & UV-C BLE-8T365
BLE-8T254
2F018
1All domestic models (without /FA, /FE, /FBE, /FC, /J) are 120V, 60Hz and 0.2 amps.
2All /FE, /FBE models are 230V, 50Hz and 0.2 amps. All these units conform to CE standards.
3All /FA models are 240V, 50Hz and 0.2 amps.
4All /FC, /J models are 100V, 50-60Hz and 0.2 amps.
*Dual tube units of the same wavelength are 0.4 amps.
Long Wave (UV-A): 365nm Medium Wave (UV-B): 312nm Short Wave (UV-C): 254nm
LAMP CONTAINS MERCURY
Manage in Accord with Disposal Laws
See: www.lamprecycle.org
8
www.Spectro-UV.com
4 Dubon Ct., Farmingdale, NY 11735
866-230-7305
