Speed Queen AFNE9B Manuale dell'operatore

Quick Consumer

Manual

Two (2) lter

screen washers

Two (2) plain

rubber washers

Four (4) rubber

feet

Beaded strap

Installation

Parts included:

1. Move unit to area within 4 ft (1.2 m) of nal installation.

7. Connect washer to electrical power – on individual branch

circuit. Refer to serial plate for electrical ratings.

8. Run washer through one complete cycle to make sure it is

operating properly.

Welcome

Thank you for purchasing a Speed Queen®appliance. We value you as a customer.

At Speed Queen, leading performance is our daily reality. We seek to deliver an outstanding experience in every aspect of laundry.

Your machine was built to last 25 years in your home and Speed Queen support has been built to provide you with the best service in

the industry.

9. Check for leaks.

Two (2)

ll hoses

Two (2) plugs

Remove shipping materials.

• Remove lower panel (2 screws)

• Remove four (4) bolts securing shipping brace. Remove

brace and blue label

• Remove two (2) bolts from rear of washer

• Insert two (2) plugs into rear bolt holes

• Reinstall panel

Connect ll hoses – water pressure = 20-120 psi

[138-827 kPa].

• Flush water supply lines

• Use two lter screen washers with screen

facing faucet

• Use two rubber washers in end of hose

connecting to the machine

Connect drain hose to drain receptacle – 36 in. [91 cm]

recommended height.

• Use beaded strap to secure drain hose to drain

receptacle

Position and level the unit.

• Place four (4) rubber feet on leveling legs

• Unit must not rock

6. Wipe out inside of washtub.

Operating

5.6. 9.

FR5 control

FF7 control

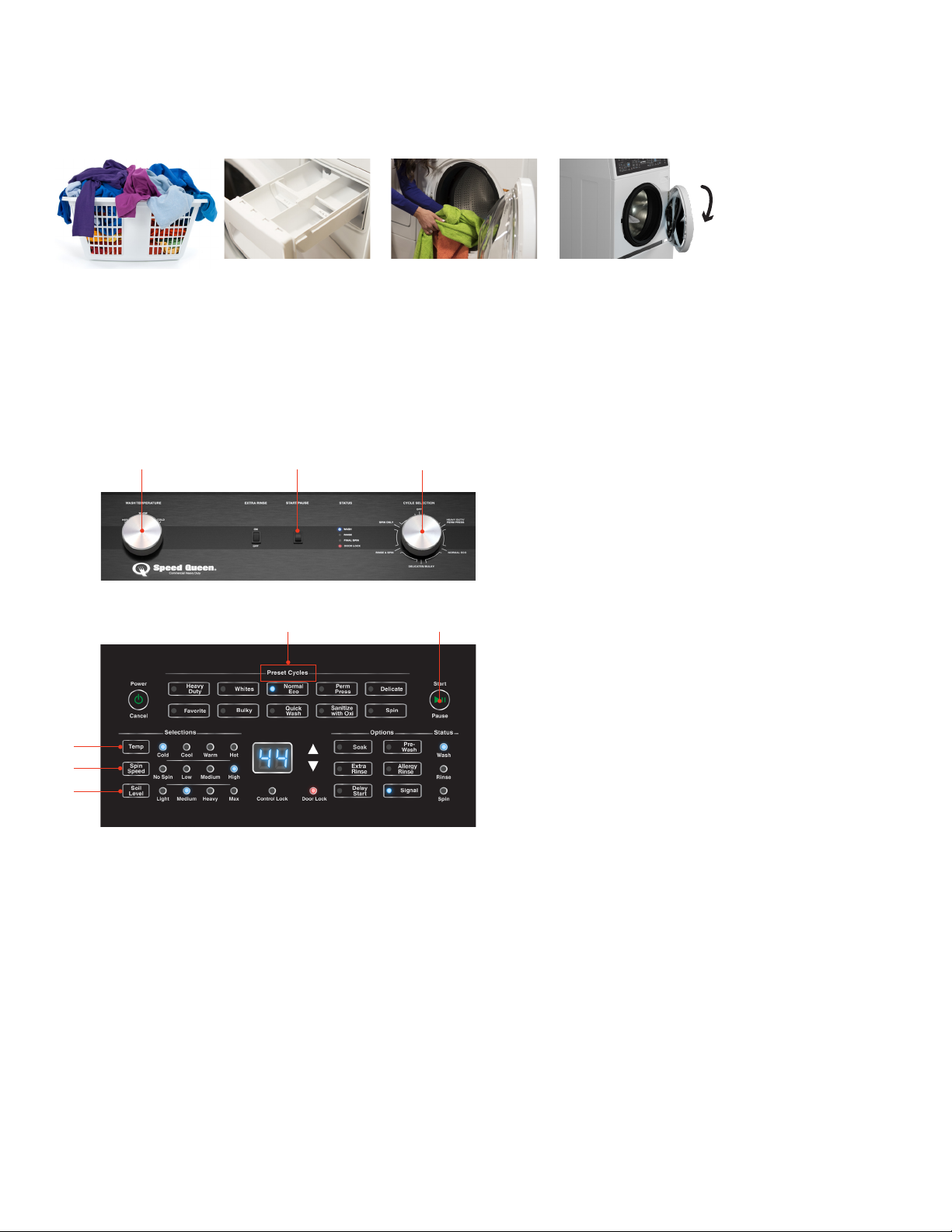

1. Prepare laundry 2. Add high eciency 3. Load laundry 4. Close door

(he) laundry supplies* 10.5 Kg maximum

loading capacity

5. Set cycle 6. Set temperature 7. Set spin speed 8. Set soil level 9. Press start/pause

(Electronic control only) (Electronic control only)

*Note: Pods must be placed in washtub with laundry.

Download full documentation and view installation and operating

videos for an immersive experience at Speedqueendoc.net or

scan the QR code below.

If you wish to receive printed documents at no cost, please

complete the order form and return by mail to the address below,

or email your request to [email protected].

Alliance Laundry Systems

Technical Communications

Shepard Street

P.O. Box 990

Ripon, WI 54971

United States

Order Form for

Printed Documentation

Model No.

Serial No.

Name

Address

Phone No.

Email Address

✂

Part No. 807602

May 2019

DO NOT COPY or TRANSMIT

Speed Queen by Alliance Laundry Systems

消費者快速閱讀

手冊

兩(2)個過濾

網墊圈

兩(2)個普通

橡皮墊圈

四(4)個橡膠

腳套

串珠帶

安裝

內含部件：

1. 將裝置移動到最終安裝位置4英呎（1.2米）範圍內。

7. 為洗衣機接通電源 — 與單獨的分支

電路相連。參見序號銘牌，瞭解額定電功率。

8. 使洗衣機運行一個完整的週期，以確保其

運行正常。

歡迎

感謝您購買SpeedQueen®設備。我們重視客戶價值。

在Speed Queen，我們確保機器具有卓越的日常性能，並致力於在洗衣的各個方面提供最佳體驗。您的機器可供您在家中使用25年，且

Speed Queen支援服務可為您提供業內最好的服務。

9. 檢查洩漏情況。

兩(2)根

進水管

兩(2)個插塞

拆除運輸材料。

• 拆除底部面板（兩顆螺絲）。

• 拆除固定運輸支架的四(4)顆螺栓。拆除支架并清除藍色

標籤

• 拆除洗衣機背面的兩(2)顆螺栓。

• 將兩(2)個插塞插入背面的螺栓孔中。

• 重新安裝面板。

連接注水軟管 — 水壓 = 20-120 psi

[138-827 kPa]。

• 沖洗供水管

• 使用兩個過濾網墊圈，過濾網

朝向水龍頭。

• 在連接到機器的軟管端部

使用兩個橡膠墊圈

將排水軟管與排水容器相連 — 建議高度為36英吋[91公分]。

• 使用串珠帶將排水軟管固定到排水容器上

將機器放平。

• 將四(4)個橡膠腳套放在調平腳上

• 不得搖晃設備

6. 擦淨洗衣桶內部。

操作

6. 9.

FR5控制

FF7控制

1. 準備洗滌 2. 添加高效洗滌劑 3. 填入衣物 4. 關閉機門

洗滌織物* 不得超過10.5公斤

最大裝載量

5. 設置週期 6. 設置水溫 7. 設置脫水速度 8.設置污漬程度 9.按下Start/Pause

（僅限電子控制機型）（僅限電子控制機型）（啟動/暫停）按鈕

*注意：洗衣丸必須與衣物一同投入洗衣筒內。

通過登錄speedqueendoc.net或掃描下面的二維碼以下載完整文檔

並查看安裝和操作視頻，獲得沉浸式體驗。

如果您希望免費獲得列印的文檔，請填寫訂單並通過郵件返回以下

地址，或發送電子郵件至technicalcommunications@alliancels.

com。

Alliance Laundry Systems

Technical Communications

Shepard Street

P.O. Box 990

Ripon, WI 54971

United States

列印文檔

的訂單

型號

序號

名稱

地址

電話

電子郵箱地址

✂

文檔編號：807602

2019年5月

請勿複製或傳輸

Speed Queen，Alliance Laundry Systems
