Spirit XE895 Manuale utente

XE895 ELLIPTICAL TRAINER

OWNER’S MANUAL

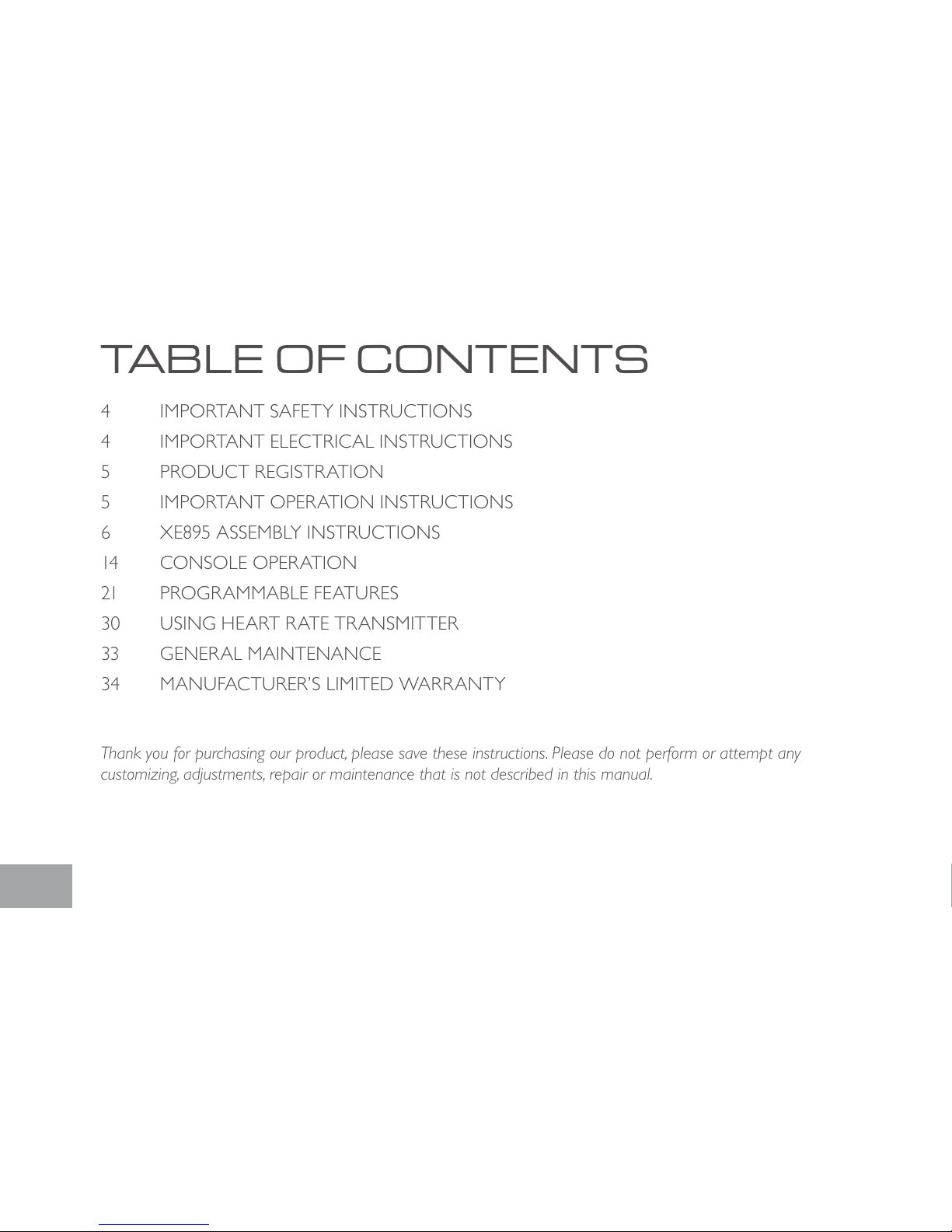

TABLE OF CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS

4 IMPORTANT ELECTRICAL INSTRUCTIONS

5 PRODUCT REGISTRATION

5 IMPORTANT OPERATION INSTRUCTIONS

6 XE895 ASSEMBLY INSTRUCTIONS

14 CONSOLE OPERATION

21 PROGRAMMABLE FEATURES

30 USING HEART RATE TRANSMITTER

33 GENERAL MAINTENANCE

34 MANUFACTURER’S LIMITED WARRANTY

Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any

customizing, adjustments, repair or maintenance that is not described in this manual.

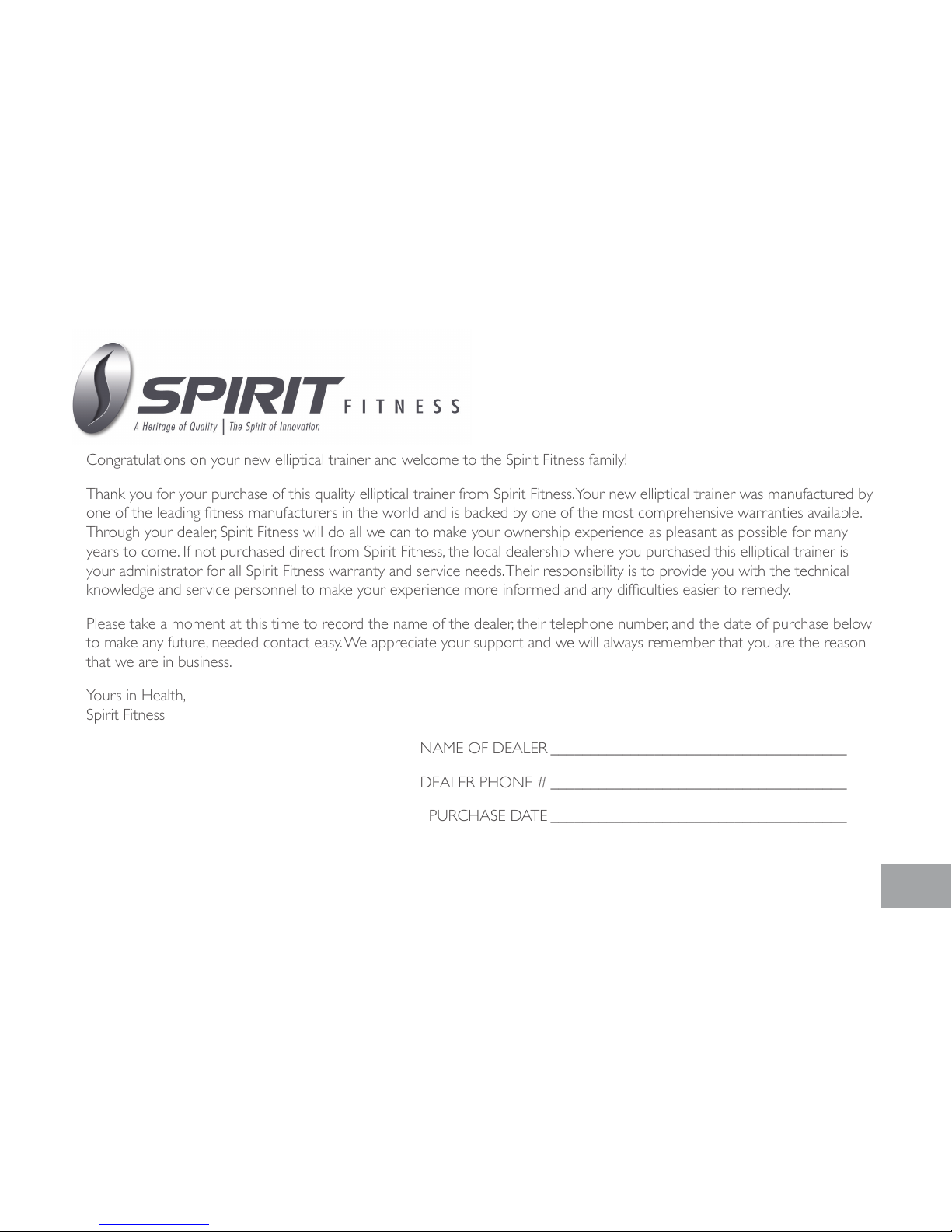

Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!

Thank you for your purchase of this quality elliptical trainer from Spirit Fitness.Your new elliptical trainer was manufactured by

one of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.

Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many

years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is

your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical

knowledge and service personnel to make your experience more informed and any difculties easier to remedy.

Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase below

to make any future, needed contact easy.We appreciate your support and we will always remember that you are the reason

that we are in business.

Yours in Health,

Spirit Fitness

NAME OF DEALER _____________________________________

DEALER PHONE # _____________________________________

PURCHASE DATE _____________________________________

Important Saftey Instructions

IWARNING

• Read all instructions before using this appliance.

• Do not operate elliptical trainer on deeply padded,

plush or shag carpet. Damage to both carpet and

elliptical trainer may result.

• Keep children away from the elliptical trainer.There are

obvious pinch points and other caution areas that can

cause harm.

• Keep hands away from all moving parts.

• Never operate the elliptical trainer if any of the parts

are damaged. If the elliptical trainer is not working

properly, call your dealer.

• Do not operate where aerosol spray products are

being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous

environment.

• Never drop or insert any object into any openings.

• Do not use outdoors.

• Do not attempt to use your elliptical trainer for any

purpose other than for the purpose it is intended.

• The hand pulse sensors are not medical devices.

Their purpose is to provide you with an approximate

measurement in relation to your target heart rate. Use

of a chest transmitter strap is a much more accurate

method of heart rate analysis .Various factors, including

the user’s movement, may affect the a ccuracy of heart

rate readings.The pulse sensors are intended only

as exercise aids in determining heart rate trends in

general.

• Wear proper shoes. High heels, dress shoes, sandals

or bare feet are not suitable for use on your elliptical

trainer. Quality athletic shoes are recommended to

avoid leg fatigue.

• Maximum User Weight: 400 lbs

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Electrical Instructions

IWARNING

Be aware that the generator is producing A.C. power

while the elliptical trainer is being used. Do not service

the elliptical trainer while the generator is spinning; serious

electric shock could occur.

NEVER expose this elliptical trainer to rain or moisture.

This product is NOT designed for use outdoors, near a

pool or spa, or in any other high humidity environment.The

operating temperature specication is 40 to 120 degrees

Fahrenheit, and humidity is 95% non-condensing (no water

drops forming on surfaces).

Important Operation Instructions

• NEVER operate this elliptical trainer without reading and completely understanding the results of any operational

change you request from the computer.

• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer

console and release the adjustment key.The computer will obey the command gradually.

• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching television,

reading, etc.These distractions may cause you to lose balance which may result in serious injury.

• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger

pressure.

Record Your Serial Number

Please record the serial number of this tness product in the space provided

below.

Serial Number:

The self-addressed product registration card must be completed in full and returned to Spirit Fitness.

You can also go to https://www.spirittness.com/residentialwarrantyregistration.html under the Support

tab to register online.

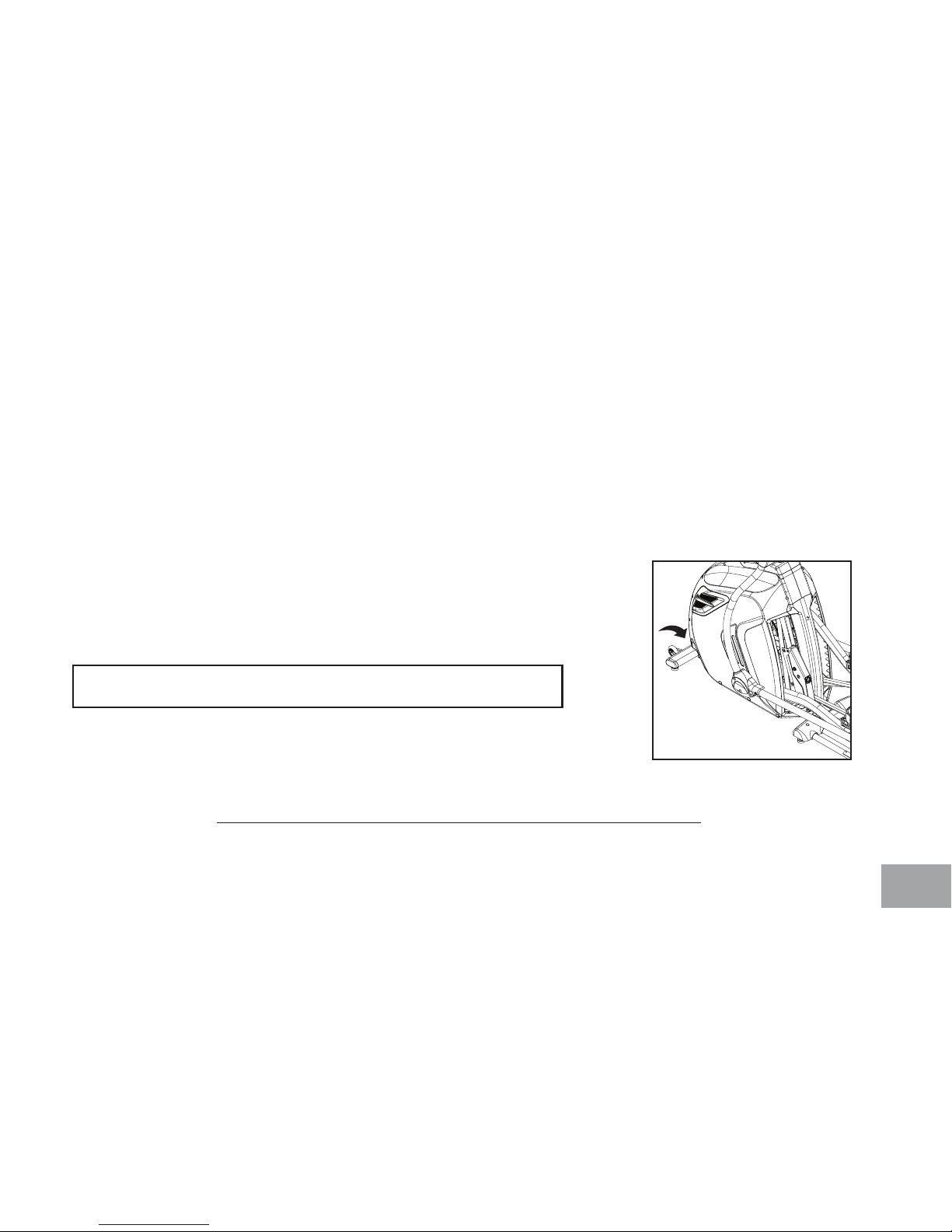

Serial Number Location

XE895 PRE ASSEMBLY

UNPACKING

1. Cut the straps, then lift the box over the unit and unpack.

2. Carefully remove all parts from the carton and inspect for any damage or missing parts.

If parts are damaged or missing, contact your dealer immediately.

3. Locate the hardware package. Remove the tools rst. Remove the hardware for each

step as needed to avoid confusion.The numbers in the instructions that are in paren-

thesis (#) are the item number from the assembly drawing for reference.

TOOLS INCLUDED:

13/14mm Wrench

12/14mm Wrench

Phillips Screwdriver

8mm L Allen Wrench

PARTS INCLUDED:

1 Main Frame

1 Console Mast

1 Console Mast Cover

2 Swing Arms

2 Connecting Arms

6 Levelers

1 Console

2 Foot Pedals

1 Power Cord

1 Audio Cable

2 Transport Wheels

1 Hardware Kit

SPEAKERS

CONSOLE

CONSOLE MAST

CONNECTING ARM

LEVELERS

FRONT STABILIZER

REAR STABILIZER

FOOT PEDALS

MAIN FRAME

RAILS

WATER BOTTLE

HOLDER

PULSE GRIPS

SWING ARM

CONSOLE FAN

XE895 STEP ONE

HARDWARE FOR STEP 1

PART TYPE DESCRIPTION QTY

137 BOLT 3/8”X2-1/4” 2

139 BOLT 3/8”X3-3/4” 4

176 FLAT WASHER 3/8”X19X1.5T 2

187 CURVED WASHER 3/8”X23X2T 4

1. Gather HARDWARE FOR STEP 1.

2. Put the 2 FLAT WASHERS (176) on the 2 HEX

HEAD BOLTS (137) and hand-tighten them,

through the TOP of the MIDDLE STABILIZER

TUBE , into the REAR RAIL ASSEMBLY (2)

with the WRENCH (194).

3. Put 4 CURVED WASHERS (187) on the 4 HEX

HEAD BOLTS (139) and hand-tighten them

through the FRONT of the MIDDLE STABILIZ-

ER TUBE, into the REAR RAIL ASSEMBLY (2)

with the WRENCH (194).

XE895 STEP TWO

HARDWARE FOR STEP 2

PART TYPE DESCRIPTION QTY

145 BOLT 3/8”X3/4” 4

150 SCREW M5X10 4

176 FLAT WASHER 3/8”X19X1.5T 4

186 SPRING WASHER 3/8”X2T 4

1. Gather HARDWARE FOR STEP 2.

2. Use WRENCH (193) to release 2 SOCKET

HEAD CAP BOLTS and take apart side back

disposed. Pierce 14P COMPUTER CABLE (68)

from bottom of the mast tube through it and pull

out of the top. Use 4 SOCKET HEAD CAP

BOLTS (145), 4 SPRING WASHERS (186) and

4 FLAT WASHERS (176) to secure.

3. Untie the COMPUTER CABLE (68) , connect

2 HANDPULSE W/CABLE ASSEMBLY (58)

and HANDLE WIRE (Upper), RESISTANCE/

INCLINE (White/Red) (61/62) with the CON-

SOLE ASSEMBLY (55) respectively.Then place

the CONSOLE on top of the MAST and use

PHILLIPS HEAD SCREW DRIVER (192) to

tighten 4 PHILLIPS HEAD SCREWS (150) to

secure.

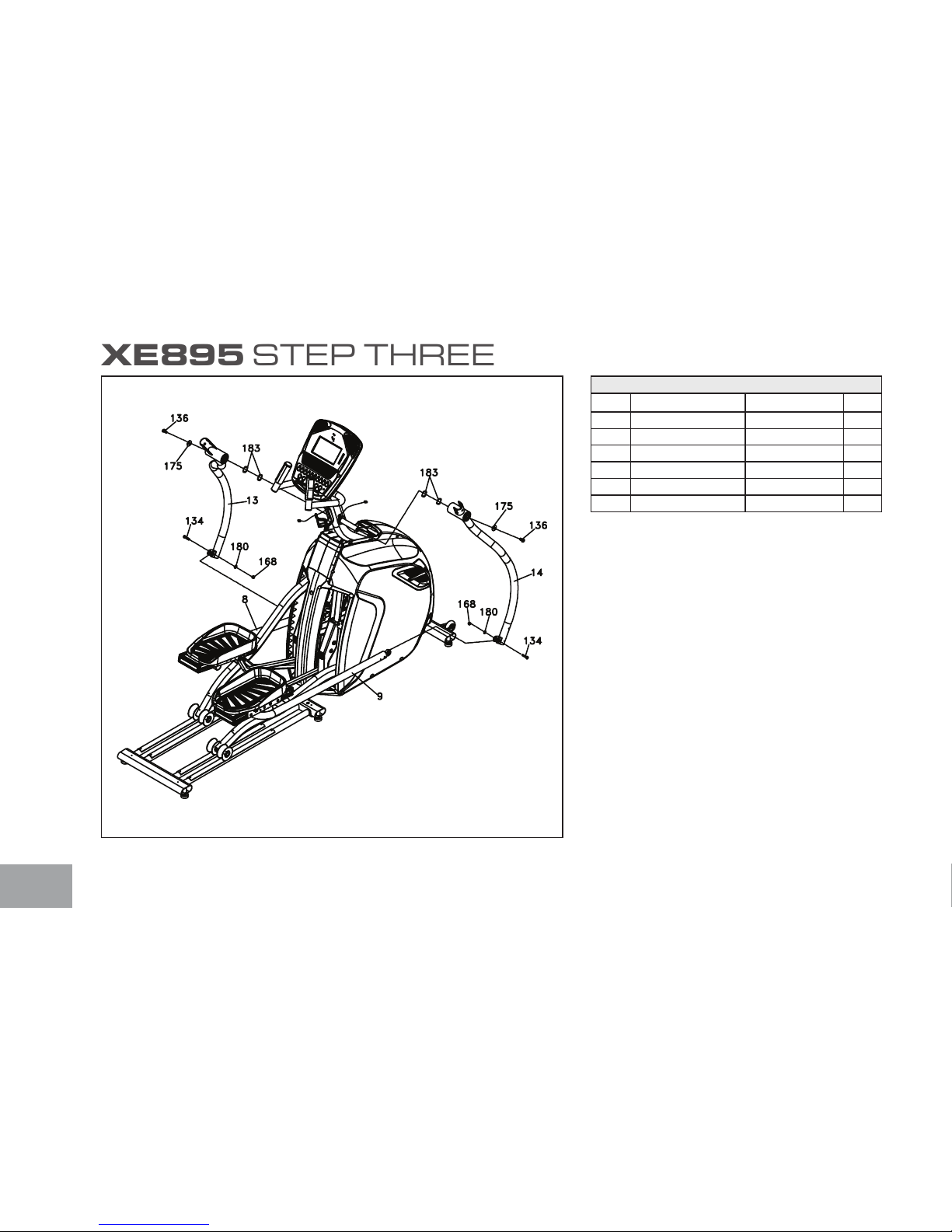

XE895 STEP THREE

HARDWARE FOR STEP 3

PART TYPE DESCRIPTION QTY

134 BOLT 5/16”X1-1/4” 2

136 BOLT 3/8”X3/4” 2

168 NYLOC NUT 5/16”X9T 2

175 CURVED WASHER 3/8”X30X2.0T 2

180 FLAT WASHER 5/16”X20X1.5T 2

183 WAVE WASHER ø25 4

1. Gather HARDWARE FOR STEP 4.

2. Locate LEFT and RIGHT LOWER SWING

ARMS (13, 14)together with 4 WAVE WASH-

ERS onto LEFT and RIGHT SHAFTS of the

MAST TUBE then tighten with 2 HEX HEAD

BOLTS (136) and two FLAT WASHERS (175)

by using the WRENCH (194).

3. Untie Rod end Bearing on LEFT CONNECT-

ING ARM (8) and pierce HEX HEAD BOLT

(134) through the rod end holes and rod end

bearing then tighten with FLAT WASHER

(180) and NYLOC NUT (168) by using the

WRENCH (194) and WRENCH (195). Do it

the same way for RIGHT CONNECTING ARM

(9) and RIGHT LOWER HANDLE BAR (14).
