IInnssttrruuccttiioonnMMaannuuaall

Model XXM101HK

Important: This manual contains important safety and operating information. Please read, understand,

and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or

damage to your Sportscaster, accessories, and/or to your vehicle or property.

ABBrief HHistory

A Brief History

Thank you for purchasing the new AGT Sportscaster Satellite Radio Accessory Kit.

• Mount your Sportscaster into cradles that are easily installed in your vehicle or your

home. Connect your Sportscaster's power, and antenna connectors and you are

ready to enjoy XM Satellite Radio.

• A built-in FM transmitter allows you to hear XM programming on your car or home

FM radio, using an unused frequency on the FM band.

• Available accessory kits make your Sportscaster useable in the home or on the go.

About Advanced Global Technology

Advanced Global Technology (AGT) is a worldwide leader in mobile, home and portable

electronics and audio technology. With its exciting line of satellite radio products,

AGT offers a broad portfolio of products to answer a wide variety of information and

entertainment needs-in the vehicle, home, office, and portable environments.

About XM Satellite Radio

XM Satellite Radio is the nation's leading provider of satellite radio with more than 6

million subscribers. XM offers more than 160 digital radio channels: 100% commercial-

free music channels, ranging from hip hop to opera, rock to bluegrass, big band to

reggae; 71 talk radio channels, including news, sports, comedy, and children's pro-

gramming; and 21 channels of round-the-clock traffic and weather reports.

Subscribers pay $12.95 a month for the XM service, which was named Best Radio

Service by the music industry's leading magazine Billboard at the 2004 Digital

Entertainment Awards. Exclusive programming on XM includes Major League

Baseball® games for every team, all season long. You can listen to XM on a variety of

satellite radio receivers for the vehicle, home, and portable use. In-dash XM radios are

available in more than 120 vehicle models for the 2006 model year. XM is broadcast

via satellite from coast to coast, so you can listen to XM continuously as you travel

across the country.

* To receive the XM service, you must subscribe to XM. Available in the continental United States and Canada only. Satellite radio reception depends

on the ability of the antenna to receive a signal. The signal may not be available in buildings or if obstructed (e.g., by mountains, trees, bridges, etc).

Let’s GGet SStarted

Let's Get Started

First, some important reminders:

We know you're eager to turn on your new Sportscaster and listen to XM, but please

take a moment to read through this instruction manual.

Warning: This manual contains important safety and operating information.

Please read, understand, and follow the instructions in this manual. Failure to do so

could result in personal injury, death, and/or damage to your Sportscaster,

accessories, and/or to your vehicle or property.

Caution: Use your Sportscaster only with the enclosed components or approved

accessories. Do not modify wires or other connectors in any way; you could cause a

malfunction, which could damage your Sportscaster and will void your warranty.

Caution: Refrain from using food or drinks near your Sportscaster. Spilling food

or drinks on the unit can damage it. Also, improperly installing the antenna cable

can cause leaks, which can damage your Sportscaster and/or your vehicle.

Installation

Mounting in the Home

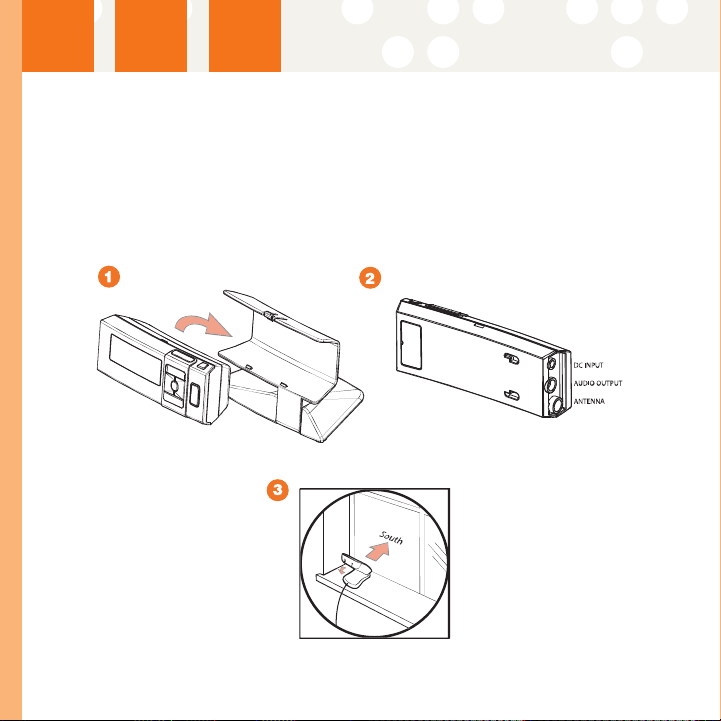

1. Push the Sportscaster into the home mount until it locks into place. (Figure 1).

2. Connect the AC Power, antenna and audio cable (if required) to the appropriate

jacks. (Figure 2).

3. Place the antenna on a window or an exterior wall so that it points south.

(Figure 3).

4. To Remove the Sportscaster, push the release tab on the top of the home mount

upward and pull the Sportscaster forward.

Personalizing YYour SSportscaster

FM Transmitter

FFrreeqquueenncciieess

This feature will enable the Sportscaster to broadcast XM content via a wireless

Transmitter on an FM frequency between 88.1MHz to 107.9MHz. The FM Transmitter is

disabled when either in battery mode or when the audio output is in use

Note: 88.1 is the default frequency.

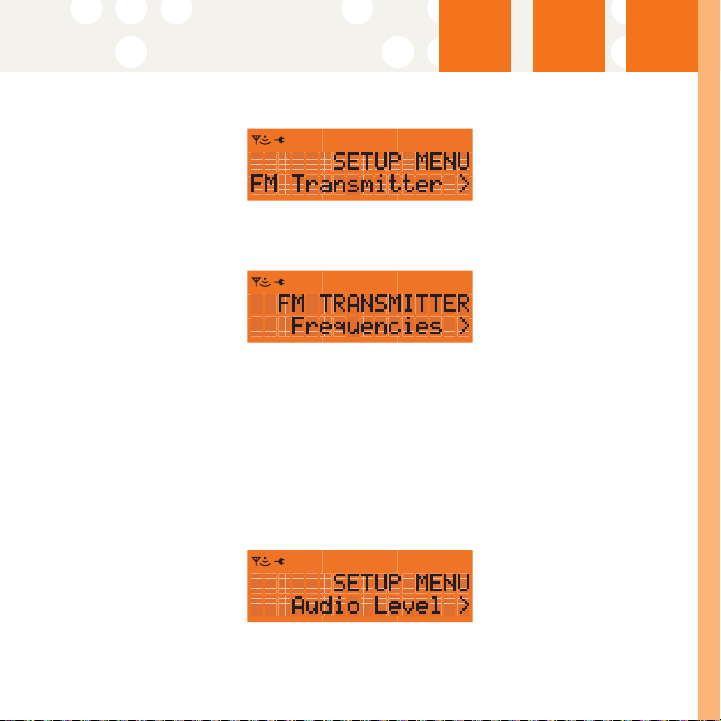

1. Press the Menu button to enter the Setup Menu.

2. Press the Up and Down Arrow buttons to navigate to FM Transmitter.

3. Press the Select or Right Arrow button to enter the FM Transmitter sub menu.

4. Press the Up or Down Arrow buttons to navigate to Frequencies and choose an

available frequency that is not being used by an FM Broadcaster in your area.

5. Press the Select button to store the frequency.

Note: The FM frequency you select may need to be changed when traveling. This is due to the

differences in signal strength of local FM stations and is not a problem with your

Sportscaster.

Audio Level

The Audio Level option adjusts the Sportscasters audio output. There are 10 levels of

adjustment available.

Listening ttoXXM- PPersonalizing YYour SSportscaster

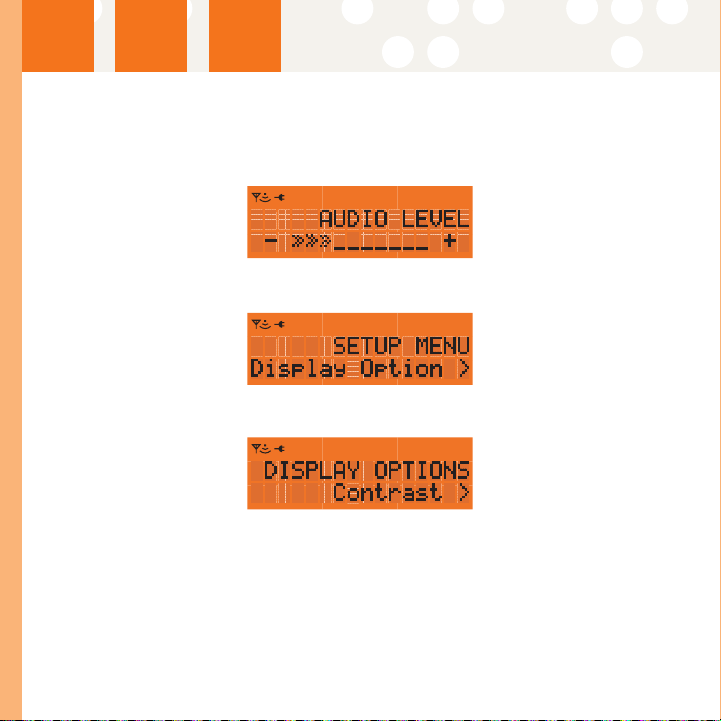

1. Press the Menu button to enter the Setup Menu.

2. Press the Up or Down Arrow button to navigate to Audio Level.

3. Press the Select or Right Arrow button to enter the Audio Level sub menu.

4. Press the Left or Right Arrow button to adjust the audio level to your comfort.

5. Press the Select button to store the new setting.

Note: The default setting is level 6.

Display Options

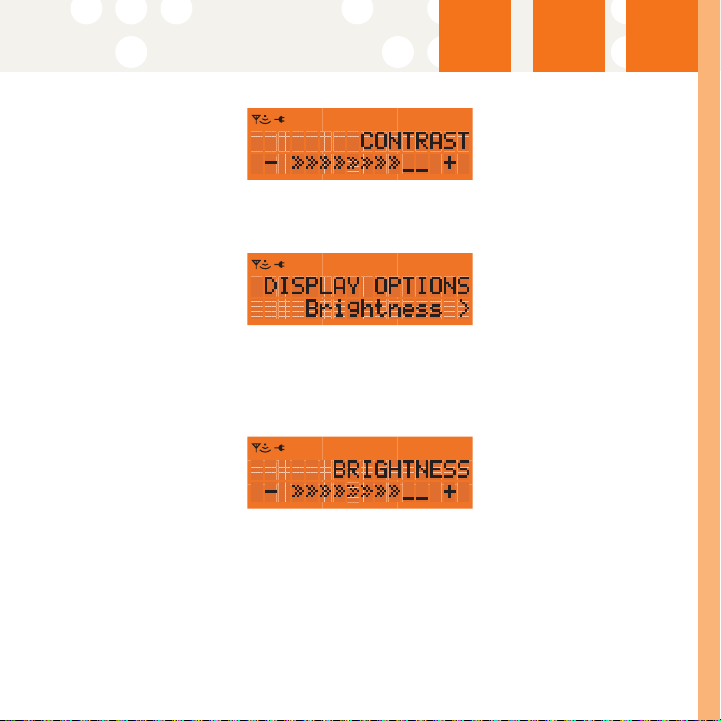

CCoonnttrraasstt

This option is used to adjust the Sportscasters display contrast. There are 10 levels

of adjustment available.

1. Press the Menu button to enter the Setup Menu.

2. Press the Up or Down Arrow buttons to navigate to Display Options.

3. Press the Select or Right Arrow button to enter the Display Options sub menu.

4. Press the Up or Down Arrow buttons to navigate to Contrast.

5. Press the Select or Right Arrow button to enter the Contrast setting screen

6. Press the Left or Right Arrow button to adjust the contrast to your desired level.

7. Press the Select button to store the new setting.

Personalizing YYour SSportscaster

Note: The default setting is level 6.

BBrriigghhttnneessss

This option is used to adjust the Sportscasters display brightness. There are 10 levels

of adjustment available.

1. Press the Menu button to enter the Setup Menu.

2. Press the Up or Down Arrow button to navigate to Display Options.

3. Press the Select or Right Arrow button to enter the Display Options sub menu.

4. Press the Up or Down Arrow button to navigate to Brightness.

5. Press the Select or Right Arrow button to enter the Brightness setting screen

6. Press the Left or Right Arrow button to set the brightness to your desired level.

7. Press the Select button to store the new setting.

Note: The default setting is level 6.

Personalizing YYour SSportscaster

Antenna Aiming

This option presents feedback indicating the strength of satellite and terrestrial

signals. Use this screen to place your antenna in the optimal position to receive the XM

broadcast.

1. Press the Menu button to enter the Setup Menu.

2. Press the Up or Down Arrow buttons to navigate to Antenna Aiming

3. Press the Select or Right Arrow button to enter the signal strength indicator.

SAT. indicates satellite signal strength.

TER. indicates terrestrial ground repeater signal strength.

Other TThings YYou SShould KKnow

Troubleshooting

Your Sportscaster should provide you with trouble-free performance without needing

any servicing. If it does not appear to be working properly, first try to remedy the prob-

lem by following these steps:

1. Attach all connections firmly and securely.

2. Ensure the cigarette lighter adapter or auxiliary power socket is clean and free of

corrosion.

3. Check the adapter fuse by unscrewing the ribbed end of the adapter. If required,

replace with a 2-amp fuse only. If your cigarette lighter adapter does not have a

removable end cap, then it is equipped with an internal fuse that resets itself

after it is left unpowered for a period of time.

IIffyyoouusseeeetthhiissoonntthheeddiissppllaayy::YYoouusshhoouulldd::

NO SIGNAL Move your Sportscaster away

Cause: The XM from the obstructed area (e.g.,

signal is being blocked. an underground garage).

CHECK ANTENNA Connect the antenna. Make

Cause: Possible problem with sure the cable and connectors

XM antenna are not damaged or kinked.

OFF AIR Tune to another channel.

Cause: The channel selected is

not currently broadcasting.

UPDATING Simply wait until the update

Cause: Your Sportscaster is being is completed.

updated with the latest encryption code.

--- To receive that channel, contact XM

Cause: You may have tried to tune to a Satellite Radio at 1.800.967.2346

channel that you have blocked or that .

you cannot receive with your

subscription package.

Warranty

Warranty Information

OOnnee-YYeeaarrLLiimmiitteeddWWaarrrraannttyy

This limited warranty sets forth all AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyyresponsibilities

regarding your product. There are no other expressed or implied warranties from

AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyy.

WWaarrrraannttyySSeerrvviicceePPrroovviiddeedd

If you purchased the product new from a retail vendor, AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyy

warrants the equipment against defects in material and workmanship for a period of

one (1) year from the original date of purchase. This warranty is in lieu of all other

express warranties. This warranty begins when you purchase the product and

continues for one (1) year unless you sell or rent the unit, in which case the warranty

stops.

AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyydisclaims any implied warranty, including the warranty of

merchantability and the warranty of fitness for a particular purpose, as of the date of

one year from your original purchase of the product AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyy

assumes no responsibility for any special, incidental, or consequential damages.

This warranty gives you specific legal rights and you may have other rights which vary

from state to state. Some states do not allow the exclusion or limitations of special,

incidental, or consequential damages or limitations on how long a warranty lasts, so

the above exclusion or limitation may not apply to you.

WWaarrrraannttyySSeerrvviicceeNNoottPPrroovviiddeedd

This warranty does not cover damage resulting from accident, misuse, abuse,

improper installation or operation, lack of reasonable care, unauthorized modification,

or the affixing of any attachment not provided by AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyywith the

equipment, and/or loss of parts. This warranty is voided in the event any unauthorized

person opens, alters, or repairs the product.

All AAddvvaanncceeddGGlloobbaallTTeecchhnnoollooggyyequipment being returned for repair must be suitably

packaged.
