USER MANUAL AND

INSTALLATION GUIDE

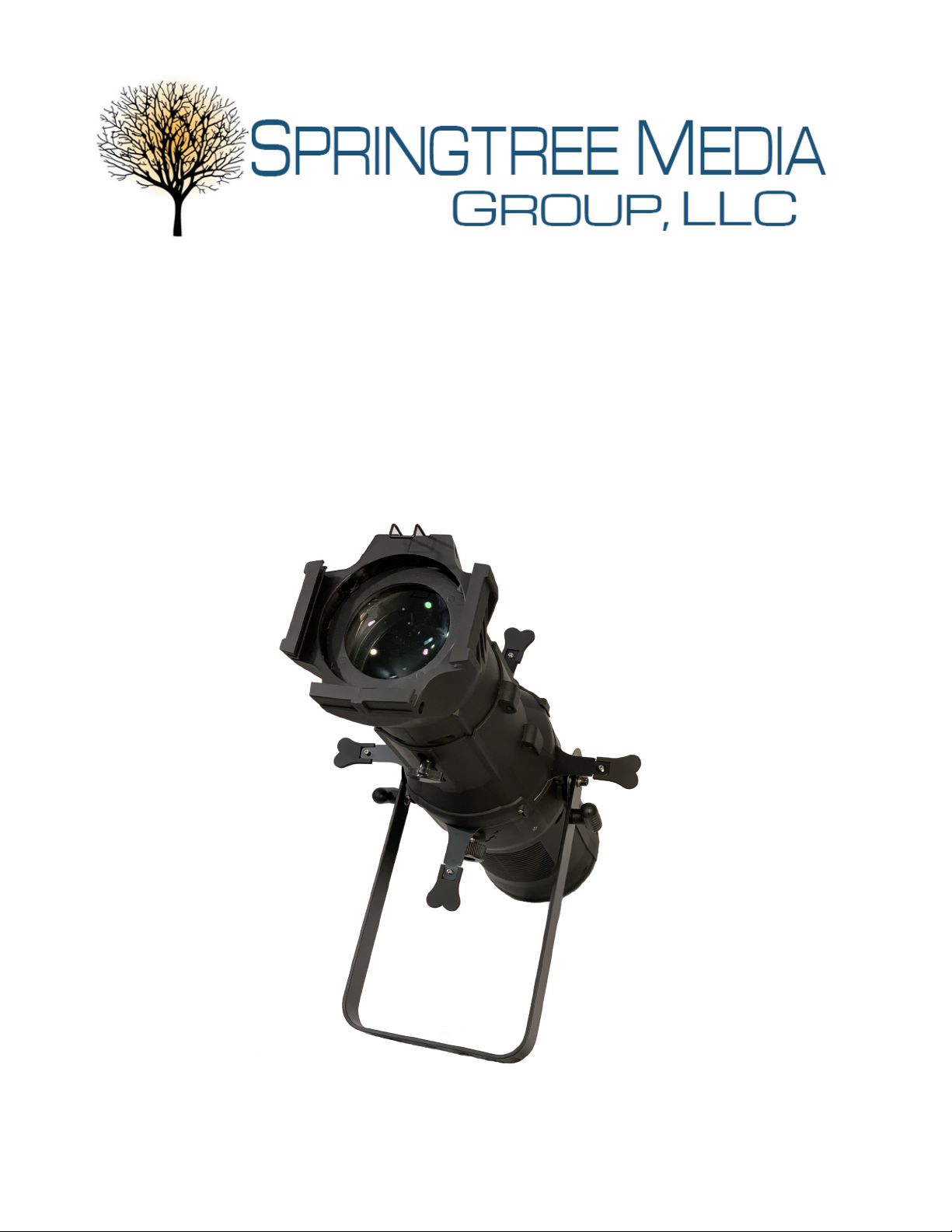

Springtree

Prole HD200 WW

LED Ellipsoidal

2(615) 599-1505 www.springtree.net

Table of Contents

1. Before You Begin

What is included.......................................................................................................................3

Safety precautions....................................................................................................................3

2. Product Information

Description................................................................................................................................4

Features....................................................................................................................................4

3. Installation

Power supply.............................................................................................................................5

Mounting....................................................................................................................................5

4. Operation

Touch buttons...........................................................................................................................6

LED display menu.................................................................................................................6-8

DMX linking...............................................................................................................................8

Adjusting the shutters................................................................................................................9

Using a gobo.............................................................................................................................9

 Usingagelorlter.....................................................................................................................9

5. Maintenance

Cleaning your ellipsoidal..........................................................................................................10

Troubleshooting.......................................................................................................................10

6. Technical Specications

Beam angles............................................................................................................................11

Dimensions..............................................................................................................................11

Warranty...................................................................................................................................12

Contact us...............................................................................................................................12

(615) 599-1505 www.springtree.net

Before You Begin

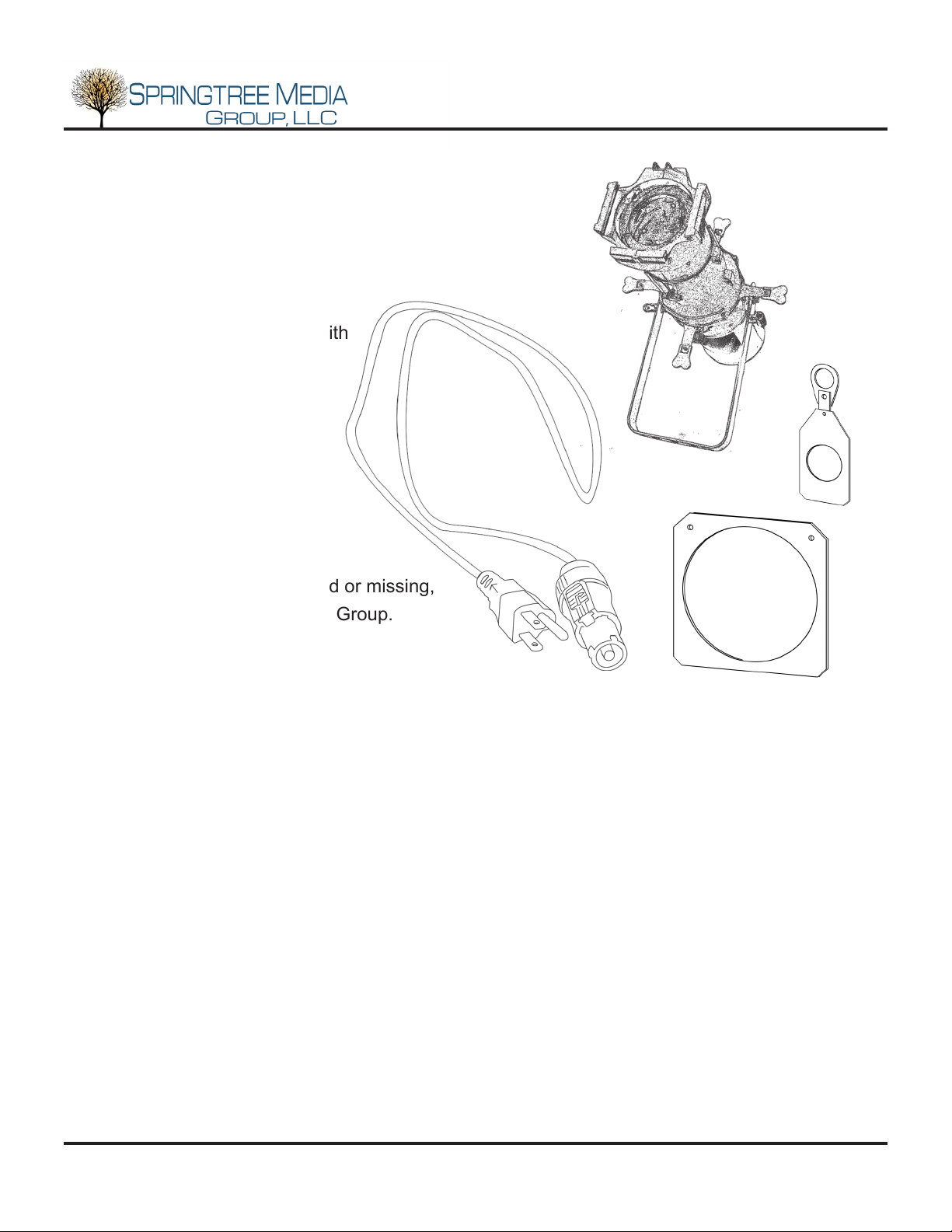

What is included

When you open your package, there should

be four items inside of the box:

1. One LED Ellipsoidal light with

a 19°, 26°, or 36° lens

2. One gobo holder

3. One gel frame

4. One Powercon power cord

*If any of these items is damaged or missing,

please contact Springtree Media Group.

Safety precautions

•Toreducetheriskofelectricalshockorre,donotexposethisunittomoisture.

• Be sure that the local power outlet matches that of the required voltage for your unit

• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt

 toremoveorbreako󰀨thegroundprongfromtheelectricalcord.Thisprongisusedto

 reducetheriskofelectricalshockandreincaseofaninternalshort.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never plug this unit into a dimmer pack.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

between this device and a wall.

•ThisxtureisintendedforindooruseONLY.

• During long periods of non-use disconnect the unit main power.

• Always mount this unit in a safe and stable matter.

• Keep this manual for as long as you own this product!

4(615) 599-1505 www.springtree.net

• 200W Warm White LED COB

• Digital Display

• Interchangeable 19°, 26°, or 36° lenses

• Lightweight 13 lb body

• Three pin XLR jacks

• 3 DMX Modes (1 chan, 2 chan and 4 chan)

• Gobo holder

• Gel frame

• 4 shutters for controlled spotlighting

• Linking Powercon IN/OUT

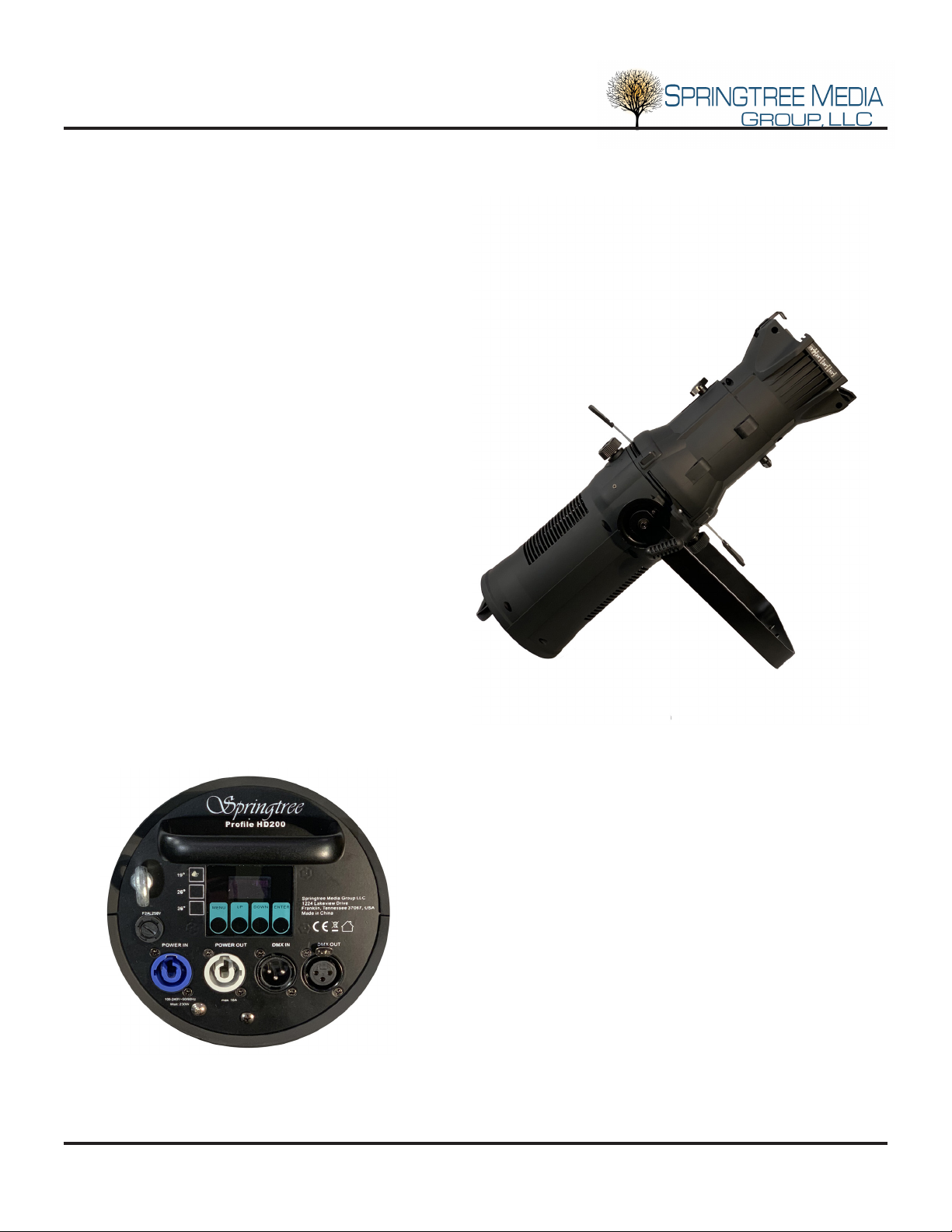

Product Information

Features

Description

 TheSpringtreeProleHD200WW

LED Ellipsoidal is a powerful, versatile

xturewithalloftheprofessionalfeatures

found on higher priced units.

(615) 599-1505 www.springtree.net

Power Supply

Before plugging your unit in, be sure the source voltage in your area matches the voltage

required for your lighting setup. Every unit has a power supply capable of 120V. Because line volt-

age may vary from venue to venue, you should be sure your unit voltage matches the wall outlet

voltage before attempting to operate your unit.

* Always connect this product to a protected circuit with an appropriate electrical ground to

avoidtheriskofelectrocutionorre.

Mounting

When mounting your ellipsoidal, make sure there is adequate room for ventilation. Operating

inaninsu󰀩cientlyventilatedroomcanleadtoanoverheatingofthedeviceandmaycauseserious

accidents. Keep a minimum distance of 6 inches around and above the device. Before

deciding on a location, mount in a way that it will be easy to access the unit for maintenance and

addressing.

Installation

6(615) 599-1505 www.springtree.net

LED display menu

Operation

Touch buttons

There are four touch buttons on the back of this unit: MENU, ENTER, UP and DOWN.. Normally

theLEDwilldisplaythecurrentDMXaddresscodeofthexture.PressMENUtochoosethede-

siredfunctionandpressENTERtoconrm.

Up and Down will also scroll thru Menu Options

System Info

(Enter)

Firmware (Enter)- Firmware Version Displayed

Hours (Enter) – Hours of use displayed

DMX Address

(Enter)

Up/Down Select (Enter)

Options: 1-512

DMX Mode

(Enter)

Select 1 Ch, 2 Ch, 4 Ch (Enter)

1 Ch. 1- Dimmer

2 Ch. 1- Dimmer

2- Strobe

4Ch 1- Dimmer

2- Strobe

3- Dimmer Mode 0-126 LED

127-255 Halogen

4- Dimmer Curves 0-005 No Function

006-063 Linear

064-127 Exponential

128-191 Logarithmic

192-255 S-Curve

Slave

(Enter)

Up/Down Select (Enter)

Options: Yes

Stand Alone

(Enter)

Static (Enter)

Dimmer 1-255 (Enter)

Dimmer Fine 1-255 (Enter)

Strobe 1-255 (Enter)

(615) 599-1505 www.springtree.net

LED display menu cont.

Up and Down will also scroll thru Menu Options

System Info

(Enter)

Firmware (Enter)- Firmware Version Displayed

Hours (Enter) – Hours of use displayed

DMX Address

(Enter)

Up/Down Select (Enter)

Options: 1-512

DMX Mode

(Enter)

Select 1 Ch, 2 Ch, 4 Ch (Enter)

1 Ch. 1- Dimmer

2 Ch. 1- Dimmer

2- Strobe

4Ch 1- Dimmer

2- Strobe

3- Dimmer Mode 0-126 LED

127-255 Halogen

4- Dimmer Curves 0-005 No Function

006-063 Linear

064-127 Exponential

128-191 Logarithmic

192-255 S-Curve

Slave

(Enter)

Up/Down Select (Enter)

Options: Yes

Stand Alone

(Enter)

Static (Enter)

Dimmer 1-255 (Enter)

Dimmer Fine 1-255 (Enter)

Strobe 1-255 (Enter)

Settings

(Enter)

Display Reverse

Up/Down Select (Enter)

On/Off (Enter)

Frequency (Enter) (LED PWM frequency for video)

Up/Down Select (Enter)

Options: 3 KHz

6 KHz

12 KHz

24 KHz

Gamma Correction (Enter) (color dimming ratio for video)

Up/Down Select (Enter)

Options: No

2.2

2.4

Factory Reset (Enter)

Reset (Enter)

Auto Lock (Enter)

Up/Down Select (Enter) To Lock/ Unlock hold

Up and Down for 5 sec.

Options: On

Off

Dimmer Response (Enter)

Up/Down Select (Enter)

Options: LED

Halogen

Dimmer Curve (Enter)

Up/Down Select (Enter)

Options: S-Curve

Logarithmic

Exponential

Linear

DMX Fail (Enter)

Up/Down Select (Enter)

Options: Blackout

Hold

Emergency Light

Display Blackout (Enter)

Up/Down Select (Enter)

Options: On

Off

8(615) 599-1505 www.springtree.net

LED display menu cont.

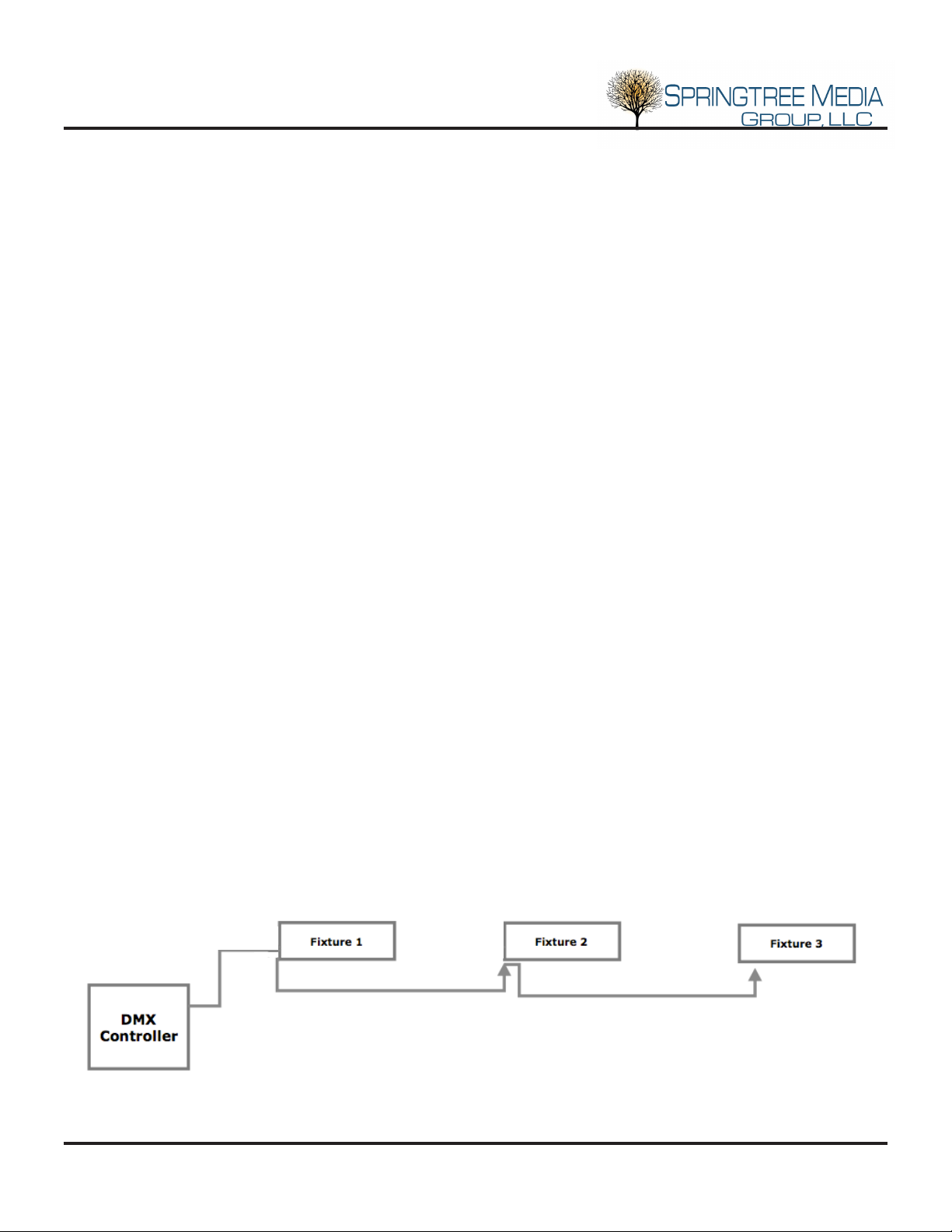

DMX linking

An LED Ellipsoidal can be connected to a DMX controller by a 3-pin XLR cable, allowing total

control over one or more lights. To do this, connect an XLR cable from the DMX-input (labeled DMX

IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its DMX-in-

puttotherstunit’sDMX-output(labeledDMX OUT) to control and synchronize muiltiple lighting

units at once. DMX IN

DMX IN DMX IN

DMX OUT DMX OUT

Settings

(Enter)

Display Reverse

Up/Down Select (Enter)

On/Off (Enter)

Frequency (Enter) (LED PWM frequency for video)

Up/Down Select (Enter)

Options: 3 KHz

6 KHz

12 KHz

24 KHz

Gamma Correction (Enter) (color dimming ratio for video)

Up/Down Select (Enter)

Options: No

2.2

2.4

Factory Reset (Enter)

Reset (Enter)

Auto Lock (Enter)

Up/Down Select (Enter) To Lock/ Unlock hold

Up and Down for 5 sec.

Options: On

Off

Dimmer Response (Enter)

Up/Down Select (Enter)

Options: LED

Halogen

Dimmer Curve (Enter)

Up/Down Select (Enter)

Options: S-Curve

Logarithmic

Exponential

Linear

DMX Fail (Enter)

Up/Down Select (Enter)

Options: Blackout

Hold

Emergency Light

Display Blackout (Enter)

Up/Down Select (Enter)

Options: On

Off

(615) 599-1505 www.springtree.net

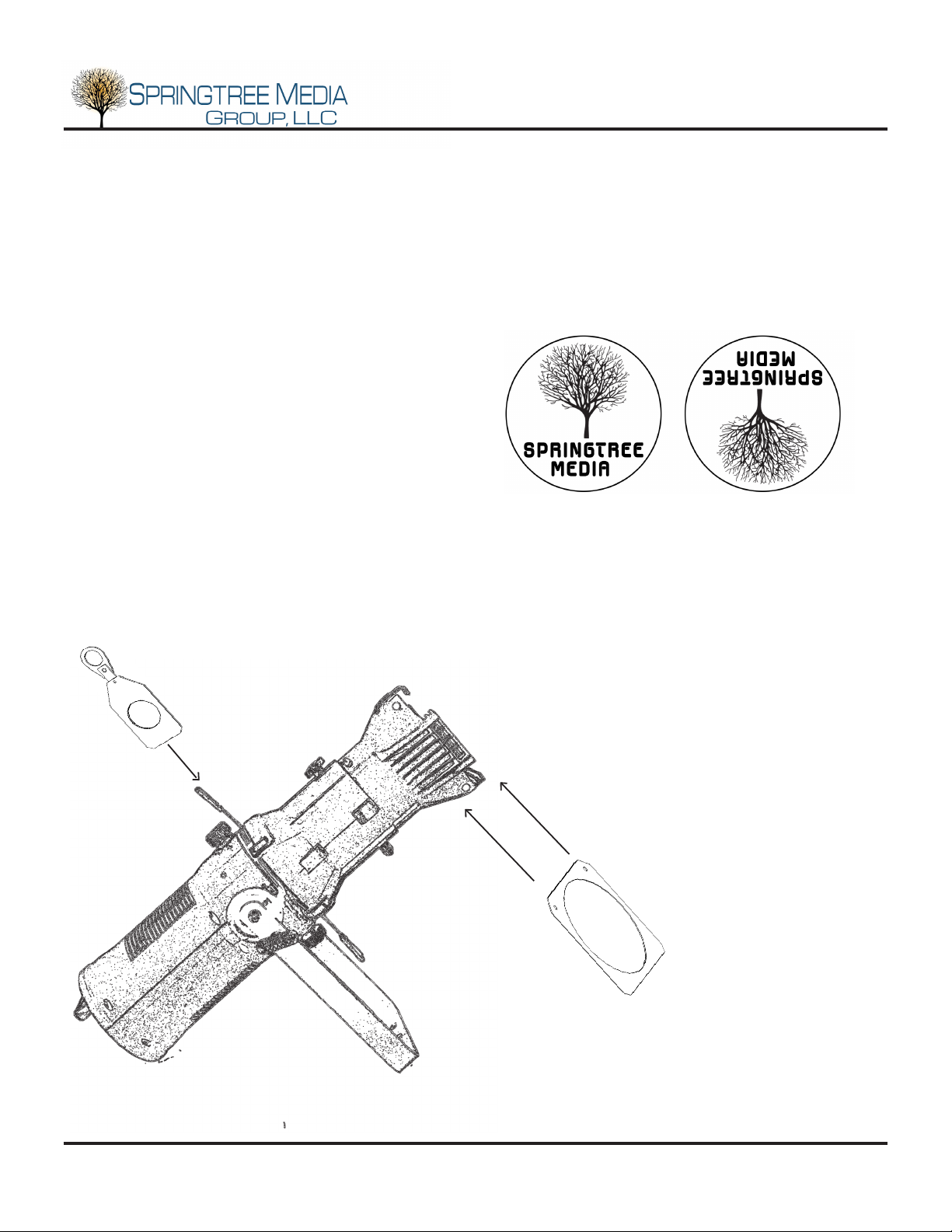

Adjusting the shutters

To adjust the width and shape of the beam, simply push or pull any of the four shutters

located around the body of the ellipsoidal.

Gobo holder

Gel frame

Framing shutter

Using a gobo

If you want to shape your light with a gobo,

insert it into the included gobo holder so that it is

visible through the circular hole. Slide the holder

into the slot located in front of the top shutter.

In order for your gobo to be projected correctly,

itshouldbeinsertedupsidedownandipped.

Afteryou’veinsertedyourgobointotheholder,screwtheholdershutsothatthegoboissecure

and does not move. When removing the gobo, make sure to let it cool before handling.

To look like this Insert like this

Using a gel or lter

To alter the color of your light beam

insert a gel into the included gel frame.

Screw the frame closed so that the

gel is secure and does not move.

Slide the holder into the slots

located in front of the lens.

When removing the gel and

holder, make sure to let it

cool before handling.

10 (615) 599-1505 www.springtree.net

Maintenance

Cleaning your ellipsoidal

Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be

carried out periodically to optimize light output.

  1.Usenormalglasscleanerandasoftclothtowipeo󰀨theoutsidecasing.

2. Clean the external optics with glass cleaner and a soft cloth every 20 days.

3. Always be sure to dry all parts completely before plugging the unit back in.

*Cleaning frequency depends on the environment in which

the unit operates (i.e. smoke, fog residue, dust, dew).

Troubleshooting

Listed below are a few common problems that you may encounter

when using this product:

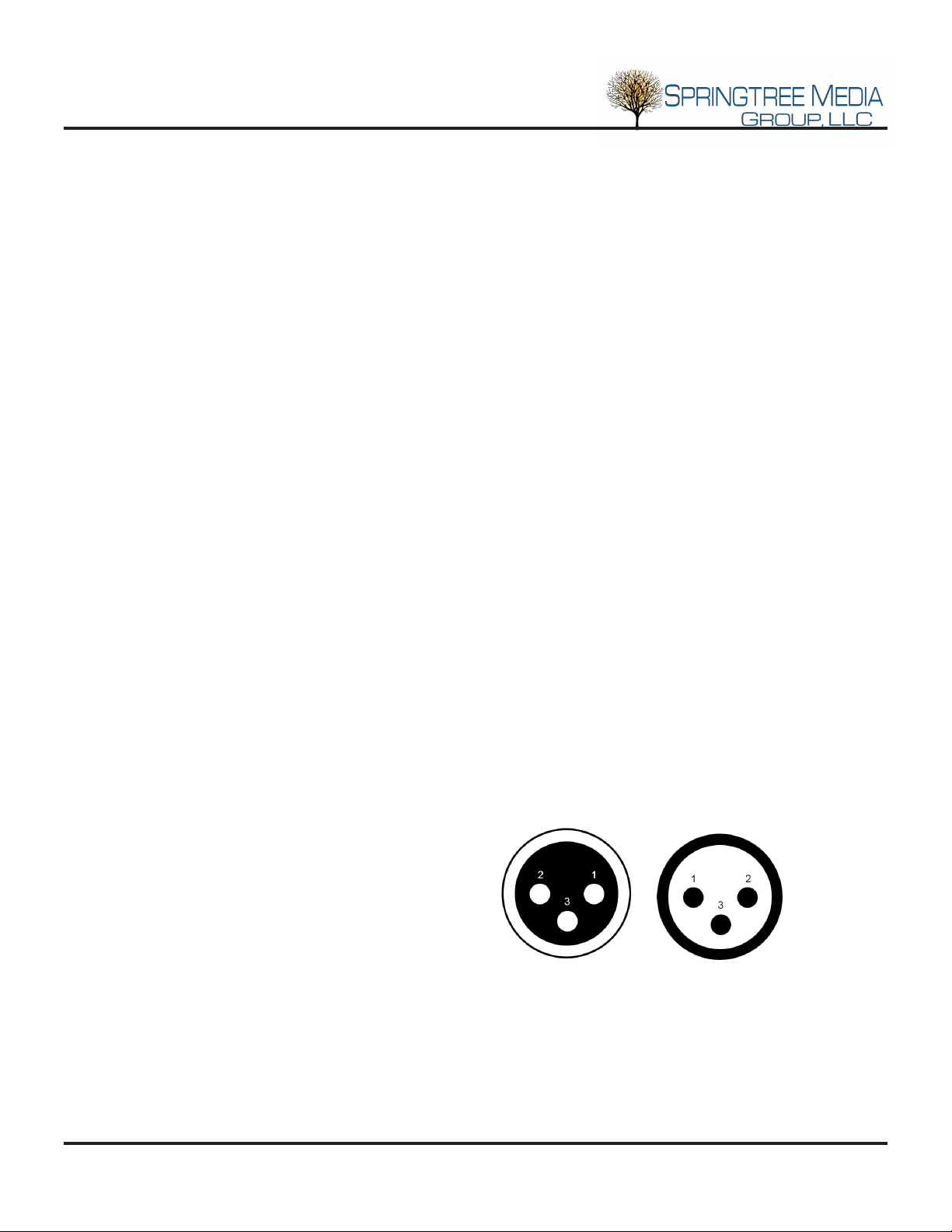

Unit not responding to DMX:

1. Check that the DMX cables are

connected properly and are

wired correctly. DMX output DMX input

2. Check that all cables are connected to the right connectors; it does matter

which way the inputs and outputs are connected.
