SPX FLOW PE10 Series Manuale utente
SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699 USA
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
powerteam.com
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 1

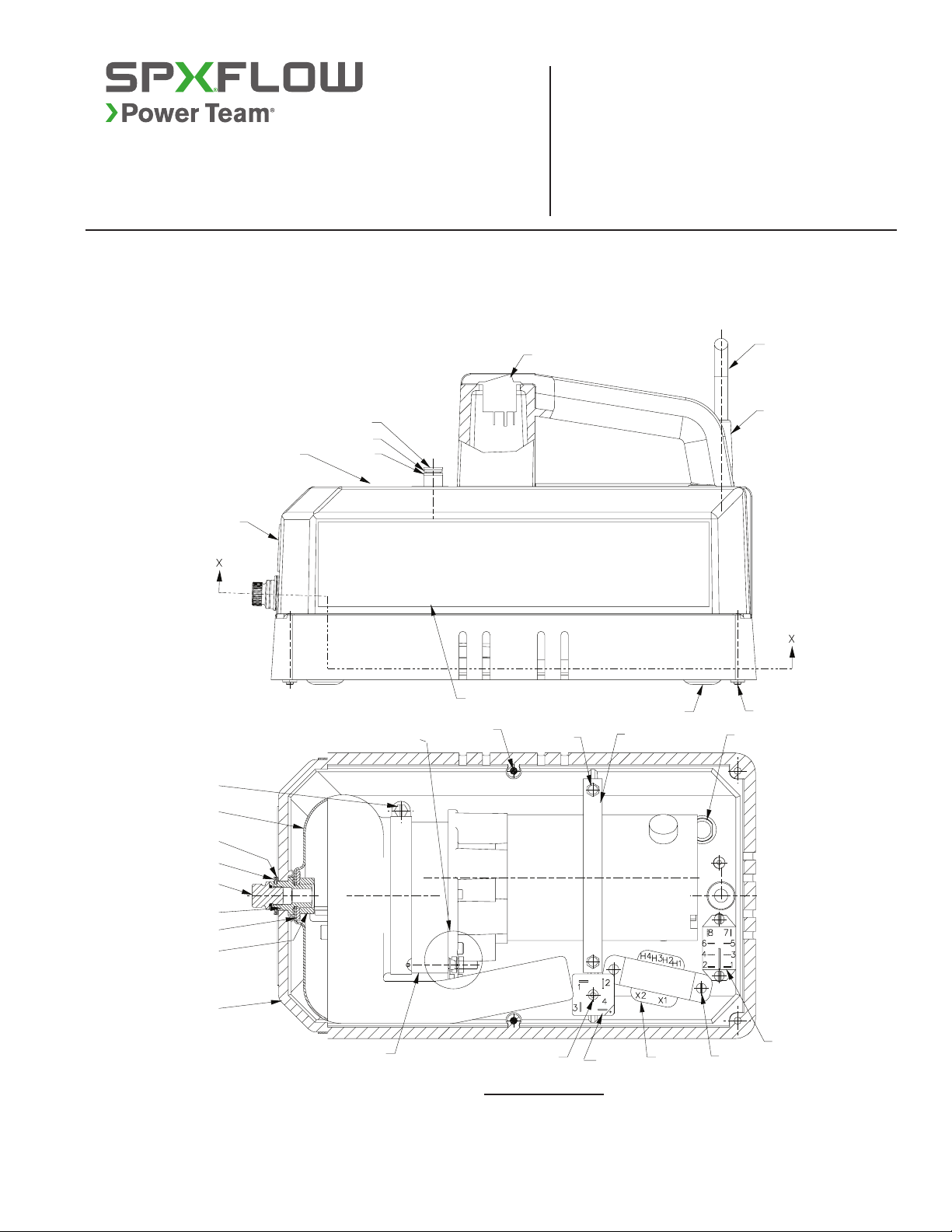

MODEL B (Model C for PE102A-GRC)
ELECTRIC HYDRAULIC PUMP
Max. Capacity: 10,000 PSI
Parts List for:
PE10 Series
PR10 Series
Form No. 101703
1
2
3
4
56
7
8, 9
10
11
12 13 14, 15 16
17
18
19
20
21
22
23
24
25
26,
27
28
29
30
31
See Detail V
For manifold or
valve options, see
"PARTS INCLUDED
BUT NOT SHOWN"
section of list.
Basic Pump Assembly
See sheet 6
SECTION X-X
Basic Pump Assembly
See sheet 6
See Detail V
For manifold or
valve options, see
"PARTS INCLUDED
BUT NOT SHOWN"
section of list.
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 2
Parts List
ITEM
PART
NO.
QTY DESCRIPTION
1
251072
1
Warning & Fill Instructions Decal
2 *11863 2 Backup Washer (1/2 X 3/8 X 1/16)
3 *10268 2
O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104,
PE104-220, PR102, & PR104)
† 17716 2
O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104,
PE104-220, PR102, & PR104)
*10268
3
O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)
† 17716 3 O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)
4 202505 1
Bushing (For PE102, PE102A, PE102-220, PE102A-220,
PR102, & PR104)
5 251051 1 Rocker Switch
6 24733 1 Cord Set (For PE Series only)
250894
1
Electrical Plug (For PR Series only)
12293 1.5 ft. Electrical Cable (For PR Series only)
7
251048
1
Bushing
8 12515 4 Machine Screw (10-24 UNC X 1 3/4 Lg.)
9 207405 4 Locknut (10-24 UNC)
10
420607
1
Base Plate
11 350672 2 Trade Name Decal (For PR Series)
351035
2
Trade Name Decal (For PE Series)
252102 2 Trade Name Decal (For LUKAS)
12 14456 2
Screw (#10-24 X 1/2 Lg.; Place ground wire terminal between
cover & housing)
13
211060
2
Screw (#9-15 X 1” Lg.)
14 251039 .5 ft. Motor Mounting Strap
15
251041
3”
Channel Rubber
16 251045 1 “D” Bushing Plug
17 251046 1 Relay (For PE Series only)
18
15468
4
Screw (#6-32 X 3/8 Lg.)
19 251049 1 Transformer (For PE Series only)
20
251050
1
Rectifier (For PE Series only)
21 251073 1 Screw (6-32 X 3/4 Lg.; For PE Series only)
22 64363 1 Plastic Housing
64616
1
Plastic Housing (For PE102AR & PE102AR-220)
23 10394 1 Hex Nut (5/8-18 UNF)
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 3
Parts List continued
ITEM
PART NO.
QTY
DESCRIPTION
24 13324 1 Washer (For 5/8 Bolt)
25 350583 1 Filler Adapter
26
*13755
1
O-ring (.558 X .414 X .072)
† 250135 1 O-ring (.558 X .414 X .072)
27
251280
1
O-ring Boss Plug
28 251043 1 Retaining Ring
29 201373 1 Retainer Washer
30
420643
1
Bladder
† 420736 1 Bladder
31
2001397
1
Bladder Spacer
PARTS INCLUDED BUT NOT SHOWN
PART NO.
QTY
DESCRIPTION
† 250238 1 Decal (EPR Seals)
350646
1
Cord Set (For PR Series only)
10855 2
Screw (Torque to 160/180 in. lbs. Tighten the screw on the right-hand
side facing the pump first.)
*10268
1
O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)
† 17716 1 O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)
251253
1
Remote Switch (For PR102A-DEUT)
251635 1 Remote Switch (For PE102A-EMP)
251048 1 Bushing (For units equipped with a remote switch)
250176
1
Fuse (For PE102, PE102A, & PE102A-220)
206962 1 Fuse (For PE102-220, PE102A-220, & PE104-220)
251561
1
Receptacle (For PE102AR & PE102AR-220)
14456 2 Screws (#10-24 X 1/2 Lg.; For PE102AR & PE102AR-220)
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 4
OTHER OPTIONS AND ACCESSORIES
PART NO.
QTY
DESCRIPTION
9562 1
Manifold (For PE102A, PE102A-220, PR102A, PE102A-EMP, &
PR102A-DEUT; See Form No. 101344)
9561 1 2 Position, 2-Way Valve (For PE102, PE102-220, PE102A-EMP,
PR102A-DEUT, & PR102; See Form No. 101327)
9563 1
3 Position, 4-Way Valve (For PE104, PE104-220, & PR104; See Form
No. 101326)
9560 1 Pressure Regulator (For PE102-ANCHOR; See Form No. 101328)
10461 1 Foot Switch Assembly
25017
1
Hand Switch Assembly
9625 1 Pressure Switch (See Form No. 100589)
BP12V 1
12 Volt Battery Pack (Includes sealed lead acid battery, 115V charger,
battery-to-pump 4 ft. cord set, carrying case and shoulder strap.
VC220 1
Voltage Converter w/ Plug Adapters (Converts 220V 50/60 cycle to 110V
50/60 cycle)
RB12V
1
Replacement Battery only
RC12V 1 Replacement Battery 4 Ft. Cord Set (For BP12V)
351240 1 Manifold (For PE102-28-DC & PE102-28-220DC)
351845
1
Electrical Plug (For LUKAS)
Parts List continued
Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.
Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.
NOTE: For LUKAS brand pumps, if additional parts (that are not shown here) need replacing, contact your nearest
LUKAS service center.
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 5
Parts List
DETAIL FOR 4-WAY VALVE OUTLET CHECK
(FOR PE104, PE104-110-3000, PE104-110-5000, PE104-220, &PR104)
ITEM
PART NO.
QTY
DESCRIPTION
1 209795 1 Outlet Ball Stop
2
*10445
1
Compression Spring (5/32 O.D. X 3/4 Lg.)
3 *12223 1 Ball (3/16 Dia.)
Part numbers marked with an asterisk (*) are contained in Repair Kit No. 3000008.
DETAIL V
ITEM
PART NO.
QTY
DESCRIPTION
1
12515
1
Machine Screw (#10-24 UNC X 3/4 Lg.)
2 10197 2 Nut (#10-24 UNC)
3 11108 2 Lockwasher (#10 External Tooth)
1
2
3
1
2
3
Power Cord Ground
(Must be isolated between
nuts and can be at top
or bottom of stack.)
Grd
Note: Serrated lockwasher must
be adjacent to pump body.
1
2
3
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 6

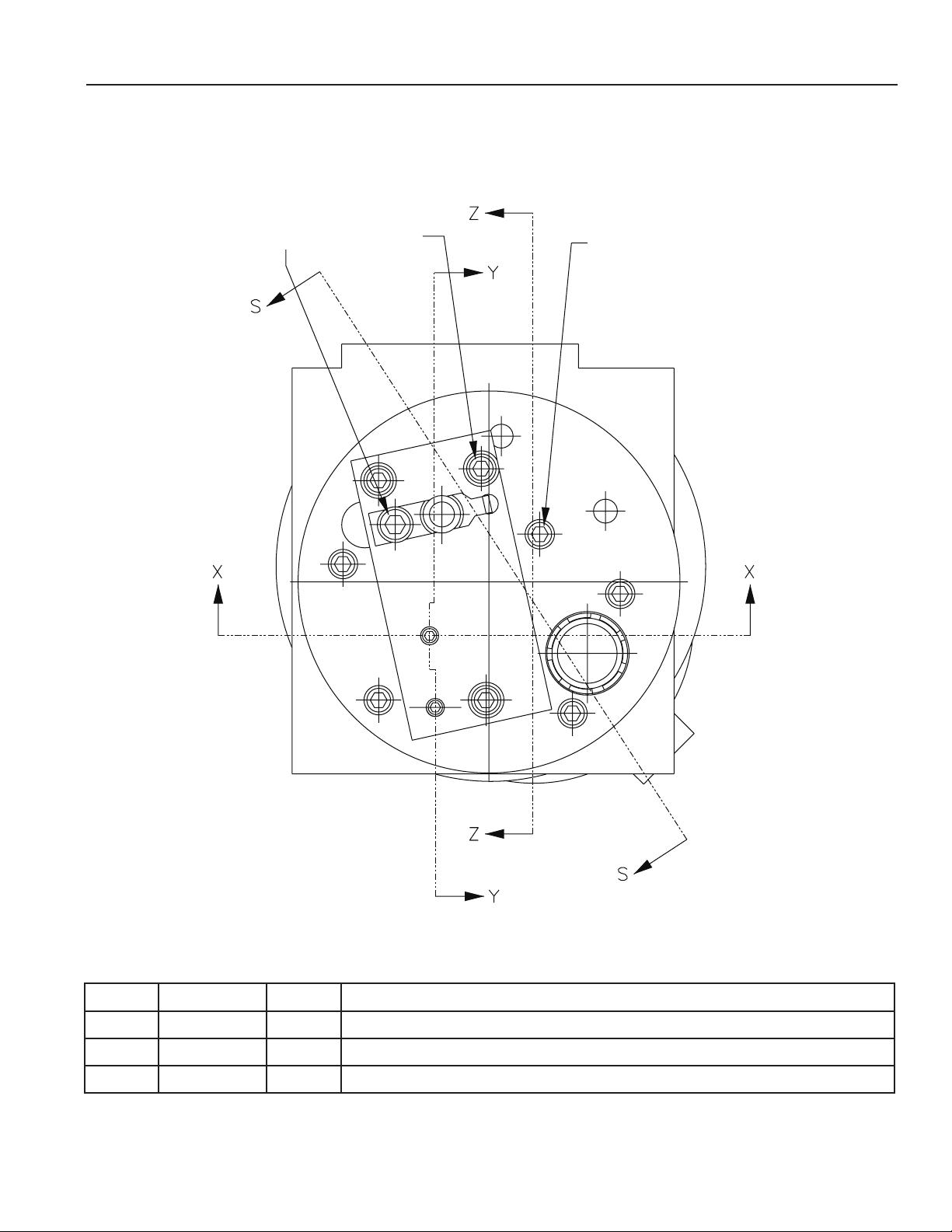

Parts List
BASIC PUMP ASSEMBLY
ITEM
PART NO.
QTY
DESCRIPTION
1 10002 1 Screw (1/4-20 UNC X 3/8 Lg.; Torque to 80/100 in. lbs.)
2 14423 3 Screw (#10-24 X 2” Lg.; Torque to 60/80 in. lbs.)
3
14426
5
Screw (#10-24 UNC X 1” Lg.; Torque to 60/80 in. lbs.)
12 3
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 7
Parts List

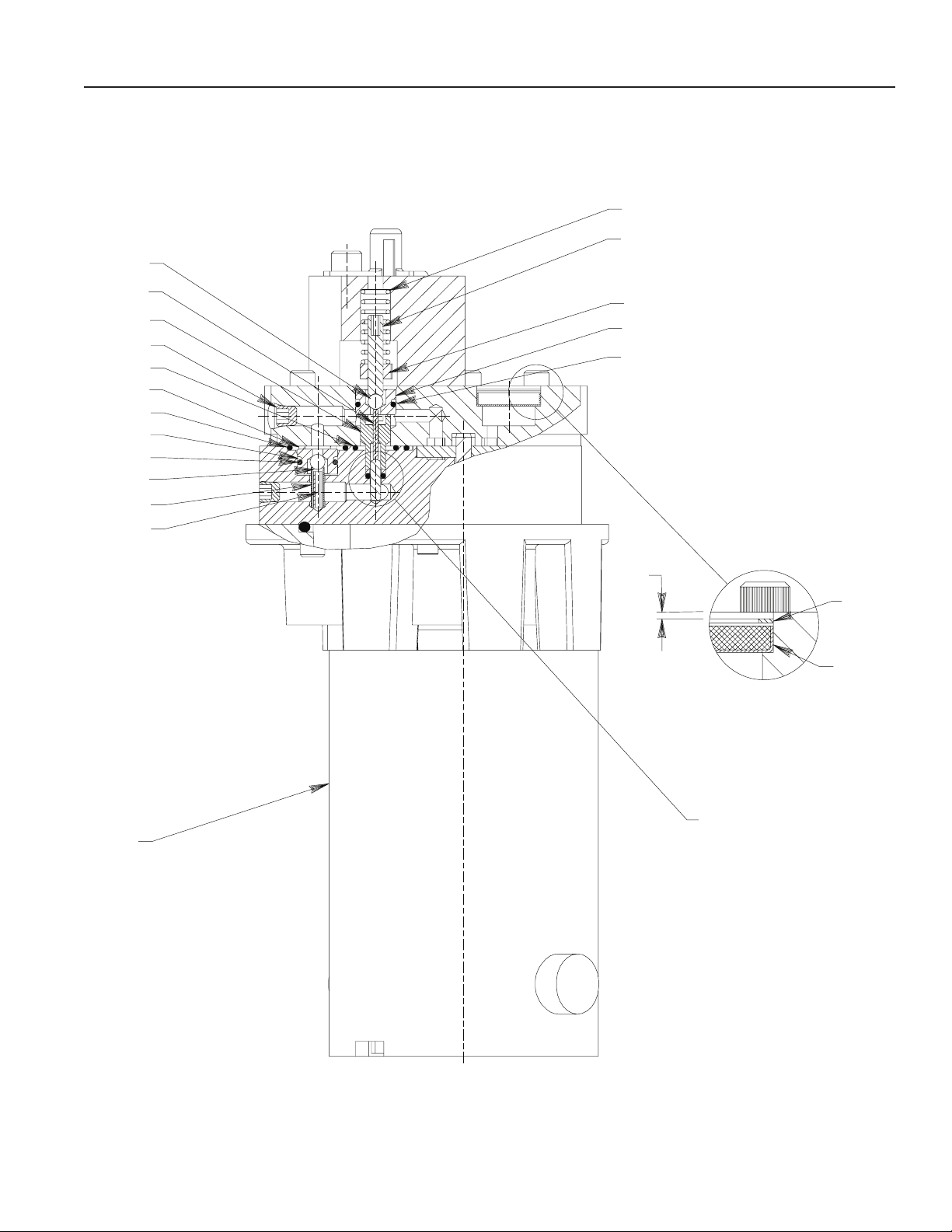

SECTION X-X
1
2
3
4
5
6
7
8
9
10
11
12
4
13
14
15
16
17
18
11
.030
.090
See
Detail
T
See
Detail
T
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 8
ITEM
PART NO.
QTY
DESCRIPTION
1
*14484
1
Compression Spring (3/8 O.D. X 1” Lg.)
2 *251067 1
Set Screw (#10-24 UNC X 1” Lg. Set unloading valve to
400/500 PSI)
3
*207405
1
Locknut (10-24 UNC)
4 *251065 1 Replaceable Seat
5 *10268 1 O-ring (1/2 X 3/8 X 1/16)
† 17716
1
O-ring (1/2 X 3/8 X 1/16)
7 *214578 1 Filter
8421297-110-G 1
Motor (For PE102, PE102A, & PE104; For replacement
brush assembly, order [2] #251114-110)
421297-220-G 1
Motor (For PE102-220, PE102A-220, & PE104-220; For
replacement brush assembly, order [2] #251114-220)
421297-12-G 1
Motor (For PR102, PR102A, & PR104; For replacement
brush assembly, order [2] #251114-220)
9 11512 1 Roll Pin
10 *15141 1 Compression Spring (3/16 O.D. X 5/8 Lg.)
11
*12223
2
Ball (3/16 Dia.)
12 *13943 1 O-ring (1/2 X 3/8 X 1/16)
† 17716
1
O-ring (1/2 X 3/8 X 1/16)
13 *10302 1 O-ring (3/4 X 5/8 X 1/16)
† 12400 1 O-ring (3/4 X 5/8 X 1/16)
14
*11031
1
Copper Washer (15/32 X 5/16 X 1/32)
15 *12098 1 O-ring (9/16 X 7/16 X 1/16)
† 250136
1
O-ring (9/16 X 7/16 X 1/16)
16 15130 3 Plug (1/16 NPTF)
17 251068 1 Guide
18
13937
1
Dowel Pin
Parts List
Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.
Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 9
ITEM
PART NO.
QTY
DESCRIPTION
1 10796 1 Dowel Pin
2 *214992 1 Backup Washer (15/64 X 1/8 X 3/64)
3
*17797
1
O-ring (1/4 X 1/8 X 3/64)
† 17713 1 O-ring (1/4 X 1/8 X 3/64)

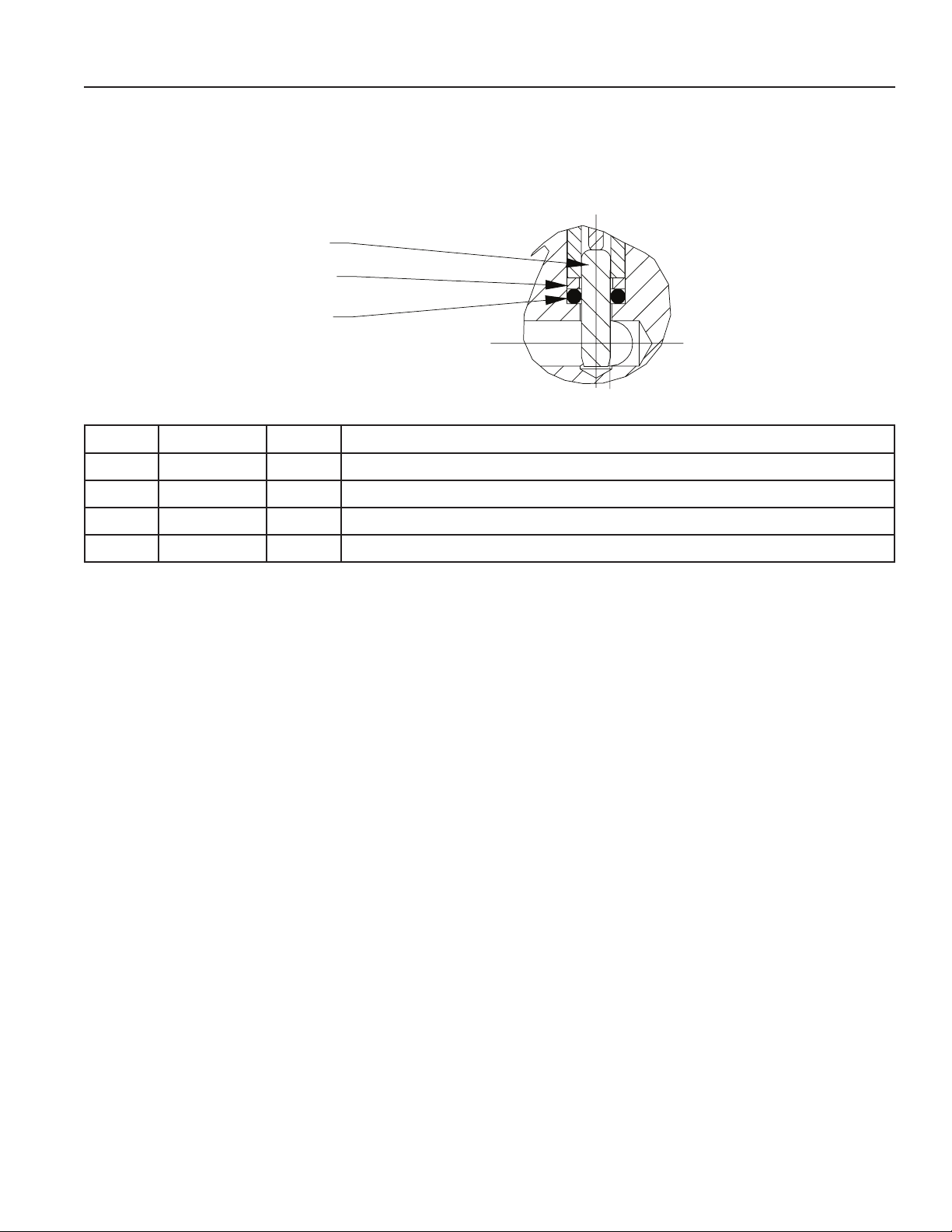

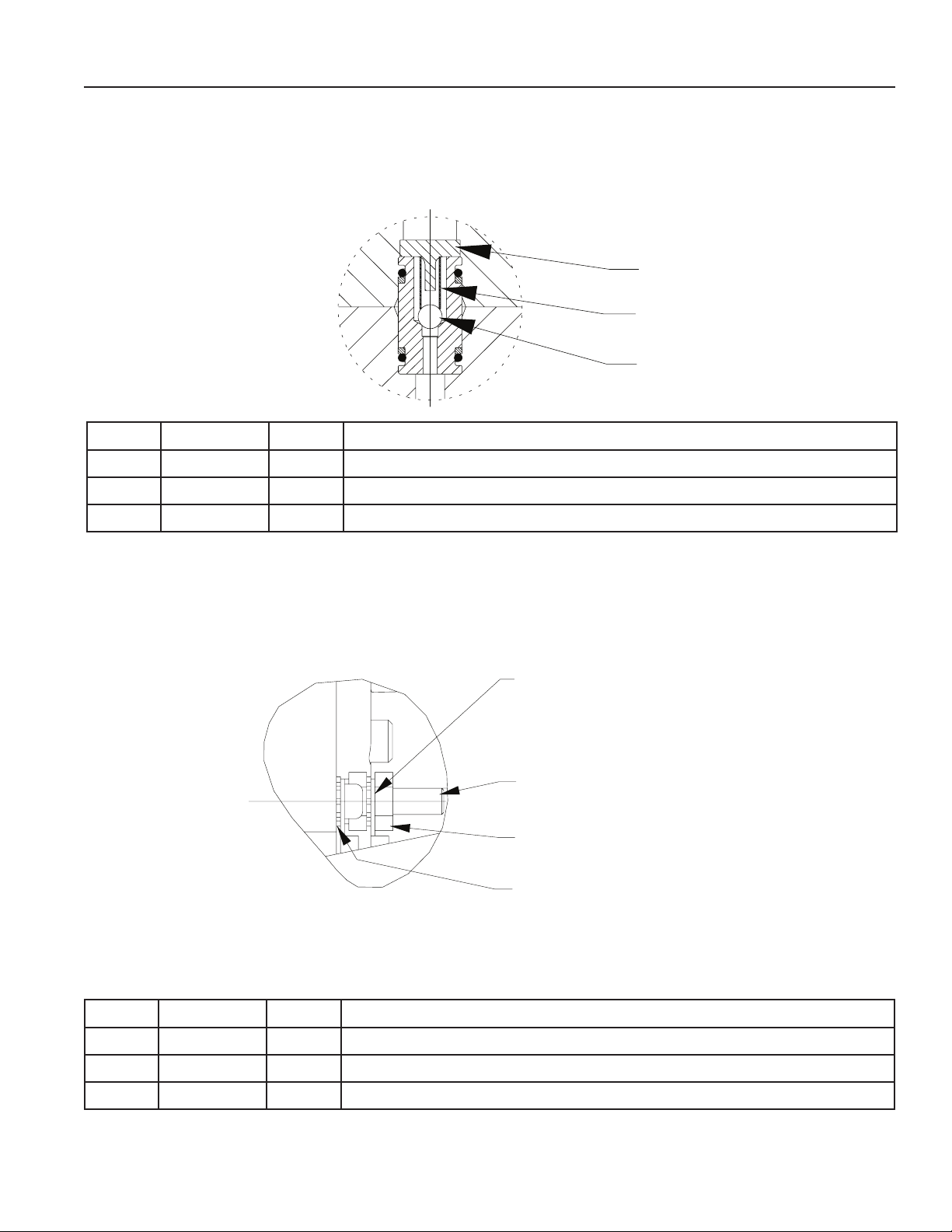

DETAIL T
Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.
Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.
Parts List
1
2
3
DETAIL T
Form No. 101703
Rev 11 Date: June 2019
© 2019 SPX FLOW, Inc. 10
Parts List

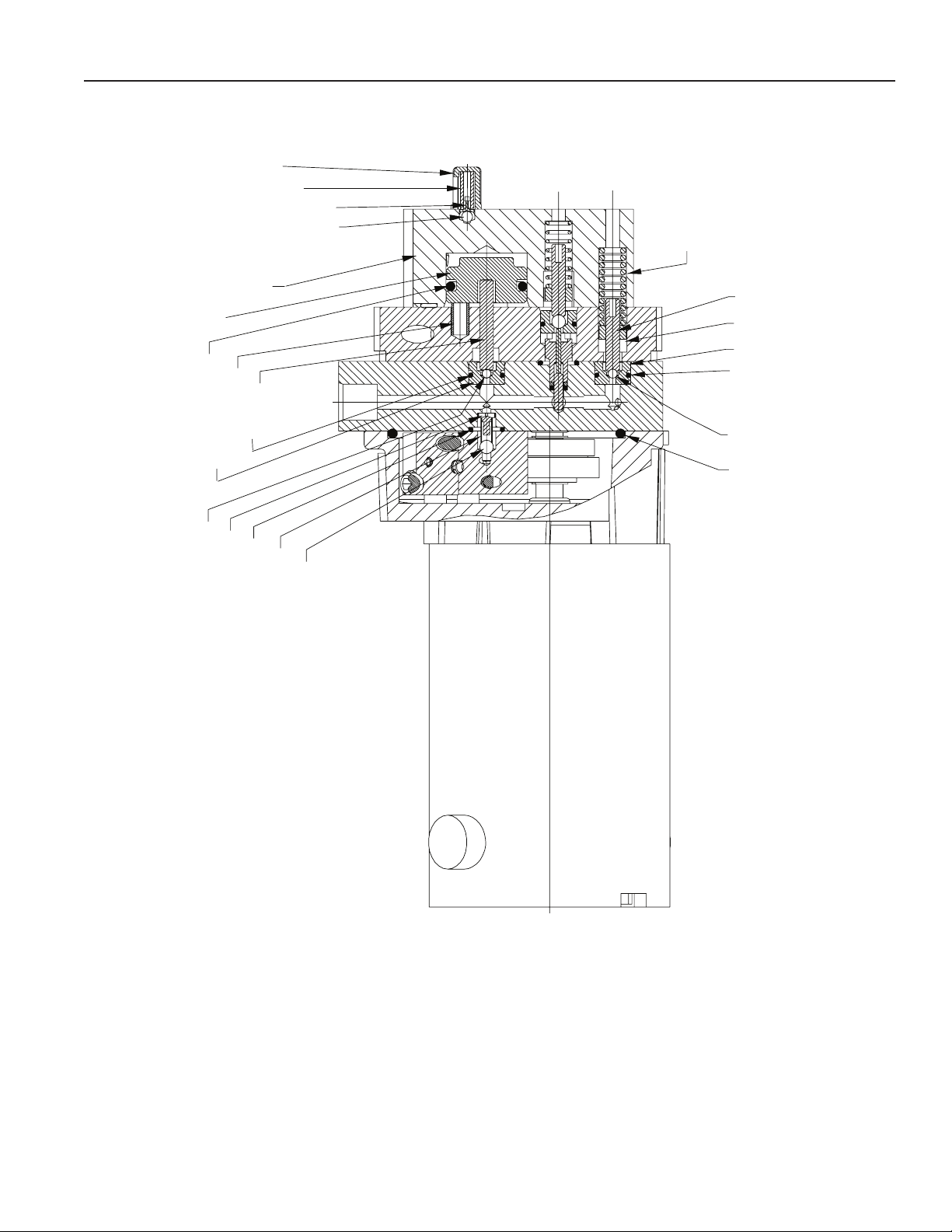

SECTION Y-Y
1
3
4
5
6
8
9
10
11
6
12
8
5
6
13
14
15
16
17
18
19
20
21
