S6 Microsonde
User Guide
Introduction
The S6 Microsonde is a small diameter 6.4mm (0.25") battery
powered sonde transmitting on 33kHz and is compatible with a
wide range of Radiodetection locators. With its small diameter,
the S6 Microsonde is particularly useful in small diameter ducts
where it can be used to trace the path of the duct and in the
precise location of blockages or collapses.
The S6 Microsonde can be ‘blown’ or attached to a cable before
jetting it into the duct and may also be connected to a traditional
push rod and inserted into the duct or pipe. The route of the duct
can be traced using a Radiodetection locator and the precise
location and depth of a blockage can be detected.
Radiodetection supply a comprehensive range of sondes, some
locatable to depths of up to 15m (49') and with diameters ranging
from 6.4mm (0.25") to 64mm (2.52"), to suit a wide variety of
applications.
For more information on the full range of Radiodetection sondes,
go to www.radiodetection.com
Using the S6 Microsonde
The S6 Microsonde kit includes the following:
nTransmitter unit.
nMounting connector containing battery compartment with M5
female thread.
nCR425 Lithium Ion battery.
nUser guide.
Operating the S6 Microsonde
The Lithium Ion battery provides approximately 10 hours’ usage
although battery life may be shorter in very cold conditions.
When the battery is inserted and mounting connector is tted
the sonde automatically switches on and starts transmitting a
continuous locate signal.

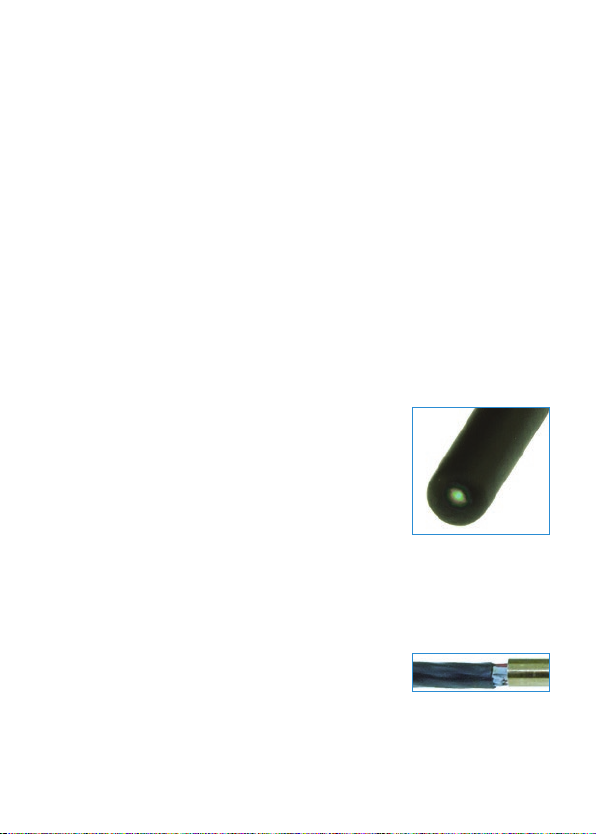

An LED at the tip of the S6 ashes slowly
when power is on. If the battery is low, the LED
will switch o – although the sonde may still
operate for some time until the battery is totally
consumed. It is advisable to replace a low
battery as soon as possible.
Pushing S6 Microsonde with cable
When the battery is inserted with the mounting piece tted, the sonde
can be tted to the end of micro cable using the M5 female thread
and if necessary removing the outer insulation of the cable. The M5
thread can also be used to connect directly to a
traditional push rod and inserted into the duct.
After the sonde and micro cable are inserted into the duct, they can
travel through the duct with the aid of jetted air or by suction.
Note: If the sonde gets stuck, it is not recommended to force it
backwards in the duct as it may get detached from the cable.
Jetting the S6 Microsonde without cable
When jetting the sonde without the use of a cable, it is recommended
to use the sonde within a protective tube when blowing through a
duct to limit possible damage to the sonde – particularly if a blockage
is encountered.
Locating the S6 Microsonde
The sonde can be used to trace the route of the duct or to locate
the precise position of a blockage within a duct. If the route of
the duct is known the location can be roughly estimated using the
jetted cable length or duct maps.
The sonde exhibits signal characteristics similar to other
Radiodetection sondes. To precisely locate the position of the
blockage use a suitable Radiodetection locator and refer to the
instructions for use of that particular locator.
If the route of the duct is not known it is recommended to trace
the sonde gradually to avoid losing the signal.
Important information
Maintenance, storage and warranty
The S6 Microsonde does not have any parts that require
maintenance by the user, other than the battery. When cleaning a
soiled device, do not allow dirt to get into the battery unit. Do not
use corrosive solvents. We recommend that the device is stored in
dry conditions at room temperature. If water gets into the battery
unit, allow it to dry completely at room temperature.
A pack of 10 replacement batteries can be ordered using
Radiodetection part number
10/SONDE-MICRO-BATPACK
.
The S6 Microsonde is intended to be used for location purposes
only and should be used in this way. Failure to do so may result in
damage to the microsonde and may invalidate the warranty.
TECHNICAL SPECIFICATIONS
Signal frequency 33kHz (32768Hz), continuous.
Battery 3V CR425 Lithium Ion battery providing
approximately 10 hours’ use.
Indicators Flashing power-on LED
Maximum depth Approximately 2 meters, condition dependent
Intended use Minimum 8mm (0.3") diameter non-conductive
tubes and pipes
Attaching method M5 female thread
Diameter 6.4mm (0.25")
Length 83 mm (3.2")
90/UG094INT/04
Copyright © 2022 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX
Corporation. Radiodetection is a trademark of Radiodetection Ltd. Due to a policy of continued
development, we reserve the right to alter or amend any published specication without notice.
This document may not be copied, reproduced, transmitted, modied or used, in whole or in part,
without the prior written consent of Radiodetection Ltd.
