Squier Affinity Strat HSS Manuale utente

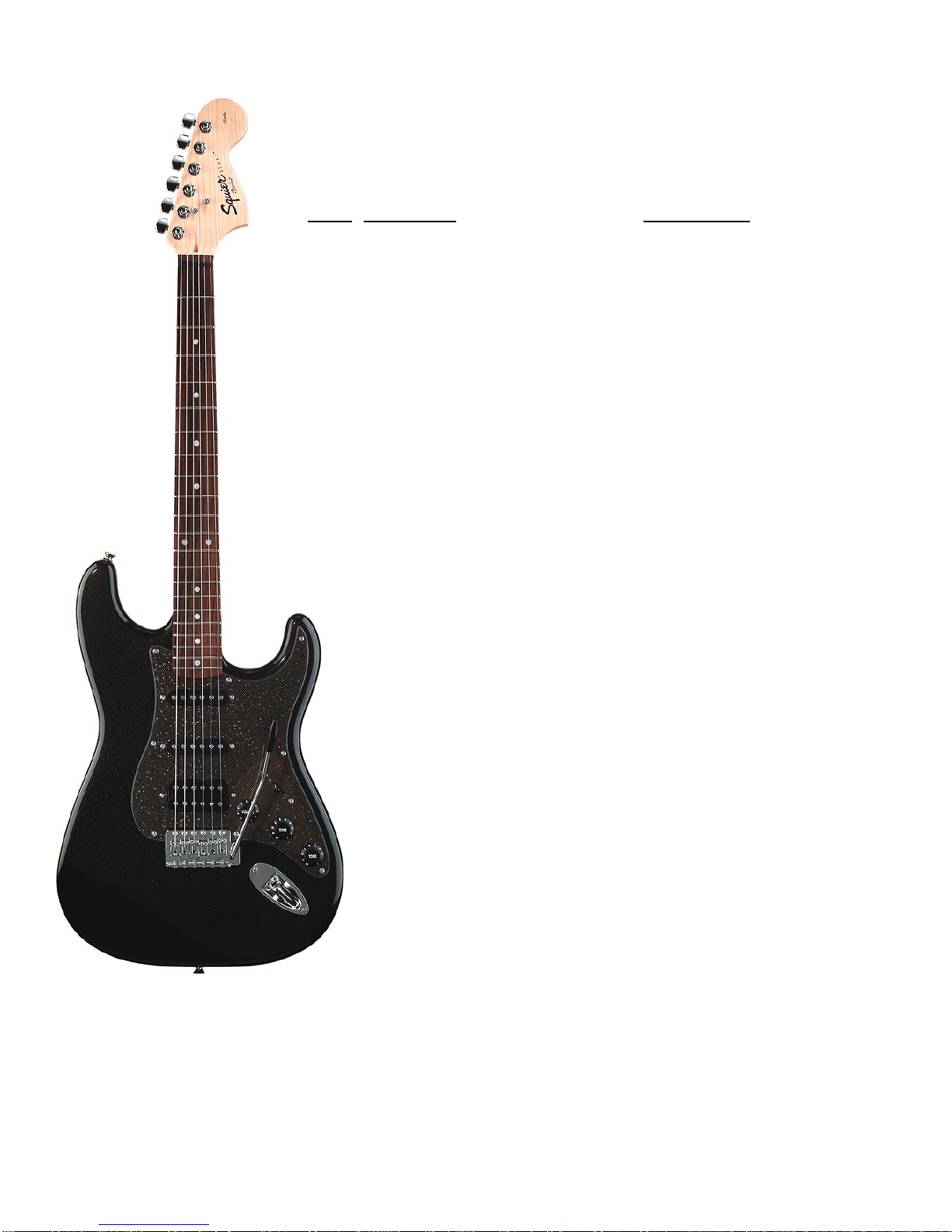

Squier Affinity Fat Strat

Affinity Fat Strats come from 2 different sources:

Affinity Series-Reliance. Serial numbers begin with “CY”

“Start Playing” Special-Cort. Serial numbers begin with “IC”

Reliant models “CY” serial numbers

Maple- m/n 0310602xxx

Rosewood- m/n 0310600xxx

Loc # Description Part Number

1 Standard Tuners (set of 6) 007-7426-000

2 Bone Nut (blank) (2) 099-4920-000

3 Vintage String Guides (pack of 2) 099-4910-000

4 Strap Buttons (2) 099-4915-000

5 Pickguard (white) 005-5435-000

5 Pickguard (black metallic) 006-2455-000

5a Pickguard Screws (24) 099-4923-000

6 Affinity Neck Pickup (white) 007-7427-000

7 Affinity Middle Pickup (white) 007-7428-000

8 Affinity Bridge Humbucker Pickup 007-7429-000

6 Affinity Neck Pickup (black) 007-7430-000

7 Affinity Middle Pickup (black) 007-7431-000

8 Affinity Bridge Pickup (black) 007-7432-000

9-11 500K Split Shaft Pot (Set of 3) 005-5440-000

9-11a Volume/Tone Knob Set (white) 007-4720-000

9-11b Volume/Tone Knob Set (black) 099-1365-000

12 5 Way Pickup Selector Switch 005-5446-000

12a Switch Tip (2) (white) 099-4940-000

12a Switch Tip (2) (black) 099-4939-000

13 Output Jack/Jack Plate 005-5449-000

14 Bridge Assembly 007-7443-000

14a Tremolo Arm 006-9969-000

Last Revision Date: 9/8/2008

Page 1 of 4

Cort models “IC” serial numbers

Maple- m/n 0310602xxx

Rosewood- m/n 0310600xxx

Loc # Description Part Number

1 Standard Tuners (set of 6) 007-3867-000

2 Bone Nut (blank) (2) 099-4920-000

3 Vintage String Guides (pack of 2) 099-4910-000

4 Strap Buttons (2) 099-4915-000

5 Pickguard (white) 005-5435-000

5a Pickguard Screws (24) 099-4923-000

5 Pickguard Assembly (w/ controls) 007-7508-000

6 Affinity Neck Pickup 005-3381-000

7 Affinity Middle Pickup 005-3382-000

8 Affinity Bridge Humbucker Pickup 005-5384-000

9 500K Split Shaft Pot (Volume) 006-2382-000

10-11 500K Split Shaft Pot (Tone) 006-2383-000

9-11a Volume/Tone Knobs (ea) (white) 005-5425-000

12 5 Way Pickup Selector Switch 005-5412-000

12a Switch Tip (2) (white) 099-4940-000

13 Output Jack 007-2892-000

14 Jack Plate (chrome) 007-2893-000

15 Bridge Assembly 005-5409-000

15a Tremolo Arm 004-1359-000

Last Revision Date: 9/8/2008

Page 2 of 4

Wiring Diagram

Last Revision Date: 9/8/2008

Page 3 of 4

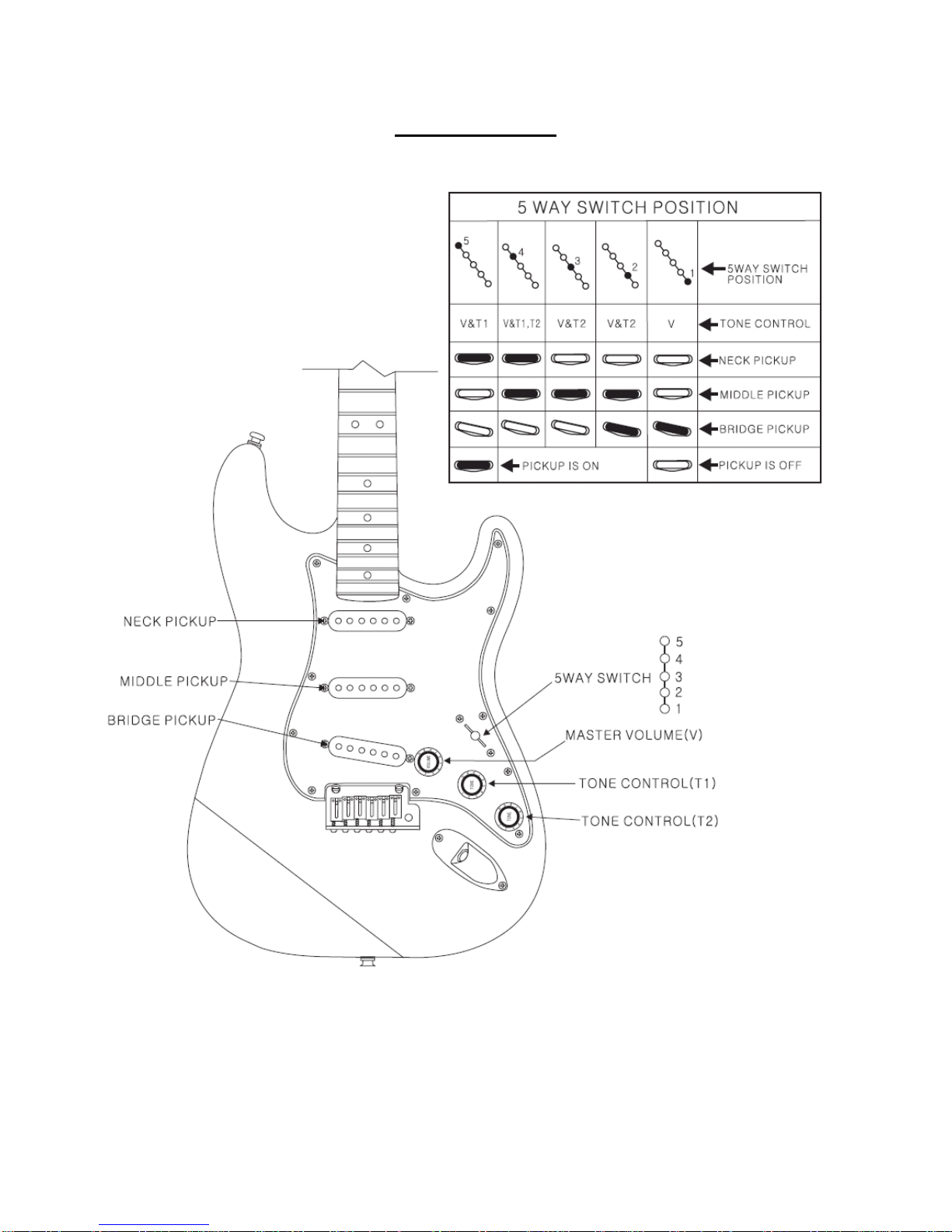

Control Function

Last Revision Date: 9/8/2008

Page 4 of 4
