L52 2C –Manual

WAM4522CB 1 Standby AB –standbygroup.se

L52 2C

Thank you for choosing a product from Standby.

Technical Data

Lens

Polycarbonate

Diodes

6+6 high power LED

Cable

2 m, basic version

Power

10-30 V DC

Ambient temperature

-40ºC to +85ºC

Power consumption

0.8 A peak at 13.8 V

0.4 A peak at 27.6 V

Size

113 x 28 x 9 mm

Approvals

Light: ECE R65 (E5)

EMC: ECE R10 (E5)

IP6K9K

Included

1 x L52 Lamp 2C

1 x gasket

1 x assembly kit

Synchronizing

12 V: Up to 12 lamps

24 V: Up to 8 lamps

Preset Settings

Part

number

Color 1

Color 2

Flash pattern

Sync mode

Input X2/X3

Color 1

Color 2

Color 1

Color 2

Color 1

Color 2

45257031

Blue

Amber

Double

Simultaneous

Alternate

Pull down

45257032

Blue

Red

Steady

45257033

Blue

White

Steady

45257034

Blue

Green

Double

45267031

Red

White

Double

45287031

Amber

White

Steady

45287032

Green

Amber

Double

45287034

Amber

Red

Steady

To change the flash pattern setting, see Flash Pattern. To change the sync mode setting, see Sync Mode. To change the input

X2/X3 setting, see Input X2/X3.

L52 2C –Manual

WAM4522CB 2 Standby AB –standbygroup.se

Flash Pattern

Introduction

The flash pattern setting controls the flash pattern. There are seven available combinations of flash

patterns, see table.

•Double, Triple and Steady burn are built-in flash patterns and no control system is

needed.

•With Steady burn 1, Steady burn 2 and Steady burn 3 an external flasher or control

system is used to control the flash pattern.

The preset setting of flash pattern depends on the version of the lamp, see Preset Settings.

When in configuration mode, the number of blank flashes (lamp off) in the flash sequence show the

current flash pattern setting, see table.

Blank flashes per

flash sequence

Flash pattern

Flash control

Color 1

Color 2

Double

Built-in

Triple

Built-in

Double

Steady burn

Built-in

Triple

Steady burn

Built-in

Steady burn 1

External

Steady burn 2

External

Double

Steady burn 3

Built-in/External

L52 2C –Manual

WAM4522CB 3 Standby AB –standbygroup.se

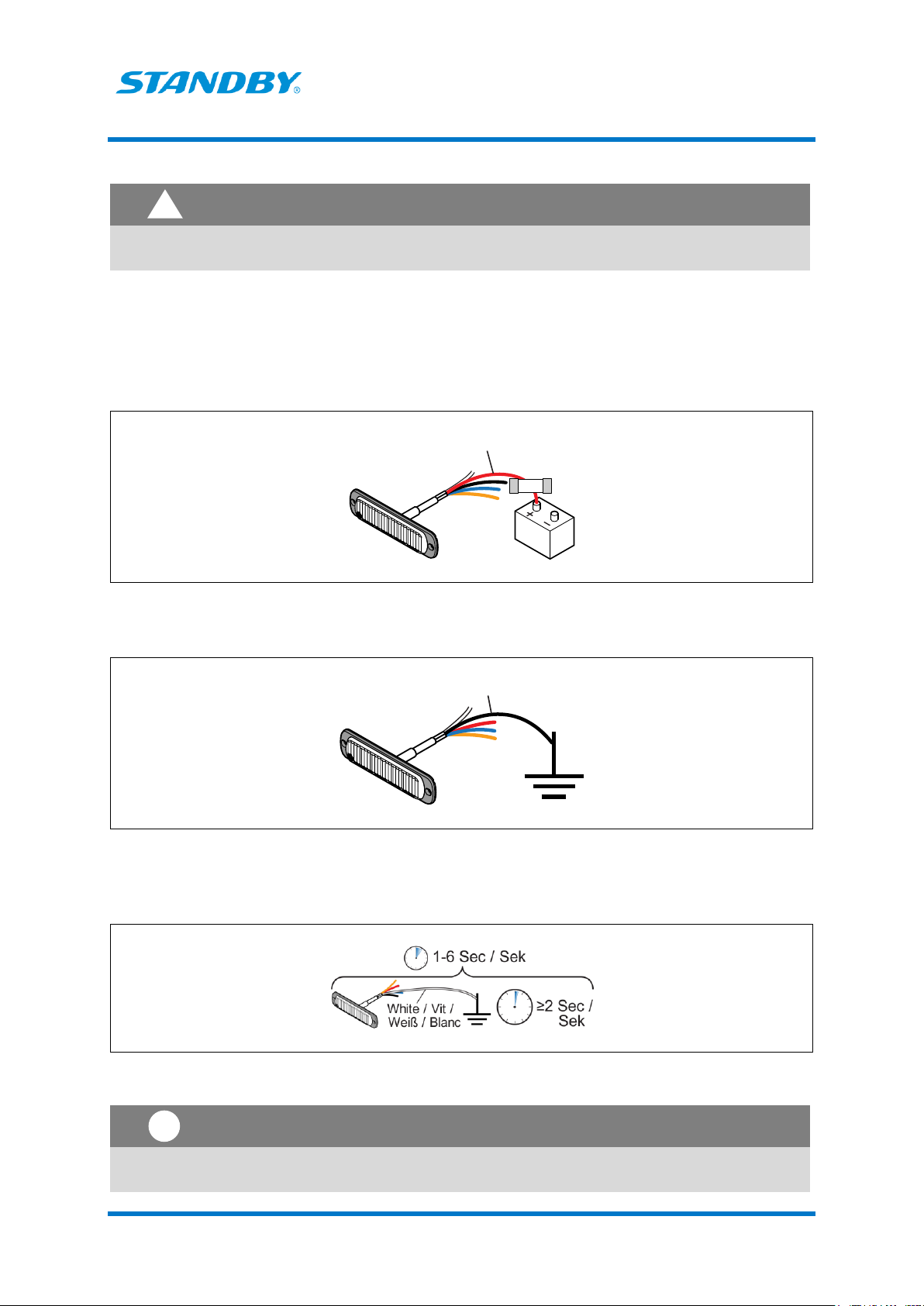

Setting the Flash Pattern

WARNING

Risk of eye damage. Do not look into the beam at close range.

1. If already in configuration mode, go to step 6.

2. If the lamp is connected to the power supply, disconnect it.

3. Connect the red wire to 10-30 V DC via a 5 A fuse.

4. Connect the black wire to ground.

5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at

least 2 sec.

The lamp enters configuration mode and a flash sequence indicating the current settings starts.

Note

If this step is performed incorrectly, you must restart from step 2.









L52 2C –Manual

WAM4522CB 4 Standby AB –standbygroup.se

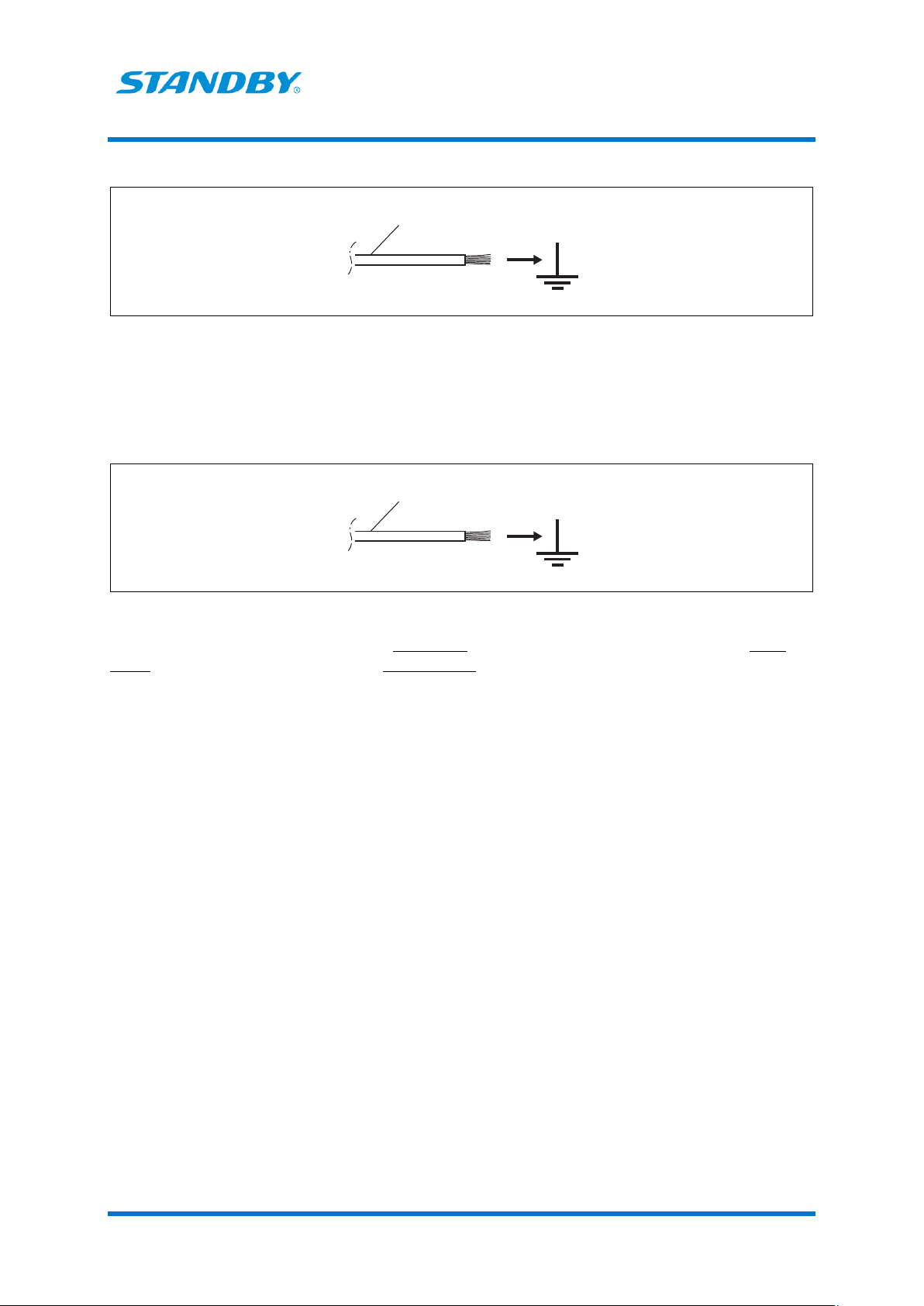

6. Temporarily connect the white wire to ground to enter configuration mode for flash pattern.

7. Count the number of blank flashes (lamp off) per flash sequence to find out the current flash

pattern setting.

8. Temporarily connect the white wire to ground to change to the next version of flash pattern. Each

time the white wire is temporarily connected to ground the next version of flash pattern is selected.

9. To change the sync mode setting, see Sync Mode. To change the input X2/X3 setting, see Input

X2/X3. To reset to factory settings, see Factory Reset.

10. Disconnect the power supply to save the selected settings and exit configuration mode.



L52 2C –Manual

WAM4522CB 5 Standby AB –standbygroup.se

Sync Mode

Introduction

The sync mode setting controls how the flashing of two or more lamps is synchronized. There are four

available combinations of sync mode, see table.

•Simultaneous means that the lamps are in sync, that is they come on and go off at the

same time.

•Alternate means that the lamps are out of sync.

The preset setting of sync mode is Simultaneous for color 1 and Alternate for color 2.

When in configuration mode, the number of bright flashes of color 1 per flash sequence show the

current sync mode setting, see table.

Bright flashes (color 1)

per flash sequence

Sync mode

Color 1

Color 2

Simultaneous

Alternate

Simultaneous

Alternate

Simultaneous

L52 2C –Manual

WAM4522CB 6 Standby AB –standbygroup.se

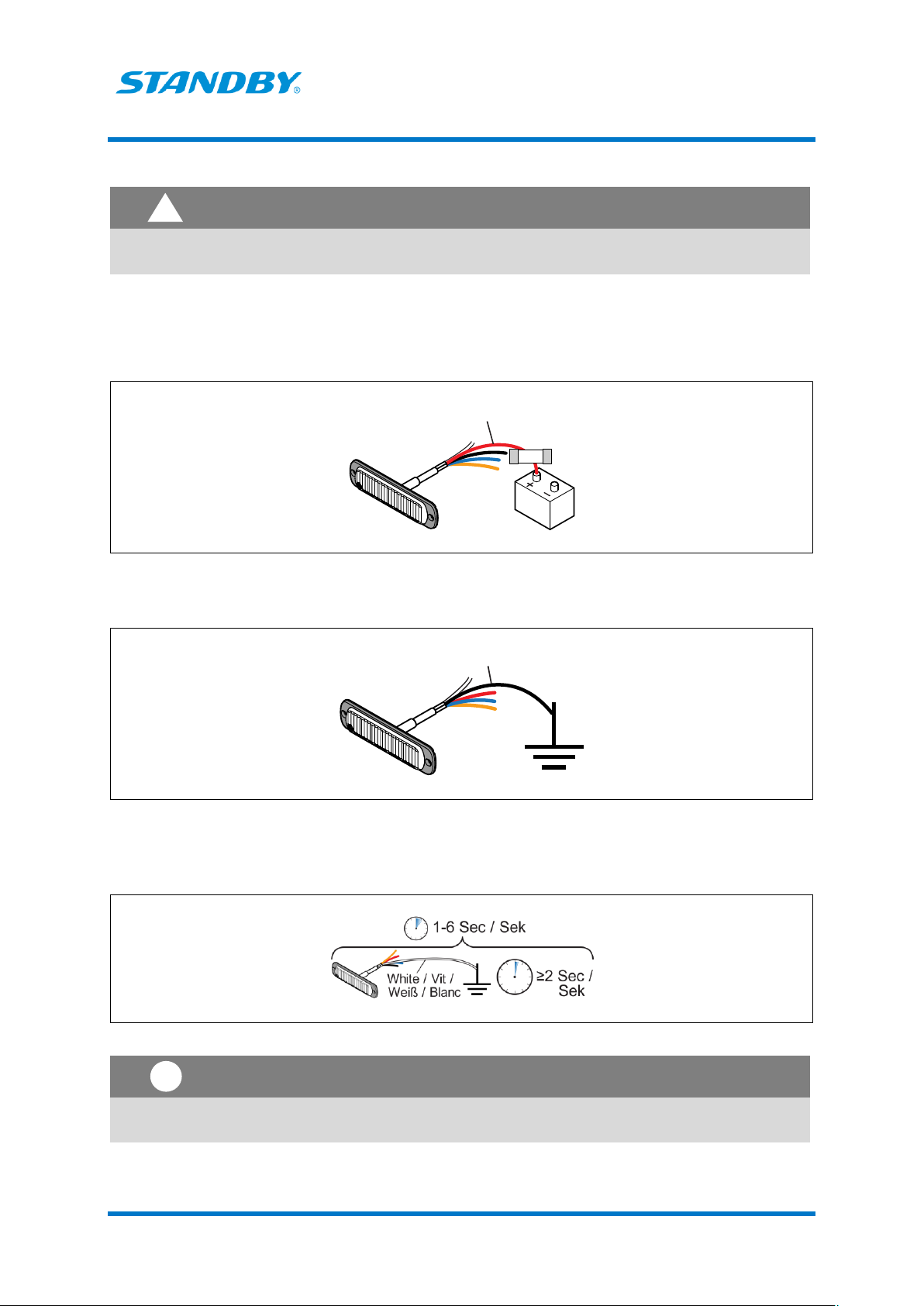

Setting the Sync Mode

WARNING

Risk of eye damage. Do not look into the beam at close range.

1. If already in configuration mode, go to step 6.

2. If the lamp is connected to the power supply, disconnect it.

3. Connect the red wire to 10-30 V DC via a 5 A fuse.

4. Connect the black wire to ground.

5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at

least 2 sec.

The lamp enters configuration mode and a flash sequence indicating the current settings starts.

Note

If this step is performed incorrectly, you must restart from step 2.









L52 2C –Manual

WAM4522CB 7 Standby AB –standbygroup.se

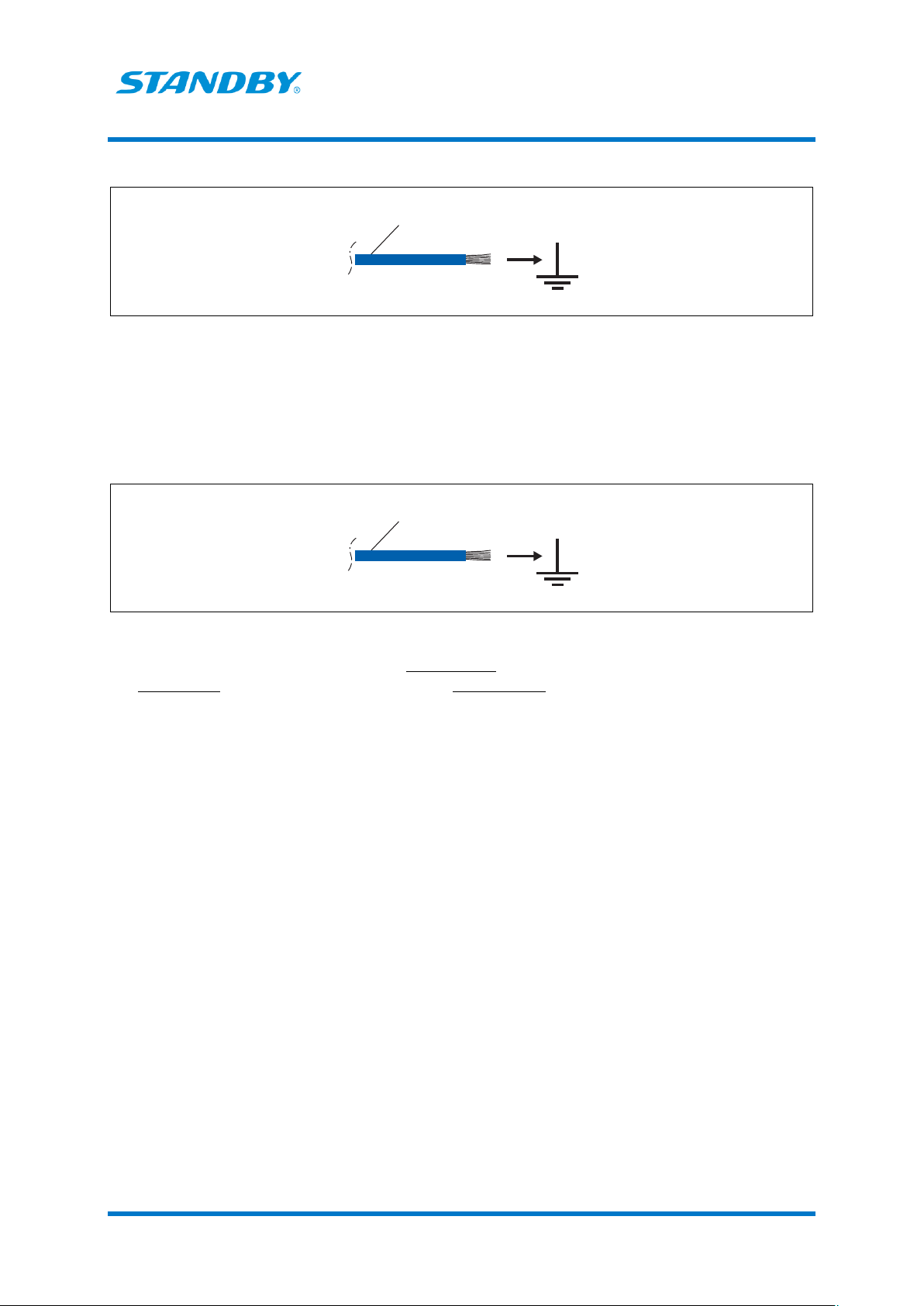

6. Temporarily connect the blue wire to ground to enter configuration mode for sync mode.

7. Count the number of bright flashes of color 1 per flash sequence to find out the current sync mode

setting.

8. Temporarily connect the blue wire to ground again to change to the next version of sync

mode. Each time the blue wire is temporarily connected to ground the next version of sync mode is

selected.

9. To change the flash pattern setting, see Flash Pattern. To change the input X2/X3 setting,

see Input X2/X3. To reset to factory settings, see Factory Reset.

10. Disconnect the power supply to save the selected settings and exit configuration mode.



L52 2C –Manual

WAM4522CB 8 Standby AB –standbygroup.se

Input X2/X3

Introduction

The input X2/X3 controls how the colors of the lamp are activated. There are four available

combinations of input X2/X3, see table.

•Pull down means that the color is activated by a sourcing signal (+).

•Pull up means that the color is activated by a sinking signal (-).

The preset setting of input X2/X3 mode is Pull Down for both color 1 and color 2.

When in configuration mode, the number of bright flashes of color 2 in the flash sequence show the

current input X2/X3 setting, see table.

Bright flashes (color 2) per

flash sequence

Input X2/X3

Color 1

Color 2

Pull down

Pull up

Pull down

Pull up

Pull down

Setting the Input X2/X3

WARNING

Risk of eye damage. Do not look into the beam at close range.

1. If already in configuration mode, go to step 6.

2. If the lamp is connected to the power supply, disconnect it.

3. Connect the red wire to 10-30 V DC via a 5 A fuse.

4. Connect the black wire to ground.









L52 2C –Manual

WAM4522CB 9 Standby AB –standbygroup.se

5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at

least 2 sec.

The lamp enters configuration mode and a flash sequence indicating the current settings starts.

Note

If this step is performed incorrectly, you must restart from step 2.

6. Temporarily connect the orange wire to ground to enter configuration mode for input X2/X3.

7. Count the number of bright flashes of color 2 to find out the current input X2/X3 setting.

8. Temporarily connect the orange wire to ground again to change to the next version of input X2/X3.

Each time the orange wire is connected to ground the next version of input X2/X3 is selected.

9. To change the flash pattern setting, see Flash Pattern. To change the sync mode setting, see Sync

Mode. To reset to factory settings, see Factory Reset.

10. Disconnect the power supply to save the selected settings and exit configuration mode.

 

L52 2C –Manual

WAM4522CB 10 Standby AB –standbygroup.se

Factory Reset

Introduction

The settings can be changed back to the factory settings.

The factory settings are the following(color 1/color 2):

•Flash pattern - Double/Double

•Sync mode - Simultaneous/Alternate

•Input X2/X3 - Pull down/pull down

Reset to Factory Settings

WARNING

Risk of eye damage. Do not look into the beam at close range.

Note

All current settings, that is flash pattern setting, sync mode setting and Input X2/X3, are reset

to the default settings.

1. If already in configuration mode, go to step 6.

2. If the lamp is connected to the power supply, disconnect it.

3. Connect the red wire to 10-30 V DC via a 5 A fuse.

4. Connect the black wire to ground.








