Star Micronics SP312F Manuale utente

DOT MATRIX PRINTER

SP312F

SP342F-A

INSTALLATIONMANUAL

GUIDE D’INSTALLATION

AUFSTELLANLEITUNG

MANUALE DI INSTALLAZIONE

TABLE OF CONTENTS

1. UNPACKING AND INSTALLATION................................................ 2

1-1. Unpacking .................................................................................... 2

1-2. Handling Notes ............................................................................ 2

2. PARTS IDENTIFICATION AND NOMENCLATURE ......................3

3. FERRITE CORE INSTALLATION .....................................................4

4. CONNECTING THE INTERFACE CABLE .......................................6

4-1. Serial Interface Cable...................................................................6

4-2. Parallel Interface Cable................................................................ 6

APPENDIX .............................................................................................25

– 2 –

ENGLISH

1. UNPACKING AND INSTALLATION

1-1. Unpacking

After unpacking the unit, check that all the necessary accessories are included in

the package.

Fig. 1-1 Unpacking (SP312)

1-2. Handling Notes

1. Install the unit on a stand or table which has a flat, even surface.

2. Do not connect the AC power plug to the same outlet used for other electrical

noise generating devices (such as an electrical motor, etc.)

IMPORTANT!

Install the printer near an easily accessible socket-outlet.

3. Be careful not to drop paper clips, pins or other foreign objects into the unit

as these could cause the printer to malfunction.

4. When cleaning the outer surface of the unit, wipe away dirt, foreign matter,

etc., with a soft cloth, soaked in a neutral detergent.

5. Do not attempt to print when the paper or ribbon cartridge are not loaded in

the printer as this could damage the print head.

6. Use only roll paper that is not glued to the core.

7. Donotopen the front cover while printing (thisisinterpretedas a mechanical

error and the printer will stop).

Ferrite core

(E.U. only)

Fastener

(E.U. only)

Ø28mm

,,,,

– 3 –

ENGLISH

2. PARTS IDENTIFICATION AND NOMENCLATURE

Fig. 2-1 External view of the printer (SP312)

– 4 –

ENGLISH

NOTE: Take special care when following the procedures listed below.

3. FERRITE CORE INSTALLATION

■A ferrite core noise filter for the cash

drawer drive cable comes packed with

the printer.

■The ferrite core is normally packed so

itisopened,asshowninFig.3-2.Ifyou

find that the ferrite core is not opened:

Use a pointed object to pry the plastic

lock of the ferrite core apart, as shown

in Fig. 3-1. When opening it, take care

not to damage the ferrite core or the

plastic lock.

Fig. 3-1

• Pass the fastener through the ferrite

core Fig. 3-3

•Passthefastener aroundthecableand

lock it.

Cut off the excess with a pair of scis-

sors. Fig. 3-4

Fig. 3-2

One loop

Ferrite Core (28mm diameter)

,,,

Fastener

Pull and cut

– 5 –

ENGLISH

■Clamp the ferrite core onto the cash drawer drive cable, looping the cable as

shown in Fig. 3-2.

•When installing the ferrite core be careful not to damage the cable.

•The ferrite core should be anchored firmly in place with the fastener that

comes with it, as shown in Fig. 3-3 and Fig. 3-4.

•Do not forget to loop the cable.

Fig. 3-5

– 6 –

ENGLISH

4-1. Serial Interface Cable

4. CONNECTING THE INTERFACE CABLE

1Turn off power for both the host

computer and the printer.

2Insert the connector of the interface

cable into the connector on the

printer and the other end of the in-

terface cable into the connector for

the host computer.

3Next,tighten thescrewsonthe con-

nectors.

Fig. 4-1 Connecting the serial interface

cable

4-2. Parallel Interface Cable

1Turnoffthe power for both the host

computer and the printer.

2Insertoneconnectoroftheinterface

cable into the printer’s connector

andfastenitwiththeclasp,asshown

in Fig. 4-2.

3Inserttheotherterminaloftheinter-

face cable into the host computer’s

connector, and fasten it with the

clasp.

Fig. 4-2 Connecting the parallel interface

cable

TABLE DES MATIÈRES

1. DÉBALLAGE ET INSTALLATION ...................................................8

1-1. Déballage .....................................................................................8

1-2. Remarques concernant la manipulation .......................................8

2. IDENTIFICATION DES PIÈCES ET NOMENCLATURE ................9

3. INSTALLATION DU NOYAU EN FERRITE ..................................10

4. CONNEXION DU CÂBLE D’INTERFACE .....................................12

4-1. Câble d’interface sériel .............................................................. 12

4-2. Câble d’interface parallèle .........................................................12

APPENDICE ...........................................................................................25

L’appendice n’est pas traduit.

– 8 –

FRANÇAIS

1. DÉBALLAGE ET INSTALLATION

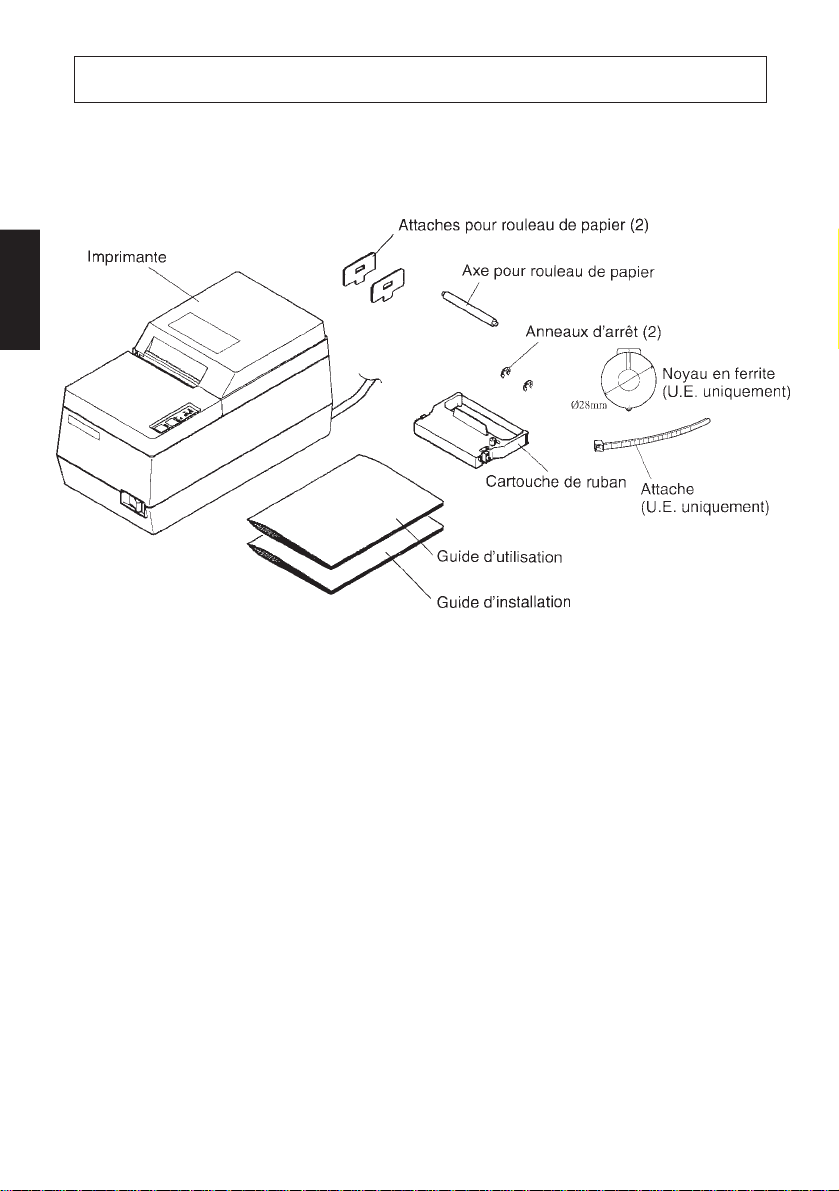

1-1. Déballage

Après avoir déballé l’appareil, vérifiez si vous disposez bien de tous les accessoi-

res illustrés ci-après.

Fig. 1-1 Déballage (SP312)

1-2. Remarques concernant la manipulation

1. Installez l’appareil sur un support ou sur une table dont la surface est plate et

uniforme.

2. Ne branchez pas l’appareil à la même prise secteur que d’autres appareils

produisant des bruits électriques (appareils ayant un moteur électrique, etc.).

IMPORTANT !

Installez l’imprimante le plus près possible d’une prise secteur facilement

accessible.

3. Veillez à ne pas laisser tomber des trombones, punaises ou autres objets dans

l’appareil, cela risque de causer un mauvais fonctionnement.

4. Nettoyez la surface de l’imprimante à l’aide d’un chiffon doux humidifié et

d’un détergent neutre.

5. Ne lancez pas l’impression si le papier ou la cartouche de ruban ne sont pas

installés, sous peine d’endommager la tête d’impression.

6. N’utilisez jamais un rouleau de papier dont l’extrémité est collée au rouleau

central.

7. N’ouvrez pas le cache avant de l’appareil pendant l’impression ; en effet cela

serait interprété comme étant une erreur mécanique et l’impression s’inter-

romprait automatiquement.
