Star Micronics TSP600 Series Manuale utente

THERMAL PRINTER

TSP600 Series

TECHNICALMANUAL

[FIRST EDITION]

NOTICE

•Allrightsreserved.Reproductionofanypartofthismanualinany

form whatsoever, without STAR’s express permission is forbid-

den.

•The contents of this manual are subject to change without notice.

•All efforts have been made to ensure the accuracy of the contents

of this manual at the time of going to press. However, should any

errors be detected, STAR would greatly appreciate being in-

formed of them.

•The above notwithstanding, STAR can assume no responsibility

for any errors in this manual.

INTRODUCTION

This manual describes the thermal printer TSP600 series.

It is designed for use as a reference for periodic inspections and maintenance procedures to be executed

by service personnel. It is not intended for the general user. Users of this manual should have a basic

knowledge and understanding of the English language.

•This manual is divided into the following sections:

Chapter 1 Parts Replacement and Adjustments

Chapter 2 Maintenance and Lubrication

Chapter 3 Parts List

•First edition : Jul. 2001

CHAPTER 1

PARTS REPLACEMENT

This chapter explains disassembly and reassembly of the printer. Note the following precautions during

disassembly and reassembly.

1. Disconnect the printer power cord plug from the wall outlet before servicing it.

2. Assembly is the reverse of disassembly unless otherwise specified.

3. After reassembly, coat the screw heads with locking sealant.

4. Lubrication information is not provided in this chapter. Refer to item 2 of chapter 2.

5. The printer has no adjustable parts.

1. Rear Cover Unit .....................................................................................................3

2. Case Unit................................................................................................................3

3. Board Chassis Unit ...............................................................................................4

4. Main Logic Board ..................................................................................................4

5. Printer Mechanism ................................................................................................5

6. Motor Unit ..............................................................................................................5

– 3 –

PARTS REPLACEMENT

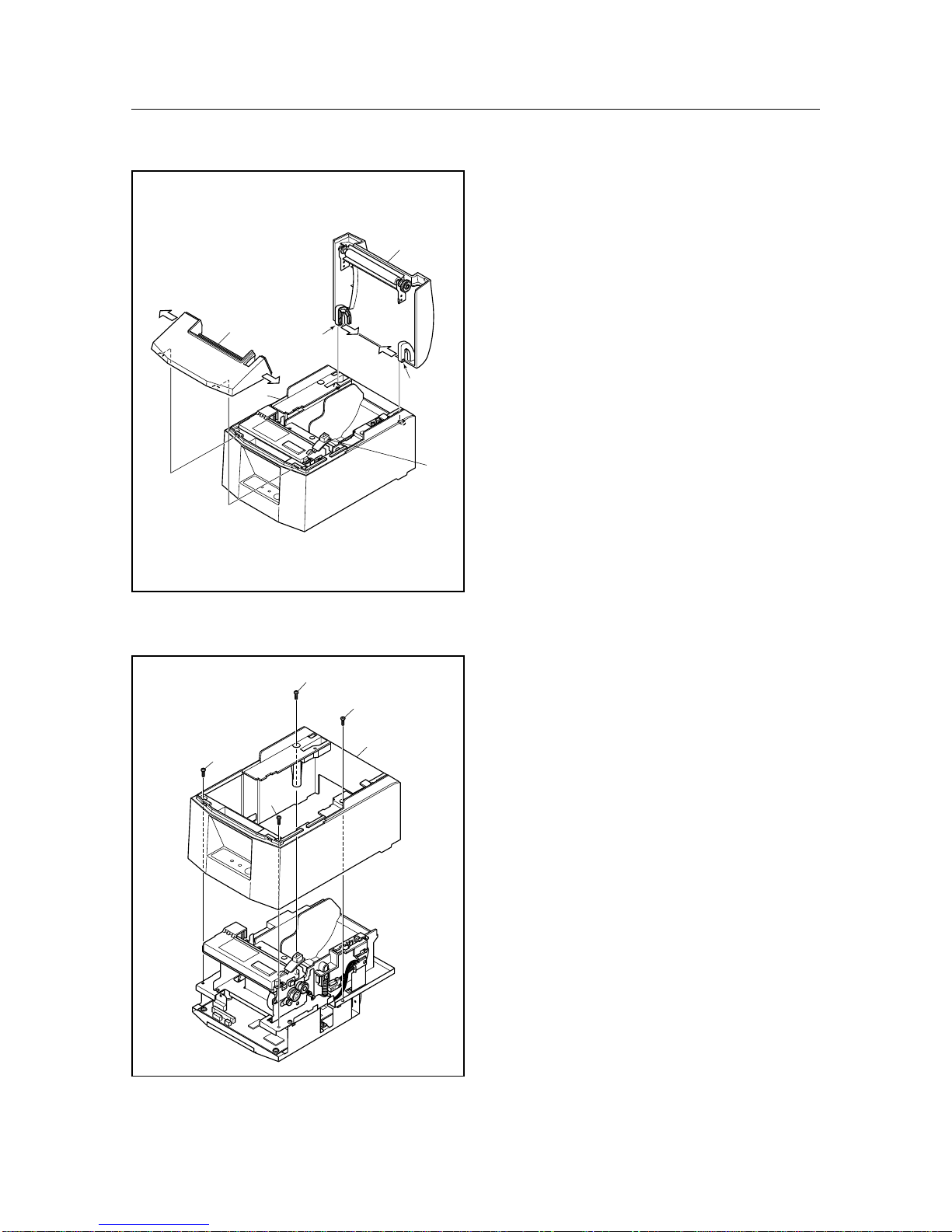

1. Rear Cover Unit

(1) Turn off the power switch 1, disconnect the power

cord from the wall outlet.

(2) Push the cover open lever 2and open rear cover

unit 3.

(3) Allowingabout5mmofuniformslackeningatpoints

A (left/right) of the rear cover unit 3, along the

arrow direction, remove it from case unit.

(4) Remove front cover 4.

2. Case Unit

(1) Turn off the power switch, disconnect the power

cord from the wall outlet.

(2) Remove the rear cover unit according to the

procedure described in item 1.

(3) Remove

•Four screws 1

•Case unit 2

– 4 –

PARTS REPLACEMENT

3. Board Chassis Unit

(1) Turn off the power switch1, disconnect the power

cord from the wall outlet.

(2) Remove

•Case unit according to the procedure described

in item 2.

•Three screws 2

•Five connectors 3

•Mechanism chassis unit 4

•Board chassis unit 5

4. Main Logic Board

(1) Turn off the power switch, disconnect the power

coard from the wall outlet.

(2) Remove

•Board chassis unit according to the procedure

described in item 3.

•Two screws 1

•Interface board unit 2

•Four screws 3

•Main logic board 4

•Board chassis 5

–5 –

PARTS REPLACEMENT

5. Printer Mechanism

(1) Turn off the power switch, disconnect the power

cord from the wall outlet.

(2) Remove

•Mechanismshassisunitaccordingtotheprocedure

described in item 3.

•Three screws 1

•Paper stocker 2

•Screw 3

•NE lever unit 4

•Three screws 5

•Printer mechanism 6

•Mechanism chassis 7

6. Motor Unit

(1) Turn off the power switch, disconnect the power

cord from the wall outlet.

(2) Remove

•Printer mechanism according to the procedure

described in item 5.

•Release the two hooks 1and remove cutter unit

2(Auto cutter model only)

•Two screws 3

•Motor unit 4
