Stardom SR3610 Series Manuale utente

SOHORAID Series

Version : 1.0

SR3610 Series

User Manual

Forewords

About this manual

Thank you for using products from Raidon Technology Inc.

This manual will introduce the STARDOM SR3610 Series product. Before using STARDOM SR3610

Series, you are advised to read this manual first. All information contained in this manual has been

carefully confirmed before printing, but the actual product specifications shall be in accordance with those

at the time of delivery; any update to product specifications or relevant information may be found on

www.stardom.com.tw, and no separate notifi

cation will be made.

If you have any query regarding the products of Raidon Technology, or you would like the latest product

information, please contact us at [email protected],

and we shall give you a reply as soon as

possible.

Note : Raidon Technology will only provide technical support and services on products purchased directly

from the company. General consumers and third-party buyers who did not purchase from the

company should contact their distributor or supplier directly to receive faster support and response.

If you did not purchase products directly from our company, please avoid contacting our company

directly because your support and response may be delayed to your satisfaction.

SR3610 Series Quick Installation Guide

1. Package Contents

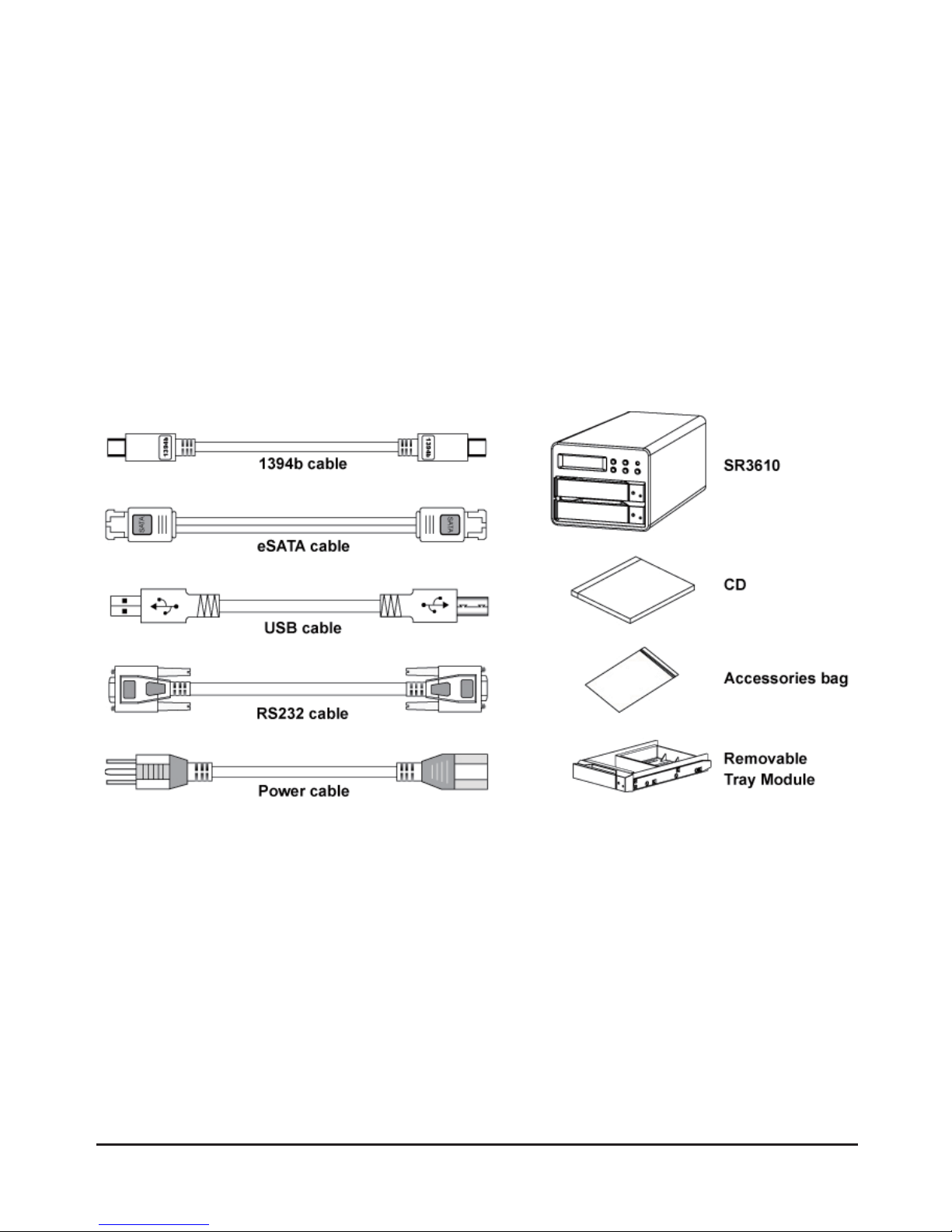

After opening the box, you should ﬁnd the following items:

•SR3610 product unit (includes two removable hard disk trays)

•AC Power Cable

•RS232 Cable

•USB Cable (included in the SR3610-2S-B2, SR3610-2S-SB2 and SR3610-2S-WBC models)

•eSATA Cable (included in SR3610-2S-SB2 only)

•1394B Cable (included in SR3610-2S-WBC only)

•CD (contains product speciﬁcations, user manuals and management software)

•User Manual

•Accessories Bag

Should any of the above accessories be missing or the main unit is damaged prior to initial use, please

contact your distributor or supplier.

Front View

Rear View

2. Hardware Installation

Please follow the steps below to complete installation of the SR3610 hardware.

Step 1

Place the device on a ﬂat and stable surface. Make sure the fan exhaust is not blocked and there

is sufﬁcient cooling space around the unit. (Please keep away from water sources or other

hazardous environments that may damage the product.)

Alarm LED

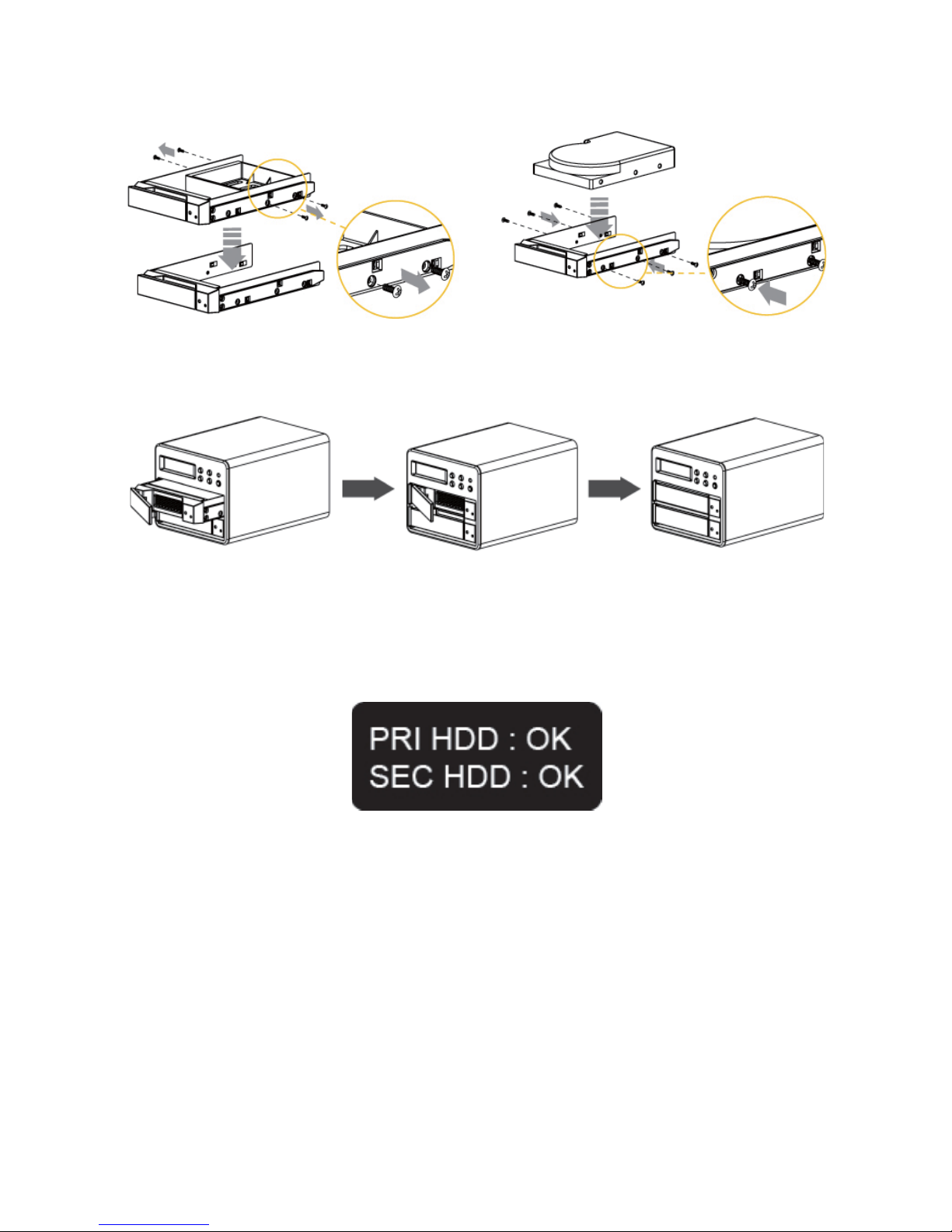

Step 2 Remove the Tray and install your hard disk onto the tray. Make sure the hard disk secure screws

are fastened to avoid unnecessary movements to the hard disk.

Step 3 Once the hard disks have been installed, insert the removable trays into appropriate positions of

the SR3610 unit and close the handles to secure the disks.

Step 4 Connect the cables included to the appropriate ports of the SR3610 and your PC system.

Step 5 Turn on the power of the SR3610. Wait for the LCD display to show the OK message before

turning on your PC system.

Installation Complete. Your operation system will automatically identify the new hardware and once

recognized, follow the operating system’s instructions to format the hard disks. Once the formatting is

complete the device is then ready for operation.

Contents

Chapter 1 Product Outline............................................................................................. 7

1.1 Introduction............................................................................................................. 7

1.2 Functions and Features.......................................................................................... 8

Chapter 2 Product Installation...................................................................................... 9

2.1 Package Contents.................................................................................................. 9

2.2 Precautions and Requirements.............................................................................. 10

2.3 Hardware Installation............................................................................................. 10

Chapter 3 Instructions...................................................................................................... 12

3.1 System Operating Procedure and Operation architecture.................................... 12

3.2 Changing RAID Level and Scheduling.................................................................. 12

3.2.1 Changing from RAID 1 to RAID 0 Mode................................................................ 12

3.2.2 Schedule Backup Settings..................................................................................... 13

3.3 Change Password Setting..................................................................................... 14

3.4 Firmware Update.................................................................................................... 15

Chapter 1 Product Outline

1.1 Introduction

The STARDOM SR3610 series provides users with a cost-effective and safe external disk array sub-

system.

Whether you are using this product at home or in the ofﬁce, its RAID1 support and mirroring function

provides you with real-time data backup, enhancing data security and stability. RAID0 support is also

included. By optimizing the use of storage on two separate hard disks, data transfer speed enhances

though there will be no data fault tolerance.

Front View

Rear View

Product Outline 7

Alarm LED

1.2 Functions and Features

The STARDOM SR3610 series is a disk array system designed to provide users with the most

cost-effective solution for their storage needs. It makes the swapping of hard disks easy while also

guaranteeing data security and completeness.

•24 Hour Real-Time Data Backup

Using RAID1, all data in the main hard disk can be immediately mirrored onto another hard disk,

ensuring the complete backup of your data at all times.

•Online Automatic Data Rebuild

In RAID1 mode, once a malfunctioning hard disk has been replaced, the system will automatically

rebuild the data to the new disk. No extra settings required.

•Custom Backup Schedule to Prevent Virus Infections

The user can deﬁne their own schedule for data backups. This may protect & delay the backup disk

from virus attacks that may have already infected the primary disk.

•LCD Status Display

The simple to use LCD display control panel makes the RAID and backup scheduling setups easy.

The fan and temperature information shown on the display also keeps users up to date on the

system’s status, simplifying product management.

•Plug and Play Support

The removable tray design allows plug and play of hard disks at any time, simplifying maintenance.

•No Drivers Needed

No additional drivers need to be installed. The product is compatible with Windows/Mac/Linux

operating systems.

•Hot Swapping Support

A malfunctioning hard disk can be replaced online without having to turn off the system power.

•GUI Monitoring Software

The Product is provided with a Windows-based RAIDGuide GUI software. Using the RS232 port

connection, the user can monitor the disk array system’s status at all times. An e-mail alert can be

sent if the system malfunctions to ensure complete protection.

8 Product Outline

Chapter 2 Product Installation

2.1 Package Contents

After opening the box, you should ﬁnd the following items:

•SR3610 product unit (includes two removable hard disk trays)

•AC Power Cable

•RS232 Cable

•USB Cable (included in the SR3610-2S-B2, SR3610-2S-SB2 and SR3610-2S-WBC models)

•eSATA Cable (included in SR3610-2S-SB2 only)

•1394B Cable (included in SR3610-2S-WBC only)

•CD (contains product speciﬁcations, user manuals and management software)

•User Manual

•Accessories Bag

Should any of the above accessories be missing or the main unit is damaged prior to initial use, please

contact your distributor or supplier.

Product Installation 9

2.2 Precautions and Requirements

The SR3610 can be used with two hard disks that are of different models and storage capacities initially.

However, for improved performance, we recommend that both disks should have the same speciﬁcations

and capacity from the same manufacturer. It is also necessary that the backup drive be the same or

bigger in capacity than the source drive under the RAID1 model .

2. Please ensure that the two hard disks used contain no bad tracks. This avoids system crash or data

loss in the event that one hard disk malfunctions.

3. RAID0 mode offers improved data transfer performance and the full use of both hard disks as one

large capacity disk. It does not offer data mirroring, however so, if one hard disk is damaged, all data

will be lost.

4. We recommend that you decide whether to use the product in RAID0 or RAID1 (default value) mode

before it begins initial operation. Changing the RAID mode at a later date will result in the complete

loss of all data on the hard disks.

2.3 Hardware Installation

Please follow the steps below to complete installation of the SR3610 hardware.

Step 1 Place the device on a ﬂat and stable surface. Make sure the fan exhaust is not blocked

and there is sufﬁcient cooling space around the unit. (Please keep away from water sources or

other hazardous environments that may damage the product.)

Step 2 Remove the Tray and install your hard disk onto the tray. Make sure the hard disk secure

screws are fastened to avoid unnecessary movements to the hard disk.

10 Product Installation
