StarTech.com CBESATA2 Manuale utente

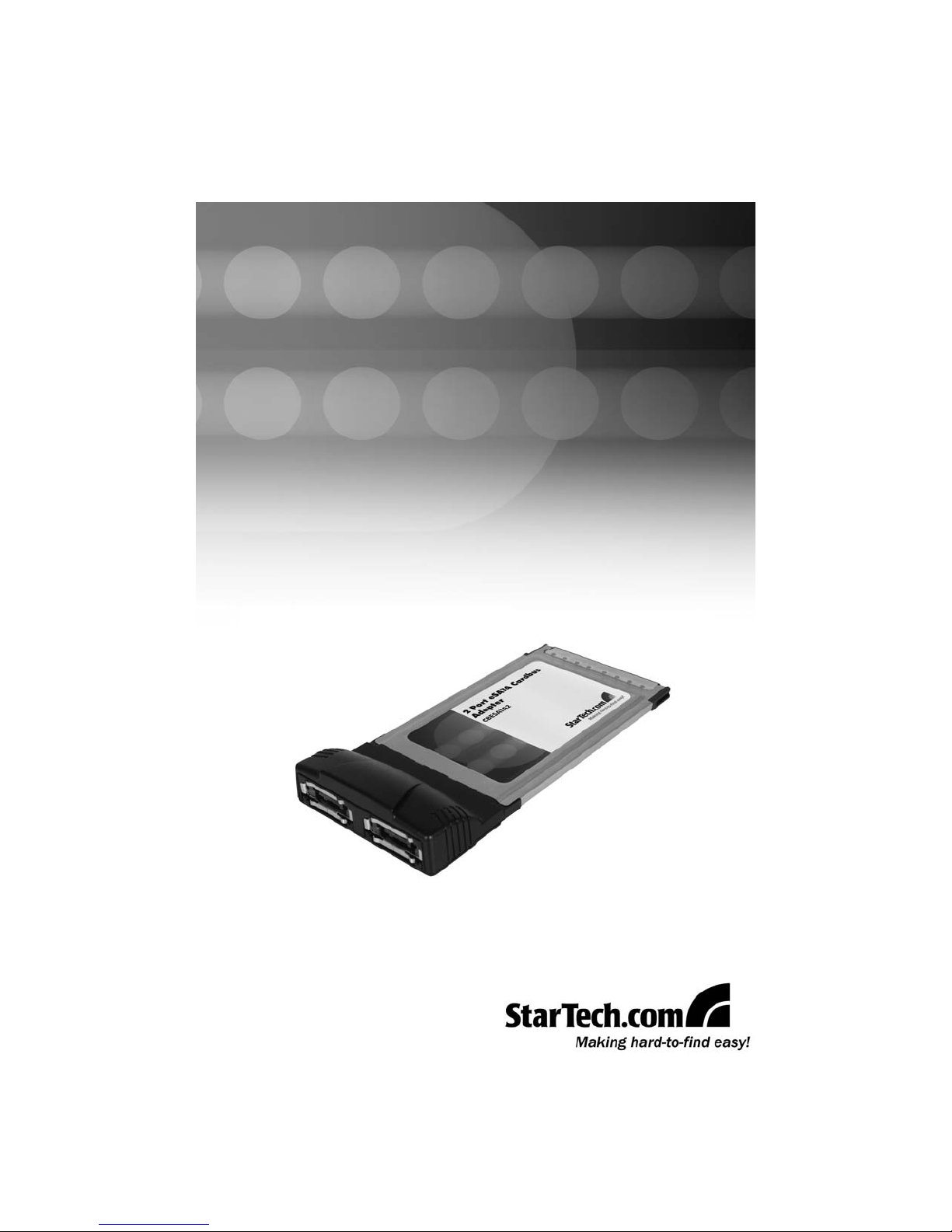

eSATA CardBus Adapter

CBESATA2 Instruction Manual

Actual product may vary from photo

2 Port CardBus eSATA2 Drive Controller Card

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation and usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Windows® 2000 / XP Driver Installation . . . . . . . . . . . . . . . . . . . . . . .2

Windows® NT Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Windows® 98SE/ME Driver Installation . . . . . . . . . . . . . . . . . . . . . . . .3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Thank you for purchasing a StarTech.com Two Port eSATA ExpressCard Adapter. This

product allows notebook users to experience the high performance capability of eSATA

storage, allowing convenient data offloads with up to 133Mbps bandwidth based on the

CardBus standard.

IInnttrroodduuccttiioonn

Features

BBeeffoorreeYYoouuBBeeggiinn

•Supports two high-speed eSATA channels for SATAI/II device connections

•Works with SATA I and SATA II devices

•Plug and Play installation

•One available CardBus Slot

System Requirements

•Supports Windows 98SE/ME/2000/XP/Vista

•1 x 2 Port eSATA Cardbus Adapter

Package Contents

•1 x Driver CD

This package should contain:

•Operating System: Windows® 98SE/ME/2000/XP/Vista

•1 x User Manual

Instruction Manual

IInnssttaallllaattiioonnaanndduussaaggee

WARNING: Do not disconnect any cables or power sources while the hard

drive is active. This can result in data loss and possible damage to the hard

drive. To avoid this, please shut down the host computer prior to disconnecting

the attached eSATA device from the host computer.

Windows® 2000 / XP / Vista Driver Installation

1. Insert CBESATA2 into an available CardBus slot.

2. Windows will detect that the SATA PCI Controller has been connected, and

automatically load the Add New Hardware Wizard. Select Install from a list or

specific location (Advanced), and click Next to continue setup.

3. Select Specify the location... and in the dialogue box provided, type D:\WINXP and

click Next.

4. Click Next and Finish respectively.

5. Remove the Driver CD diskette, and select Yes when prompted to restart the

computer, in order for the setup to take effect. Once the computer has rebooted, it is

safe to connect your eSATA devices to the newly installed ports.

Regardless of the operating system version being used, please insert the

Driver CD into the CD/DVD-ROM drive, prior to connecting the device to

the CardBus slot.

Windows® NT Driver Installation

1. With the host computer in a powered state, select Settings from the Start menu, and

open the Control Panel.

2. In the Control Panel window, double-click on the SCSI Adapters icon.

3. Choose the Drivers tab from the SCSI Adapters window, then press Add to continue.

4. Click Have Disk from the Install Driver window.

5. Ensure the Driver CD is present in the CD/DVD-ROM drive, and type D:\WINNT4.0

into the field designating the file’s location. Press OK to continue setup.

6. Select Initio inic1622 S-ATA Adapter from the window then click OK to continue.

Instruction Manual

7. Click Have Disk from the Install Driver window.

8. Please restart the computer when prompted, for installation to take effect. Once the

computer has rebooted, it is safe to connect your eSATA devices to the newly installed

ports.

Windows® 98SE/ME Driver Installation

1. With the host computer in a powered state, insert CBESATA2 into an available

CardBus slot.

2. Windows will automatically load the Add New Hardware Wizard. Select Specify the

location of the driver (Advanced) and click Next to continue to setup.

3. Ensure the Driver CD is present in the CD/DVD-ROM drive, and select Search for the

best driver for your device (Recommended). In the dialog box designating the file

location, type D:\WIN9X and click Next to continue to setup.

4. Once the driver for initio inic1622 S-ATA Adapter has been found, press Next to

continue setup.

5. When the driver installation has finished, press Finish to continue.

6. Please restart the computer when prompted, for installation to take effect. Once the

computer has rebooted, it is safe to connect your eSATA devices to the newly installed

ports.

Instruction Manual

TTrroouubblleesshhoooottiinngg

Following installation of the necessary software, and restarting the computer, your eSATA

devices should be accessible by the host computer (once connected to CBESATA2 using

an eSATA cable). If you find that the attached devices are not detected by the host

computer, verify that installation was successful by:

Windows® 2000 / XP verification / Vista

1 Right-click on My Computer and select Manage. This will open the Computer

Management dialogue window.

2. In the left pane of the Computer Management dialogue window, click on Device

Manager.

3. Click on the +sign next to SCSI and RAID controllers. If Initio inic1622 S-ATA

Adapter is listed underneath, CBESATA2 has successfully been installed.

Windows® 98SE / NT verification

1. Right-click on the My Computer icon , and select Properties.

2. Select Device Manager from the System Properties window and click on SCSI

controllers. If Initio inic1622 S-ATA Adapter device is shown below, it means that

the driver has been installed successfully.

Instruction Manual

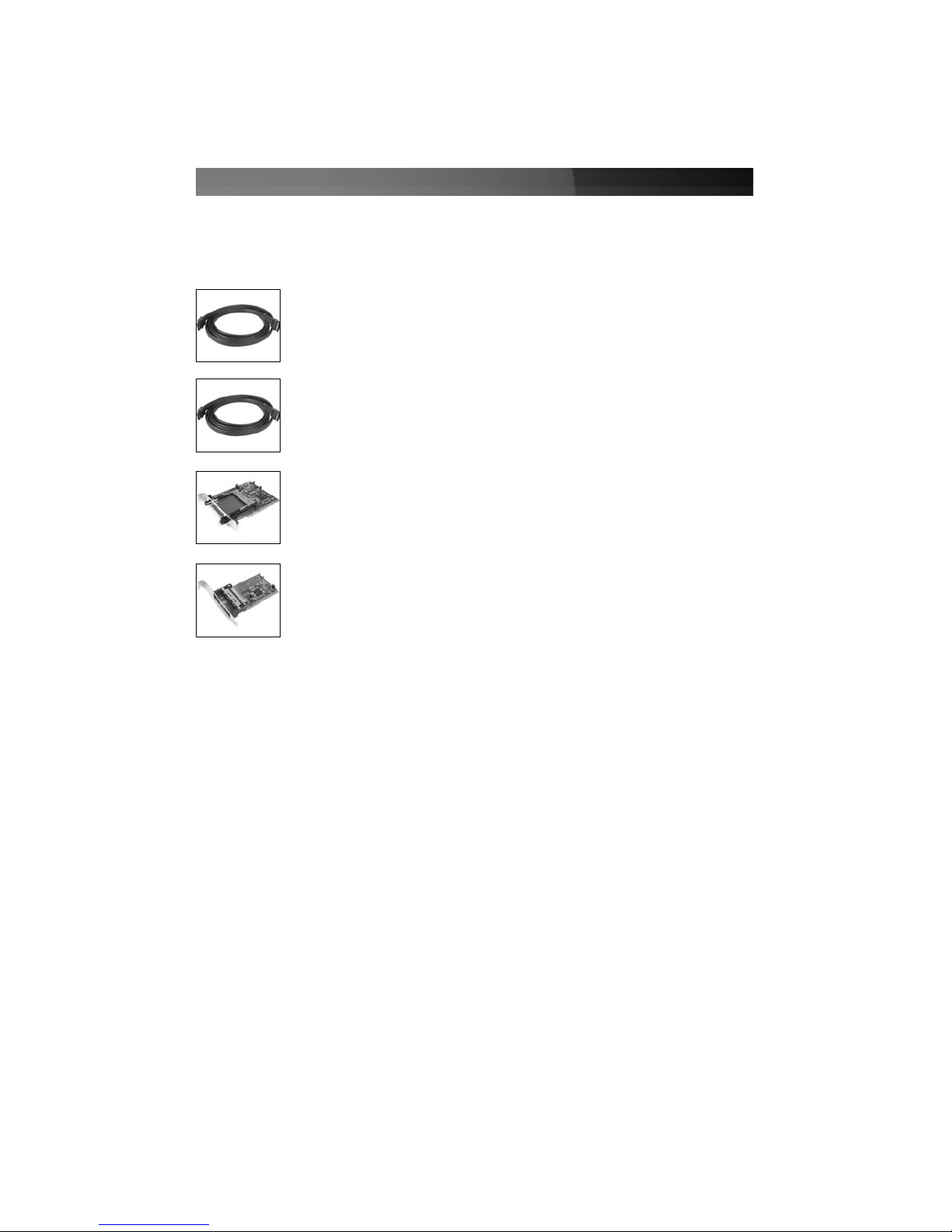

ESATA3

3’ Shielded External eSATA Cable M/M

ESATA6

6' Shielded External eSATA Cable M/M

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

PCI2PCMCIA1

1 Port CardBus/PCMCIA to PCI Adapter Card

PCI2PCMCIA2

2 Port CardBus/PCMCIA to PCI Adapter Card

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

SSppeecciiffiiccaattiioonnss

Bus Type Serial ATA

Connectors 2 x eSATA

Maximum Data Transfer Rate

1.5Gbps (SATA I drive)

3Gbps (SATA II drive)

133 Mbps (CardBus standard)

Chipset Initio-1622

OS Support Windows98SE/ME/2000/XP/Vista

Regulatory Certifications CE, FCC, ROHS

Revised: 17 April 2007 (Rev. A)

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.
