StarTech.com SATDOCK25U Manuale utente

SATA Hard Drive Docking

Station

USB to SATA External Hard

Drive Docking Station for 2.5”

SATA Hard Drives

SATDOCK25U

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Driver Installation.........................................................................3

Using the Storage Device............................................... 4

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

The StarTech.com SATDOCK25U Hard Drive Docking Station provides

full and instant access to any 2.5” SATA (SATA 1.5/3.0Gbps) hard drive

or solid state drive, without having to mount the hard drive inside a

computer or install it into an enclosure.

Packaging Contents

1 x SATDOCK25U docking station•

1 x USB “Y” split cable•

1 x Instruction Manual•

System Requirements

2.5” SATA 1.5/3.0Gbps hard drive•

USB enabled computer system with available USB port•

Microsoft Windows• ®2000/XP/Vista/7 (32/64-bit), or

Apple Mac OS®X, or Linux®

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

Hardware Installation

Place the hard drive dock on a ﬂat1.

surface with the drive slot facing

upwards.

Gently insert the 2.5” SATA hard drive into the top slot. Make2.

sure the connector on the hard drive is lined up properly with the

connector inside the drive slot. Make sure the hard drive is ﬁrmly

seated.

Rotate the stabilizing stand on the3.

bottom of the hard drive dock.

Connect the USB “Y” cable’s mini-B connector to the hard drive4.

dock. Connect the primary USB connector into the host computer

USB port. If the hard drive requires additional power, connect the

secondary USB connector into the computer system as well.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS X, Linux

No driver installation is required for these operating systems, as

this hard drive dock is natively supported, so the drivers are already

installed.

Primary

connector

Secondary

connector

Using the Storage Device

Windows 2000/XP/Vista/7

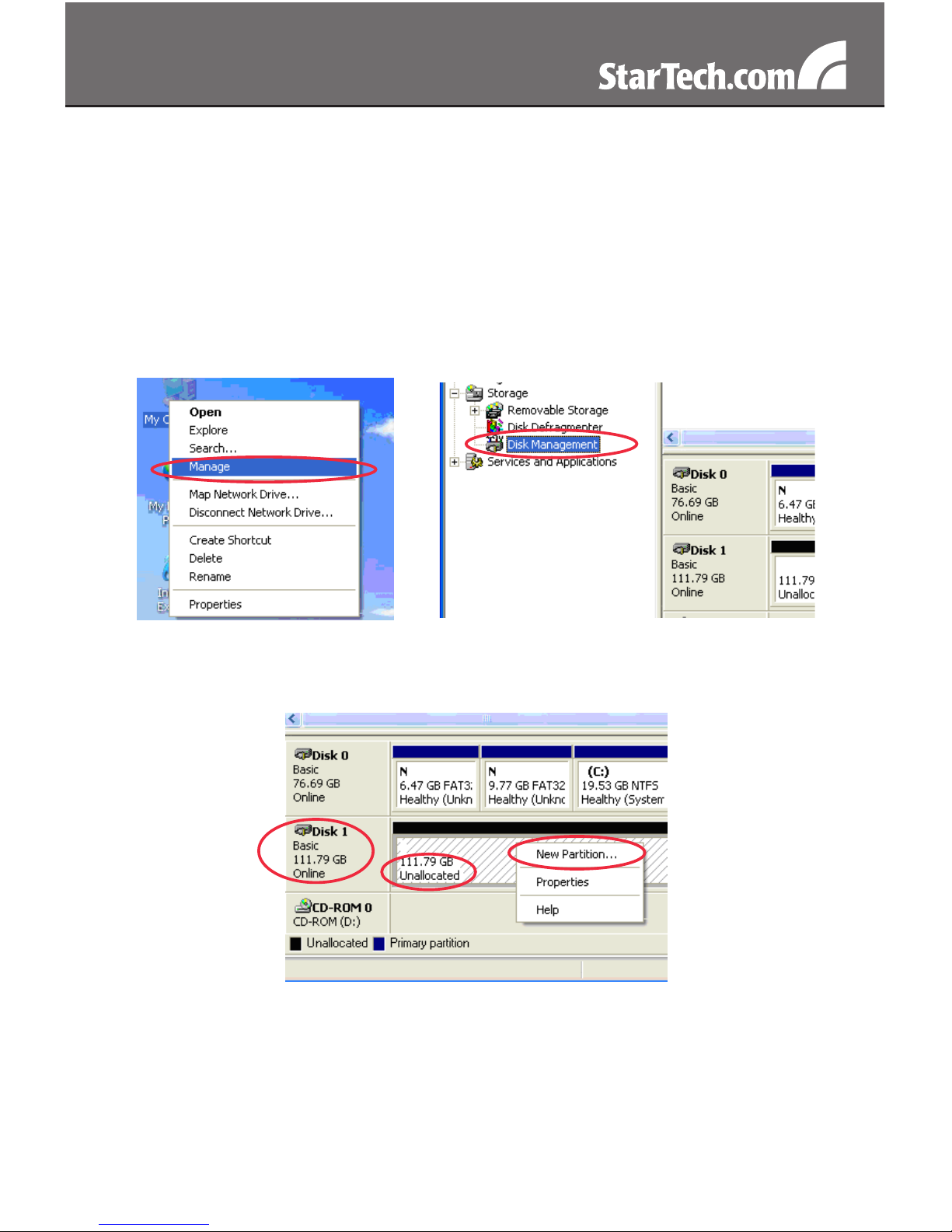

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the

main desktop, right-click on “My Computer” (“Computer” in Vista/7),

then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity

to conﬁrm it’s the correct hard drive) and then right-click in the section

that says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk

should show up as “Healthy” with a drive letter assigned (i.e. E:). This

drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB 2.0

Connectors 1 x USB mini-B

LEDs 1 x Power/Activity

Chipset ID JMicron JM20329

Maximum Data Transfer Rate USB 2.0: 480Mbps

Hard Drive Compatibility 2.5” SATA 1.5/3.0Gbps, 9.5mm

height, capacity up to 500GB

Dimensions 82.0mm x 25.0mm x 36.0mm

Weight 30g

Compatible Operating

Systems

Windows 2000/XP/Vista/7

(32/64-bit), Mac OS X, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.
