StarTech.com UNIDOCK2U Manuale utente

Serial ATA Hard Drive

Docking Station

USB to SATA, IDE External Hard

Drive Docking Station

for 2.5” or 3.5” Hard Drives

UNIDOCK2U

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Front View....................................................................................2

Rear View ....................................................................................2

Hardware Installation...................................................................3

Driver Installation.........................................................................3

Using the Hard Drive Dock ..........................................................4

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

This external SATA and IDE hard drive docking station provides full and

instant access to any 2.5in or 3.5in IDE and SATA (SATA 1.5Gb/s or

3.0Gb/s) hard drive up to 2 TB without having to mount the hard drive

inside a computer or enclosure.

Packaging Contents

1 x UNIDOCK2U hard drive dock•

1 x IDE cable•

1 x 40-pin to 44-pin IDE adapter cable•

1 x LP4 power cable•

1 x USB A to B cable•

1 x Universal Power Adapter•

3 x Power Cords (NA/UK/EU)•

1 x Installation Guide•

System Requirements

USB enabled computer system•

Microsoft Windows• ®2000/XP/Vista/7, Mac OS®9.2 or later

or Linux®

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

USB

connector

Power

Connector

SATA drive slot

Power

button

Drive Eject

button

40-pin IDE

connector

LP4 Molex

power connector

Front View

Rear View

Hardware Installation

Plug the power and USB cable from the rear side of the hard1.

drive dock to a power outlet and the USB port on the computer

respectively.

If connecting a SATA hard drive, simply insert the drive, into the top2.

loading slot on the hard drive dock. Make sure the connectors on

the hard drive face the same corner as the cut-out in the drive slot

door.

If connecting a 3.5” IDE hard drive, attach the short IDE ribbon cable3.

and the separate LP4 molex power connector to the front side of the

hard drive dock. Then attach the 3.5” hard drive to the IDE cable

and LP4 connector.

If using a 2.5” IDE hard drive with 44-pin connector, attach the

included 40-pin to 44-pin ribbon cable with integrated LP4 connector

to the front of the hard drive dock. Then attach the 2.5” hard drive to

the ribbon cable.

Once the hard drives(s) are connected, press the power button on4.

the top of the docking station.

The hard drive(s) should be automatically detected by the operating5.

system.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS 9.2 or later or Linux

No driver installation is required for these operating systems, as

this hard drive dock is natively supported, so the drivers are already

installed.

Using the Hard Drive Dock

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the

main desktop, right-click on “My Computer” (“Computer” in Vista), then

select Manage. In the new Computer Management window, select Disk

Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity

to conﬁrm it’s the correct hard drive) and then right-click in the section

that says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk

should show up as “Healthy” with a drive letter assigned (ie. E:). This

drive letter should now appear within “My Computer”.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within “My Computer”. You can verify or change the drive

letter through Disk Management, as outlined above.

Specications

Bus Interface USB 2.0

Connectors

Front

1 x 40-pin IDE male

1 x 4-pin LP4 molex

Top

1 x 7+15 SATA

Rear

1 x USB type B

1 x Power Adapter

Chipset JMicron JM20337

Hard Drive Compatibility

2.5” or 3.5” SATA 1.5 or 3.0 Gb/s

with max capacity of 1.5TB

2.5” or 3.5” IDE hard drive

Power Adapter 12VDC, 3A, center positive

Dimensions 145.0mm x 93.0mm x 145.0mm

Weight 413g

Compatible Operating

Systems

Windows 2000/XP/Vista/7,

Mac OS 9.2 or later, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Indice

Altri manuali StarTech.com Stazione di attracco

StarTech.com

StarTech.com Thunderbolt TB3CDOCKDP Manuale utente

StarTech.com

StarTech.com USB3SDOCKDD Manuale utente

StarTech.com

StarTech.com SATDOCK4U2E Manuale utente

StarTech.com

StarTech.com USB3DOCKHDPC Manuale utente

StarTech.com

StarTech.com Thunderbolt 3 Series Manuale utente

StarTech.com

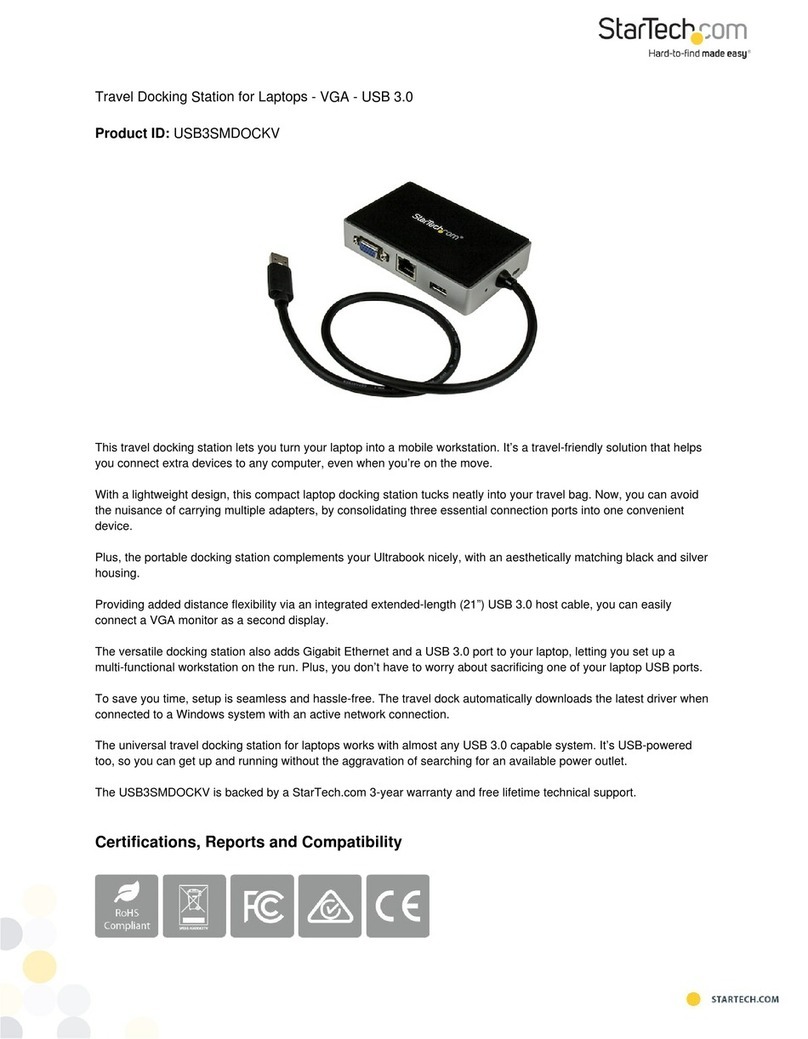

StarTech.com USB3SMDOCKV Manuale utente
