StarTech.com SAT3510U3V Manuale utente

Manual Revision: 08/10/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SAT3510U3V

SAT3510U3VGB

3.5in SuperSpeed USB 3.0 SATA Hard Drive

Enclosure

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation...................................................................................................................................... 4

Using the Enclosure ...............................................................................5

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

The StarTech.com USB 3.0 to SATA external hard drive enclosure allows almost any

standard 3.5-inch internal SATA Hard Disk Drive (HDD) to be made into a cost-eective

external SuperSpeed USB 3.0 hard drive. With data transfer rates up to 5 Gbps (10 times

faster than USB 2.0), speed is no longer compromised for convenience, ease of use or

portability. The USB 3.0 HDD Enclosure is backward compatible with USB 2.0, making it

more than suitable for use with computers that don’t yet have USB 3.0 ports.

Packaging Contents

• External Hard Drive Enclosure

• USB 3.0 cable

• Screw kit

• Power Adapter

• Enclosure Stand

• Instruction Manual

System Requirements

• USB enabled computer system with available USB port

• Available power outlet

• 3.5” SATA hard drive (SATA revision 1/2/3 compatible)

• Microsoft®Windows®XP/Server 2003/Vista/Server 2008 R2/7/8

(32/64-bit)

Instruction Manual

Installation

WARNING! Hard drives require careful handling, especially when being transported. If

you are not careful with your hard disk, lost data may result. Always handle your hard

drive and storage device with caution.

Hardware Installation

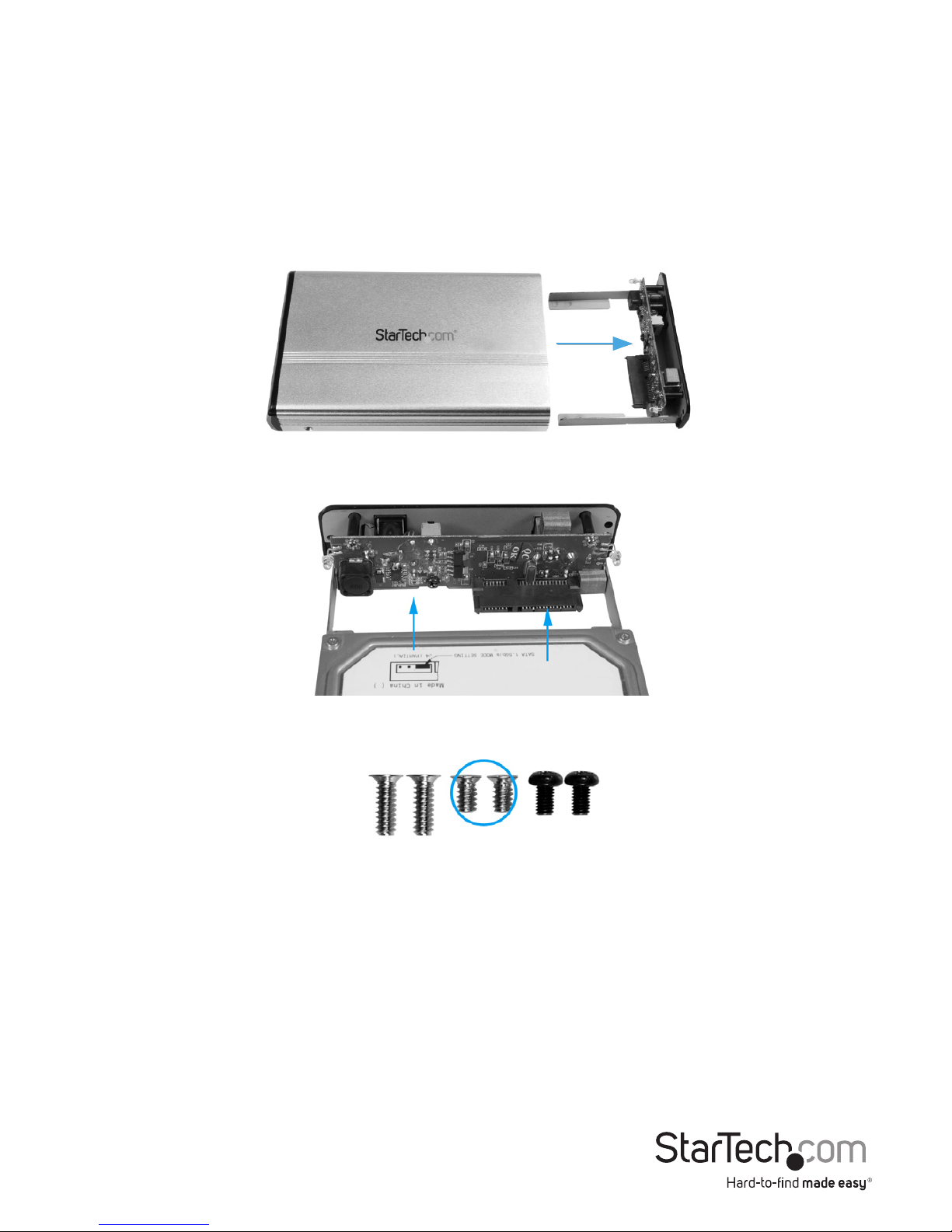

1. Gently pull the rear panel away from the enclosure casing, to expose the internal

SATA connections:

2. Align the SATA connector on the hard drive with the connectors on the rear panel and

connect them together. Ensure the SATA drive is sitting squarely between the rails:

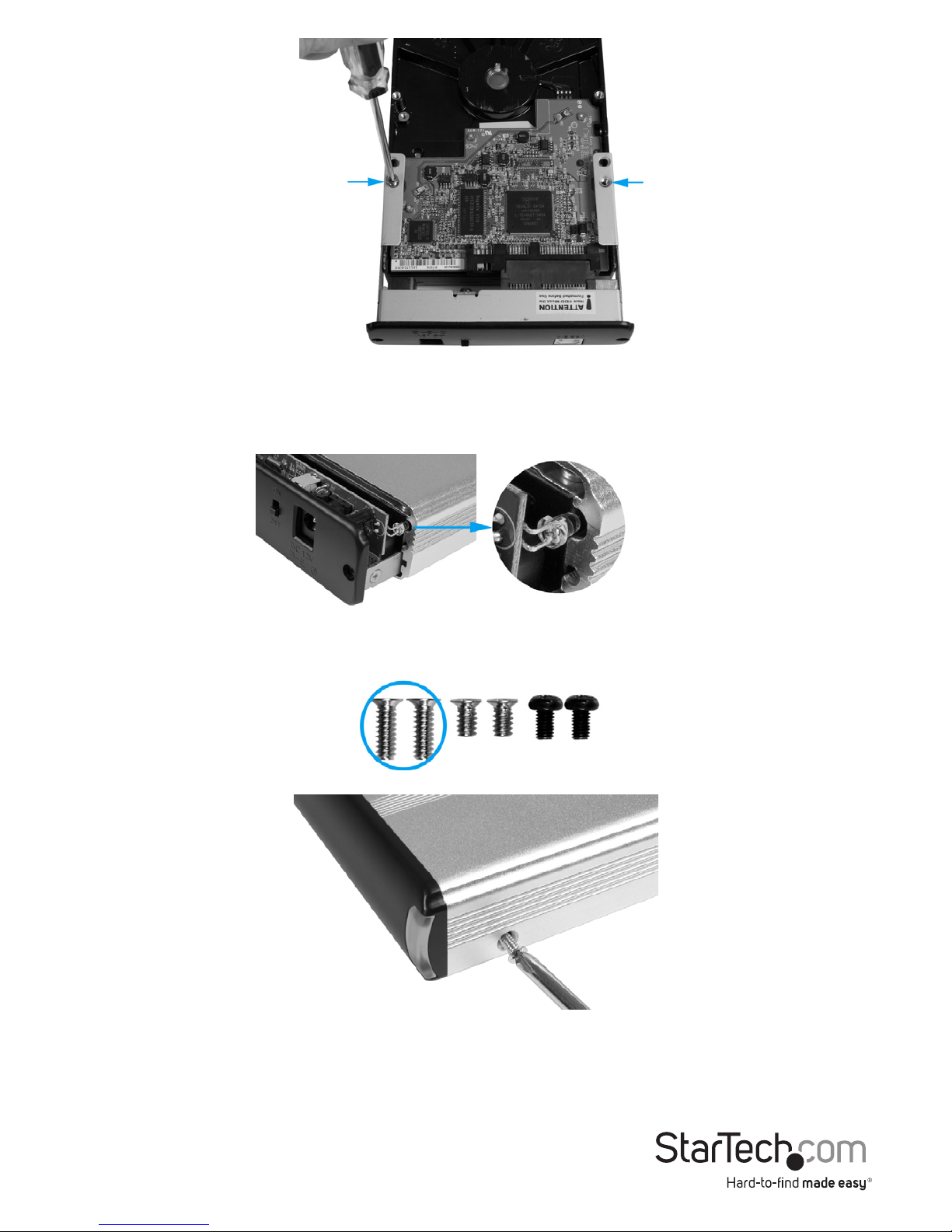

3. With the hard drive connected to the rear panel, turn the drive over to expose its

base. Fasten the hard drive to the rails on both sides, using the screws provided:

Instruction Manual

4. Carefully slide the rear panel assembly (with drive attached) into the body of the

Enclosure; be cautious that the rear panel assembly is properly aligned with the

body of the Enclosure to prevent damage to the LEDs.

5. At the front end of the enclosure, fasten both sides of the case to lock the hard drive

in place:

Instruction Manual

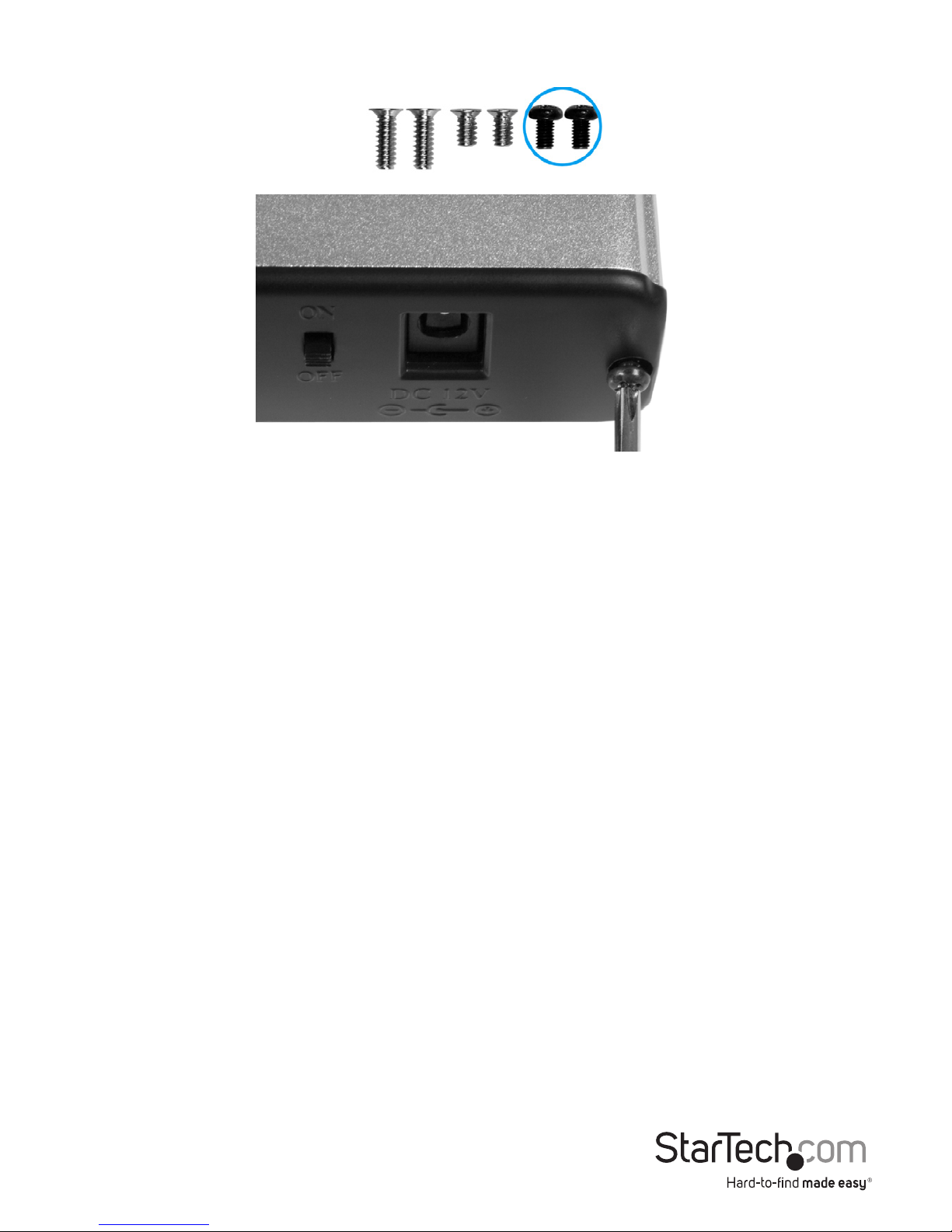

6. Fasten the rear panel to the enclosure casing on both sides using the screws

(2) provided.

7. Once the drive has been secured within the Enclosure, connect the DC power

adapter to the DC power port. Connect the remaining end of the power adapter to

an available electrical outlet.

8. Connect the USB cable to the USB host port on the rear panel of the Enclosure then

connect the remaining end of the cable to the host computer.

NOTE: If no host connection is detected (USB cable unplugged or computer turned

o), the enclosure will automatically go into Suspend Mode and power down the SATA

drive until an active host connection is detected.

9. With the host computer powered on, power on the Drive Enclosure using the On/

O switch. The operating system will automatically detect and install the SATA drive.

Once complete, the drive should be ready for use.

NOTE: The enclosure will automatically go into Suspend Mode if the connection is left

idle for more than 5 minutes. The SATA drive will be powered down but still visible

to the operating system. Accessing the SATA drive will automatically cancel Suspend

Mode and power the drive back up.

Driver Installation

No driver installation is required for the compatible operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Instruction Manual

Using the Enclosure

Windows 2000/XP/Vista/7/8

If you are using a brand new hard drive that does not contain any data, then you will

rst need to prepare the hard drive for use. From the main desktop, right-click on

“My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer

Management window, select Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the

correct hard drive) and then right-click in the section that says“Unallocated” and select

“New Partition”.

Instruction Manual

The New Partition Wizard will appear. Follow the instructions in the wizard to

complete setting up the drive. Once complete, the Disk should show up as “Healthy”

with a drive letter assigned (i.e. E:). This drive letter should now appear within My

Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the

drive should automatically show up with a drive letter assigned within My Computer.

Instruction Manual

Specications

Bus Interface USB 3.0

Chipset ID JMicron JMS539

External Connectors 1 x USB 3.0 type B female

1 x DC Power

LEDs 1 x Power/Activity

Maximum Data Transfer Rate USB 3.0: 5 Gbps

Compatible Hard Drives 3.5” SATA 1.5/3.0/6.0 Gbps compatible hard

drives

Power Adapter 12VDC, 2000mA, center positive, type M plug

Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)

Humidity 5 ~ 90% RH

Dimensions 186.0mm x 104.0mm x 31.5mm

Weight 570 g

Compatible Operating Systems Windows XP/Server 2003/Vista/Server 2008

R2/7/8 (32/64-bit)
