StarTech.com ST121UTPMINI Manuale utente

Manual Revision: 03/30/2011

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

For the most up-to-date information, please visit: www.startech.com

ST121UTPMINI

Mini VGA Video and Audio Extender over Cat5

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected names and/or

symbols contained in this manual and related documents are the property of their respective

holders.

Instruction Manual i

Table of Contents

Introduction .......................................................................................................................................................1

Features...........................................................................................................................................................1

Package Contents.....................................................................................................................................1

Transmitter Unit .........................................................................................................................................2

Receiver Unit................................................................................................................................................2

Installation............................................................................................................................................................3

Transmitter Unit .........................................................................................................................................3

Receiver Unit................................................................................................................................................3

UTP Cat5 Cable ..........................................................................................................................................4

Wiring Diagram.................................................................................................................................................4

Specications.....................................................................................................................................................5

Technical Support...........................................................................................................................................6

Warranty Information....................................................................................................................................6

Instruction Manual 1

Introduction

Thank you for purchasing a StarTech.com Converge A/V Mini VGA over Cat5 UTP Extender and

Receiver. Providing a high resolution point to point digital signage solution, the extender sends

the video signal to a remote monitor / display or projector over standard 4 pair CAT5e UTP cable,

using RJ45 connectors and supports transmission distances of up to 90m (275ft).

The ST121UTPMINI is an out-of-box solution that includes both the local transmitter and remote

receiver. The receiver is compact enough to be tucked away behind the display in tight spaces

for any installation.

Features

• Transmits VGA Video and Audio through one Cat5 cable

• Supports resolutions up 1920x1200 at 90m (275ft.)

• Pure hardware design, no software or drivers required

• Transmitter uses a USB port on PC or media player as a power source, meaning less clutter at

your signal source

• Receiver uses a power adapter for signal enhancement and has a built in equalizer for ne

tuning image quality

Package Contents

• 1 x VGA and Audio Transmitter (Local)

• 1 x VGA and Audio Receiver (Remote)

• 1 x Universal Power Adapter

• 1 x Instruction Manual

Instruction Manual 2

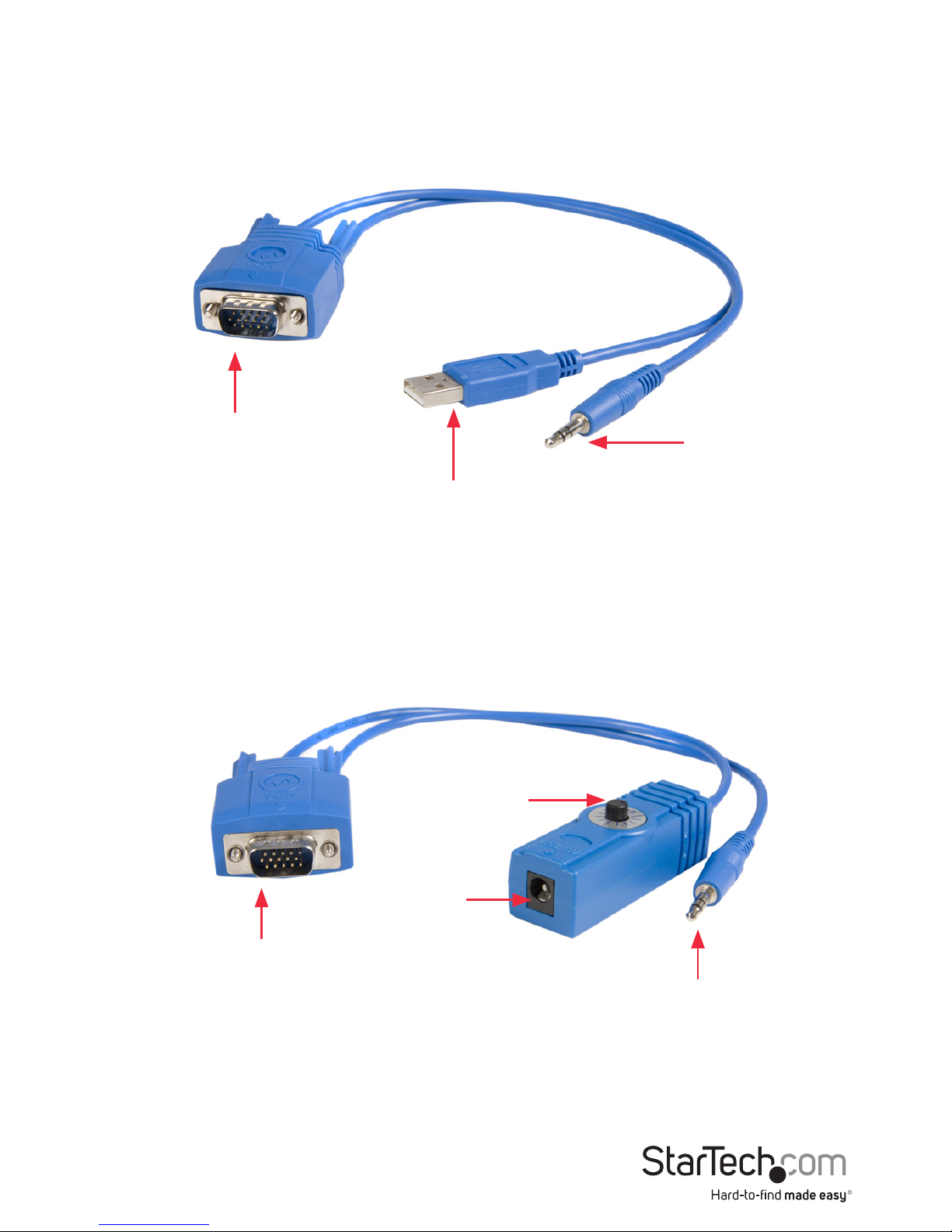

DE-15 VGA

connector

USB connector

3.5mm Audio

mini-jack

DE-15 VGA

connector 3.5mm Audio

mini-jack

DC Power

connector

EQ Adjustment dial

Transmitter Unit

Receiver Unit

Instruction Manual 3

Installation

Transmitter Unit

1. Attach the Transmitter unit to the VGA source’s VGA output connector.

2. If using audio, connect the 3.5mm audio cable to the audio output connector.

3. To power the Transmitter unit, connect the integrated USB cable to an available USB port on

the video source device.

4. To test the VGA signal to the Transmitter unit, turn on the VGA source and observe the LED

indicators. The Video Sync LED should light up solid, if a good video signal is detected.

Receiver Unit

1. Attach the Receiver unit to the display’s VGA input connector.

NOTE: If the display has a VGA input that makes directly attaching the Receiver unit

dicult, use an appropriate length VGA extension cable

(i.e. StarTech.com ID: MXT101HQ3).

2. If using audio, connect the 3.5mm audio cable to the display’s audio input, or separate audio

receiver/speaker system.

3. To power the Receiver unit, connect the included DC power adapter.

4. The Video Sync LED should start blinking, as no video source is connected to the Receiver

unit yet.

Video Sync

LED

RJ45 Link

LED

RJ45

connector

Instruction Manual 4

UTP Cat5 Cable

1. Ensure that the Cat5 UTP cable being used has 568B terminations at both ends and does not

exceed the maximum recommended length of 180 metres (590 feet).

2. The UTP cable should not pass through any networking equipment, such as routers, switches,

hubs, etc.

3. Attach one end of the Cat5 cable to the transmitter of the St121UTPMINI and the other end

to the receiver. The RJ45 Link LED on both units should light up to indicate the connection

is detected.

4. Use the equalizer dial on the receiver to adjust the signal to the display.

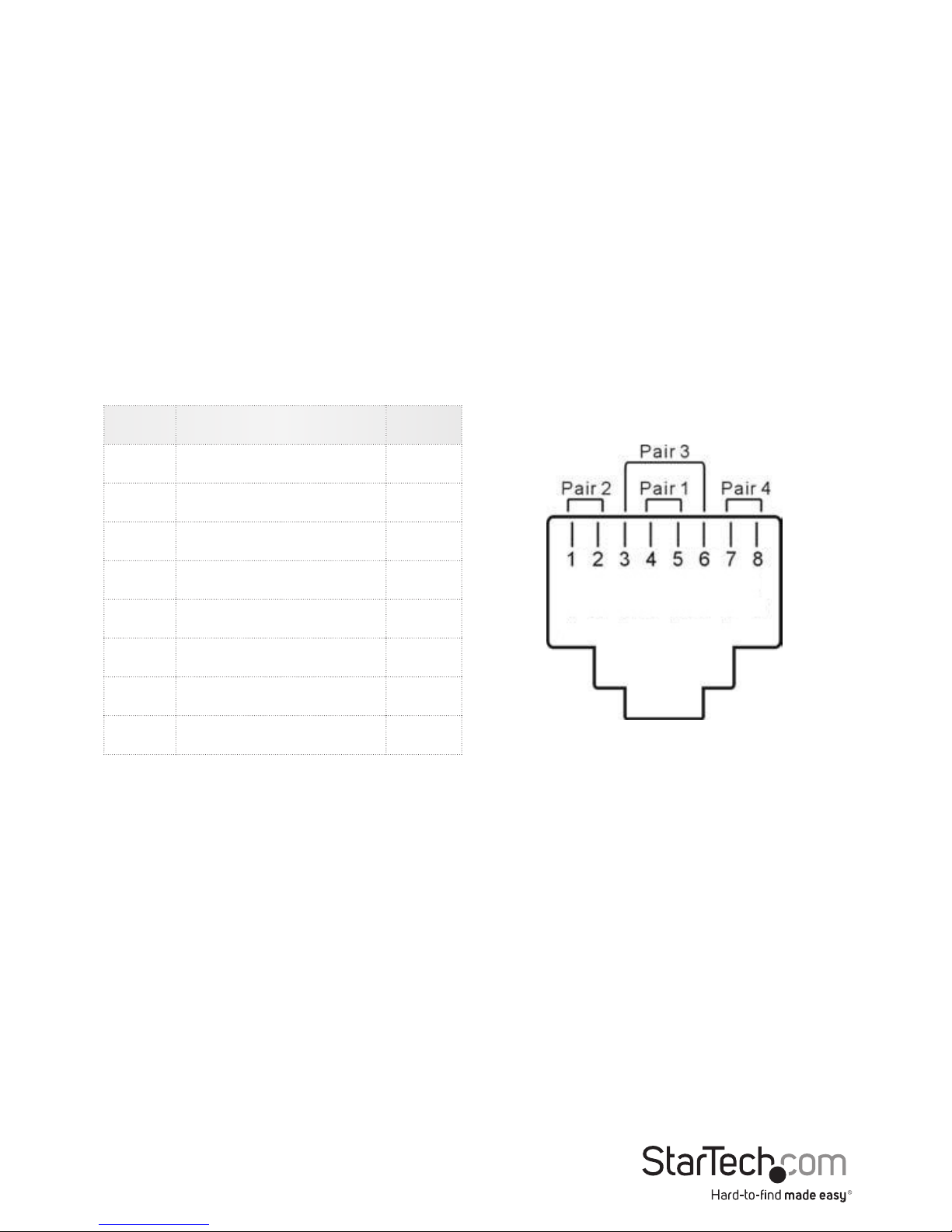

Wiring Diagram

T568B Termination

Pin Wire Color Pair

1 White/Orange 2

2 Orange 2

3 White/Green 3

4 Blue 1

5 White/Blue 1

6 Green 3

7 White/Brown 4

8 Brown 4

Instruction Manual 5

Specications

ST121UTPMINI

Video Signal VGA (RGBHV)

Connectors (Local)

1 x DE-15 VGA male

1 x 3.5mm mini-jack

1 x USB type A

1 x RJ45

Connectors (Remote)

1 x DE-15 VGA male

1 x 3.5mm mini-jack

1 x DC Power

1 x RJ45

LED Power and Video Status

Maximum Video Resolution 1920x1200 @ 90m/275ft

Maximum Distance 90m/275ft

Compatible Cabling Cat5e, Cat6

Audio Support Yes (analog stereo)

Power Adapter 5VDC, 1.2A, center positive

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 10 ~ 90% RH

Instruction Manual 6

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-ment to provide industry-

leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the

periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors,

employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse-

quential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to

the use of the product exceed the actual price paid for the product. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old

and new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they

need to go. Just talk to one of our tech advisors or visit our website. You’ll be

connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products

and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
